Rack Installation

The supplied equipment is designed for standard 19inch racks.
Rack Stability
Ensure the rack is stable before installing the slide rails and appliance.
• Check that the leveling jacks on the bottom of the rack are fully extended to
the floor with the full weight of the rack resting on the jacks
• For single rack installation, stabilizers should be attached to the rack; for
multiple rack installations, the racks should be coupled together
Appliance Installation
• To avoid personal injury or equipment damage, use a lifting device
• Do not pick up the appliance by the front handles
• Each inner rail has a system lock out tab to prevent the appliance from
sliding out, ensure that it is locked when installing the appliance
• Prevent Electrostatic discharge (ESD) damage by wearing antistatic devices
• Do not place heavy objects on the appliance
What You Will Need
• Philips screwdriver, level & tape measure
• Rack-provided cage nuts and screws
• A lifting device or additional support
• ESD antistatic gear
Support
For video support on installing these slide rails, please visit:
https://video.fortinet.com
For additional support, please visit:
http://support.fortinet.com
24

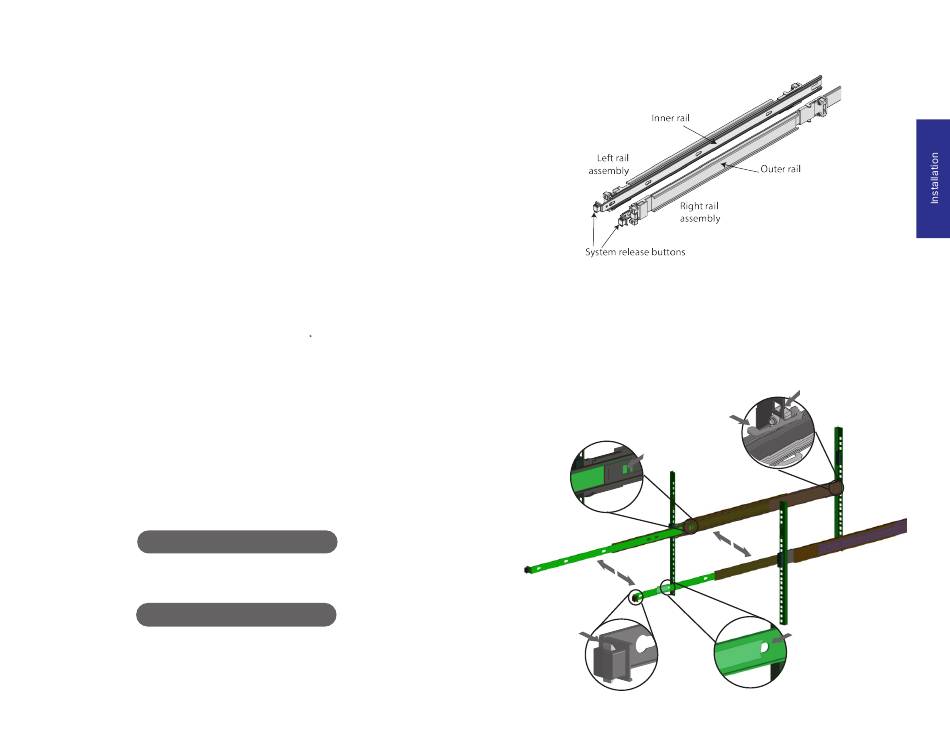

Rail Assembly
•
• The rail kit includes a left and a right rail assembly
• Each rail assembly includes an inner rail, a middle rail, and an outer rail
• The inner rail has locking keyholes used to secure the rail to the appliance
• The inner rail rear end has a lock out tab which slides into the middle rail
• The middle rail is in the outer rail and used to guide the inner rail into the
outer rail
• The outer rail has front and rear mounting pins that push into to the rack holes
• The outer rail also has front and rear locking latches to secure the rail to the
rack
Locking Latch
Lock Out Tab
Outer Rails
Inner Rails
Release Tab
Mounting Pins
Locking Keyhole
25
