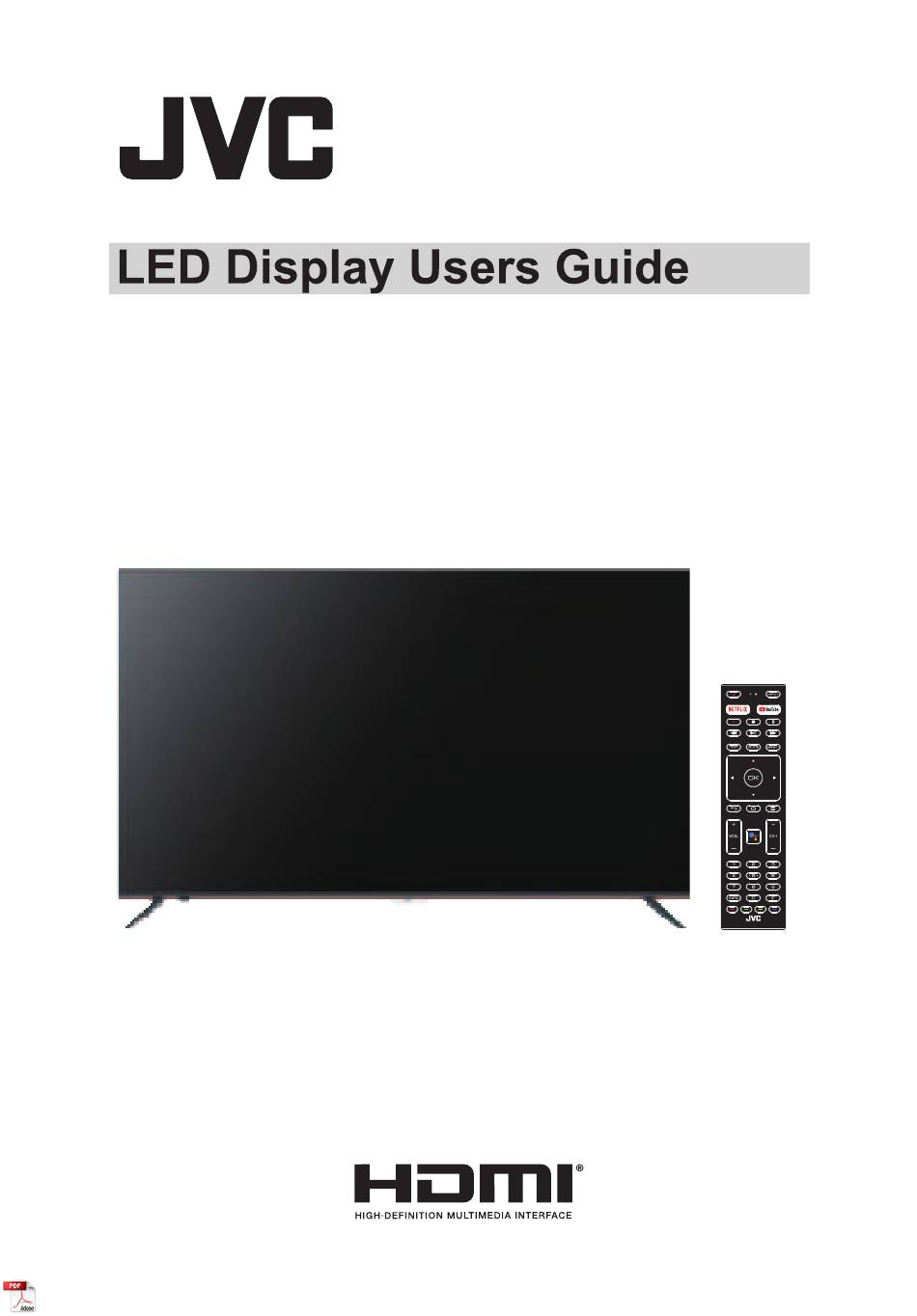

- Page 1 AV-H657115A 65" Class RM-C3416...
-
Page 2: Table Of Contents
Table of Contents Warning and precautions…………….……………..…………………...………..……2 Important safety instructions ………………………………..……..………..……3 Warnings and cautions…………………………………………………………….…..….5 Technical specifcations…………………………………………………….……...……..6 Installation………………………………………………………………………..….…….7 Remote control………………………………………………………………….…...……12 Operation………………………………………………………………………...……..…13 Troubleshooting ………………………………………………………………..……...…25 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 3: Warning And Precautions
WARNING AND PRECAUTIONS... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS... - Page 5 IMPORTANT SAFETY INSTRUCTIONS...
-
Page 6: Warnings And Cautions
WARNINGS AND CAUTIONS Warning High voltages are used in the operation Caution of this television receiver. Do not remove Do not trap the power supply cord under the cabinet back from your set. Refer the television receiver. servicing to qualified service personnel. Caution Warning Never stand on, lean on, or suddenly push... -
Page 7: Technical Specifcations
TECHNICAL SPECIFICATIONS Viewing Picture Size (Diagonal) 65" Resolution 3840 x 2160 Aspect Ratio 16 : 9 Brightness 300cd/m² Contrast Ratio 4 0 0 0 : 1 PAL-B/G, I, D/K TV System SECAM-B/G , D/K , L DVB-T, DVB-T2 Input Power Voltage AC 100-240V 50/60Hz Power Consumption 170W... -
Page 8: Installation
INSTALLATION INSTALLATION * Locate the TV where light does not shine onto the screen. * Total darkness or reflection on the screen can cause eyestrain. A soft lighting environment is recommended for comfortable viewing. * Allow ample space between the TV and wall for proper ventilation. * Do not locate the TV in a damp or hot environment to prevent damage. - Page 9 INSTALLATION...
- Page 10 INSTALLATION FRONT PANEL KEYBOARD The control buttons on the TV are located on the bottom of the TV near the LED indicator. ≤8m Bottom Control Key : Select the next channel or move up. : Increase the volume level or move right. RM-C3416 : Decrease the volume level or move left.
- Page 11 INSTALLATION ANTENNA Connect the ANT terminal on the back of the TV to a good quality outdoor antenna. Please note: Aerial connections:IEC(female). Input impendance:75 unbalanced. PRESET MODE (HDMI) V.Freq.(Hz) RESOLUTION 640*480 50/60 800*600 50/60 1024*768 50/60 1360*768 50/60 1280*768 50/60 1920*1080 50/60 3840*2160...
- Page 12 INSTALLATION AV EQUIPMENT You can use the input terminals on TV set rear as follows: VIDEO EQUIPMENT HDMI4 HDMI3 HDMI2 (HDMI2.0 4Kx2K) (HDMI2.0 4Kx2K) (HDMI2.0 4Kx2K) Audio/Video machine with HDMI interfaces Audio Receiver HDMI1(ARC) (HDMI2.0 4Kx2K) It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game, stereo system, etc...
-
Page 13: Remote Control
REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL The remote control uses 2 x 'AAA' batteries (included). Please ensure correct polarities when inserting batteries. This is a Bluetooth remote control. In order to use all its features including voice control, please pair it with the TV as explained in 'Initial Setup' in the next page. -
Page 14: Operation
OPERATION INITIAL SETUP When you turn on your TV for the first time,the setup wizard will guide you through setting up basic settings. Please follow the on-screen instructions for first time setup Accept the Google Terms of Service to improve he product experience select Accept to accept this "... - Page 15 OPERATION ▼▲to select whether to search,select "Scan" ress Set a password for your TV to ensure security to search,select "Skip Scan" to skip the search. and privacy. Press OK to display the on-screen keyboard,and ress OK to complete the setup use the remote control to enter the 4-digit password and automatically jump to the next interface.
- Page 16 OPERATION 2.Under ive TV press the INPUT button to Press BACK to return to the previous menu. If th display the list of input sources.You can select main menu is displayed,pressing BACK will close the desired source. the onscreen menu Network &...
- Page 17 OPERATION ACCOUNTS&SIGN IN Sign in to your Google account, press the UP/DOWN button to select Sign in or Skip. -> -> -> Enter Menu Settings Channel Channels APPS 2. Channel Scan directly enters the ATV+DTV automatic search platform interface of Antenna Update Scan Automatically search for frequency points outside the station...
- Page 18 OPERATION DATE&TIME LANGUAGE: Language :Press ▼▲ button to select the option then press OK button to enter the Automatic date&time selected language. Press ▼▲ button to select the option then press KEYBOARD OK button to enter the sub-menu. (Optional:Use network-provided time,Off) ▼▲...
- Page 19 OPERATION PICTURE Inputs:Press ▼▲ button to select the option then press OK button to enter the sub-menu. HDMI control:Press ▼▲ button to select the option then press OK button to choose ON/OFF. Device auto power off:Press ▼▲ button to select the option then press OK button to choose ON/OFF.
- Page 20 OPERATION ▼▲ Sound style: Press button to select the option HOME SCREEN then press OK button to enter the sub-menu. (Optional:user, Standard,Vivid,Sports,Movie, Music,News) ▼▲ Balance: Press button to select the option.press◀to decrease the parameter.Press▶to increase the parameter. ▼▲ Sound Surround: Press button to select the option then press OK button to choose ON/OFF.
- Page 21 OPERATION CHROMECAST BUILT-IN LOCATION Location status: Press ▼▲ button to select the option then press OK button to enter the sub-menu. (Optional:Use Wi-Fi to estimate location, Off). In this menu, you can read the information and settings of Chromecast. 1.Press ▼▲...
- Page 22 OPERATION ▼▲ Captions: Press button to select the option then n this menu, you can pair Bluetooth devices press OK button to enter the sub-menu. including your Bluetooth remote control. High contrast text: Press ▼▲ button to select the 1.Press the “ MENU ” and LEFT buttons at “...
- Page 23 OPERATION Under the Live TV, press the GUIDE key on the remote to open the EPG interface. Program information will be displayed,and you can operate the EPG menu through the Red/Yellow/Green/Blue key. Under the EPG menu, you can also press PVR key to set up recording schedule. -22-...
- Page 24 OPERATION RECORD When the program is playing, press the PVR key and the program will start to record. Note: A USB memory device must be connected to one of the USB ports in order to do any recording. Under the Live TV,press the menu key and down to select the Record menu. Select Record List,You can watch the recorded programs.
- Page 25 OPERATION Open the schedule list from the Record menu ,and pre recording details will be displayed. Multimedia Formats Photo format JPEG、JPG、PNG、BMP、GIF Movie format AVI、MKV、MP4、MOV、VOB、 DAT、FLV、MPG、WMV、TP、 TRP、M2T、M2V、M4V、 MPEG、3GP、MJPEG、TS Music format MP3、AC3、AAC、WAV、OGG、 FLAC、M4A、AMR Text format For DTV PVR USB stick: Format: FAT32, max 64G HDD: Format: FAT32, max 2T For media playback Format: FAT32/NTFS, max 2T...
-
Page 26: Troubleshooting
TROUBLESHOOTING Symptom Inspection Check Picture Audio Antenna position, direction or Distorted Normal Audio connection picture Electronic equipment, car/ Interference Noise motorcycle, fluorescent light Volume(check if mute is activated or if the audio system Normal Picture Mute connections are not correct) Power cord is not inserted Power switch has not been turned on Contrast and brightness/volume... - Page 28 Register your product at jvctv.com.au/warranty-registration...
