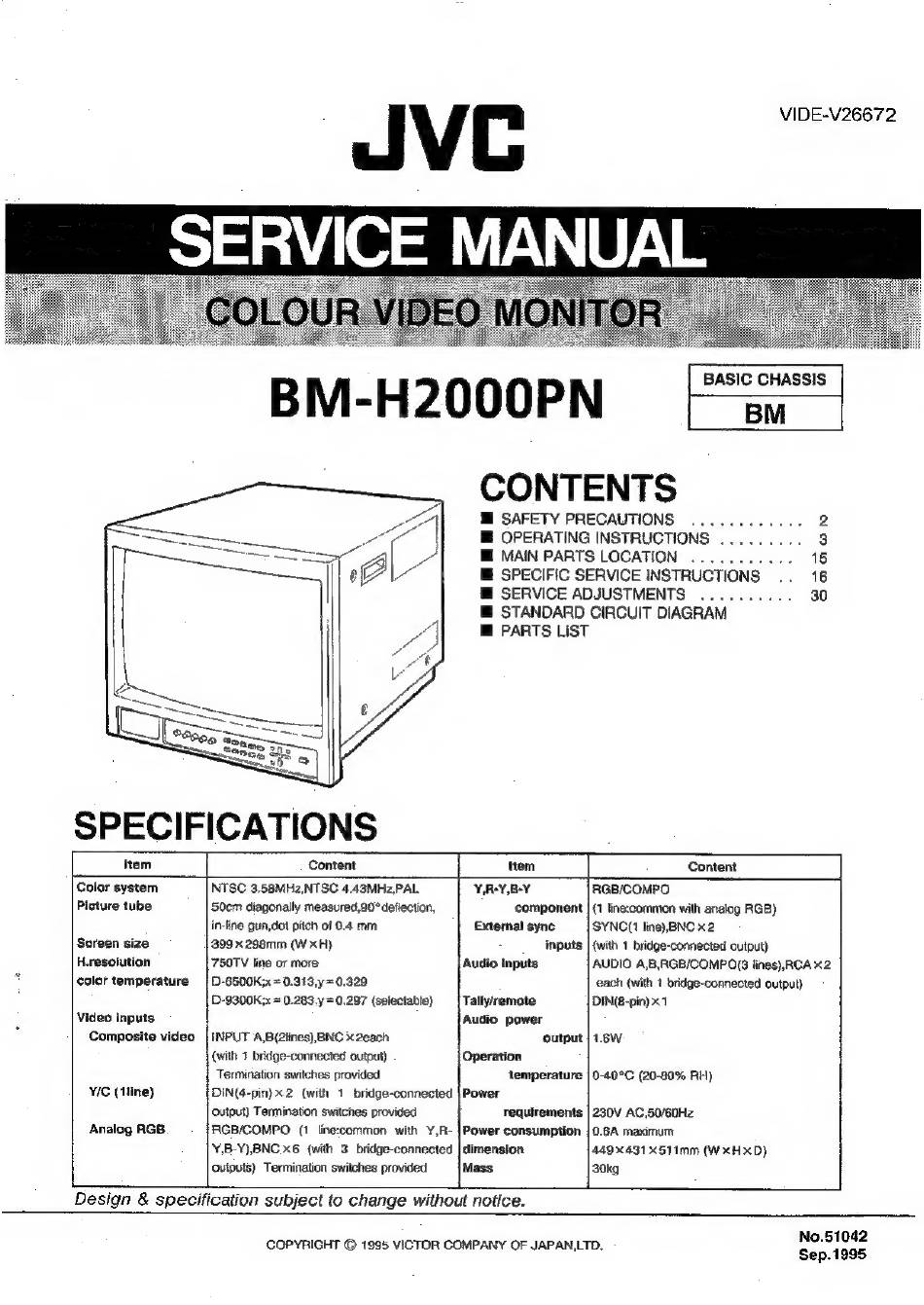

VIDE-V26672
CONTENTS
W SAFETY PRECAUTIONS
............
2
@ OPERATING INSTRUCTIONS
.........
3
@ MAIN PARTS LOCATION
15
@ SPECIFIC SERVICE INSTRUCTIONS
..
16
M@ SERVICE ADJUSTMENTS
..........
30
@ STANDARD CIRCUIT DIAGRAM
@ PARTS LiST
Item
Content
Item
Content
Color system
NTSC 3.58MH2,NTSC 4.43MHz,PAL
Y,R-Y,B-¥
RGB/COMPO
Picture tube
'50em diagonally measured,90°deflection,
component | (1 line:common with analog RGB)
in-line gun,dot pitch of 0.4 mm
External syne
SYNC(1 line), BNC x2
Screen size
399
x 298mm (W XH}
inputs | {with 1 bridge-connected output)
H.resolution
750TV line or more
Audio inputs
AUDIO A,B,RGB/COMPO( lines),RCA x2
'i
color temperature
| D-6500K;x=0.313,y= 0.329
each (with 1 oridge-connected outpul)
D-9300K;x = 0.283.y = 0.297 (selectable) _{ Tally/remote
DIN(6-pin) x1
Video inputs
Audio power
'
Composite video | INPUT A,B(2lines),BNC x 2each
output | 1.6W
{with 4 bridge-connected output)
Operation
Termination switches provided
temperature
|0-40°C (20-80% RH)
Y/C (Hine)
DIN(4-pin)x2 (with 1 bridge-connected {Power
Output) Termination switches provided
requirements | 230V AC,50/60Hz
Analog AGB
RGBICOMPO (1 line:common with Y,R- {Power consumption
|0.6A maximum
Y,B-Y),BNC.x6
{with 3. bridge-connected
|dimension
449X431 X511mm (WxHxD)
Outputs)
Termination switches provided
'Mass
30kg
Design & specification subject to change without notice.
No.51042
