INSTALLATION AND MAINTENANCE INSTRUCTIONS
FSP-951T-SELFT
Intelligent Photoelectric and Temperature
Self-Test Smoke Sensor
SPECIFICATIONS
Operating Voltage Range:
Operating Current @ 24 VDC:
Maximum Alarm Current:
Maximum Self-Test Alarm Current:
Maximum Current:
Operating Humidity Range:
Operating Temperature Range:
Storage Temperature Range:
Air Velocity:
Air Velocity using Self-Test:
Height:
Diameter:
Weight:
Isolator Load Rating:
*Please refer to your isolator base/module manual for isolator calculation instructions.
UL 268 listed for Open Air Protection
UL 521 listed for Heat Detectors
This sensor must be installed in compliance with the control panel system
installation manual. The installation must meet the requirements of the Au-
thority Having Jurisdiction (AHJ). Sensors offer maximum performance when
installed in compliance with the National Fire Protection Association (NFPA);
see NFPA 72.

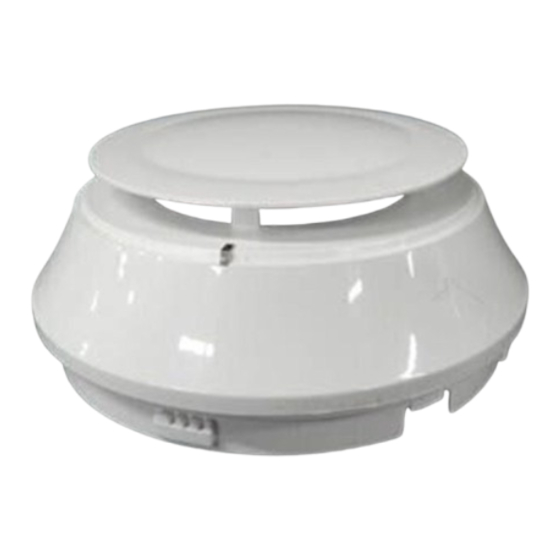

GENERAL DESCRIPTION
Model FSP-951T-SELFT is a plug-in type multi-sensor smoke sensor that com-
bines a photoelectronic sensing chamber and 135°F (57.2°C) fixed temper-
ature heat detector across addressable-analog communications. The sensor
transmits an analog representation of smoke density over a communication
line to a control panel. Its internal Self-Test unit and beaconing capability can
test the detector to relevant requirements of NFPA 72.
Rotary dial switches are provided for setting the sensor's address. (See Fig-
ure 1.) The intelligent photoelectric and temperature sensors also transmit an
alarm signal due to heat at 135°F (57.2°C) per UL 521.
FIGURE 1. ROTARY ADDRESS SWITCHES
7 8
9
6
5 10
11
4
12
3
13
2
14
1 0
15
TENS
Two LEDs on the sensor are controlled by the panel to indicate sensor status.
An output is provided for connection to an optional remote LED annunciator
(P/N RA100Z).
Notifier panels offer different features sets across different models. As a result,
certain features of the photoelectric and temperature sensors may be available
on some control panels, but not on others. FSP-951T-SELFT will support only
FlashScan® protocol mode. The possible features available if supported by the
control panel are:
1. The sensor's LEDs can operate in three ways—on, off, and blinking–and
they can be set to red, green, or amber. This is controlled by the panel.
2. The remote output may be synchronized to the LED operation or con-
trolled independent of the LEDs.
3. Devices are point addressable up to 159 addresses.
5. Yearly maintenance, in accordance to NFPA 72, can use the built in Self-
Test functionality.
Please refer to the operation manual for the UL listed control panel for spe-
cific operation. The photoelectric and temperature sensors require compatible
addressable communications to function properly. Connect these sensors to
listed-compatible control panels only.
15 to 32 VDC
200 uA (one communication every 5 seconds with green LED blink on communication)
2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on)
300 mA (Not be used for battery standby calculation as Self-Test will not work in auxiliary power mode)
4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on)
10% to 93% Relative Humidity, Non-condensing
32°F to 115°F (0°C to 47°C)
-4°F to 140°F (-20°C to 60°C)
0 to 4000 ft./min. (0 to 1219.2 m/min.)
0 to 300 ft./min. (0 to 304.8 m/min.)
2.0˝ (51 mm) installed in B300-6 Base
6.2˝ (156 mm) installed in B300-6 Base; 4.1˝ (104 mm) installed in B501 Series Base
3.5 oz. (100 g)
0.0063*
7 8
6 9
5
4
3
2
1 0
C0162-00
ONES
SPACING & MOUNTING
Notifier recommends spacing sensors in compliance with NFPA 72. In low air
flow applications with smooth ceilings, space sensors 30 feet apart (9.1 m). When
using the photoelectric and temperature sensors as a heat detector in FM3210
compliant applications, space sensors 20 feet apart (6 m). For specific informa-
tion regarding sensor spacing, placement, and special applications, refer to NFPA
72 or the System Smoke Detector Application Guide, available from Notifier.
Duct Applications: FSP-951T-SELFT is not listed for use in ducts.
Mounting Note: Units installed on ceilings must remain in ceiling-oriented
position; those mounted on walls must remain in the wall orientation.
WIRING GUIDE
All wiring must be installed in compliance with the National Electrical Code,
applicable local codes, and any special requirements of the Authority Having
Jurisdiction. Proper wire gauges should be used. The installation wires should
be color-coded to limit wiring mistakes and ease system troubleshooting. Im-
proper connections will prevent a system from responding properly in the
event of a fire. Please note that installation distances, wiring styles and wire
gauge requirements may vary for Self-Test sensors in comparison to standard
sensors, please refer to the panel's SLC Wiring documentation for further in-
formation.
Remove power from the communication line before installing sensors.
1. Wire the sensor base (supplied separately) per the wiring diagram, Figure 2.
2. Set the desired address on the sensor address switches, see Figure 1.
3. Install the sensor into the sensor base. Push the sensor into the base while
turning it clockwise to secure it in place.
4. After all sensors have been installed, apply power to the control panel and
activate the communication line.
5. Test the sensor(s) as described in the TESTING section of this manual.
Dust covers provide limited protection against airborne dust particles during
shipping. Dust covers must be removed before the sensors can sense smoke.
Remove sensors prior to heavy remodeling or construction. The Self-Test func-
tion of your Notifier system can determine that all dust covers on the SLC
have been removed when you run the Self-Test process in order to prove that
there isn't anything causing a potential obstruction for smoke entry.
