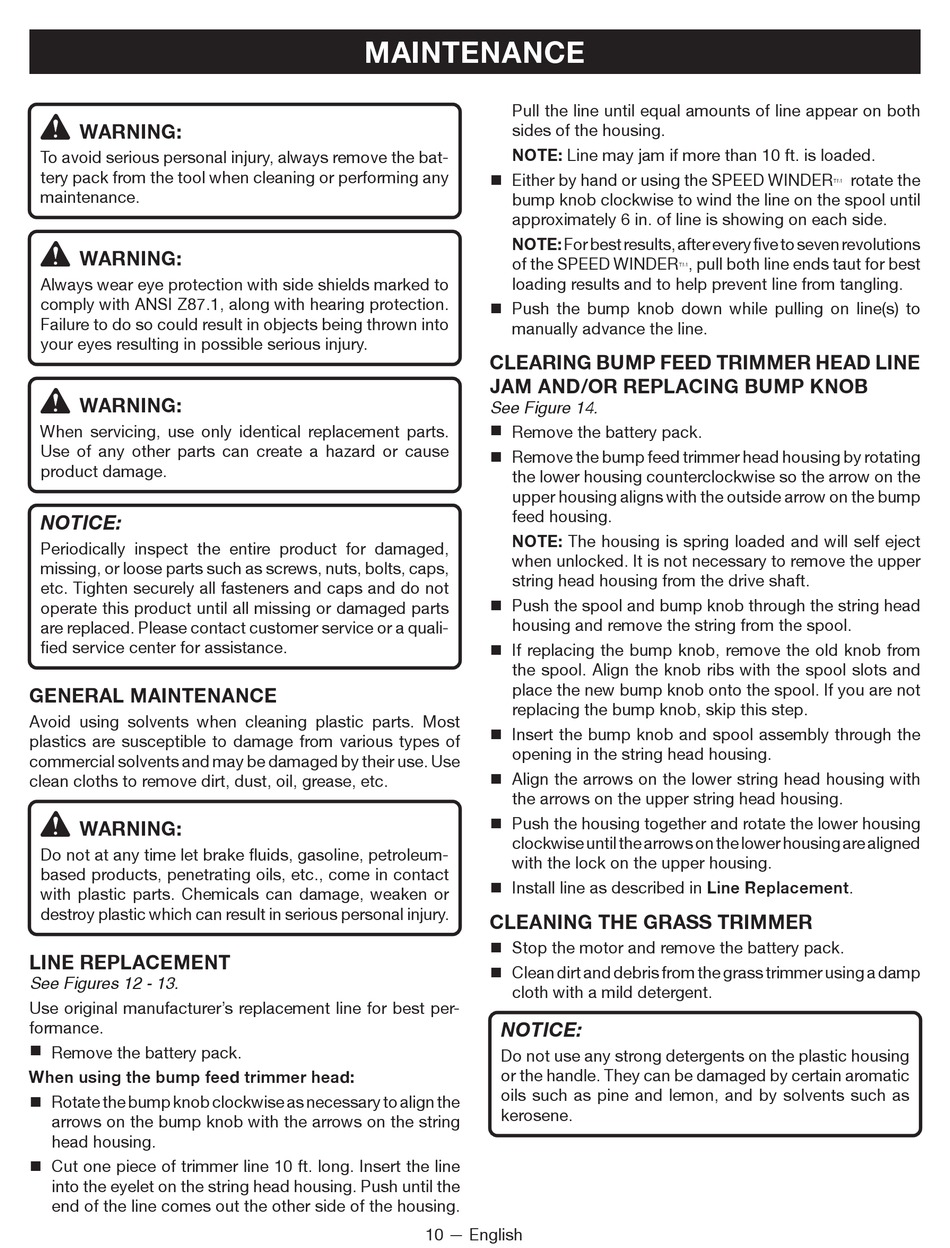

WARNING:
To avoid serious personal injury, always remove the bat-
tery pack from the tool when cleaning or performing any

maintenance.

WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1, along with hearing protection.
Failure to do so could result in objects being thrown into
your eyes resulting in possible serious injury.
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts can create a hazard or cause
product damage.
NOTICE:
Periodically inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced. Please contact customer service or a quali-
fied service center for assistance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which can result in serious personal injury.
LINE REPLACEMENT
See Figures 12 - 13.
Use original manufacturer's replacement line for best per-
formance.
 Remove the battery pack.
When using the bump feed trimmer head:
 Rotate the bump knob clockwise as necessary to align the
arrows on the bump knob with the arrows on the string
head housing.
 Cut one piece of trimmer line 10 ft. long. Insert the line
into the eyelet on the string head housing. Push until the
end of the line comes out the other side of the housing.
MAINTENANCE
Pull the line until equal amounts of line appear on both
sides of the housing.
NOTE: Line may jam if more than 10 ft. is loaded.
 Either by hand or using the SPEED WINDER
bump knob clockwise to wind the line on the spool until
approximately 6 in. of line is showing on each side.
NOTE: For best results, after every five to seven revolutions
of the SPEED WINDER
loading results and to help prevent line from tangling.
 Push the bump knob down while pulling on line(s) to
manually advance the line.
CLEARING BUMP FEED TRIMMER HEAD LINE
JAM AND/OR REPLACING BUMP KNOB
See Figure 14.
 Remove the battery pack.
 Remove the bump feed trimmer head housing by rotating
the lower housing counterclockwise so the arrow on the
upper housing aligns with the outside arrow on the bump
feed housing.
NOTE: The housing is spring loaded and will self eject
when unlocked. It is not necessary to remove the upper
string head housing from the drive shaft.
 Push the spool and bump knob through the string head
housing and remove the string from the spool.
 If replacing the bump knob, remove the old knob from
the spool. Align the knob ribs with the spool slots and
place the new bump knob onto the spool. If you are not
replacing the bump knob, skip this step.
 Insert the bump knob and spool assembly through the
opening in the string head housing.
 Align the arrows on the lower string head housing with
the arrows on the upper string head housing.
 Push the housing together and rotate the lower housing
clockwise until the arrows on the lower housing are aligned
with the lock on the upper housing.
 Install line as described in Line Replacement.
CLEANING THE GRASS TRIMMER
 Stop the motor and remove the battery pack.
 Clean dirt and debris from the grass trimmer using a damp
cloth with a mild detergent.
NOTICE:
Do not use any strong detergents on the plastic housing
or the handle. They can be damaged by certain aromatic
oils such as pine and lemon, and by solvents such as
kerosene.
10 — English
rotate the
™
, pull both line ends taut for best
™
