Summary of Contents for National Instruments NI-9269

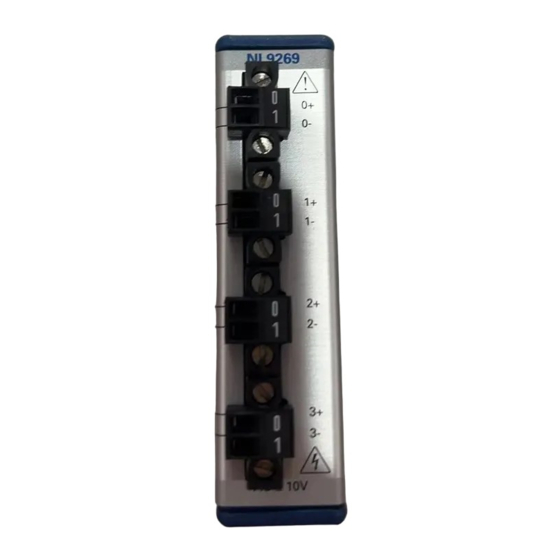

- Page 1 NI-9269 Getting Started 2022-07-01...
-
Page 2: Table Of Contents
NI-9269 Getting Started Contents Overview..............3 Safety Guidelines. -
Page 3: Overview
Note The guidelines in this document are specific to the NI-9269. The other components in the system might not meet the same safety ratings. Refer to the documentation for each component in the system to determine the safety and EMC ratings for the entire system. -
Page 4: Safety Voltages
NI-9269 Getting Started Caution Ensure that hazardous voltage wiring is performed only by qualified personnel adhering to local electrical standards. Attention S'assurer que le câblage à tension dangereuse est effectué par du personnel qualifié respectant les normes électriques locales. Caution Do not mix hazardous voltage circuits and human-accessible circuits on the same product. -
Page 5: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI-9269 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 Gc hazardous locations;... -
Page 6: Safety Compliance And Hazardous Locations Standards
NI-9269 Getting Started Caution The system must be installed in an enclosure certified for the intended hazardous (classified) location, having a tool secured cover/door, where a minimum protection of at least IP54 is provided. Special Conditions for Hazardous Locations Use in Europe and... -
Page 7: Ce Compliance
Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. © National Instruments... -
Page 8: Special Conditions For Marine Applications
NI-9269 Getting Started Special Conditions for Marine Applications Some products are approved for marine (shipboard) applications. To verify marine approval certification for a product, visit ni.com/product-certifications, search by model number, and click the appropriate link. Notice In order to meet the EMC requirements for marine applications, install the product in a shielded enclosure with shielded and/or filtered power and input/output ports. -
Page 9: Preparing The Environment
NI-9269 Getting Started Torque for screw flanges 0.2 N · m (1.80 lb · in.) Weight 156 g (5.5 oz) Preparing the Environment Ensure that the environment in which you are using the NI 9269 meets the following specifications. Operating temperature (IEC 60068-2-1, IEC 60068-2-2) -40 °C to 70 °C... -
Page 10: Analog Output Connections
Analog Output Connections Load – NI 9269 NI 9269 Connection Guidelines Make sure that devices you connect to the NI-9269 are compatible with the ■ module specifications. You must use 2-wire ferrules to create a secure connection when connecting ■... -
Page 11: Increasing Output Voltage Range
NI-9269 Getting Started Increasing Output Voltage Range Each channel of the NI 9269 has a nominal output range of ±10 V and can drive up to ±10 mA of current. The total output current of all channels is limited to ±20 mA. For example, if the output current of AO0 is ±10 mA, the output current of AO<1, 2, 3>... -
Page 12: Product Certifications And Declarations
NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. ni.com © 2022 National Instruments Corporation.
