Cisco Craft Works Interface Quick Start Manual page 20

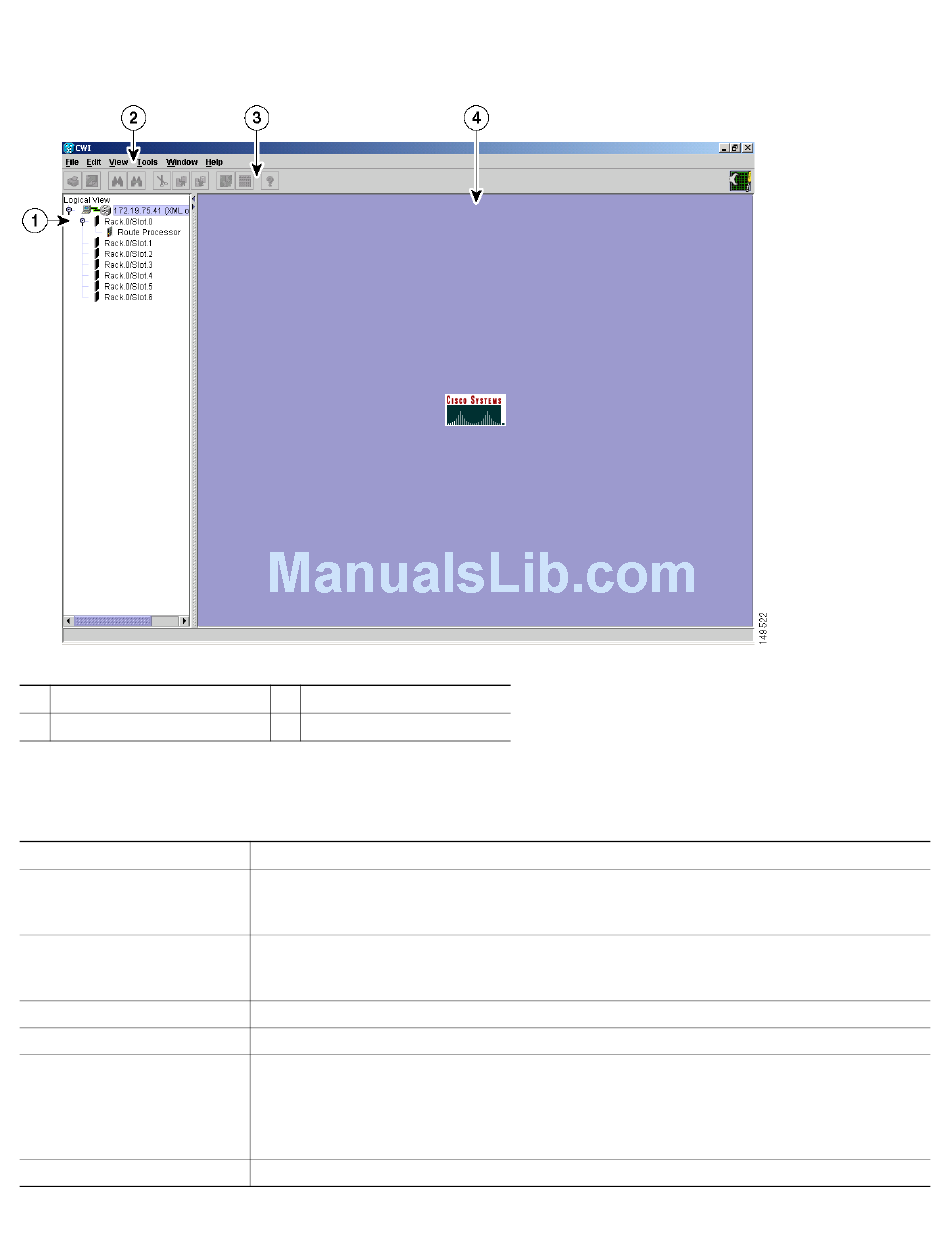

Figure 8 CWI Desktop
Inventory tree
1
2 CWI Desktop menu bar
The CWI Desktop lets you to communicate with the router using the applications that are described in Table 11.
Table 11 Applications for the CWI Desktop
Application
Alarm Dashboard
Alarm Viewer
Inventory Viewer
Interface Viewer
Telnet/SSH/Terminal Plus
Troubleshooter
20
CWI Desktop toolbar
3
4 CWI application pane
Description
Provides a summary of the alarm status information for all routers on the CWI Desktop. A
color code is used to indicate active alarm counts by severity. A resettable running count of
new alarm arrivals is provided.
Provides an interface between CWI and the alarm management functions of the router
controller, allowing you to dynamically view alarm records with powerful filtering
capabilities. Alarm Viewer also provides a launch point to view correlated alarms.
Displays the attribute values of selected objects.
Provides a view of interface attributes for selected cards.
Provides the capability to issue CLI commands and view session information within CWI.
Telnet/SSH/Terminal Plus includes additional CWI features for creating command lists and
running commands from the command list, saving and loading command lists from a file, and
running in batch mode. Additionally, console text can be displayed in a separate window. The
SSH application connects to the router with a secure connection.
Provides fault isolation and repair of connectivity problems between CWI and router.
