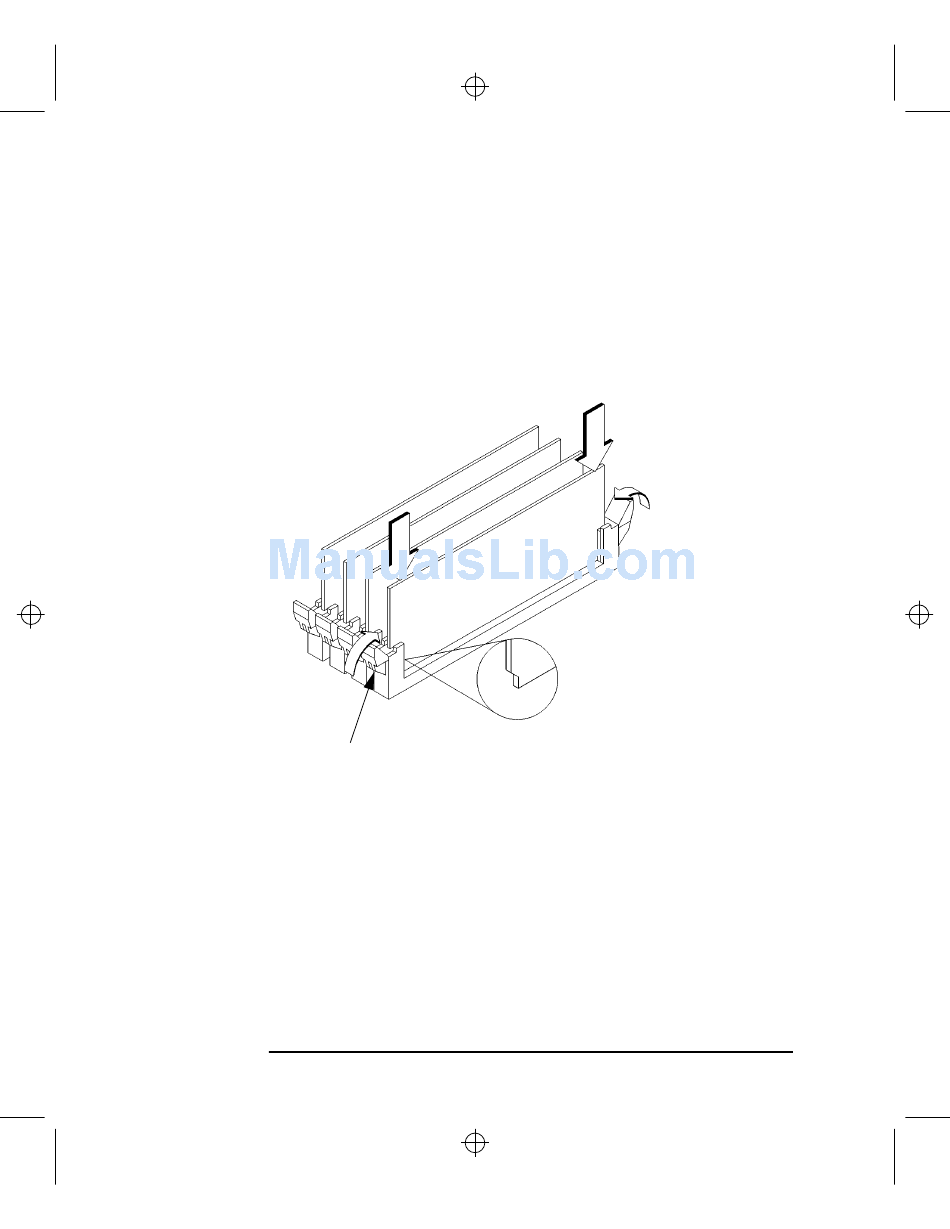

Figure 7
Installing Memory Modules
2 To install a memory module, close the ejector tabs on each side of the memory
connector to lessen the force needed to seat the memory module.
Line the memory module up with the guides, as shown in Figure 7, making sure
that the notched end of the memory module is toward the white ejector tab (to-
ward the left of the CPU board), as shown in Figure 7.
3 Press firmly and evenly on the memory module to ensure that it is fully seated.
White Ejector Tab
Installing a Memory Module
