Dual-Peer PCI Buses
. .
. .
The Compaq Professional Workstation 6000 also uses dual-peer PCI buses to increase system
. .
. .
I/O bandwidth. A single PCI bus provides I/O bandwidth of 133MB/second that must be shared
. .
by many key peripherals such as the graphics controller, hard drive, and NIC. With dual-peer
. .
. .
PCI buses, each bus can provide peek bandwidth in parallel with the other controller, allowing
. .
an aggregate I/O bandwidth of 267MB/second. This implementation provides twice the
. .
. .
bandwidth of single bus architectures. Also, dual PCI buses allow key peripherals to be
. .
connected to separate buses to balance overall system throughput. The dual PCI buses also allow
. .
. .
for greater system I/O integration and expandability by supporting up to 12 PCI devices which is
. .
twice the number supported on single bus implementations. This allows the Compaq
. .
. .
Professional Workstation 6000 to deliver six PCI-based I/O expansion slots while also
. .
integrating other PCI components such as the SCSI and network controllers on the system board.
. .
. .
. .
. .
. .

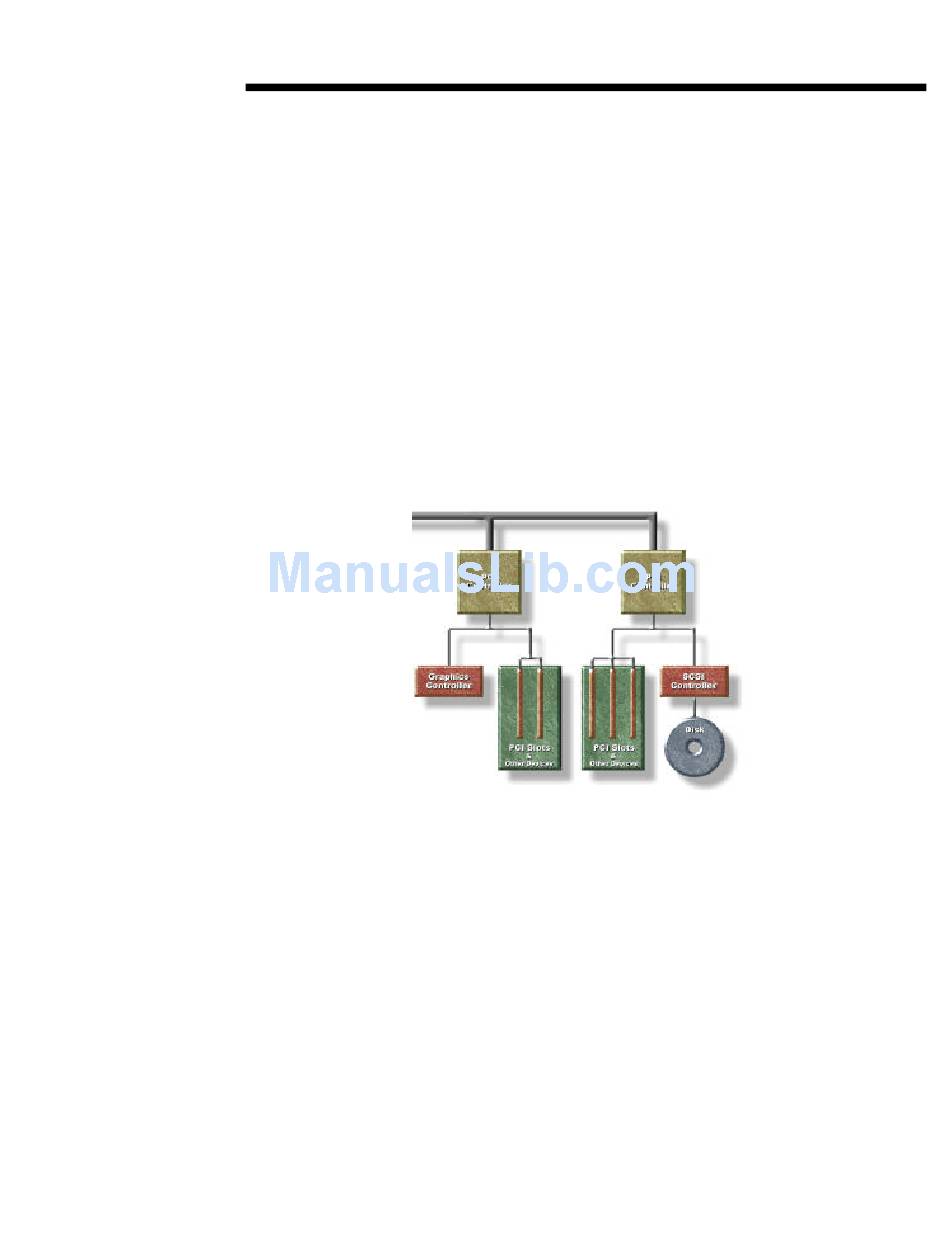

Diagram 3: Dual-Peer PCI Buses.
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
Optimized Multiprocessing Support
. .
. .
Finally, with dual memory controllers and dual-peer PCI buses, the Compaq Professional
. .
. .
Workstation 6000 is able to deliver optimized multiprocessing support. The Intel Pentium II
. .
processor enables multiprocessor support by including circuitry in the processor that determines
. .
. .
how multiple processors can share the CPU bus. However, most multiprocessing
. .
implementations in the Intel based Windows NT workstation market take advantage of this
. .
. .
support by simply adding an additional processor to an already existing desktop design. Compaq
. .
takes multiprocessing to the next step with the Compaq Highly Parallel System Architecture by
. .
. . enhancing memory and I/O bandwidth as well. Multiprocessor Systems designed without the
. .
Compaq Highly Parallel System Architecture will quickly encounter a bottleneck as the multiple
. .
. . processors try to access the other system resources, such as memory and I/O subsystems, that
. .
have not been enhanced to accommodate the additional data traffic. The Compaq Highly Parallel
. .
System Architecture significantly reduces these bottlenecks by incorporating enhanced
. .
. .
subsystem resources, such as dual memory controllers and dual- peer PCI buses, to accommodate
. .
the increased data traffic from the multiple CPUs.
. .
