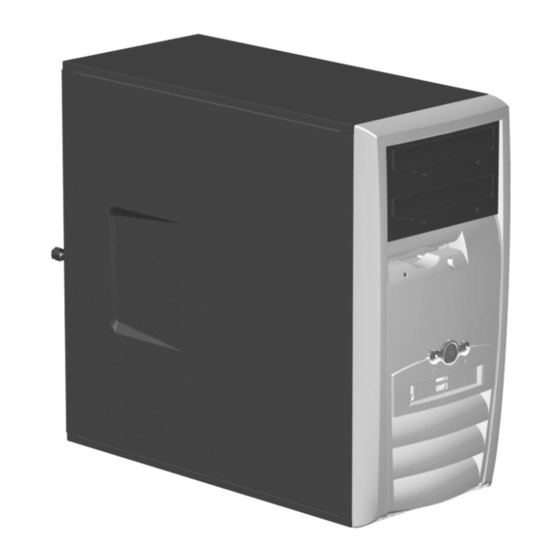

Compaq Presario 6100 Series Manual

Compaq Presario 6000A, 6000T,
6000xx, and 6100xx Series
Desktop

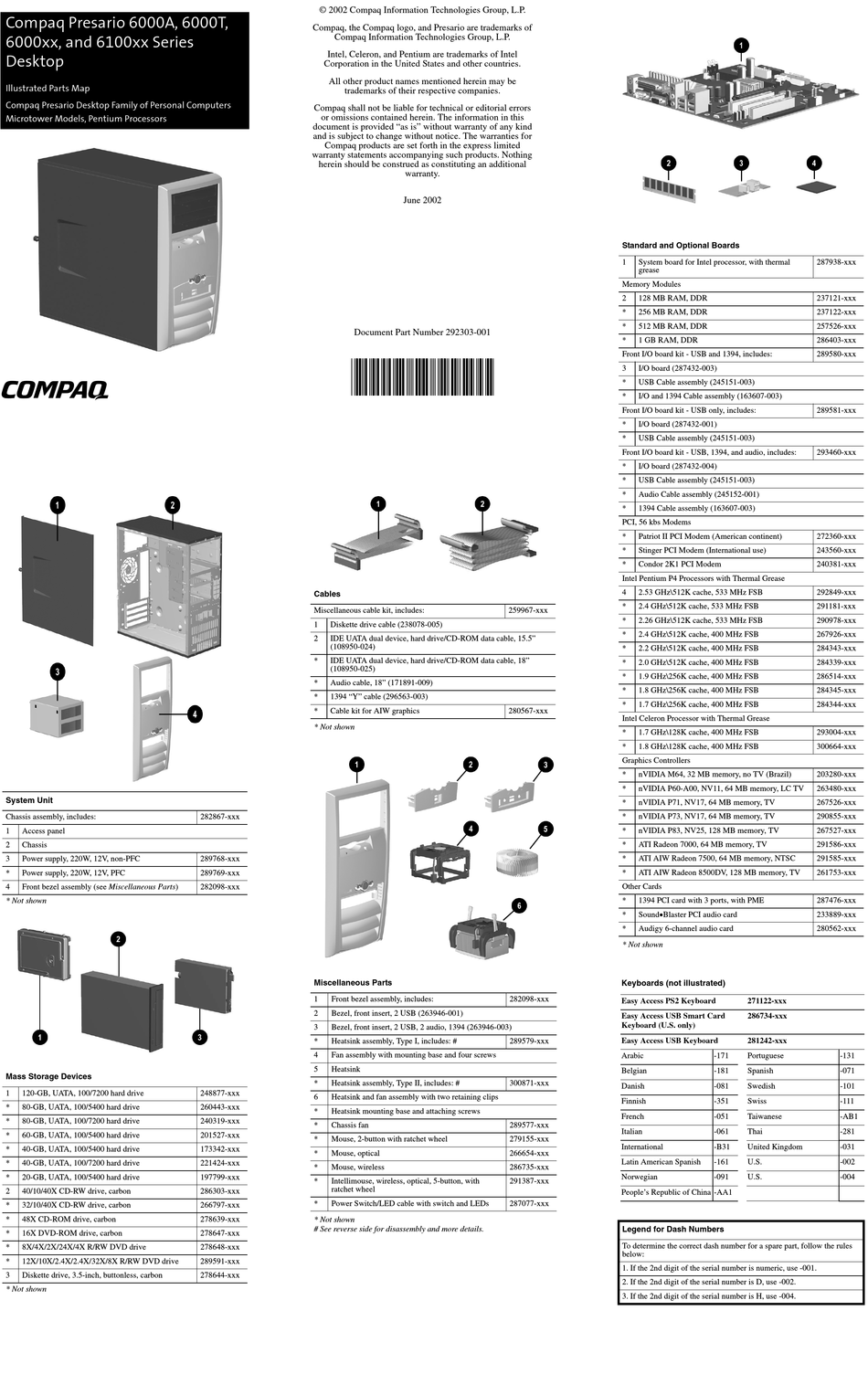

Illustrated Parts Map
Compaq Presario Desktop Family of Personal Computers
Microtower Models, Pentium Processors
b
System Unit
Chassis assembly, includes:
1 Access panel
2 Chassis
3 Power supply, 220W, 12V, non-PFC
* Power supply, 220W, 12V, PFC
4 Front bezel assembly (see Miscellaneous Parts)
* Not shown
Mass Storage Devices
1 120-GB, UATA, 100/7200 hard drive
* 80-GB, UATA, 100/5400 hard drive
* 80-GB, UATA, 100/7200 hard drive
* 60-GB, UATA, 100/5400 hard drive
* 40-GB, UATA, 100/5400 hard drive
* 40-GB, UATA, 100/7200 hard drive
* 20-GB, UATA, 100/5400 hard drive
2 40/10/40X CD-RW drive, carbon
* 32/10/40X CD-RW drive, carbon
* 48X CD-ROM drive, carbon
* 16X DVD-ROM drive, carbon
* 8X/4X/2X/24X/4X R/RW DVD drive
* 12X/10X/2.4X/2.4X/32X/8X R/RW DVD drive
3 Diskette drive, 3.5-inch, buttonless, carbon
* Not shown
© 2002 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, and Presario are trademarks of
Compaq Information Technologies Group, L.P.
Intel, Celeron, and Pentium are trademarks of Intel
Corporation in the United States and other countries.
All other product names mentioned herein may be
trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors
or omissions contained herein. The information in this
document is provided "as is" without warranty of any kind
and is subject to change without notice. The warranties for
Compaq products are set forth in the express limited
warranty statements accompanying such products. Nothing
herein should be construed as constituting an additional
Document Part Number 292303-001
Cables
Miscellaneous cable kit, includes:
1 Diskette drive cable (238078-005)
2 IDE UATA dual device, hard drive/CD-ROM data cable, 15.5"
(108950-024)
* IDE UATA dual device, hard drive/CD-ROM data cable, 18"
(108950-025)
* Audio cable, 18" (171891-009)
* 1394 "Y" cable (296563-003)
* Cable kit for AIW graphics
* Not shown
282867-xxx
289768-xxx
289769-xxx
282098-xxx
Miscellaneous Parts
1 Front bezel assembly, includes:
2 Bezel, front insert, 2 USB (263946-001)
3 Bezel, front insert, 2 USB, 2 audio, 1394 (263946-003)
* Heatsink assembly, Type I, includes: #
4 Fan assembly with mounting base and four screws
5 Heatsink
* Heatsink assembly, Type II, includes: #
248877-xxx
6 Heatsink and fan assembly with two retaining clips
260443-xxx
* Heatsink mounting base and attaching screws
240319-xxx
* Chassis fan
201527-xxx
* Mouse, 2-button with ratchet wheel
173342-xxx
* Mouse, optical
221424-xxx
* Mouse, wireless
197799-xxx
* Intellimouse, wireless, optical, 5-button, with
ratchet wheel
286303-xxx
* Power Switch/LED cable with switch and LEDs
266797-xxx
278639-xxx * Not shown
# See reverse side for disassembly and more details.
278647-xxx
278648-xxx
289591-xxx
278644-xxx
warranty.
June 2002
259967-xxx
280567-xxx
282098-xxx
289579-xxx
300871-xxx
289577-xxx
279155-xxx
266654-xxx
286735-xxx
291387-xxx
287077-xxx
Standard and Optional Boards
1 System board for Intel processor, with thermal
grease
Memory Modules
2 128 MB RAM, DDR
* 256 MB RAM, DDR
* 512 MB RAM, DDR
* 1 GB RAM, DDR
Front I/O board kit - USB and 1394, includes:
3 I/O board (287432-003)
* USB Cable assembly (245151-003)
* I/O and 1394 Cable assembly (163607-003)
Front I/O board kit - USB only, includes:
* I/O board (287432-001)
* USB Cable assembly (245151-003)
Front I/O board kit - USB, 1394, and audio, includes:
* I/O board (287432-004)
* USB Cable assembly (245151-003)
* Audio Cable assembly (245152-001)
* 1394 Cable assembly (163607-003)
PCI, 56 kbs Modems
* Patriot II PCI Modem (American continent)
* Stinger PCI Modem (International use)
* Condor 2K1 PCI Modem
Intel Pentium P4 Processors with Thermal Grease
4 2.53 GHz\512K cache, 533 MHz FSB
* 2.4 GHz\512K cache, 533 MHz FSB
* 2.26 GHz\512K cache, 533 MHz FSB
* 2.4 GHz\512K cache, 400 MHz FSB
* 2.2 GHz\512K cache, 400 MHz FSB
* 2.0 GHz\512K cache, 400 MHz FSB
* 1.9 GHz\256K cache, 400 MHz FSB
* 1.8 GHz\256K cache, 400 MHz FSB
* 1.7 GHz\256K cache, 400 MHz FSB
Intel Celeron Processor with Thermal Grease
* 1.7 GHz\128K cache, 400 MHz FSB
* 1.8 GHz\128K cache, 400 MHz FSB
Graphics Controllers
* nVIDIA M64, 32 MB memory, no TV (Brazil)
* nVIDIA P60-A00, NV11, 64 MB memory, LC TV
* nVIDIA P71, NV17, 64 MB memory, TV
* nVIDIA P73, NV17, 64 MB memory, TV
* nVIDIA P83, NV25, 128 MB memory, TV
* ATI Radeon 7000, 64 MB memory, TV
* ATI AIW Radeon 7500, 64 MB memory, NTSC
* ATI AIW Radeon 8500DV, 128 MB memory, TV
Other Cards
* 1394 PCI card with 3 ports, with PME
* Sound•Blaster PCI audio card
* Audigy 6-channel audio card
* Not shown
Keyboards (not illustrated)
Easy Access PS2 Keyboard 271122-xxx
Easy Access USB Smart Card 286734-xxx
Keyboard (U.S. only)
Easy Access USB Keyboard 281242-xxx
Arabic -171 Portuguese
Belgian -181 Spanish
Danish -081 Swedish
Finnish -351 Swiss
French -051 Taiwanese
Italian -061 Thai
International -B31 United Kingdom
Latin American Spanish -161 U.S.
Norwegian -091 U.S.
People's Republic of China -AA1
Legend for Dash Numbers
To determine the correct dash number for a spare part, follow the rules
below:
1. If the 2nd digit of the serial number is numeric, use -001.
2. If the 2nd digit of the serial number is D, use -002.
3. If the 2nd digit of the serial number is H, use -004.
287938-xxx
237121-xxx
237122-xxx
257526-xxx
286403-xxx
289580-xxx
289581-xxx
293460-xxx
272360-xxx
243560-xxx
240381-xxx
292849-xxx
291181-xxx
290978-xxx
267926-xxx
284343-xxx
284339-xxx
286514-xxx
284345-xxx
284344-xxx
293004-xxx
300664-xxx
203280-xxx
263480-xxx
267526-xxx
290855-xxx
267527-xxx
291586-xxx
291585-xxx
261753-xxx
287476-xxx
233889-xxx
280562-xxx
-131
-071
-101
-111
-AB1
-281
-031
-002
-004
