Compaq 6005 Pro Illustrated Parts & Service Map

Illustrated Parts & Service Map

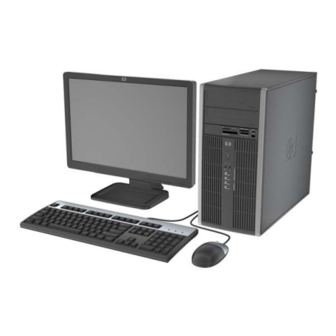

HP Compaq 6005 Pro Microtower Business
PC
©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 581654-001.
Key Specifications
Processor Type AMD Athlon dual core, Phenom Quad Core, Triple Core, Dual
Core, Sempron
RAM Type DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-ECC
Maximum RAM Supported 16 GB
Expansion Slots •
•
•
Graphics Adapter Integrated Radeon HD 4200 supporting DirectX 10.1
Chipset AMD 785G
Drive Support •
•
•
I/O Interfaces USB 2.0 (10, 4 front, 6 rear), DisplayPort, parallel (optional),
serial (1 standard, 1 optional), RJ-45, front and rear audio jacks
(2 each), PS/2 ports (2), VGA connector, dual color diagnostic
LEDs
Operating Systems •
•
•

Spare Parts

System Unit
1 Front bezel
2 Access panel
3 Power supply, 320W
3 Power supply, 320W, 89% efficient
* 5.25-inch bezel blank, jack black
* Not shown
HP Compaq 6005 Pro, MT
1st Edition September 2009.
1 full-height PCI slot
2 full-height PCIe x1 slots
1 full-height PCIe x16 (ADD2/SDVO)
(2) 5.25-inch external optical drive bays
(2) 3.5-inch internal hard disk drive bays
(1) 3.5-inch external bay for optional HP 22-in-1 media
card reader, pocket media drive, or other 3.5-inch device
Windows 7
Windows Vista
Windows XP
Cables
1 Front I/O with USB
2 Power switch/LED cable assembly
3 SATA HDD cable, 18 inch, 1 straight end, 1 angled end
4 Hard drive power cable
* SATA cable, 14 inch, 2 straight ends
* eSATA port assembly
* Optical drive power cable
* Display Port (DP) to DVI cable
* Display Port (DP) to VGA cable
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Standard
USB SmartCard
USB, Mini[a]
Washable[b]
Arabic
Belgian
BHCSY*
Brazilian Portuguese
Bulgarian
Czech
Danish
Finnish
French[b]
French Arabic
French Canadian[a][b]
German
Greek
Hebrew
Hungarian
Iceland
International
Italian[b]
Japanese[a]
Kazakhstan
*Not for 537747-xxx
[a] only countries marked with [a] are valid for 535873-xxx
[b] only countries marked with [b] are valid for 577495-xxx
Mass Storage Devices (not illustrated)
22-in-1 media card reader, 3.5-inch
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
16X DVD±RW SuperMulti drive with LightScribe
16X DVD-ROM drive
500 GB SATA hard drive
500-GB hard drive, 2.5-inch
250 GB, 7200-RPM SATA hard drive
160 GB, 10000-RPM SATA hard drive, 2.5-inch with adapter
160 GB, hard drive, 3.5-inch
80 GB Solid-State Drive (SSD), 2.5-inch with adapter
64 GB Solid-State Drive
250-GB portable USB hard drive
581571-001
585159-001
508153-001
508154-001
570838-001
581654-001
537745-xxx
537746-xxx
537747-xxx
535873-xxx
577495-xxx
-171 Korean (Hangul)[a]
-181 LA Spanish
-B41 Netherlands
-201 Norwegian[b]
-261 Polish
-221 PRC[a][b]
-081 Portuguese
-351 Romanian
-051 Russian
-DE1 Slovakian
-121 Spanish[b]
-041 Swedish[b]
-151 Swiss
-BB1 Taiwanese[a]
-211 Thai[b]
-DD1 Turkish
-B31 Turkish F
-061 U.S.[a][b]
-291 U.K.[b]
-DF1
581573-001
581574-001
393958-001
581575-001
391740-001
497726-001
581576-001
484156-001
484155-001
-KD1
-161
-331
-091
-241
-AA1
-131
-271
-251
-231
-071
-101
-111
-AB1
-281
-141
-541
-001
-031
480032-001
581601-001
581059-001
581599-001
504339-001
449980-001
504337-001
508312-001
504336-001
508311-001
581057-001
500019-001
