Compaq 6000 Supplementary Manual page 18

W P
HITE APER
(cont' d)
Optional rack conversion kit available for the Compaq Professional Workstation 6000,
. . . .
. . . .
which is 5U allowing for up to 8 workstations in a standard Compaq 42U rack. This
. . . .
provides customers with a high density, space saving solution for compute intensive
. . . .
. . . .
applications such as a render farm for 3D animation, or analysis workstations being used for
. . . .
finite element analysis.
. . . .
. . . .
Complete access through front and rear only. Simplifies service and upgrades, especially in
. . . .
. . . .
a rack configuration.
. . . .
. . . .
Compaq continues to deliver products that lower the total cost of ownership. The flexible new
. . . .
. . . . Compaq Professional Workstation 6000 chassis design continues that focus by including features
. . . .
that provide for maximum serviceability and ease of maintenance. Some of the main
. . . .
serviceability features are:
. . . .
. . . .
. . . .
Easy access to internal components
. . . .
. . . .
This minitower chassis provides front, rear, top, and side access for service or upgrade tasks.
. . . .
Most of the major chassis elements are removable without the use of tools. This reduces the
. . . .
. . . .
time it takes to access the internal components of the system and enables upgrades and
. . . .
maintenance to be performed quickly.
. . . .
. . . .
. . . . Removable I/O cage
. . . .
. . . .
Access to the PCI and ISA slots is done easily with access from the top by removing the small
. . . .
access panel or access from the back of the workstation. Access from the back of the workstation
. . . .
. . . .
is made easy because the entire I/O cage is rail-mounted in a lever-actuated quick release cage
. . . .
that allows its quick removal and replacement. This allows for quick and easy installation of
. . . .
. . . .
additional expansion boards.
. . . .
. . . .
Removable processor and memory cage
. . . .
. . . .
The processors and memory are located in the processor and memory cage. This cage, similar to
. . . .
the I/O cage, is easily removed from the back of the workstation because it is also rail-mounted
. . . .
. . . .
in a lever-actuated quick release cage. Simply pull the lever and slide the processor and memory
. . . .
cage out from the back of the workstation. This allows for quick and easy upgrades of both
. . . .
. . . .
system memory and processors.
. . . .
. . . .

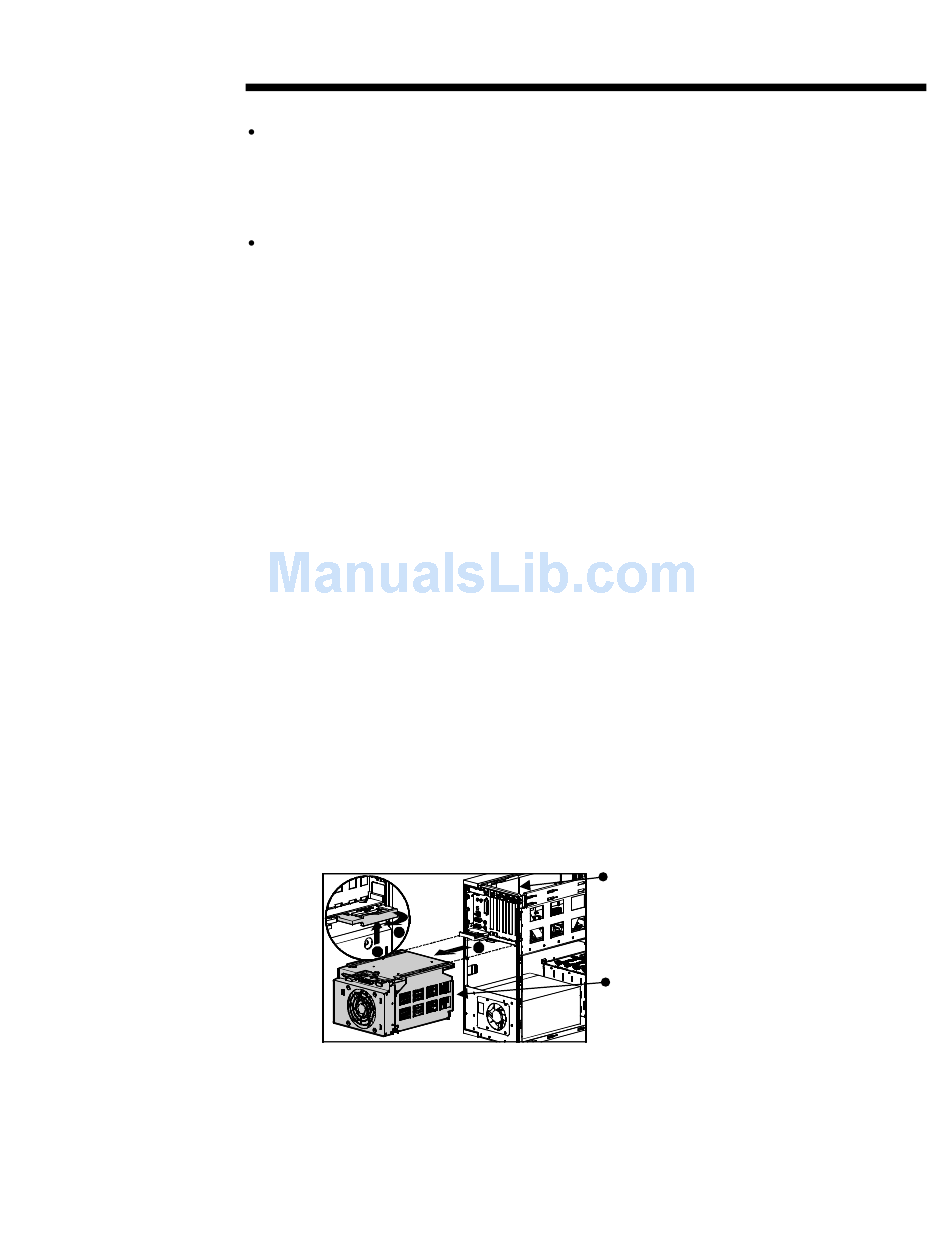

Diagram 5-1: Serviceable Chassis Design
. . . .
. . . .
Highly serviceable chassis design
. . . .
. . . .
with expansion card cage and
. . . .
system/CPU cage that slide out
. .
. .
. .
tulan004.eps
. .
. .
. .
. .
. .
. .
. .
. .
2
. .
. .
1
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. . Lockable, removable front bezel
. .
. .
. .
. .
Access to the front of the system is made easy with a removable front bezel. This bezel provides
. .
. .
. .
easy access to the removable media bays and the hard drive cage.
. .
. .
. .
. .
. .
. .
. .
. .
.
Compaq Workstations - Key Technologies
2 PCI and 4 PCI/ISA
combo slots in the
expansion board cage
3
The system/CPU cage
supports 2 processors
in Poydras and 4 in
Tulane, it also supports
12 DIMM sockets
- 18 -
