Tone Scan Operation - Icom IC-7300 HF Plus Full Manual

Previous view
10
SCANS

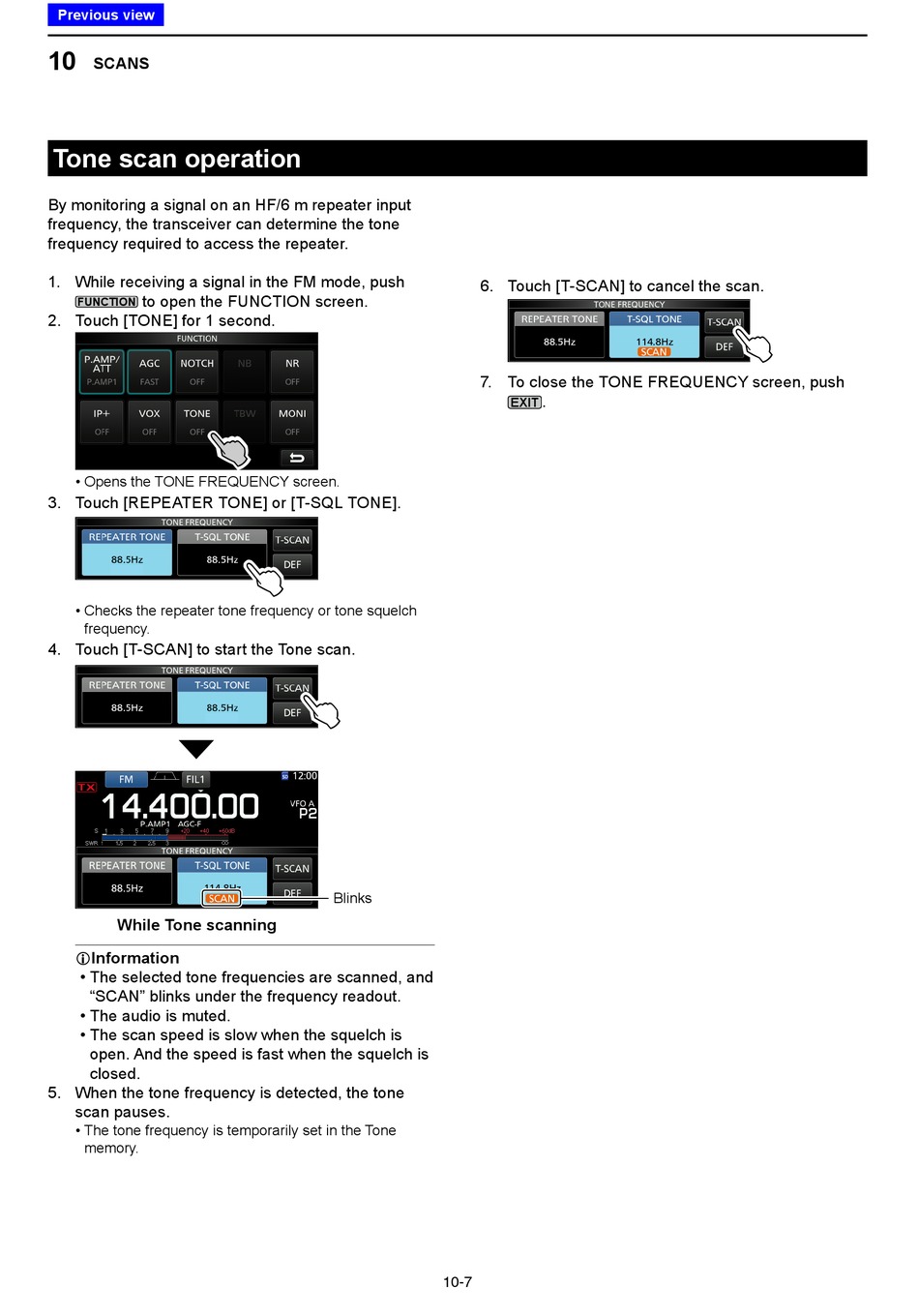

Tone scan operation

By monitoring a signal on an HF/6 m repeater input
frequency, the transceiver can determine the tone
frequency required to access the repeater.
1. While receiving a signal in the FM mode, push
to open the FUNCTION screen.
FUNCTION
2. Touch [TONE] for 1 second.
• Opens the TONE FREQUENCY screen.
3. Touch [REPEATER TONE] or [T-SQL TONE].
• Checks the repeater tone frequency or tone squelch
frequency.
4. Touch [T-SCAN] to start the Tone scan.
While Tone scanning
Information
L
• The selected tone frequencies are scanned, and
"SCAN" blinks under the frequency readout.
• The audio is muted.
• The scan speed is slow when the squelch is
open. And the speed is fast when the squelch is
closed.
5. When the tone frequency is detected, the tone
scan pauses.
• The tone frequency is temporarily set in the Tone
memory.
6. Touch [T-SCAN] to cancel the scan.
7. To close the TONE FREQUENCY screen, push
Blinks
10-7
.
EXIT
