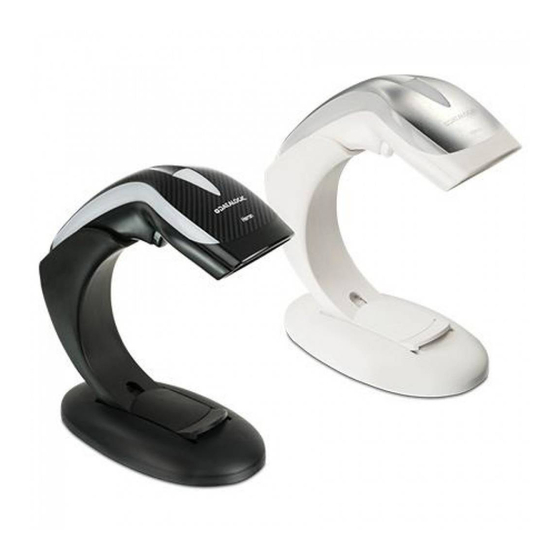

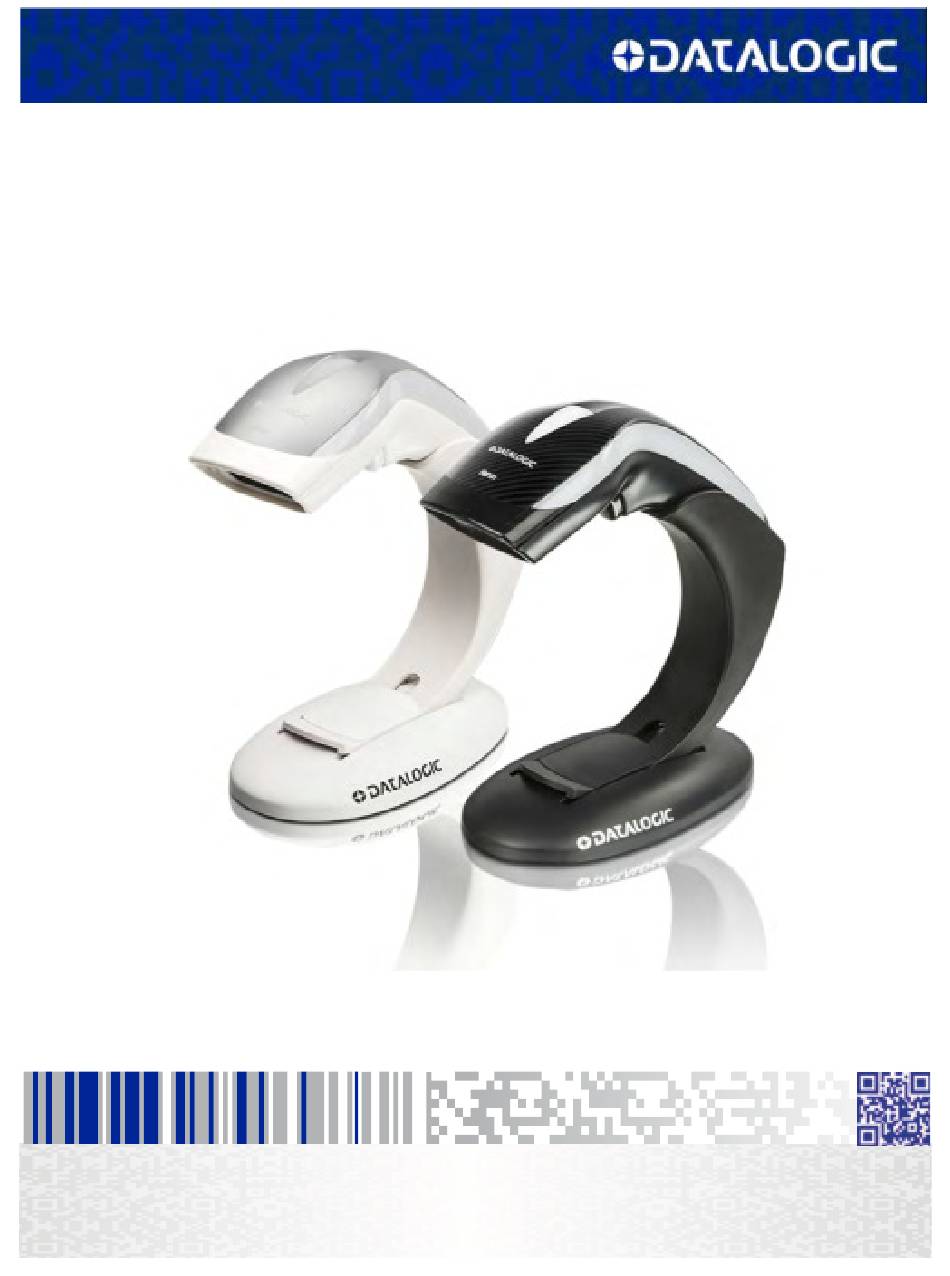

Page 1 Heron™ HD3130 Linear Imager Product Reference Guide...
Page 2 Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
Page 3: Table Of Contents
About the Scanner ................................1 Using the Heron Reader ............................1 About this Manual ................................2 Overview ..................................2 Manual Conventions ..............................3 Technical Support ................................3 Datalogic Website Support ............................3 Reseller Technical Support ............................3 Telephone Technical Support ..........................3 SETUP..................................5 Unpacking ...................................5 Setting Up the Scanner ..............................5 Connect Host Interface ............................6...
Page 4 Keyboard Numeric Keypad ............................40 Keyboard Send Control Characters ..........................41 Wedge Quiet Interval ..............................42 Intercharacter Delay ............................... 43 Intercode Delay ................................44 USB Keyboard Speed ..............................45 USB-OEM INTERFACE 47 Introduction ..................................47 Standard Factory Settings ............................. 47 USB-OEM Device Usage ..............................
Page 5 Expand UPC-A to EAN-13 ............................. 88 UPC-A Number System Character Transmission ....................88 In-Store Minimum Reads ............................. 89 UPC-E ....................................90 UPC-E Enable/Disable ............................90 UPC-E Check Character Transmission ......................... 90 Expand UPC-E to EAN-13 ............................. 91 Expand UPC-E to UPC-A ............................91 UPC-E Number System Character Transmission ....................
Page 6 Interleaved 2 of 5 CIP HR Enable/Disable ......................145 Datalogic 2 of 5 ................................146 Datalogic 2 of 5 Enable/Disable ......................... 146 Datalogic 2 of 5 Check Character Calculation ....................146 Datalogic 2 of 5 Check Character Transmission ....................147 Datalogic 2 of 5 Minimum Reads ........................147 Datalogic 2 of 5 Decoding Level ..........................
Page 7 Code 11 Enable/Disable ............................166 Code 11 Check Character Calculation ......................... 167 Code 11 Check Character Transmission ......................167 Code 11 Minimum Reads ............................ 168 Code 11 Length Control ............................169 Code 11 Set Length 1 ............................169 Code 11 Set Length 2 ............................170 Code 11 Interdigit Ratio ............................
Page 8 Code 4 Enable/Disable ............................206 Code 4 Check Character Transmission ......................206 Code 4 Hex to Decimal Conversion ........................207 Code 5 ..................................... 207 Code 5 Enable/Disable ............................207 Code 5 Check Character Transmission ......................208 Code 5 Hex to Decimal Conversion ........................208 Code 4 and Code 5 Common Configuration Items ....................
Page 9 KEYPAD................................275 SCANCODE TABLES............................279 Control Character Emulation ............................279 Single Press and Release Keys ........................... 279 Interface Type PC AT PS/2 or USB-Keyboard ......................280 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ................282 Microsoft Windows Codepage 1252 ........................... 284 Index ................................285 Product Reference Guide...
Page 10 NOTES viii Heron™ HD3130...
Page 11: Introduction
A successful read is signaled by an audible tone or a jingle (previously uploaded), plus a good-read green spot. The side and upper illuminators become green (unless another color has been configured with Datalogic Alad- din™ configurator). Once the reader is correctly inserted into the stand, it is immediately ready to automatically read any code present in its reading area without pressing the trigger.
Page 12: About This Manual
Programming can alternatively be performed using the Datalogic Aladdin™ Configuration application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates to the device using a serial or USB cable and can also create configuration bar codes to print.
Page 13: Manual Conventions
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.
Page 14 Introduction NOTES Heron™ HD3130...
Page 15: Setup
Chapter 2 Setup Unpacking Check carefully to ensure the scanner and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact Technical Support on page 3. KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 16: Connect Host Interface
Setup Connect Host Interface The scanner kit you ordered to match your interface should provide a compati- ble cable for your installation. If this is not so, contact Technical Support. The scanner can communicate using the following interfaces: RS-232 Serial Connection Turn off power to the terminal/PC and connect the scanner to the terminal/PC serial port via the RS-232 cable as shown in Figure 3.
Page 17 Setting Up the Scanner Figure 3. Connection to the Host Keyboard Wedge RS-232 Specific cables are required for connection to different hosts. The connec- tions illustrated in Figure 3 are examples only. Actual connectors may vary from those illustrated, but the steps to connect the scanner remain the NOTE same.
Page 18: Stand Installation
Setup Stand Installation The stand can be affixed to a flat Screws surface such as a desk or countertop. If needed, it can also be easily removed. To install the stand: 1. Remove the protective film from the rubber feet and adhere them to the corresponding recessed areas on the bottom surface of the stand.
Page 19: Using As A Hands-Free Stand
Setting Up the Scanner 5. Set the stand in place on the screws by aligning the large holes (circled in blue) with the screw heads. 6. Rotate the stand counterclockwise until you feel it lock into place. 7. If the rotation is obstructed, or if the stand does not lock into place, remove the stand and adjust the height of the screws.
Page 20 Setup Adjusting the Stand Position The stand can easily be adjusted to change the inclination of the reader while in the stand. To adjust the stand: 1. With fingers, loosen the screw on the bottom of the stand by turning it counterclockwise.
Page 21: Interface Selection
Interface Selection Interface Selection Upon completing the physical connection between the scanner and its host, proceed directly to "Configuring the Interface" on page 11 for information and programming for the interface type the scanner is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate bar code in that section to select your system’s correct interface type.
Page 22 USB Com to simulate RS-232 standard interface Select USB-COM-STD USB-OEM FEATURES $P,HA45,P  Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 47 Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Heron™ HD3130...
Page 23 Interface Selection KEYBOARD FEATURES $P,HA29,P  AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT $P,HA11,P  Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK $P,HA26,P ...
Page 24: Customizing Configuration Settings
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. The Aladdin utility is available on the Datalogic website. Aladdin allows you to pro- gram the scanner by selecting configuration commands through a user-friendly graphical interface running on a PC.
Page 25: Interface Settings
Customizing Configuration Settings Interface Settings The scanner is typically factory-configured with a set of default features stan- dard to the interface type you ordered. See "Interface Selection" on page 11. Global Interface Features, starting on page 19 provides settings configurable by all interface types.
Page 26 Setup Resetting the Product Configuration to Defaults If you aren't sure what programming options are in your scanner, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Config- uration bar code below.
Page 27: Configuration Using Bar Codes
Chapter 3 Configuration Using Bar Codes This and following sections provide programming bar codes to configure your scanner by changing the default settings. For details about additional methods of programming, see "Customizing Configuration Settings" on page You must first enable your scanner to read bar codes in order to use this section.
Page 28 Enter/Exit Programming Mode To program features: 1. Scan the ENTER/EXIT PROGRAMMING bar code, available at the top of each programming page, when applicable. 2. Scan the bar code to set the desired programming feature. You may need to cover unused bar codes on the page, and possibly the facing page, to ensure that the scanner reads only the bar code you intend to scan.
Page 29: Global Interface Features
Enter/Exit Programming Mode Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. — O OMMANDS GNORE on page 19 USB S USPEND on page 20 Host Commands —...
Page 30: Usb Suspend Mode
Enter/Exit Programming Mode USB Suspend Mode This setting enables/disables the ability of the USB interface to enter suspend mode. $CUSSE00  DEFAULT USB Suspend Mode = Disable $CUSSE01  USB Suspend Mode = Enable Heron™ HD3130...
Page 31: Only Interface
RS-232 ONLY Interface Enter/Exit Programming Mode RS-232 ONLY Interface Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 5, RS-232/USB-COM Interfaces.
Page 32: Stop Bits
Enter/Exit Programming Mode Stop Bits Baud Rate (continued) $CR2BA04  Baud Rate = 19,200 $CR2BA05  Baud Rate = 38,400 $CR2BA06  Baud Rate = 57,600 $CR2BA07  Baud Rate = 115,200 Stop Bits The stop bit(s) at the end of each transmitted character marks the end of trans- mission of one character and prepares the receiving device for the next charac- ter in the serial data stream.
Page 33: Parity
RS-232 ONLY Interface Enter/Exit Programming Mode Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. •...
Page 34: Handshaking Control
Enter/Exit Programming Mode Handshaking Control Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Handshaking Control includes the following options: •...
Page 35: Rs-232/Usb-Com Interfaces
RS-232/USB-COM Interfaces Enter/Exit Programming Mode RS-232/USB-COM Interfaces The programming bar codes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. on page 26 NTERCHARACTER ELAY ASCII BEL on page 27 OT ON on page 27 ACK NAK O PTIONS on page 28 ACK C...
Page 36: Intercharacter Delay
Enter/Exit Programming Mode Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 37: Beep On Ascii Bel
RS-232/USB-COM Interfaces Enter/Exit Programming Mode Beep On ASCII BEL When this parameter is enabled, the scanner issues a beep when a <BEL> char- acter is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. $CR2BB00 ...
Page 38: Ack Nak Options
Enter/Exit Programming Mode ACK NAK Options ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 39: Ack Character
RS-232/USB-COM Interfaces Enter/Exit Programming Mode ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See "ACK Character" on page 220 for more detailed programming instructions. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
Page 40: Ack Nak Timeout Value
Enter/Exit Programming Mode ACK NAK Options ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 41: Ack Nak Retry Count
RS-232/USB-COM Interfaces Enter/Exit Programming Mode ACK NAK Retry Count This feature specifies the number of times the scanner retries a label transmis- sion due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
Page 42: Ack Nak Error Handling
Enter/Exit Programming Mode ACK NAK Options ACK NAK Error Handling This feature specifies the method the scanner uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 43: Indicate Transmission Failure
RS-232/USB-COM Interfaces Enter/Exit Programming Mode Indicate Transmission Failure This option enables/disables the scanner’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode $CR2TF00  Indicate Transmission Failure = Disable Indication $CR2TF01  DEFAULT Indicate Transmission Failure = Enable Indication Disable Character Specifies the value of the RS-232 host command used to disable the scanner.
Page 44: Enable Character
Enter/Exit Programming Mode Enable Character Enable Character Specifies the value of the RS-232 host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. See "Enable Character" on page 225 for more detailed programming instructions Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
Page 45: Keyboard Interface
Keyboard Interface Use the programming bar codes in this chapter to select options for USB Key- board and Wedge Interfaces. Reference Appendix B, Standard Defaults for a listing of standard factory settings. Information about control character emula- tion which applies to keyboard interfaces is listed in Appendix E, Scancode Tables.
Page 46: Country Mode
Enter/Exit Programming Mode Country Mode Country Mode This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encod- ing. $CKBCO00  DEFAULT Country Mode = U.S. $CKBCO01  Country Mode = Belgium $CKBCO02 ...
Page 47 Keyboard Interface Enter/Exit Programming Mode Country Mode (continued) $CKBCO05  Country Mode = Germany $CKBCO0D  Country Mode = Hungary $CKBCO06  Country Mode = Italy $CKBCO0C  Country Mode = Japanese 106-key $CKBCO07  Country Mode = Norway $CKBCO12 ...
Page 48 Enter/Exit Programming Mode Country Mode Country Mode (continued) $CKBCO0F  Country Mode = Slovakia $CKBCO09  Country Mode = Spain $CKBCO0A  Country Mode = Sweden $CKBCO0B  Country Mode = Switzerland $CKBCO13  Country Mode = French Canadian $CKBCO14 ...
Page 49: Caps Lock State
Keyboard Interface Enter/Exit Programming Mode Caps Lock State This option specifies the format in which the scanner sends character data. This applies to Keyboard Wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. This does not apply to USB Keyboard. $CKBCL00 ...
Page 50: Keyboard Numeric Keypad
Enter/Exit Programming Mode Keyboard Numeric Keypad Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  DEFAULT Keyboard Numeric Keypad = Standard Keys $CKBKP01  Keyboard Numeric Keypad = Numeric Keypad Heron™...
Page 51: Keyboard Send Control Characters
Keyboard Interface Enter/Exit Programming Mode Keyboard Send Control Characters This feature is used by the Keyboard Wedge and USB Keyboard interfaces. It specifies how the scanner transmits ASCII control characters to the host. Refer- ence Appendix E, Scancode Tables for more information about control charac- ters.
Page 52: Wedge Quiet Interval
Enter/Exit Programming Mode Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. "Wedge Quiet Interval"...
Page 53: Intercharacter Delay
Keyboard Interface Enter/Exit Programming Mode Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 54: Intercode Delay
Enter/Exit Programming Mode Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. See "Intercode Delay" on page 228 for more detailed programming instructions. $CKBID To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the...
Page 55: Usb Keyboard Speed
USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. This feature applies ONLY to the USB Keyboard interface. NOTE $CKBSP01  DEFAULT USB Keyboard Speed = 1ms $CKBSP02  USB Keyboard Speed = 2ms $CKBSP03 ...
Page 56 Keyboard Interface NOTES Heron™ HD3130...
Page 57: Usb-Oem Interface
USB-OEM Interface USB-OEM D on page 48 EVICE SAGE USB-OEM I NTERFACE PTIONS on page 48 Introduction Feature settings for USB interfaces differ depending upon which host type the scanner will be connected with. Use the feature settings in this chapter to spe- cifically configure for the USB-OEM interface.
Page 58: Usb-Oem Device Usage
Enter/Exit Programming Mode USB-OEM Device Usage USB-OEM Device Usage The USB-OEM protocol allows for the scanner to be identified as one of two dif- ferent types of bar code scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 59: Data Format
Data Format LOBAL REFIX UFFIX on page 50 AIM ID LOBAL on page 51 ABEL starting on page 52 Label ID: Pre-loaded Sets on page 52 • Label ID: Set Individually Per Symbology on • page 53 Label ID Control on page 53 •...
Page 60: Global Prefix/Suffix
Enter/Exit Programming Mode Global Prefix/Suffix Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See "Global Prefix/Suffix" on page 230 for more detailed programming instructions.
Page 61: Global Aim Id
Data Format Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See "Global AIM ID"...
Page 62: Label Id
Enter/Exit Programming Mode Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 63: Label Id: Set Individually Per Symbology
Data Format Enter/Exit Programming Mode Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. This setting requires the scanning of bar codes from multiple sections. See "Label ID: Set Individually Per Symbology" on page 234 for more detailed programming instructions.
Page 64: Label Id Symbology Selection
Enter/Exit Programming Mode Label ID Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID: Set Individually Per Symbology" on page 234 for full instructions. $CABID Set UPC-A Label ID Character(s) $CA2ID Set UPC-A/P2 Label ID Character(s) $CA5ID...
Page 65 Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $C3BID Set EAN 13 Label ID Character(s) $C32ID Set EAN 13/P2 Label ID Character(s) $C35ID Set EAN 13/P5 Label ID Character(s) $C8BID Set EAN 8 Label ID Character(s) $C82ID Set EAN 8/P2 Label ID Character(s) $C85ID Set EAN 8/P5 Label ID Character(s) Product Reference Guide...
Page 66 Enter/Exit Programming Mode Label ID Label ID Symbology Selection (continued) $C4BID Set GS1 DataBar Omnidirectional Label ID Character(s) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID...
Page 67 Set Interleaved 2 of 5 Label ID Character(s) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Set Datalogic 2 of 5 CIP HR Label ID Character(s) $CCBID Set Codabar Label ID Character(s) $CACID Set ABC Codabar Label ID Character(s)
Page 68 Enter/Exit Programming Mode Label ID Label ID Symbology Selection (continued) $CC1ID Set Code 11 Label ID Character(s) $CS2ID Set Standard 2 of 5 Label ID Character(s) $CU2ID Set Industrial 2 of 5 Label ID Character(s) $CINID Set ISSN Label ID Character(s) $CIAID Set IATA Label ID Character(s) $CI8ID...
Page 69 Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $CCFID Set Codablock F Label ID Character(s) $CCRID Set Code 4 Label ID Character(s) $CC5ID Set Code 5 Label ID Character(s) $CF2ID Set Follett 2 of 5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CI8ID...
Page 70: Case Conversion
Enter/Exit Programming Mode Case Conversion Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. NOTE $CLFCA00...
Page 71: Reading Parameters
Reading Parameters RGB LED on page 62 on page 76 OUBLE IMEOUT NABLE ISABLE LED C ABEL IMEOUT on page 64 OLOR on page 77 RGB G PEAKER NDICATORS on page 65 AISING on page 77 RGB G OWER LERT on page 65 ALLING on page 78...
Page 72: Double Read Timeout
Enter/Exit Programming Mode Double Read Timeout Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored.
Page 73 Reading Parameters Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR32  Double Read Timeout = 0.5 Second $CSNDR3C  DEFAULT Double Read Timeout = 0.6 Second $CSNDR46  Double Read Timeout = 0.7 Second $CSNDR50  Double Read Timeout = 0.8 Second $CSNDR5A ...
Page 74: Label Gone Timeout
Enter/Exit Programming Mode Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the scan- ner prepares for a new label. The timeout can be set within a range of 10 milli- seconds to 2,550 milliseconds (2.55 seconds) in 10ms increments.
Page 75: Led And Speaker Indicators
To upload a jingle in Aladdin: 1. Install Datalogic Aladdin™ (v 1.7.0.0.0 or later) on your computer. 2. Connect the scanner you want to program to the computer. 3. Use Device Autodetection to allow Aladdin to search for your reader, or click on Offline Configuration to select the file for your device.
Page 76: Audio Jingle Enable
See below for parameters to define which preloaded Jingle to sound upon power-up or good read events. Additional items such as enter stand mode, exit stand mode, and error beep can also be programmed using Datalogic Aladdin. $CAUEN00 ...
Page 77: Select Audio Jingle For Power-Up Event
NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin™ configuration utility, use this setting to specify which of the Jingles (1-15) or the built-in sound will be used to indicate scanner power-up. The built-in (default) sound for power-up is Dialtone.wav...
Page 78: Select Audio Jingle For Good Read Event
"Audio Jingle Enable" on page 66 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner performs a good read.
Page 79: Select Audio Jingle For Enter Stand Mode
"Audio Jingle Enable" on page 66 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner enters Stand Mode.
Page 80: Select Audio Jingle For Exit Stand Mode
"Audio Jingle Enable" on page 66 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner exits Stand Mode.
Page 81: Select Audio Jingle For Transmit Error Sound
"Audio Jingle Enable" on page 66 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner performs a good read.
Page 82: Good Read: When To Indicate
Enter/Exit Programming Mode Audio Jingles Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep or Jingle and/or LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 83: Good Read Beep Type
Reading Parameters Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00  DEFAULT Good Read Beep Type = Mono $CBPTY01  Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high fre- quency, selectable from the list below.
Page 84: Good Read Speaker Volume
Enter/Exit Programming Mode Audio Jingles Good Read Speaker Volume Selects the speaker volume (loudness) upon a good read Jingle or beep. There are three selectable volume levels. $CBPVO00  Good Read Speaker Volume = Speaker Off $CBPVO01  Good Read Speaker Volume = Low $CBPVO02 ...
Page 85: Good Read Beep Length
Reading Parameters Enter/Exit Programming Mode Good Read Beep Length Specifies the duration of a good read beep. $CBPLE06  Good Read Beep Length = 60 msec $CBPLE08  DEFAULT Good Read Beep Length = 80 msec $CBPLE0A  Good Read Beep Length = 100 msec $CBPLE0C ...
Page 86: Rgb Led Settings
Enter/Exit Programming Mode RGB LED Settings Good Read Beep Length (continued) $CBPLE12  Good Read Beep Length = 180 msec $CBPLE14  Good Read Beep Length = 200 msec RGB LED Settings The following configuration Items specify settings for the RGB (Red Green Blue) LEDs, which are used to indicate Good Read and Auto Presentation Mode (colors change when Scanner is in Idle mode).
Page 87: Good Read Led Color
Reading Parameters Enter/Exit Programming Mode Good Read LED Color Specifies the color of the RGB Good Read LED . $CRBCL00  Good Read LED Color = Red $CRBCL01  DEFAULT Good Read LED Color = Green $CRBCL02  Good Read LED Color = Blue RGB Good Read Raising Time Specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state.
Page 88: Rgb Good Read Falling Time
Enter/Exit Programming Mode RGB LED Settings RGB Good Read Falling Time Specifies the time for the RGB good read to change the status from the Bright- ness state to the Off state. "RGB Good Read Raising/Falling Time" on page 238 for more detailed program- ming instructions.
Page 89: Rgb Auto Delay
Reading Parameters Enter/Exit Programming Mode RGB Auto Delay Specifies the delay time for running the RGB auto mode after the scanner has gone into an idle state (no label reading, label programming or communication with Host). The value 0x00 means Auto Mode is disabled. See "RGB Auto Delay Time"...
Page 90: Scanning Features
Enter/Exit Programming Mode Scanning Features Scanning Features Scan Mode "Scan Mode" on page 241 for more detailed programming instructions. $CSNRM00  DEFAULT Scan Mode = Trigger Single $CSNRM01  Scan Mode = Trigger Hold Multiple $CSNRM02  Scan Mode = Trigger Pulse Multiple $CSNRM03 ...
Page 91: Stand Mode Triggered Timeout
Reading Parameters Enter/Exit Programming Mode Stand Mode Triggered Timeout This feature specifies the time to remain in “Trigger Single” mode after the trig- ger is pulled while in “Stand Mode”. This timeout is only used when the Scan Mode is configured as Stand Mode.
Page 92: Scanning Active Time
Enter/Exit Programming Mode Scanning Features Stand Mode Triggered Timeout (continued) $CSNOT10  Stand Mode Triggered Timeout = 8 Seconds $CSNOT00  Stand Mode Triggered Timeout = 0 Do Not Switch Back to Stand Mode When set to 0, the scanner will remain in single trigger mode after the trigger is pulled.
Page 93: Stand Mode Flash
Scanning Features Stand Mode Flash Enables/disables the LED flash when the reader is in Stand Mode. $CSMFL00  DEFAULT Stand Mode Flash = Disable $CSMFL01  Stand Mode Flash = Enable Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments.
Page 94: Flash Off Time
Reading Parameters Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See "Flash Off Time" on page 244 for more detailed pro- gramming instructions.
Page 95: Symbologies
The scanner supports the following symbologies (bar code types). Options for each symbology are included in this chapter. UPC-A on page 87 Datalogic 2 of 5 on page 146 UPC-E on page 90 Codabar on page 153 EAN 13 on page 93...
Page 96: Disable All Symbologies
Enter/Exit Programming Mode Disable All Symbologies Disable All Symbologies Scan this label to disable all symbologies.  Disable all symbologies Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
Page 97: Upc-A
Symbologies Enter/Exit Programming Mode UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the scanner will not read UPC-A bar codes. $CABEN00  UPC-A = Disable $CABEN01  DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data.
Page 98: Expand Upc-A To Ean-13
Enter/Exit Programming Mode UPC-A Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  DEFAULT UPC-A to EAN-13 = Don’t Expand $CAB3B01 ...
Page 99: In-Store Minimum Reads
Symbologies Enter/Exit Programming Mode In-Store Minimum Reads This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read. In-store labels are defined as UPC-A labels with a number-system character of 2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.
Page 100: Upc-E
Enter/Exit Programming Mode UPC-E UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the scanner will not read UPC-E bar codes. $CEBEN00  UPC-E = Disable $CEBEN01  DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data.
Page 101: Expand Upc-E To Ean-13
Symbologies Enter/Exit Programming Mode Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  DEFAULT UPC-E to EAN-13 = Don’t Expand $CEB3B01 ...
Page 102: Upc-E Number System Character Transmission
Enter/Exit Programming Mode UPC-E UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number char- acter. $CEBNS00  UPC-E Number System Character = Do not transmit $CEBNS01  DEFAULT UPC-E Number System Character = Transmit UPC-E Minimum Read This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.
Page 103: Ean 13
Symbologies Enter/Exit Programming Mode EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the scanner will not read EAN 13/JAN 13 bar codes. $C3BEN00  EAN 13 = Disable $C3BEN01  DEFAULT EAN 13 = Enable EAN 13 Check Character Transmission...
Page 104: Ean-13 Flag 1 Character
Enter/Exit Programming Mode EAN 13 EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. $C3BF100  EAN-13 Flag 1 Char= Don’t transmit $C3BF101  DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
Page 105: Issn Enable/Disable
Symbologies Enter/Exit Programming Mode ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  DEFAULT ISSN = Disable $C3BIN01  ISSN = Enable EAN 13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read.
Page 106: Ean 8
Enter/Exit Programming Mode EAN 8 EAN 8 The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the scanner will not read EAN 8/JAN 8 bar codes. $C8BEN00  EAN 8 = Disable $C8BEN01 ...
Page 107: Expand Ean 8 To Ean 13
Symbologies Enter/Exit Programming Mode Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. $C8B3B00  DEFAULT Expand EAN 8 to EAN 13 = Disable $C8B3B01  Expand EAN 8 to EAN 13 = Enable EAN 8 Minimum Reads This feature specifies the minimum number of consecutive times an EAN 8 (Jan 8) label must be decoded before it is accepted as good read.
Page 108: Upc/Ean Global Settings
Enter/Exit Programming Mode UPC/EAN Global Settings UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each fea- ture description. UPC/EAN Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 109: Upc/Ean Price Weight Check
Symbologies Enter/Exit Programming Mode UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are • Disabled • Enable 4-digit price-weight check-digit calculation • Enable 5-digit price-weight check-digit calculation • Enable European 4-digit price-weight check-digit calculation •...
Page 110: Upc-A Minimum Reads
Enter/Exit Programming Mode UPC/EAN Global Settings UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read. $CABMR01  DEFAULT UPC-A Minimum Reads = 1 $CABMR02 ...
Page 111: Add-Ons
Symbologies Enter/Exit Programming Mode Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The scanner can be enabled to optionally read the following add-ons (supple- mentals): • •...
Page 112: Optional Add-On Timer
Enter/Exit Programming Mode Add-Ons Optional Add-On Timer This option sets the time the scanner will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01  Optional Add-on Timer = 10ms $CADOT02  Optional Add-on Timer = 20ms $CADOT03 ...
Page 113: P2 Add-Ons Minimum Reads
Symbologies Enter/Exit Programming Mode P2 Add-Ons Minimum Reads This feature specifies the minimum number of times a P2 add-on must be read before it is marked as valid and then combined with a base label $CADM201  P2 Add-Ons Minimum Reads = 1 $CADM202 ...
Page 114: P5 Add-Ons Minimum Reads
Enter/Exit Programming Mode Add-Ons P5 Add-Ons Minimum Reads This feature specifies the minimum number of times a P5 add-on must be read before it is marked as valid and then combined with a base label $CADM501  DEFAULT P5 Add-Ons Minimum Reads = 1 $CADM502 ...
Page 115: Gs1 Databar ™ Omnidirectional
Symbologies Enter/Exit Programming Mode ™ GS1 DataBar Omnidirectional The following options apply to the GS1 DataBar Omnidirectional (formerly RSS- 14) symbology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the scanner will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00  DEFAULT GS1 DataBar Omnidirectional = Disable $C4BEN01 ...
Page 116: Gs1 Databar Omnidirectional Minimum Reads
™ Enter/Exit Programming Mode GS1 DataBar Omnidirectional GS1 DataBar Omnidirectional Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Omnidirectional label must be decoded before it is accepted as good read $C4BMR01  DEFAULT GS1 DataBar Omnidirectional Minimum Reads = 1 $C4BMR02 ...
Page 117: Gs1 Databar™ Expanded
Symbologies Enter/Exit Programming Mode GS1 DataBar™ Expanded The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) symbology. GS1 DataBar Expanded Enable/Disable When disabled, the scanner will not read GS1 DataBar Expanded bar codes. $CXBEN00  DEFAULT GS1 DataBar Expanded = Disable $CXBEN01 ...
Page 118: Gs1 Databar Expanded Minimum Reads
Enter/Exit Programming Mode GS1 DataBar™ Expanded GS1 DataBar Expanded Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Expanded label must be decoded before it is accepted as good read $CXBMR01  DEFAULT GS1 DataBar Expanded Minimum Reads = 1 $CXBMR02 ...
Page 119: Gs1 Databar Expanded Length Control
Symbologies Enter/Exit Programming Mode GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. Variable Length: For variable-length decoding, a minimum length may be set. Fixed Length: For fixed-length decoding, two different lengths may be set. $CXBLC00 ...
Page 120: Gs1 Databar Expanded Set Length 2
Enter/Exit Programming Mode GS1 DataBar™ Expanded GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for GS1 DataBar Expanded Length Control on page 109. Length 2 is the maximum label length if in Vari- able Length on page 109 Mode, or the second fixed length if in Fixed Length on...
Page 121: Gs1 Databar™ Limited
Symbologies Enter/Exit Programming Mode GS1 DataBar™ Limited The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbology. GS1 DataBar Limited Enable/Disable When disabled, the scanner will not read GS1 DataBar Limited bar codes. $CLBEN00  DEFAULT GS1 DataBar Limited = Disable $CLBEN01 ...
Page 122: Gs1 Databar Limited Minimum Reads
Enter/Exit Programming Mode GS1 DataBar™ Limited GS1 DataBar Limited Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Limited label must be decoded before it is accepted as good read $CLBMR01  DEFAULT GS1 DataBar Limited Minimum Reads = 1 $CLBMR02 ...
Page 123: Code 39
Symbologies Enter/Exit Programming Mode Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the scanner will not read Code 39 bar codes. $CC3EN00  Code 39 = Disable $CC3EN01  DEFAULT Code 39 = Enable Product Reference Guide...
Page 124: Code 39 Check Character Calculation
Enter/Exit Programming Mode Code 39 Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data character $CC3CC00 ...
Page 125: Code 39 Check Character Transmission
Symbologies Enter/Exit Programming Mode Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00  Code 39 Check Character Transmission = Don’t Send $CC3CT01  DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters...
Page 126: Code 39 Full Ascii
Enter/Exit Programming Mode Code 39 Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 charac- ters to Code 39 full-ASCII characters. $CC3FA00  DEFAULT Code 39 Full ASCII = Disable $CC3FA01  Code 39 Full ASCII = Enable Heron™...
Page 127: Code 39 Quiet Zones
Symbologies Enter/Exit Programming Mode Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CC3LO01 ...
Page 128: Code 39 Minimum Reads
Enter/Exit Programming Mode Code 39 Code 39 Minimum Reads This feature specifies the minimum number of consecutive times a Code 39 label must be decoded before it is accepted as good read. $CC3MR01  Code 39 Minimum Reads = 1 $CC3MR02 ...
Page 129: Code 39 Decoding Level
Symbologies Enter/Exit Programming Mode Code 39 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 130: Code 39 Length Control
Enter/Exit Programming Mode Code 39 Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set.
Page 131: Code 39 Set Length 1
Symbologies Enter/Exit Programming Mode Code 39 Set Length 1 This feature specifies one of the bar code lengths for Code 39 Length Control on page 120. Length 1 is the minimum label length if in Variable Length on page 120 Mode, or the first fixed length if in Fixed Length on page 120 Mode.
Page 132: Code 39 Set Length 2
Enter/Exit Programming Mode Code 39 Code 39 Set Length 2 This feature specifies one of the bar code lengths for Code 39 Length Control on page 120. Length 2 is the maximum label length if in Variable Length on page 120 Mode, or the second fixed length if in Fixed Length on page 120 Mode.
Page 133: Code 39 Interdigit Ratio
Symbologies Enter/Exit Programming Mode Code 39 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 39 labels. $CC3IR00  Code 39 Interdigit Ratio = Disable $CC3IR01  Code 39 Interdigit Ratio = 1 $CC3IR02 ...
Page 134 Enter/Exit Programming Mode Code 39 Code 39 Interdigit Ratio (continued) $CC3IR06  Code 39 Interdigit Ratio = 6 $CC3IR07  Code 39 Interdigit Ratio = 7 $CC3IR08  Code 39 Interdigit Ratio = 8 $CC3IR09  Code 39 Interdigit Ratio = 9 $CC3IR0A ...
Page 135: Code 39 Stitching
Symbologies Enter/Exit Programming Mode Code 39 Stitching This option enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.
Page 136: Code 32 Feature Setting Exceptions
Enter/Exit Programming Mode Code 32 (Italian Pharmaceutical) Code 32 Feature Setting Exceptions The following features are set for Code 32 by using these Code 39 set- tings: "Code 39 Quiet Zones" on page 117 NOTE "Code 39 Minimum Reads" on page 118 "Code 39 Decoding Level"...
Page 137: Code 39 Cip (French Pharmaceutical)
Symbologies Enter/Exit Programming Mode Code 39 CIP (French Pharmaceutical) The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable Enables/Disables ability of the scanner to decode Code 39 CIP labels. $CCCEN00  DEFAULT Code 39 CIP = Disable $CCCEN01 ...
Page 138: Expand Code 128 To Code 39
Enter/Exit Programming Mode Code 128 Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels. When enabled, the label identifier for a Code 128 label shall be set to Code 39 and all Code 39 formatting control shall be applied to the label. $CC8C300 ...
Page 139: Code 128 Function Character Transmission
Symbologies Enter/Exit Programming Mode Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4. $CC8TF00  DEFAULT Code 128 Function Character Transmission = Don’t Send $CC8TF01  Code 128 Function Character Transmission = Send Code 128 Sub-Code Change Transmission Enables/disables the transmission of “Sub-Code exchange”...
Page 140: Code 128 Quiet Zones
Enter/Exit Programming Mode Code 128 Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CC8LO00 ...
Page 141: Code 128 Minimum Reads
Symbologies Enter/Exit Programming Mode Code 128 Minimum Reads This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read. $CC8MR01  DEFAULT Code 128 Minimum Reads = 1 $CC8MR02 ...
Page 142: Code 128 Decoding Level
Enter/Exit Programming Mode Code 128 Code 128 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 143: Code 128 Length Control
Symbologies Enter/Exit Programming Mode Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set.
Page 144: Code 128 Set Length 1
Enter/Exit Programming Mode Code 128 Code 128 Set Length 1 This feature specifies one of the bar code lengths for Code 128 Length Control on page 133. Length 1 is the minimum label length if in Variable Length on page 133 Mode, or the first fixed length if in Fixed Length on page 133 Mode.
Page 145: Code 128 Set Length 2
Symbologies Enter/Exit Programming Mode Code 128 Set Length 2 This feature specifies one of the bar code lengths for Code 128 Length Control on page 133. Length 2 is the maximum label length if in Variable Length on page 133 Mode, or the second fixed length if in Fixed Length on page 133 Mode.
Page 146: Gs1-128
Enter/Exit Programming Mode GS1-128 GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS- 128, GTIN-128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the scanner to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 147: Interleaved 2 Of 5 (I 2 Of 5)
Symbologies Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
Page 148: I 2 Of 5 Check Character Calculation
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. $CI2CC00  DEFAULT I 2 of 5 Check Char Calc = Disable $CI2CC01 ...
Page 149: I 2 Of 5 Check Character Transmission
Symbologies Enter/Exit Programming Mode I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data. This feature is valid only when I 2 of 5 Check Character Calculation is enabled. NOTE $CI2CT00 ...
Page 150: I 2 Of 5 Minimum Reads
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. $CI2MR01 ...
Page 151: I 2 Of 5 Decoding Level
Enter/Exit Programming Mode I 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. NOTE Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 152: I 2 Of 5 Length Control
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set.
Page 153: I 2 Of 5 Set Length 1
Symbologies Enter/Exit Programming Mode I 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for I 2 of 5 Length Control on page 142. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 148 Mode.
Page 154: I 2 Of 5 Set Length 2
Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for I 2 of 5 Length Control on page 142. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 148...
Page 155: Interleaved 2 Of 5 Cip Hr
Symbologies Enter/Exit Programming Mode Interleaved 2 of 5 CIP HR The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of scanner to decode Interleaved 2 of 5 CIP HR labels. $CCHEN00 ...
Page 156: Datalogic 2 Of 5
Datalogic 2 of 5 Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the scanner will not read Datalogic 2 of 5 bar codes. $CD2EN00  DEFAULT...
Page 157: Datalogic 2 Of 5 Check Character Transmission
Symbologies Enter/Exit Programming Mode Datalogic 2 of 5 Check Character Transmission This option enables/disables transmission of an optional Datalogic 2 of 5 char- acter. $CD2CT00  Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01  DEFAULT Datalogic 2 of 5 Check Character Transmission = Send...
Page 158: Datalogic 2 Of 5 Decoding Level
Enter/Exit Programming Mode Datalogic 2 of 5 Datalogic 2 of 5 Decoding Level The Datalogic 2 of 5 Decoding Level feature is set using "I 2 of 5 Decoding Level" on page 141. NOTE Datalogic 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Datalogic 2 of 5 symbology.
Page 159: Datalogic 2 Of 5 Set Length 1
End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 160: Datalogic 2 Of 5 Set Length 2
End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 161: Datalogic 2 Of 5 Interdigit Ratio
Datalogic 2 of 5 Interdigit Ratio This feature specifies the maximum ratio between intercharacter space and module for Datalogic 2 of 5. $CD2IR00  Datalogic 2 of 5 Interdigit Ratio = Disable $CD2IR01  Datalogic 2 of 5 Interdigit Ratio = 1 $CD2IR02 ...
Page 162 Enter/Exit Programming Mode Datalogic 2 of 5 Datalogic 2 of 5 Interdigit Maximum Ratio (continued) $CD2IR06  Datalogic 2 of 5 Interdigit Ratio = 6 $CD2IR07  Datalogic 2 of 5 Interdigit Ratio = 7 $CD2IR08  Datalogic 2 of 5 Interdigit Ratio = 8 $CD2IR09 ...
Page 163: Codabar
Symbologies Enter/Exit Programming Mode Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the scanner will not read Codabar bar codes. $CCBEN00  DEFAULT Codabar = Disable $CCBEN01  Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character.
Page 164: Codabar Check Character Transmission
Enter/Exit Programming Mode Codabar Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. This feature is valid only when Codabar Check Character Calculation is enabled. NOTE $CCBCT00  Codabar Check Character Transmission = Don’t Send $CCBCT01 ...
Page 165: Codabar Start/Stop Character Set
Symbologies Enter/Exit Programming Mode Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters $CCBSC00  Codabar Check Character Set = ABCD/TN*E $CCBSC01  Codabar Check Character Set = ABCD/ABCD $CCBSC02  Codabar Check Character Set = abcd/tn*e $CCBSC03 ...
Page 166: Codabar Quiet Zones
Enter/Exit Programming Mode Codabar Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CCBLO01 ...
Page 167: Codabar Minimum Reads
Symbologies Enter/Exit Programming Mode Codabar Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. $CCBMR01  DEFAULT Codabar Minimum Reads = 1 $CCBMR02  Codabar Minimum Reads = 2 $CCBMR03 ...
Page 168: Codabar Decoding Level
Enter/Exit Programming Mode Codabar Codabar Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 169: Codabar Length Control
Symbologies Enter/Exit Programming Mode Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CCBLC00 ...
Page 170: Codabar Set Length 1
Enter/Exit Programming Mode Codabar Codabar Set Length 1 This feature specifies one of the bar code lengths for Codabar Length Control on page 159. Length 1 is the minimum label length if in Variable Length on page 159 Mode, or the first fixed length if in Fixed Length on page 159 Mode.
Page 171: Codabar Set Length 2
Symbologies Enter/Exit Programming Mode Codabar Set Length 2 This feature specifies one of the bar code lengths for Codabar Length Control on page 159. Length 2 is the maximum label length if in Variable Length on page 159 Mode, or the second fixed length if in Fixed Length on page 159 Mode.
Page 172: Codabar Interdigit Ratio
Enter/Exit Programming Mode Codabar Codabar Interdigit Ratio This feature specifies the maximum ratio between an intercharacter space and module for Codabar labels. $CCBIR00  Codabar Interdigit Ratio = Disable $CCBIR01  Codabar Interdigit Ratio = 1 $CCBIR02  Codabar Interdigit Ratio = 2 $CCBIR03 ...
Page 173 Symbologies Enter/Exit Programming Mode Codabar Interdigit Ratio (continued) $CCBIR06  Codabar Interdigit Ratio = 6 $CCBIR07  Codabar Interdigit Ratio = 7 $CCBIR08  Codabar Interdigit Ratio = 8 $CCBIR09  Codabar Interdigit Ratio = 9 $CCBIR0A  Codabar Interdigit Ratio = 10 Product Reference Guide...
Page 174: Abc Codabar
Enter/Exit Programming Mode ABC Codabar ABC Codabar The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of scanner to decode ABC Codabar labels. $CCBAB00  DEFAULT ABC Codabar = Disable $CCBAB01  ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 175: Abc Codabar Dynamic Concatenation Timeout
Symbologies Enter/Exit Programming Mode ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. $CCBDT To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits...
Page 176: Code 11
Enter/Exit Programming Mode Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the scanner will not read Code 11 bar codes. $CC1EN00  DEFAULT Code 11 = Disable $CC1EN01  Code 11 = Enable Heron™...
Page 177: Code 11 Check Character Calculation
Symbologies Enter/Exit Programming Mode Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character. $CC1CC00  Code 11 Check Character Calculation = Disable $CC1CC01  Code 11 Check Character Calculation = Check C $CC1CC02 ...
Page 178: Code 11 Minimum Reads
Enter/Exit Programming Mode Code 11 Code 11 Minimum Reads This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read. $CC1MR01  Code 11 Minimum Reads = 1 $CC1MR02 ...
Page 179: Code 11 Length Control
Symbologies Enter/Exit Programming Mode Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set.
Page 180: Code 11 Set Length 2
Enter/Exit Programming Mode Code 11 Code 11 Set Length 2 This feature specifies one of the bar code lengths for Code 11 Length Control on page 169. Length 2 is the maximum label length if in Variable Length on page 169 Mode, or the second fixed length if in Fixed Length on page 169 Mode.
Page 181: Code 11 Interdigit Ratio
Symbologies Enter/Exit Programming Mode Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels. $CC1IR00  Code 11 Interdigit Ratio = Disable $CC1IR01  Code 11 Interdigit Ratio = 1 $CC1IR02 ...
Page 182 Enter/Exit Programming Mode Code 11 Code 11 Interdigit Ratio — cont. $CC1IR06  Code 11 Interdigit Ratio = 6 $CC1IR07  Code 11 Interdigit Ratio = 7 $CC1IR08  Code 11 Interdigit Ratio = 8 $CC1IR09  Code 11 Interdigit Ratio = 9 $CC1IR0A ...
Page 183: Code 11 Decoding Level
Symbologies Enter/Exit Programming Mode Code 11 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 184: Standard 2 Of 5
Enter/Exit Programming Mode Standard 2 of 5 Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the scanner will not read Standard 2 of 5 bar codes. $CS2EN00 ...
Page 185: Standard 2 Of 5 Check Character Transmission
Symbologies Enter/Exit Programming Mode Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. $CS2CT00  Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01  DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read.
Page 186: Standard 2 Of 5 Decoding Level
Enter/Exit Programming Mode Standard 2 of 5 Standard 2 of 5 Decoding Level The Standard 2 of 5 Decoding Level feature is set using "I 2 of 5 Decoding Level" on page 141. NOTE Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Standard 2 of 5 symbology.
Page 187: Standard 2 Of 5 Set Length 1
Symbologies Enter/Exit Programming Mode Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page 176. Length 1 is the minimum label length if in Variable Length on page 176 Mode, or the first fixed length if in Fixed Length on page 176...
Page 188: Standard 2 Of 5 Set Length 2
Enter/Exit Programming Mode Standard 2 of 5 Standard 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page 176. Length 2 is the maximum label length if in Variable Length on page 176 Mode, or the second fixed length if in...
Page 189: Industrial 2 Of 5
Symbologies Enter/Exit Programming Mode Industrial 2 of 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of scanner to decode Industrial 2 of 5 labels. $CU2EN00  DEFAULT Industrial 2 of 5 = Disable $CU2EN01 ...
Page 190: Industrial 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Industrial 2 of 5 Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00  Industrial 2 of 5 Check Character Transmission = Disable $CU2CT01  DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
Page 191: Industrial 2 Of 5 Set Length 1
Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control on page 180. Length 1 is the minimum label length if in Variable Length on page 120 Mode, or the first fixed length if in Fixed Length on page 120...
Page 192: Industrial 2 Of 5 Set Length 2
Enter/Exit Programming Mode Industrial 2 of 5 Industrial 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control on page 180. Length 2 is the maximum label length if in Variable Length on page 120 Mode, or the second fixed length if in...
Page 193: Industrial 2 Of 5 Minimum Reads
Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Minimum Reads This feature specifies the minimum number of consecutive times an Industrial 2 of 5 label must be decoded before it is accepted as good read. $CU2MR01  DEFAULT Industrial 2 of 5 Minimum Reads = 1 $CU2MR02 ...
Page 194: Iata
Enter/Exit Programming Mode IATA IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the scanner to decode IATA labels. $CIAEN00  DEFAULT IATA = Disable $CIAEN01  IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character.
Page 195: Isbt 128
Symbologies Enter/Exit Programming Mode ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT128 concatenation of 2 labels. $CI8CE00  DEFAULT ISBN 128 Concatenation = Disable $CI8CE01  ISBN 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 196: Isbt 128 Dynamic Concatenation Timeout
Enter/Exit Programming Mode ISBT 128 ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05  ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A  ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...
Page 197: Isbt 128 Force Concatenation
ISBT 128 Force Concatenation = Disable $CI8FC01  ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options Use the Datalogic Aladdin configuration application or Contact Customer Support to set up pairs of label types for concatenation. NOTE Product Reference Guide...
Page 198: Msi
Enter/Exit Programming Mode The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of scanner to decode MSI labels. $CMSEN00  DEFAULT MSI = Disable $CMSEN01  MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check charac- ter.
Page 199: Msi Check Character Transmission
Symbologies Enter/Exit Programming Mode MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00  MSI Check Character Transmission = Disable $CMSCT01  DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 200: Msi Set Length 1
Enter/Exit Programming Mode MSI Set Length 1 This feature specifies one of the bar code lengths for MSI Length Control on page 189. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 189 Mode.
Page 201: Msi Set Length 2
Symbologies Enter/Exit Programming Mode MSI Set Length 2 This feature specifies one of the bar code lengths for MSI Length Control on page 189. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 189 Mode.
Page 202: Msi Minimum Reads
Enter/Exit Programming Mode MSI Minimum Reads This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read. $CMSMR01  MSI Minimum Reads = 1 $CMSMR02  MSI Minimum Reads = 2 $CMSMR03 ...
Page 203: Msi Decoding Level
Symbologies Enter/Exit Programming Mode MSI Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 204: Code 93
Enter/Exit Programming Mode Code 93 Code 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of scanner to decode Code 93 labels. $CC9EN00  DEFAULT Code 93 = Disable $CC9EN01  Code 93 = Enable Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character.
Page 205: Code 93 Check Character Transmission
Symbologies Enter/Exit Programming Mode $CC9CC02  Code 93 Check Character Calculation = Enable Check K $CC9CC03  DEFAULT Code 93 Check Character Calculation = Enable Check C and K Code 93 Check Character Transmission Enables/disables transmission of an optional Code 93 check character. $CC9CT00 ...
Page 206 Enter/Exit Programming Mode Code 93 Fixed Length: For fixed length decoding, two different lengths may be set. $CC9LC00  DEFAULT Code 93 Length Control = Variable Length $CC9LC01  Code 93 = Fixed Length Heron™ HD3130...
Page 207: Code 93 Set Length 1
Symbologies Enter/Exit Programming Mode Code 93 Set Length 1 This feature specifies one of the bar code lengths for Code 93 Length Control on page 195. Length 1 is the minimum label length if in Variable Length on page 195 Mode, or the first fixed length if in Fixed Length on page 196 Mode.
Page 208: Code 93 Set Length 2
Enter/Exit Programming Mode Code 93 Code 93 Set Length 2 This feature specifies one of the bar code lengths for Code 93 Length Control on page 195. Length 2 is the maximum label length if in Variable Length on page 195 Mode, or the second fixed length if in Fixed Length on page 196 Mode.
Page 209: Code 93 Minimum Reads
Symbologies Enter/Exit Programming Mode Code 93 Minimum Reads This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. $CC9MR01  DEFAULT Code 93 Minimum Reads = 1 $CC9MR02 ...
Page 210: Code 93 Decoding Level
Enter/Exit Programming Mode Code 93 Code 93 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 211: Code 93 Quiet Zones
Symbologies Enter/Exit Programming Mode Code 93 Quiet Zones Enables/disables fixed length stitching for Code 93. This feature is available only on the TD1130 model. NOTE $CC9LO00  Code 93 Quiet Zones = No Quiet Zones $CC9LO01  Code 93 Quiet Zones = Quiet Zone on one side $CC9LO02 ...
Page 212: Codablock F
Enter/Exit Programming Mode Codablock F Codablock F The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables the ability of the scanner to decode Codablock F labels. $CCFEN00  DEFAULT Codablock F = Disable $CCFEN01  Codablock F = Enable Codablock F EAN Enable/Disable Enables/Disables the Codablock F EAN subtype (code with FNC1 in the first position).
Page 213: Codablock F Aim Check
Symbologies Enter/Exit Programming Mode Codablock F AIM Check Specifies if Check Digit calculation algorithm is AIM compliant or not. $CCFAC00  Codablock F AIM Check = Not AIM compliant $CCFAC01  DEFAULT Codablock F AIM Check = AIM compliant Codablock F Length Control This feature specifies either variable length decoding or fixed length decoding for the Codablock F symbology.
Page 214: Codablock F Set Length 1
Enter/Exit Programming Mode Codablock F Codablock F Set Length 1 This feature specifies one of the bar code lengths for Codablock F Length Con- trol on page 203. Length 1 is the minimum label length if in Variable Length on page 203 Mode, or the first fixed length if in Fixed Length on page 203...
Page 215: Codablock F Set Length 2
Symbologies Enter/Exit Programming Mode Codablock F Set Length 2 This feature specifies one of the bar code lengths for Codablock F Length Con- trol on page 203. Length 2 is the maximum label length if in Variable Length on page 203 Mode, or the second fixed length if in Fixed Length on page 203 Mode.
Page 216: Code 4
Enter/Exit Programming Mode Code 4 Code 4 The following options apply to the Code 4 symbology. Code 4 Enable/Disable Enables/Disables ability of scanner to decode Code 4 labels. $CCREN00  DEFAULT Code 4 = Disable $CCREN01  Code 4 = Enable Code 4 Check Character Transmission This feature enables/disables transmission of an optional Code 4 check charac- ter.
Page 217: Code 4 Hex To Decimal Conversion
Symbologies Enter/Exit Programming Mode Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexadecimal label data to dec- imal label data. $CCRHD00  Code 4 Hex to Decimal Conversion = Disable $CCRHD01  DEFAULT Code 4 Hex to Decimal Conversion = Enable Code 5 The following options apply to the Code 5 symbology.
Page 218: Code 5 Check Character Transmission
Enter/Exit Programming Mode Code 5 Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check charac- ter. $CC5CT00  Code 5 Check Character Transmission = Don’t Send $CC5CT01  DEFAULT Code 5 Check Character Transmission = Send Code 5 Hex to Decimal Conversion This feature enables/disables the conversion of hexadecimal label data to dec- imal label data.
Page 219: Code 4 And Code 5 Common Configuration Items
Symbologies Enter/Exit Programming Mode Code 4 and Code 5 Common Configuration Items The following options apply to both Code 4 and Code 5 symbologies. Code 4 and 5 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs.
Page 220: Code 4 And Code 5 Minimum Reads
Enter/Exit Programming Mode Code 4 and Code 5 Common Configuration Items Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read. $CC5MR01 ...
Page 221: Follett 2 Of 5
Symbologies Enter/Exit Programming Mode Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of scanner to decode Follett 2 of 5 labels. $CF2EN00  DEFAULT Follett 2 of 5 = Disable $CF2EN01 ...
Page 222: Bc412 Check Character Calculation
Enter/Exit Programming Mode BC412 BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character. When disabled, any check character in the label is treated as a data character $CBCCC00  DEFAULT BC412 Check Character Calculation = Don’t Calculate $CBCCC01 ...
Page 223: Bc412 Decoding Level
Symbologies Enter/Exit Programming Mode BC412 Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. "Decoding Levels" on page 245 for more detailed programming instruc- tions.
Page 224: Bc412 Length Control
Enter/Exit Programming Mode BC412 BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CBCLC00 ...
Page 225: Bc412 Set Length 2
Symbologies Enter/Exit Programming Mode BC412 Set Length 2 This feature specifies one of the bar code lengths for BC412 Length Control on page 214. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 214 Mode.
Page 226 Enter/Exit Programming Mode BC412 NOTES Heron™ HD3130...
Page 227: References
Chapter 4 References This section contains explanations and examples of selected bar code features. "Configuration Using Bar Codes" starting on page 17 for the actual bar code labels used to configure the scanner. RS-232 P ARAMETERS on page 218 • RS-232 Only on page 218 •...
Page 228: Parameters
References RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the scan- ner's baud rate to match the baud rate setting of the host device. With an improper baud rate setting, data may not reach the host correctly. Stop Bits The stop bit(s) at the end of each transmitted character marks the end of trans- mission of one character and prepares the receiving device for the next charac-...
Page 229: Rs-232/Usb Com Parameters
RS-232 Parameters RS-232/USB COM Parameters Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 230 References ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 231 RS-232 Parameters NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
Page 232 References ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 233 RS-232 Parameters ACK NAK Retry Count This feature specifies the number of times the scanner retries a label transmis- sion due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
Page 234 References Disable Character Specifies the value of the RS-232 host command used to disable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 235 RS-232 Parameters Enable Character Specifies the value of the RS-232 host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 236: Keyboard Interface
References Keyboard Interface Wedge Quiet Interval Specifies the amount of time the scanner looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 237: Intercharacter Delay
Keyboard Interface Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
Page 238: Intercode Delay
References Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2. Pad the number with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc 3.
Page 239: Data Format
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact Technical Support (see page 3 ) for more information. NOTE Please Keep In Mind...
Page 240: Global Prefix/Suffix
References Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indi- cated. Figure 5. Prefix and Suffix Positions OR...
Page 241: Global Aim Id
Data Format Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 242: Label Id
230000 540000 CODE32 410000 580000 CODE39 2A0000 560000 CODE4 340000 340000 CODE5 6A0000 6A0000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2 464600 4A0000...
Page 243 Data Format Symbology USA Label ID set EU Label ID set GS1 DATABAR LIMITED 524C00 760000 GS1 DATABAR OMNIDIRECTIONAL 523400 750000 GS1-128 000000 6B0000 I2OF5 690000 4E0000 IATA 494100 & 260000 Industrial 2 of 5 570000 570000 Interleaved 2 of 5 CIP HR 650000 650000 ISBN...
Page 244 References Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section "Label ID Control"...
Page 245 Data Format Label ID: Set Individually Per Symbology — continued Table 13 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar (Scanner enters Programming Mode) code Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix scanned data using "Label...
Page 246: Character Conversion
References Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to.
Page 247: Reading Parameters
Reading Parameters Reading Parameters Label Gone Timeout This feature sets the time after the last label segment is seen before the scan- ner prepares for a new label. The timeout can be set within a range of 10 milli- seconds to 2,550 milliseconds (2.55 seconds) in 10ms increments. Label Gone Timeout does not apply to scan modes that require a trigger pull for each label that is read Follow these instructions to set this feature:...
Page 248: Rgb Led Features
References RGB LED Features RGB Good Read Raising/Falling Time This parameter specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state, or back. The delay can be set within a range of zero (0) to 5000 milliseconds (5 seconds) in 100ms increments.
Page 249 Reading Parameters RGB Good Read Holding Time This parameter specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state. The delay can be set within a range of zero (0) to 255 milliseconds (25.5 sec- onds) in 100ms increments.
Page 250 References RGB Auto Delay Time Specifies the delay time for running the RGB auto mode after the scanner has gone into an idle state (no label reading, label programming or communication with Host). The delay can be set within a range of zero (0) to 255 milliseconds (5 seconds) in 500ms increments.
Page 251: Scanning Features
Scanning Features Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single: When the trigger is pulled, scanning is activated until one of the following occurs: • Scanning Active Time has elapsed • a label has been read •...
Page 252: Scanning Active Time
References Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 253: Flash On Time
Scanning Features Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 254: Flash Off Time
References Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
Page 255: Symbologies
Symbologies Symbologies Decoding Levels Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. • Choosing Level 1 results in a very conservative decoder at the expense of not being able to read poorly printed or damaged labels.
Page 256 References 4. Scan the appropriate two digits from the keypad in Appendix D, Keypad, that represent the length setting which was determined in the steps above. You will hear a two-beep indication after the last character If you make a mistake before the last character, scan the CANCEL bar code to abort and not save the entry string.
Page 257 Symbologies Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Reference the Symbologies on page 85 section to view the selectable range (num- ber of characters) for the symbology being set.
Page 258 References NOTES Heron™ HD3130...
Page 259: Technical Specifications
13 mils: 2 to 40.0 cm / 0,8 to 15.7 in (EAN13, PCS 90%) 20 mils: 2 to 60.0 cm / 0,8 to 23.6 in (CODE 39, PCS 90%) Max. Resolution 0.10 mm (4 mils) PCS (Datalogic Test Chart) minimum 15% Product Reference Guide...
Page 260 128; Code 39; Code 32 (Italian Pharmacode); Code 11; Industrial 2/5; IATA Industrial 2/5; EAN 128; Code 4; Code Decode Capability 5; China Post (Datalogic 2 of 5); Standard 2 of 5; MSI; Con- catenated ISBT 128 STACKED CODES: GS1 DataBar Expanded; GS1 DataBar Limited;...
Page 261: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The imager’s beeper sounds and its illumination flashes or changes color to indicate various functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Table 24.
Page 262: Programming Mode
Technical Specifications Programming Mode The following indications ONLY occur when the scanner is in Programming Mode. INDICATION DESCRIPTION SPEAKER Label Program- A valid programming label has Scanner sounds four low fre- ming Mode LED blinks continuously been scanned. quency beeps. Entry Label Program- Scanner sounds three times at...
Page 263: Error Codes
Error Codes Error Codes Upon startup, if the scanner sounds a long tone, this means the scanner has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the scanner is reset, the sequence will be repeated. The fol- lowing table describes the LED flashes/beep codes associated with an error found.
Page 264: Standard Cable Pinouts
Technical Specifications Standard Cable Pinouts Figure 8 and Table 25 provide standard pinout information for the scanner’s cable. Figure 8. Standard Cable Pinouts Interface Cable Port Pin 10 Pin 1 Cable To Host Cable Strain Relief Cable Clip (Latch) Table 25 The signal descriptions in apply to the connector on the scanner and are for reference only.
Page 265: Stand Dimensions
Stand Dimensions Stand Dimensions Product Reference Guide...
Page 266: Stand Base Plate Template
Technical Specifications Stand Base Plate Template SCREW HERE SCREW HERE Heron™ HD3130...
Page 267: Standard Defaults
Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of Table 26. The settings in this table are as applied to a standard RS-232 inter- face. See Table 27 for a listing of default exceptions to this list as applied to other interface types.
Page 268 Standard Defaults Page Parameter Default Your Setting Number ACK NAK Retry Count 3 Retries Ignore Errors ACK NAK Error Handling Detected Indicate Transmission Failure Enable Disable Character ‘D’ Enable Character ‘E’ KEYBOARD WEDGE Country Mode U.S. Keyboard Caps Lock State Caps Lock OFF Numlock Key Numlock...
Page 269 Page Parameter Default Your Setting Number Label Gone Timeout 160 ms Label Gone Timeout 160 ms LED and SPEAKER Indications Power On Alert 4 Beeps Good Read: When to Indicate After Decode Good Read Beep Type Mono Good Read Beep Frequency Medium Good Read Speaker Volume High...
Page 270 Standard Defaults Page Parameter Default Your Setting Number UPC-A Check Character Transmis- Enable sion Expand UPC-A to EAN-13 Don’t Expand UPC-A Number System Character Transmit Transmission In-Store Minimum Reads UPC-E UPC-E Enable/Disable Enable UPC-E Check Character Transmis- Send sion Expand UPC-E to EAN-13 Don’t Expand Expand UPC-E to UPC-A Don’t Expand...
Page 271 Page Parameter Default Your Setting Number UPC-A Minimum Reads 1 Read Add-ons Disable P2, P5 Optional Add-ons and P8 Optional Add-On Timer 70 ms P2 Add-Ons Minimum Reads P5 Add-Ons Minimum Reads GS1 DataBar Omnidirectional GS1 DataBar Omnidirectional Disable Enable/Disable GS1 DataBar Omnidirectional GS1- Disable 128 Emulation...
Page 272 Standard Defaults Page Parameter Default Your Setting Number Code 39 Code 39 Enable/Disable Enable Code 39 Check Character Calcula- Don’t Calculate tion Code 39 Check Character Trans- Send mission Code 39 Start/Stop Character Don’t Transmit Transmission Code 39 Full ASCII Disable Code 39 Quiet Zones Auto...
Page 273 Datalogic 2 of 5 Check Character Don’t Send Transmission Datalogic 2 of 5 Minimum Reads Datalogic 2 of 5 Length Control Variable Datalogic 2 of 5 Set Length 1 Datalogic 2 of 5 Set Length 2 Datalogic 2 of 5 Interdigit Ratio Product Reference Guide...
Page 274 Standard Defaults Page Parameter Default Your Setting Number Codabar Codabar Enable/Disable Disable Codabar Check Character Calcula- Don’t Calculate tion Codabar Check Character Trans- Send mission Codabar Start/Stop Character Transmit Transmission Codabar Start/Stop Character Set abcd/abcd Codabar Start/Stop Character Don’t Require Match Match Codabar Quiet Zones...
Page 275 Page Parameter Default Your Setting Number Code 11 Set Length 2 Code 11 Interdigit Ratio Code 11 Decoding Level Standard 2 of 5 Standard 2 of 5 Enable/Disable Disable Standard 2 of 5 Check Character Disable Calculation Standard 2 of 5 Check Character Send Transmission Standard 2 of 5 Minimum Reads...
Page 276 Standard Defaults Page Parameter Default Your Setting Number ISBT 128 Dynamic Concatenation 200ms Timeout ISBT 128 Force Concatenation Disable ISBT 128 Advanced Concatenation Disable Options MSI Enable/Disable Disable MSI Check Character Calculation Enable Mod10 MSI Check Character Transmission Enable MSI Length Control Variable MSI Set Length 1 1 Character...
Page 277 Page Parameter Default Your Setting Number Codablock F Set Length 1 3 Characters Codablock F Set Length 2 100 Characters Code 4 Code 4 Enable/Disable Disable Code 4 Check Character Transmis- Enable sion Code 4 Hex to Decimal Conversion Enable Code 5 Code 5 Enable/Disable Disable...
Page 278: Default Exceptions
Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
Page 279 Default Exceptions Default Parameter Exception EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to ` Interface: RS232-OPOS...
Page 280 Standard Defaults Default Parameter Exception UPCE/P5 Label ID Character(s) EAN8/P2 Label ID Character(s) EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Heron™...
Page 281: Sample Bar Codes
Appendix C Sample Bar Codes The sample bar codes in this appendix are typical representations for their symbology types. 1D Bar Codes UPC-A 12345 67890 EAN-13 3 4 5 67 8 9 0 1 2 3 4 0 Code 39 123ABC Product Reference Guide...
Page 282 Sample Bar Codes Code 128 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 Interleaved 2 of 5 12345678901231 Code 32...
Page 283: Gs1 Databar (Rss)
GS1 DataBar (RSS) GS1 DataBar (RSS) GS1 DataBar variants must be enabled to read the bar codes below (see "GS1 DataBar (RSS)" on page 273). NOTE 10293847560192837465019283746029478450366523 (GS1 DataBar Expanded Stacked) 1234890hjio9900mnb (GS1 DataBar Expanded) 08672345650916 (GS1 DataBar Limited) GS1 DataBar-14 55432198673467 (GS1 DataBar Omnidirectional Truncated) 90876523412674...
Page 284 Sample Bar Codes NOTES Heron™ HD3130...
Page 285: Keypad
Appendix D Keypad Use the bar codes in this appendix to enter numbers as you would select digits/ characters from a keypad. Product Reference Guide...
Page 286 Keypad Keypad (continued) Heron™ HD3130...
Page 287 Keypad (continued) Product Reference Guide...
Page 288 Keypad NOTES Heron™ HD3130...
Page 289: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms.
Page 290: Interface Type Pc At Ps/2 Or Usb-Keyboard
Interface Type PC AT PS/2 or USB-Keyboard Table 28. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+D C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z...
Page 291 Interface Type PC AT PS/2 or USB-Keyboard (continued) Table 29. Scancode Set When Control Character is 02 Enter Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  Ar↓ Ar↑ Al↓ S+ Tab Enter Pg Up Keypd Pg Dwn Home ...
Page 292: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 30. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021 Alt+022...
Page 293 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 31. Scancode Set When Control Character is 02 Enter Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  Ar↓ Ar↑ Al↓ S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 294: Microsoft Windows Codepage 1252
Scancode Tables Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages. Heron™ HD3130...
Page 295: Index
Index Good Read, Beeper Pitch – Good Read, Beeper Volume – bar codes RS-232 baud rate RS-232 parameters Handheld Scanner 206, 207, 209, parity Beeper Pitch, Good Read Volume, Good Read Indications Beeper, Good Read keyboard support Cable Pinouts KEYBOARD WEDGE (KBW) interface selection Clear to Send Keyboard Wedge Connection Conversion, case...
Page 296 RS-232 interface selection sample bar codes code 128 code 39 interleaved 2 of 5 Scancode Tables select digits/characters Serial Output Standard Cable Pinouts Suffix Symbologies symbology types Table Top Scanner USB Connection USB interface selection Volume – Good Read, Beeper XON/XOFF Heron™...
Page 297 ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
Page 298 ©2015 Datalogic ADC, Inc. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
