Grizzly G1024 Parts List

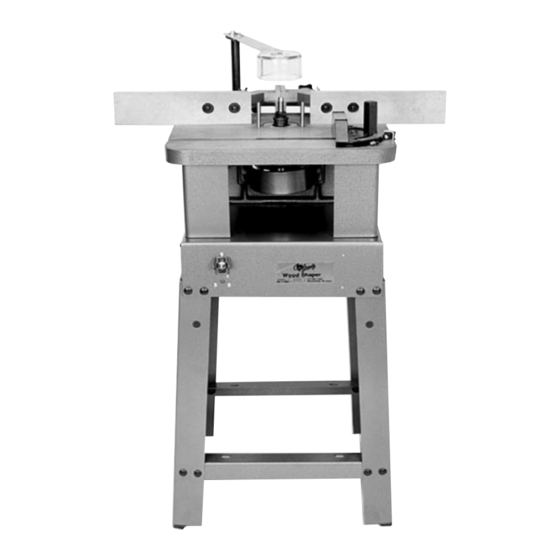

3/4 h.p. shaper

Hide thumbs Also See for G1024:

Download this manual See also: Instruction Manual

IMPORTS, INC.

H.P. SHAPER

MODEL G1024

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED JUNE, 1994. PRINTED IN USA

DISCONTINUED MACHINE PARTS LIST DISCLAIMER

THESE PARTS REPRESENT THE LAST CONFIGURATION OF THE MACHINE BEFORE IT WAS DISCONTINUED. MACHINE CONFIGU-

RATIONS MAY HAVE CHANGED AS PRODUCT IMPROVEMENTS WERE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF

THE MACHINE, THIS PARTS LIST MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY

QUESTIONS ABOUT PART DIFFERENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

- 1 -

Page 1: Parts List
COPYRIGHT © 1994 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. REVISED JUNE, 1994. PRINTED IN USA DISCONTINUED MACHINE PARTS LIST DISCLAIMER THESE PARTS REPRESENT THE LAST CONFIGURATION OF THE MACHINE BEFORE IT WAS DISCONTINUED.
Page 2 XVIII. PARTS LISTS AND DIAGRAMS 71 69 A. MAIN BODY ASSEMBLY 63-1 - 2 - 34 29...
Page 3 B. MODEL G1024 SHAPER PARTS LIST Ref. # Part # Description P1022003 Side Panel P1024002 Tie Bar PB02M Hex Bolt M6-1.0x12 P1024004 Rubber Foot PW02 Flat Washer PN01M Hex Nut M6-1.0 PW02 Flat Washer PN03M Hex Nut M8-1.25 PCB01M Carriage Bolt M8-1.25x20...
Page 4 B. MODEL G1024 SHAPER PARTS LIST (CONTINUED) Ref. # Part # Description P1026223 Safety Washer P1024076 Cutter Spindle P1024077 Bearing Cover P1024078 Spindle Cartridge P1024079 Steel Ball PR23M Retaining Ring 40mm P6203 Ball Bearing P1024082 Spindle Housing P1024083 Bearing Cone...
