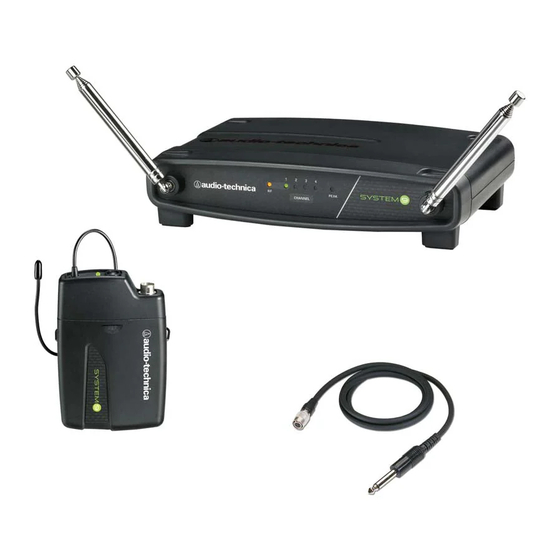

- Page 1 System 9 VHF Wireless System Installation and Operation SYSTEM PEAK CHANNEL ATW-901 UniPak Transmitter System ® ATW-901/G Guitar System ATW-901/H Headworn Microphone System ATW-901/H92 Miniature Headworn Microphone System ATW-901/H92-TH Miniature (beige) Headworn Microphone System ATW-901/L Lavalier Microphone System ATW-902 Handheld Microphone System...
-

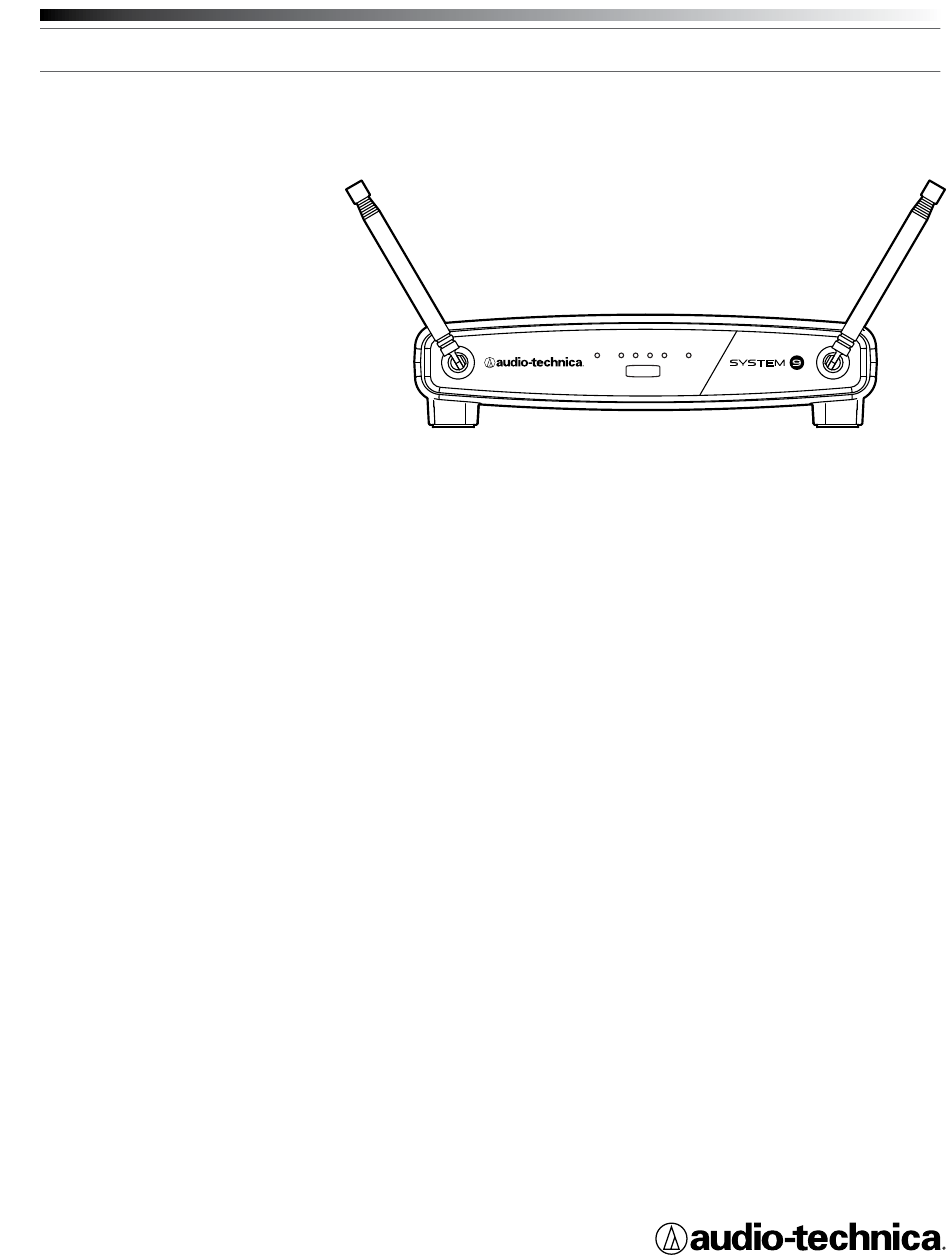

Page 2: Receiver Installation
System 9 Installation and Operation This device complies with part 15 of the FCC Rules. Operation is subject The ATW-R900 receiver includes a switching power supply that to the condition that this device does not cause harmful interference. automatically adapts to changes in mains voltage. A copy of the declaration of conformity can be found on the internet at The versatile ATW-T901 UniPak body-pack transmitter has both www.audio-technica.com. -
Page 3: Receiver Controls And Functions
System 9 Installation and Operation Receiver Controls and Functions SYSTEM CHANNEL SYSTEM PEAK CHANNEL Figure A — Front Panel Controls and Functions 1. ANTENNAS: Position the “signal” antenna (1a) and SYSTEM CHANNEL “ground” antenna (1b) as shown to the right and above right. Fully extend both antennas by pulling on the endcaps. - Page 4 System 9 Installation and Operation Transmitter Setup Controls and Functions Battery Selection and Installation Switch Conf iguration for Channel Selection Two alkaline AA batteries are recommended. When inserting the battery, CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 observe correct polarity as marked inside the battery compartment. Channel Selection DIP Switches Switch Conf iguration for Channel Selection...
- Page 5 System 9 Installation and Operation UniPak Transmitter Battery Installation Figure D — UniPak Transmitter ® ® 1. Slide off the battery cover as shown in Figure D. Switch Conf iguration for Channel Selection 2. Carefully insert two fresh AA alkaline batteries, observing polarity CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 markings.
-
Page 6: System Operation
System 9 Installation and Operation System Operation Adjusting Input Level - Handheld Transmitter Unscrew the lower body cover and slide it off, exposing the screwdriver and "LEVEL" (Gain Trimmer) control (Fig. C). Remove the screwdriver Turn down the receiver volume control and the mixer/amplifier from its clip. -
Page 7: Specifications
