Page 1: User Manual

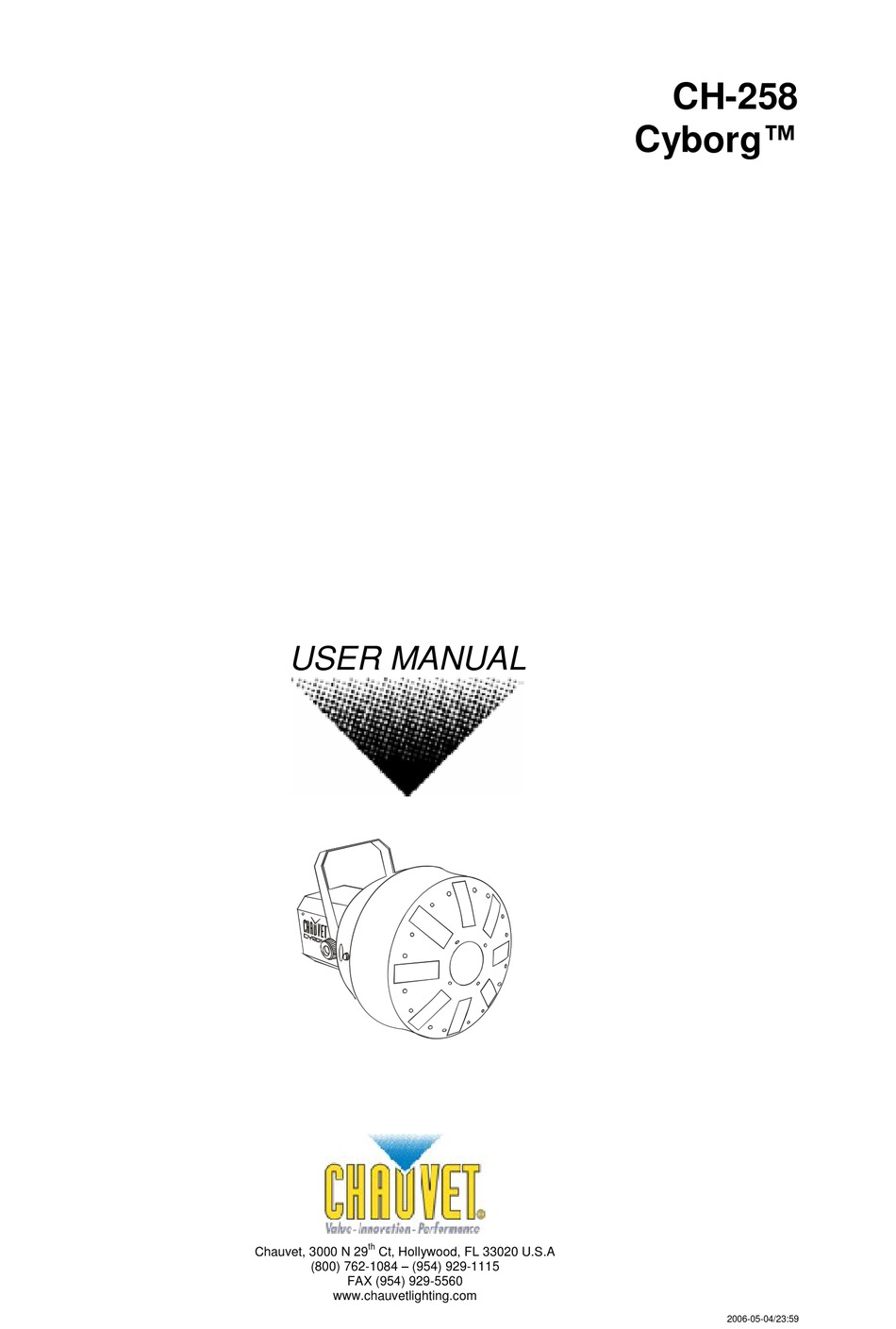

CH-258 Cyborg™ USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-05-04/23:59... -
Page 2: Table Of Contents
ABLE OF ONTENT TABLE OF CONTENT ... 2 BEFORE YOU BEGIN ... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 AFETY NSTRUCTIONS INTRODUCTION... 4 ... 4 EATURES ... 4 RODUCT VERVIEW SETUP ... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. CH-258 User Manual AC Voltage Switch Not all fixtures have a voltage select switch. -
Page 4: Introduction
NTRODUCTION Features 8 Multicolored lenses 16 rotating beams Built-in microphone and sound sensitivity knob Beams rotate and criss - cross to the music Wide area light coverage Fan cooled Product Overview Bottom view CH-258 User Manual Voltage switch Fuse and power connector... -
Page 5: Setup
ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. Two 64514 300w halogen lamp are included. This lamp is used on both the 115V and 230V versions of the Cyborg™ Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. -
Page 6: Operating Instructions
For every 15 minute period that the fixture is used, allow 15 minutes in the Off position to cool down. Please do not exceed 15 minutes of On operation per cycle. To learn more about these and other CHAUVET products visit us at www.chauvetlighting.com. CH-258 User Manual... -
Page 7: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 8: General Troubleshooting
General Troubleshooting Symptom Solution(s) Auto shut off Check fan thermal switch reset Beam is very dim or not Clean optical system or replace lamp bright Check 220/110v switch for proper setting Breaker/Fuse keeps Check total load placed on device blowing Chase is too slow Check users manual for speed adjustment Device has no power... -
Page 9: Lamp (In-Series) Wiring For 230V Operation
Lamp (in-series) Wiring for 230V Operation In prior tests of the 230V version of the 64514 known as the 64516 or 64515, failure of the lamp was common place due to rapid fixture movement during normal operations and penetrating sound waves produced in low frequency based music.
