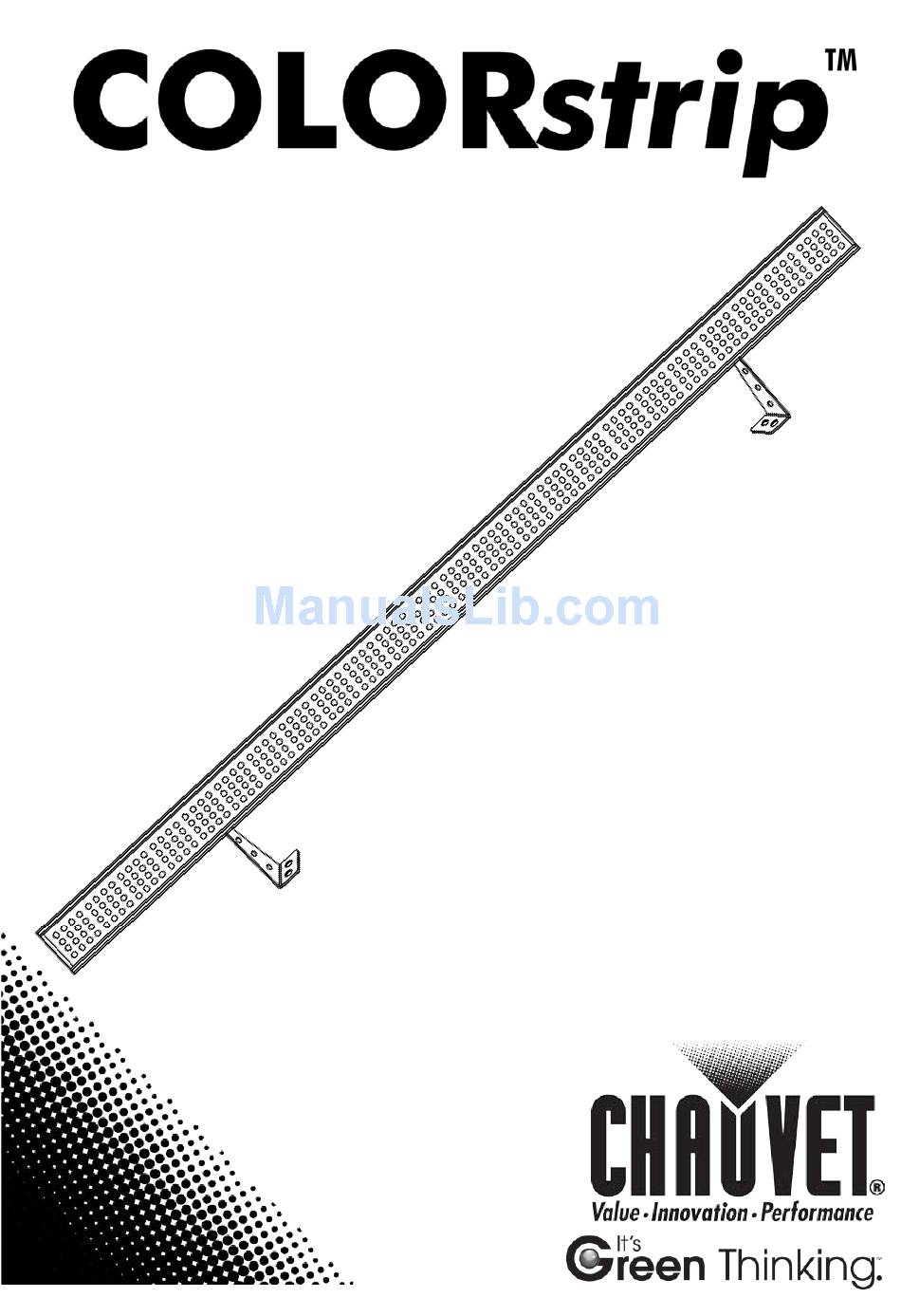

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
COLORstrip™ QRG About This The COLORstrip™ Quick Reference Guide (QRG) contains the product’s connection and mounting information, as well as the menu options and the Guide DMX values. • See this product’s User Manual for detailed information and instructions. You can download the User Manual from the CHAUVET®... - Page 3 This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Power Linking You can link up to fifteen (15) COLORstrip™ units at 120 VAC and twenty-eight (28) units at 230 VAC. Never exceed these numbers. Fuse To replace the fuse in the COLORstrip™, use the following steps:...
-
Page 4: Control Panel Description
COLORstrip™ QRG Programming For details on how to program this product, see the User Manual. Control Panel Button Function Description <MENU> Exits from the current menu or function. Navigates upwards through the menu list and increases the <UP> numeric value when in a function. - Page 5 COLORstrip™ QRG DMX Linking The COLORstrip™ can work with a DMX controller when linked using a regular DMX serial connection. If you are not familiar with the DMX standard, download the DMX Primer from www.chauvetlighting.com. The COLORstrip™ uses a regular DMX data connection for its DMX Connection personality.
-
Page 6: Dmx Values
COLORstrip™ QRG DMX Values 4-CH Channel Function Value CH. 2 CH. 3 CH. 4 000 009 Blackout 010 019 020 029 Flash speed Green 000 249 030 039 Blue 040 049 Yellow Sound-Active 050 059 Purple 250 ... - Page 7 COLORstrip™ QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this guide and in the product’s User Manual. The mounting instructions are provided in the Setup chapter of the User Manual. Product Mounting Diagram Mounting Brackets...
- Page 8 Outside the U.S., United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our website for contact details. COLORstrip™ QRG – Rev. 1 © Copyright 2012 CHAUVET® All rights reserved Printed in the P.
