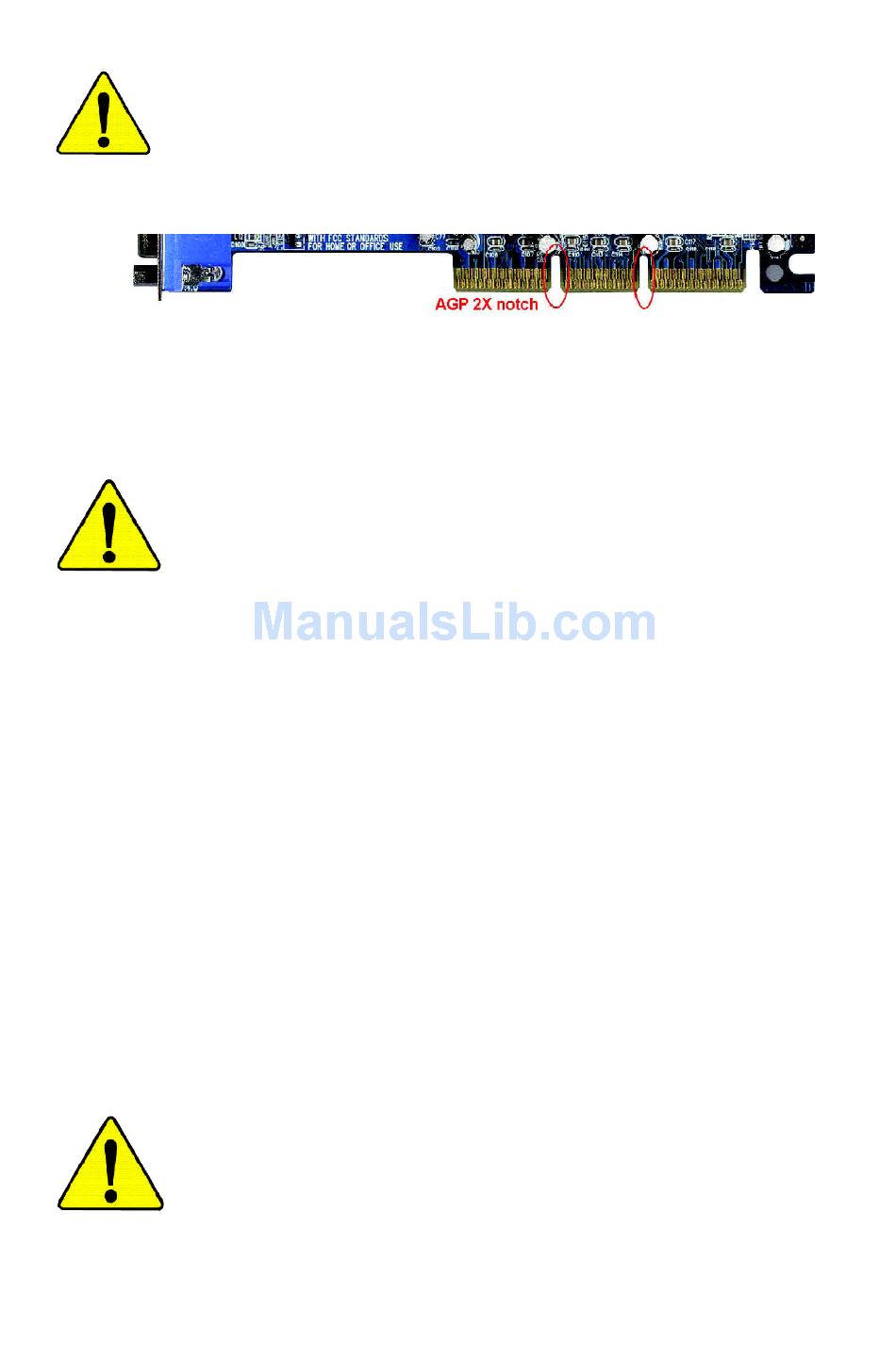

When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has
"AGP 4X/8X(1.5V) notch"(show below), please make sure your AGP
card is AGP 4X/8X(1.5V).
AGP 4X/8X notch
Caution: AGP 2X card is not supported by SiS
655. You might
®
experience system unable to boot up normally. Please insert an
AGP 4X/8X card.
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V)
mode by adjusting the jumper. The factory default for this card is
2X(3.3V). The GA-GA-SINXP1394 (or any AGP 4X only)
motherboards might not function properly, if you install this card without
switching the jumper to 4X(1.5) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power
Color", the graphics card manufacturer & some SiS 305 cards, their
golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but
they support 2X(3.3V) only. The GA-SINXP1394
(or any AGP 4X only) motherboards might not function properly, If you
install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on
ATi Rage 128 Pro chip, the design of AG32S(G) is compliance
with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work
fine with SiS
648 based motherboards.
®
Before you install PCI cards, please remove the Dual BIOS label from
PCI slots if there is one.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-SINXP1394

Summary of Contents for Gigabyte GA-SINXP1394

  • Page 1 (or any AGP 4X only) motherboards might not function properly, If you install this card in it. Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage 128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work fine with SiS 648 based motherboards.
  • Page 2 M The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. M Third-party brands and names are the property of their respective owners. M Please do not remove any labels on motherboard, this may void the warranty of this motherboard.

  • Page 3: Declaration Of Conformity

    Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-SINXP1394 is in conformity with in accordance with 89/336 EEC-EMC Directive o EN 61000-3-2* T EN 60555-2 o EN 61000-3-3* T EN 60555-3...
  • Page 4 (2) this device must accept any inference received, including that may cause undesired operation. Representative Person’s Name: G.B.T. INC. (U.S.A.) Address: 17358 Railroad Street City of Industry, CA 91748 (818) 854-9338/ (818) 854-9339 Motherboard GA-SINXP1394 ERIC LU Signature: Eric Lu Date: January 6, 2002...
  • Page 5 GA-SINXP1394 P4 Titan DDR Motherboard USER'S MANUAL Pentium 4 Processor Motherboard ® Rev. 1001 12ME-SINXP-1001...

  • Page 6: Table Of Contents

    WARNING! ... 4 Chapter 1 Introduction ... 5 Features Summary ... 5 GA-SINXP1394 Motherboard Layout ... 8 Chapter 2 Hardware Installation Process ... 9 Step 1: Install the Central Processing Unit (CPU) ... 10 Step1-1 : CPU Installation ... 10 Step1-2 : CPU Heat Sink Installation ...
  • Page 7 PnP/PCI Configurations ... 44 PC Health Status ... 45 Frequency/Voltage Control ... 47 Top Performance ... 49 Load Fail-Safe Defaults ... 50 Load Optimized Defaults ... 51 Set Supervisor/User Password... 52 Save & Exit Setup ... 53 Exit Without Saving ... 54 Chapter 4 Technical Reference ...

  • Page 8: Item Checklist

    (M anual ; SATA cable x1 ; Power cable x 1) WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

  • Page 9: Chapter 1 Introduction

    — IDE3 and IDE4 Compatible with RAID,Ultra ATA133/100, EIDE Serial ATA — 2 Serial ATA connectors in 150 MB/s operation mode — Controlled by Silicon Image SiI3112A <Note 1> DDR400 recommended memory modules are listed in GIGABYTE website. Micro FC-PGA2 Pentium ® Pentium 4 (Northwood, 0.13 m) processor...
  • Page 10 — Features LBA and Extended Interrupt 13 drive translation in On-Board LAN — Builit in Intel — 1 RJ45 port PS/2 Connector — PS/2 Keyboard interface and PS/2 Mouse interface GA-SINXP1394 Motherboard and 2.88M bytes. striping+mirroring (RAID 0+RAID 1) controller onboard BIOS RC82540EM (KENAI 32) Chipset ®...
  • Page 11 BIOS — Licensed AWARD BIOS, 2M bit Flash ROM — Supports Dual BIOS / Q-Flash Additional Features — PS/2 Keyboard power on by password — PS/2 Mouse power on — STR(Suspend-To-RAM) — AC Recovery — USB KB/Mouse wake up from S3 —...

  • Page 12: Ga-Sinxp1394 Motherboard Layout

    GA-SINXP1394 Motherboard Layout KB_MS CPU_FAN VRM_CONN SUR_CEN A TX_12V USB_LAN F_AU DIO IT8705F NB_FAN AUX_IN CD_I N I ntel KENAI 32 CODEC AGP 8X P4 Titan Main BIOS Backup BIOS SPDI F_O SPDI F_IN GA-SINXP1394 Motherboard SOC KET478 SiS 655...

  • Page 13: Chapter 2 Hardware Installation Process

    Chapter 2 Hardware Installation Process To set up your computer, you must complete the following steps: Step 1- Install the Central Processing Unit (CPU) Step 2- Install memory modules Step 3- Install expansion cards Step 4- Connect ribbon cables, cabinet wires, and power supply Step 5- Setup BIOS software Step 6- Install supporting software tools Step 4...

  • Page 14: Step 1: Install The Central Processing Unit (Cpu)

    M Please make sure the CPU type is supported by the motherboard. M If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper installation. Please change the insert orientation. GA-SINXP1394 Motherboard 2. Pull the rod to the 90-degree directly. Pin1 indicator 4.

  • Page 15: Step1-2 : Cpu Heat Sink Installation

    Step1-2 : CPU Heat Sink Installation 1. Hook one end of the cooler bracket to the CPU socket first. M Please use Intel approved cooling fan. M We recommend you to apply the thermal tape to provide better heat conduction between your CPU and heatsink. (The CPU cooling fan might stick to the CPU due to the hardening of the thermal paste.

  • Page 16: Step 2: Install Memory Modules

    PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops and notebook applications. GA-SINXP1394 Motherboard 1. The DIMM socket has a notch, so the DIMM memory module can only fit in one direction.
  • Page 17 GA-SINXP1394 supports the Dual Channel Technology. After operating the Dual Channel Technology, the bandwidth of Memory Bus will add double up to 5.4GB/s. GA-SINXP1394 includes 4 DIM M sockets, and each Channel has two DIMM sockets as following: Channel A : DIMM 1, DIMM 2...

  • Page 18: Step 3: Install Expansion Cards

    5. Replace the screw to secure the slot bracket of the expansion card. 6. Replace your computer's chassis cover. 7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS. 8. Install related driver from the operating system. AGP Card GA-SINXP1394 Motherboard DIMM 2 DIMM 3 DS/SS DS/SS...

  • Page 19: Step 3-2: Dpvrm (Dual Power Voltage Regulator Module) Installation

    Step 3-2: DPVRM (Dual Power Voltage Regulator Module) Installation What is DPVRM ? DPVRM (Dual Power Voltage Regulator Module) is a daughter card which can provide you the DPS (Dual Power System) function. A cool stylish neon blue DPVRM that supply a total 6-phase power circuit design, delivers a high durable power design for the new generation Intel How to install a DPVRM ? Step 1...

  • Page 20: Step 4: Connect Ribbon Cables, Cabinet Wires, And Power Supply

    Parallel Port (25 pin Female) COMA COMB Serial Port (9 pin Male) GA-SINXP1394 Motherboard This connector supports standard PS/2 keyboard and PS/2 mouse. This connector supports 2 standard COM ports and 1 Parallel port. Device like printer can be connected to Parallel port ; mouse and modem etc can be connected to Serial ports.

  • Page 21: Audio Connectors

    w Game /MIDI Ports Joystick/ MIDI (15 pin Female) x Audio Connectors Line Out MIC In (Center and Subwoofer) (Front Speaker) Line In (Rear Speaker) y USB & LAN Connector USB 0 USB 1 If you want the detail information for 2-/4-/6-channel audio setup installation, please refer to page 82.

  • Page 22: Step 4-2: Connectors Introduction

    5) ATX_12V 6) ATX 7) FDD 8) IDE1/IDE2 9) IDE3/IDE4 10) S_ATA1/S_ATA2 11) LED 12) PWR_LED 13) F_PANEL 14) BAT GA-SINXP1394 Motherboard 15) F_AUDIO 16) SUR_CEN 17) CD_IN 18) AUX_IN 19) SPDIF_O 20) SPDIF_IN 21) F_USB1/F_USB2 22) SMB_CONN 23) 1394...
  • Page 23 1) CPU_FAN (CPU FAN Connector) Sense +12V 2) PWR_FAN (Power Fan Connector) Sense +12V 3) SYS_FAN (System FAN Connector) +12V Sense 4) NB_FAN (Chip FAN Connector) +12V Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running under abnormal condition or damaged by overheating.The CPU fan connector supports Max.
  • Page 24 5V SB (Stand by +5V) Power Good 3.3V 3.3V 7) FDD (Floppy Connector) GA-SINXP1394 Motherboard This connector (ATX_12V) supplies the CPU operation voltage (Vcore). If this " ATX_12V connector" is not connected, system cannot boot. AC power cord should only be connected to...
  • Page 25 8) IDE1/ IDE2 [IDE1 / IDE2 Connector(Primary/Secondary)] IDE2 IDE1 9) IDE3 / IDE4 (RAID/ATA133, Green Connector) IDE4 IDE3 10) S_ATA1/S_ATA2 (Serial ATA Connector) Important Notice: Please connect first harddisk to IDE1 and connect CDROM to IDE2. The red stripe of the ribbon cable must be the same side with the Pin1.
  • Page 26 Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front panel to the F_PANEL connector according to the pin assignment above. GA-SINXP1394 Motherboard Do not remove memory modules while LED is on. It might cause short or other unexpected damages due to the 2.5V stand by voltage.
  • Page 27 14) BAT (Battery) 15) F_AUDIO (Front Audio Connector) M IC Front Audio (R) Rear Audio (R) Reserved Front Audio (L) Rear Audio (L) 16) SUR_CEN SUR OUTL SUR OUTR BASS_OUT CENTER_OUT 17) CD_IN (CD Audio Line In) CD-L CD-R Danger of explosion if battery is incorrectly replaced.
  • Page 28 USB Dy- Power Power USB Dx- USB Dx+ GA-SINXP1394 Motherboard Connect other device(such as PCI TV Tunner audio out )to the connector. The SPDIF output is capable of providing digital audio to external speakers or com pressed AC3 data to an external Dolby Digital Decoder.
  • Page 29 22) SMB_CONN GPIO +12V SMBCLK SMBDATA +12V 23) 1394 (IEEE1394 Connector) CTL1 SYSCLK LINKON +12V +12V LREQ CTL0 24) IR (IR Connector) VCC(+5V) IR Data Input IR Data Output Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features like high speed, high band- width and hot plug.
  • Page 30 Signal 26) WOL (Wake on LAN) +5V SB Signal GA-SINXP1394 Motherboard This 2 pin connector allows your system to enable or disable the "Case Open" item in BIOS if the system case begin remove. This connector allows the remove servers to...
  • Page 31 - 27 - Hardware Installation Process...
  • Page 32 GA-SINXP1394 Motherboard - 28 -...

  • Page 33: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Powering ON the comput e r and pressing <Del>...

  • Page 34: The Main Menu (For Example: Bios Ver. : F1)

    Standard CMOS Features This setup page includes all the items in standard compatible BIOS. Advanced BIOS Features This setup page includes all the items of Award special enhanced features. GA-SINXP1394 Motherboard Top Performance Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...

  • Page 35: Integrated Peripherals

    Integrated Peripherals This setup page includes all onboard peripherals. Power Manag ement Setup This setup page includes all the items of Green function features. PnP/PCI Configurations This setup page includes all the configurations of PCI & PnP ISA resources. PC Health Status This setup page is the System auto detect Temperature, voltage, fan, speed.

  • Page 36: Standard Cmos Features

    The month, Jan. Through Dec. 8Month The day , from 1 to 31 (or the max imum allow ed in the month) 8Day The y ear, from 1999 through 2098 8Year GA-SINXP1394 Motherboard Standard CMOS Features Fri, May 3 2002 17:56:23 None None...
  • Page 37 Time The times format in <hour> <mi n ute> <second>. The time is calculated base on the 24-hour military- time clock. For example, 1 p.m. is 13:00:00. IDE Primary Master, Slave / IDE Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer. There are two types: auto type, and manual type.

  • Page 38: Base Memory

    Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU’ s memory address map. GA-SINXP1394 Motherboard - 34 -...

  • Page 39: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are SATA/RAID/SCSI Boot Order First Boot Dev ice Second Boot Dev ice Third Boot Dev ice Boot Up Floppy Seek Passw ord Check # CPU Hy per-Threading Flex ible AGP 8X Init Display First higf: Mov e Enter:Select +/-/PU/PD:Value...

  • Page 40: Password Check

    Enables CPU Hy per Threading Feature. Please note that this feature is only 8Enabled w orking for operating sy stem w ith multi processors mode supported. Disables CPU Hy per Threading. (Default v alue) 8Disabled GA-SINXP1394 Motherboard - 36 -...

  • Page 41: Init Display First

    Flexible AGP 8X Automatically set AGP transfer rate according to AGP compatibility and stability . 8Auto (Default v alue) Set AGP transfer rate to 4X mode no matter w hat the AGP transfer rate t h e card is. Init Display First Set Init Display First to AGP.

  • Page 42: Integrated Peripherals

    Set IDE1 Conductor Cable to ATA66/100/133 (Please make sure y our IDE 8ATA66/100/133 dev ice and cable is compatible w ith ATA66/100/133). Set IDE1 Conductor Cable to ATA33 (Please make sure your IDE dev ice and 8ATA33 cable is compatible w ith ATA33). GA-SINXP1394 Motherboard Integrated Peripherals [Auto] [Auto] [Enabled] [Enabled]...

  • Page 43: Ac97 Audio

    IDE2 Conductor Cable Will be automatically detected by BIOS. (Default Value) 8Auto Set IDE2 Conductor Cable to ATA66/100/133 (Please make sure y our IDE 8ATA66/100/133 dev ice and cable is compatible w ith ATA66/100/133). Set IDE2 Conductor Cable to ATA33 (Please make sure your IDE dev ice and 8ATA33 cable is compatible w ith ATA33).

  • Page 44: Onboard Serial Port 1

    Onboard Parallel port Enable onboard LPT port and address is 378/IRQ7. (Default Value) 8378/IRQ7 Enable onboard LPT port and address is 278/IRQ5. 8278/IRQ5 Disable onboard LPT port. 8Disabled Enable onboard LPT port and address is 3BC/IRQ7. 83BC/IRQ7 GA-SINXP1394 Motherboard - 40 -...

  • Page 45: Parallel Port Mode

    Parallel Port Mode Using Parallel port as Standard Parallel Port. (Default Value) 8SPP Using Parallel port as Enhanced Parallel Port. 8EPP Using Parallel port as Ex tended Capabilities Port. 8ECP Using Parallel port as ECP & EPP mode. 8ECP+EPP ECP Mode Use DMA Set ECP Mode Use DMA to 3.

  • Page 46: Power Management Setup

    When AC-pow er back to the sy stem, the sy stem w ill be in "Off" state. 8Off (Default Value) When AC-pow er back to the sy stem, the sy stem w ill be in "On" state. GA-SINXP1394 Motherboard Pow er Management Setup [S1(POS)] [Off]...

  • Page 47: Resume By Alarm

    IRQ [3-7, 9-15], NMI Disable this function. 8Disabled Enable this function. (Default v alue) 8Enabled ModemRingOn Disable Modem Ring on function. 8Disabled Enable Modem Ring on function. (Default Value) 8Enabled PME Event Wake Up Disable this function. 8Disabled Enable PME Ev ent Wake up. (Default Value) 8Enabled Power On by Keyboard 8Passw ord...

  • Page 48: Pnp/Pci Configurations

    83,4,5,7,9,10,11,12,14,15 PCI 1/5 IRQ Assignment 8Auto 83,4,5,7,9,10,11,12,14,15 PCI 2 IRQ Assignment 8Auto 83,4,5,7,9,10,11,12,14,15 PCI 3 IRQ Assignment 8Auto 83,4,5,7,9,10,11,12,14,15 GA-SINXP1394 Motherboard PnP/PCI Configurations [Auto] [Auto] [Auto] [Auto] ESC:Ex it F1:General Help F6:Fail-Safe Defaults F7:Optimized Defaults Figure 6: PnP/PCI Configurations Auto assign IRQ to PCI 4. (Default v alue) Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.

  • Page 49: Pc Health Status

    PC Health Status CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are Reset Case Open Status Case Opened VCORE VCC18 +3.3V +12V Current CPU Temperature Current CPU FAN Speed Current Sy stem FAN Speed CPU Warning Temperature CPU FAN Fail Warning Sy stem FAN Fail Warning higf: Mov e Enter:Select +/-/PU/PD:Value F10:Sav e...

  • Page 50: Current Cpu Temperature

    Fan Warning function disable. (Default v alue) Enabled Enalbe FAN w arning alarm w hen FAN s tops. System FAN Fail Warning Disabled Fan Warning function disable. (Default v alue) Enabled Enalbe FAN w arning alarm w hen FAN s tops. GA-SINXP1394 Motherboard - 46 -...

  • Page 51: Frequency/Voltage Control

    Frequency/Voltage Control CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are CPU Clock Ratio Linear Frequency Control x CPU Clock (MHz) x DRAM Clock (MHz) AGP/PCI Clock Control x AGP Clock (MHz) x PCI Clock (MHz) AGP Voltage Control DRAM Voltage Control CPU Voltage Control higf: Mov e...
  • Page 52 Set DRAM Voltage Control to Normal. (Default v alue) 8Normal Set DRAM Voltage Control to +0.1V. 8+0.1V CPU Voltag e Control 8 Supports adjustable CPU Vcore from 1.550V to 1.750V by 0.025V step. (Default v alue: Normal) GA-SINXP1394 Motherboard - 48 -...

  • Page 53: Top Performance

    Top Performance CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features Top Performance }Integrated Peripherals }Pow er Management Setup Disabled...[ n] }PnP/PCI Configurations Enabled... [ }PC Health Status }Frequency /Voltage Control ESC:Quit hi: Mov e F8: Dual BIOS/Q-Flash...

  • Page 54: Load Fail-Safe Defaults

    F8: Dual BIOS/Q-Flash Figure 10: Load Fail-Safe Defaults Load Fail-Safe Defaults Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum system performance. GA-SINXP1394 Motherboard Top Performance Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...

  • Page 55: Load Optimized Defaults

    Load Optimized Defaults CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features }Integrated Peripherals }Pow er Management Setup Load Optimized Defaults? (Y/N)?Y }PnP/PCI Configurations }PC Health Status }Frequency /Voltage Control ESC:Quit F8: Dual BIOS/Q-Flash Figure 11: Load Optimized Defaults Load Optimized Defaults...

  • Page 56: Set Supervisor/User Password

    Setup Menu. If you select "Set u p" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup. GA-SINXP1394 Motherboard Top Performance Load Fail-Safe Defaults...

  • Page 57: Save & Exit Setup

    Save & Exit Setup CMOS Setup Utility -Copy right (C) 1984-2002 Aw ard Softw are }Standard CMOS Features }Adv anced BIOS Features }Integrated Peripherals }Pow er Management Setup }PnP/PCI Configurations Save to CMOS and EXIT (Y/N)? Y }PC Health Status }Frequency /Voltage Control ESC:Quit F8: Dual BIOS/Q-Flash...

  • Page 58: Exit Without Saving

    F8: Dual BIOS/Q-Flash Figure 14: Ex it Without Sav ing Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return to Setup Utility. GA-SINXP1394 Motherboard Top Performance Load Fail-Safe Defaults Load Optimized Defaults Set Superv isor Passw ord Set User Passw ord Sav e &...
  • Page 59 - 55 - BIOS Setup...
  • Page 60 GA-SINXP1394 Motherboard - 56 -...

  • Page 61: Chapter 4 Technical Reference

    Revision History Chapter 4 Technical Reference Block Diagram AGP 4X/8X AGPCLK (66MHz) 5 PCI RJ45 Intel KENAI 32 GigaRAID IT8212F PCICLK Serial ATA (33MHz) ATA133/RAID IDE Channels Serial ATA Channels PCICLK (33MHz) USBCLK (48MHz) 14.318 MHz 33 MHz Pentium 4 CPUCLK+/- (100/133MHz) Socket 478 System Bus...

  • Page 62: Bios Tm Introduction

    BIOS directly. Or you may want to keep a backup for your current BIOS, just choose “ Save Current BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS update your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily.

  • Page 63: Easy Tune Tm 4 Introduction

    Obviously, Gigabyte EasyTune 4 has already turned the "Overclock" technology toward to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test drive of "EasyTune 4" to find out more amazing features by themselves.

  • Page 64: Dps (Dual Power System) Introduction

    6-phase power circuit. If any power circuit fails, the remaining power circuit will keep working as main power circuit. GA-SINXP1394 Motherboard - A new innovation technology from Gigabyte Technology in which gives you a total of 6-phase power circuit design. Providing 2 extra phase power circuits that motherboard design guideline recommended.

  • Page 65: Dual Bios/Q-Flash Introduction

    Dual BIOS/Q-Flash Introduction Method 1: Dual BIOS/Q-Flash A. What is Dual BIOS Technology? Dual BIOS means that there are two system BIOS (ROM) on the motherboard, one is the Main BIOS and the other is Backup BIOS. Under the normal circumstances, the system works on the Main BIOS.
  • Page 66 The user can set to boot from main BIOS or Backup BIOS. Status 2: If one of the main BIOS or the Backup BIOS fails, this item “ Boot From : Main BIOS(Default)” will become gray and will not be changed by user. GA-SINXP1394 Motherboard SST 49LF003A 384K SST 49LF003A...

  • Page 67: Load Default Settings

    Auto Recovery : Enable(Default), Disable When one of the Main BIOS or Backup BIOS occurs checksum failure, the working BIOS will automatically recover the BIOS of checksum failure. (In the Power Management Setup of the BIOS Setting, if ACPI Suspend Type is set to Suspend to RAM, the Auto Recovery will be set to Enable automatically.) (If you want to enter the BIOS setting, please press “Del”...
  • Page 68 !Press Enter to Run. !! COPY BIOS Completed -Pass !! Please press any key to continue Congratulation! You have completed the flashed and now can restart system. GA-SINXP1394 Motherboard 1 File(s) found Free Size: 1.14M DEL: Delete ESC: Return Main...

  • Page 69: Control Keys

    Save Main BIOS to Floppy / Save Backup BIOS to Floppy !In the A:drive, insert the floppy disk, then Press Enter to Run. File name: XXXX.XX Total Size: 1.39M F5: Refresh To name the file. Congratulate you have accomplished the saving. CONTROL KEYS <PgDn/PgUp>...
  • Page 70 GIGABYTE Technology is pleased to introduce DualBIOS technology, a hot spare for your system BIOS. This newest “ Value-added” feature, in a long series of innovations from GIGABYTE, is available on this motherboard. Future GIGABYTE motherboards will also incorporate this innovation.
  • Page 71 II. Q: Why does anyone need a motherboard with DualBIOS Answer: In today’ s systems there are more and more BIOS failures. The most common reasons are virus attacks, BIOS upgrade failures, and/or deterioration of the BIOS (ROM) chip itself. New computer viruses are being found that attack and destroy the system BIOS.
  • Page 72 Another advantage you gain from Giga-Byte’ s DualBIOS technology is the ability to upgrade from dual 2 Mbit BIOS to dual 4 Mbit BIOS in the future if extra BIOS storage is need. GA-SINXP1394 Motherboard technology? technology due to the advancement of computer...

  • Page 73: Bios Flash Procedure

    Method 2: BIOS Flash Utility BIOS Flash Procedure We use GA-7VTX motherboard and Flash841 BIOS flash utility as example. Please flash the BIOS according to the following procedures if you are now under the DOS mode. Flash BIOS Procedure: STEP 1: (1) Please make sure your system has installed the extraction utility such as winzip or pkunzip.
  • Page 74 "Copy system files", after that press "Start". That will format the floppy and transfer the needed system files to it. Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingly. (3) After the floppy has been formatted completely, please press "Close". GA-SINXP1394 Motherboard - 70 -...
  • Page 75 STEP 3: Download BIOS and BIOS utility program. (1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support". (2) From Support zone, click the "Motherboards BIOS & Drivers". - 71 - Technical Reference...
  • Page 76 (4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up a file download screen, then select the "Open this file from its current location" and press "OK". GA-SINXP1394 Motherboard - 72 -...
  • Page 77 (5) At this time the screen shows the following picture, please click "Extract" button to unzip the files. (6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and press "Extract". - 73 - Technical Reference...
  • Page 78 LOAD SETUP DEFAULTS ESC: Quit hifg : Select Item F6: Load BIOS Defaults F7: Load Setup Defaults GA-SINXP1394 Motherboard R e le a se :0 9 /1 6 /9 9 INTEGRATED PERIPHERALS HARDWARE MONITOR & M ISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE &...
  • Page 79 (3) Press "Enter" to enter "BIOS FEATURES SETUP" menu. Use the arrows to highlight the item "1st Boot Device", and then use the "Page Up" or "Page Down" keys to select "Floppy". AMIBIOS SETUP - BIOS FEATURES SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserved 1st Boot Device 2nd Boot Device 3rd Boot Device...
  • Page 80 (2) Now screen appears the following Flash Utility main menu. Press "Enter", the highlighted item will locate on the model name of the right-upper screen. Right after that, press "Enter" to start BIOS Flash Utility. GA-SINXP1394 Motherboard - 76 -...
  • Page 81 (3) It will pop up a screen and asks "Are you sure to flash the BIOS?" Press [Enter] to continue the procedure, or press [ESC] to quit. Beware: Please do not turn off the system while you are upgrading BIOS. It will render your BIOS corrupted and system totally inoperative.
  • Page 82 LOAD SETUP DEFAULTS ESC: Quit hifg : Select Item F6: Load BIOS Defaults F7: Load Setup Defaults GA-SINXP1394 Motherboard R e le a se :0 9 /1 6 /9 9 INTEGRATED PERIPHERALS HARDWARE MONITOR & M ISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE &...
  • Page 83 (3) Use the arrows to highlight the item "SAVE & EXIT SETUP" and press "Enter". System will ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y" and "Enter" keys to confirm. Now the system will reboot automatically, the new BIOS setting will be taken effect next boot-up. AMIBIOS SIM PLE SETUP UTILITY - VERSION 1.24b (C) 2001 American Megatrends, Inc.
  • Page 84 Method 3: @ BIOS Utility If you don't have DOS boot disk, we recommend that you used Gigabyte @BIOS flash BIOS. Press here. 1.Click "@BIOS" 3.Click "P". 4.Click here. Methods and steps: I. Update BIOS through Internet a. Click "Internet Update" icon b.
  • Page 85 Otherwise, your system won't boot. c. In method I, if the BIOS file you need cannot be found in @BIOS Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted...

  • Page 86: 4-/6-Channel Audio Function Introuction

    Click the audio icon "Sound Effect" from the windows tray at the bottom of the screen. STEP 3: Select "Speaker Configuration", and choose the "2 channels for stereo speakers out put". GA-SINXP1394 Motherboard - 82 -...
  • Page 87 4 Channel Analog Audio Output Mode STEP 1 : Connect the front channels to "Line Out", the rear channels to "Line In". Line Out Line In STEP 2 : After installation of the audio driver, you'll find an icon on the taskbar's status area. Click the audio icon "Sound Effect"...
  • Page 88 "Sound Effect" from the windows tray at the bottom of the screen. STEP 3 : Select "Speaker Configuration", and choose the "6 channels for 5.1 speakers out put". Disable "Only SURROUND-KIT" and pess "OK". GA-SINXP1394 Motherboard - 84 - Line Out Line In MIC In...
  • Page 89 Center/Subwoofer channels. It is the best solution if you need 6 channel output, Line In and MIC at the same time. "SURROUND-KIT" is included in the GIGABYTE unique "Audio Com bo Kit" as picture. STEP 1 : Insert the "SURROUND-KIT" in the back of the case ,and fix it with the screw.
  • Page 90 Basic & Advanced 6 Channel Analog Audio Output Mode Notes: When the "Environment settings" is "None", the sound would be perform ed as stereo m ode(2 channels output). Please select the other settings for 6 channels output. GA-SINXP1394 Motherboard - 86 -...
  • Page 91 SPDIF Output Device (Optional Device) A "SPDIF output" device is available on the motherboard. Cable with rear bracket is provided and could link to the "SPDIF output" connector (As picture.) For the further linkage to decoder, rear bracket provides coaxial cable and Fiber connecting port.
  • Page 92 GA-SINXP1394 Motherboard - 88 -...

  • Page 93: Chapter 5 Appendix

    Chapter 5 Appendix Revision History Install Drivers Pictures below are shown in Windows XP (CD ver. 2.2) Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe.
  • Page 94 ® Please also note that Microsoft XP and Windows 2000 only. Once we get the latest SiS will put the driver on GIGABYTE website asap. (http://www.gigabyte.com.tw). GA-SINXP1394 Motherboard Driver install finished!! you have to reboot system!! USB2.0 driver, please download the USB2.0 driver ®...

  • Page 95: Software Application

    SOFTWARE APPLICATION This page reveals the value-added software developed by Gigabyte and its worldwide partners. n Gigabyte Windows Utilities Manager(GWUM) This utility can integrate the Gigabyte's applications in the system tray. n Gigabyte Management Tool(GMT) A useful tool which can manage the computer via the network.

  • Page 96: Software Information

    SOFTWARE INFORMATION This page list the contects of softwares and drivers in this CD title. HARDWARE INFORMATION This page lists all device you have for this motherboard. GA-SINXP1394 Motherboard - 92 -...
  • Page 97 Acronyms Acronyms Meaning ACPI Advanced Configuration and Power Interface Advanced Power Management Accelerated Graphics Port Audio Modem Riser Advanced Communications Riser BIOS Basic Input / Output System Central Processing Unit CMOS Complementary Metal Oxide Semiconductor CRIMM Continuity RIMM Communication and Networking Riser Direct Memory Access Desktop Management Interface DIMM...
  • Page 98 Network Interface Card Operating System Original Equipment Manufacturer PCI A.G.P. Controller POST Power-On Self Test Peripheral Component Interconnect RIMM Rambus in-line Memory Module Special Circumstance Instructions SECC Single Edge Contact Cartridge SRAM Static Random Access Memory GA-SINXP1394 Motherboard - 94 -...
  • Page 99 Technical Support/RMA Sheet Customer/Country: Contact Person: E-mail Add. : Model name/Lot Number: BIOS version: O.S./A.S.: Hardware Mfs. Model name Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: Company: Phone No.:...

  • Page 100: Troubleshooting

    CPU cooling fan power connected to CPU_FAN properly? Check if the memory install properly into the DIMM slot. Insert the VGA card. Then plug in ATX power cable and turn on the system. GA-SINXP1394 Motherboard START - 96 - Please isolate the short pin.
  • Page 101 Then try to reboot the system. If the above procedure unable to solve your problem, please contact with your local retailer or national distributor for help. Or, you could submit your question to the service mail via Gigabyte website technical support zone (http://www.gigabyte.com.tw).
  • Page 102 GA-SINXP1394 Motherboard - 98 -...
  • Page 103 - 99 - Memo...
  • Page 104 GA-SINXP1394 Motherboard - 100 -...
  • Page 105 - 101 - Memo...
  • Page 106 GA-SINXP1394 Motherboard - 102 -...
  • Page 107 - 103 - Memo...
  • Page 108 GA-SINXP1394 Motherboard - 104 -...
  • Page 109 - 105 - Memo...
  • Page 110 GA-SINXP1394 Motherboard - 106 -...
  • Page 111 - 107 - Memo...
  • Page 112 CONTACT US Contact us via the information in this page all over the world. — Taiwan Gigabyte Technology Co., Ltd. Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. TEL: 886 (2) 8912-4888 (50 lines) FAX: 886 (2) 8912-4004 Technical issue: http://tw.giga-byte.com/support/service_main.htm...
