GA-SBC7100
GA-SBC7300
GA-SBC7600

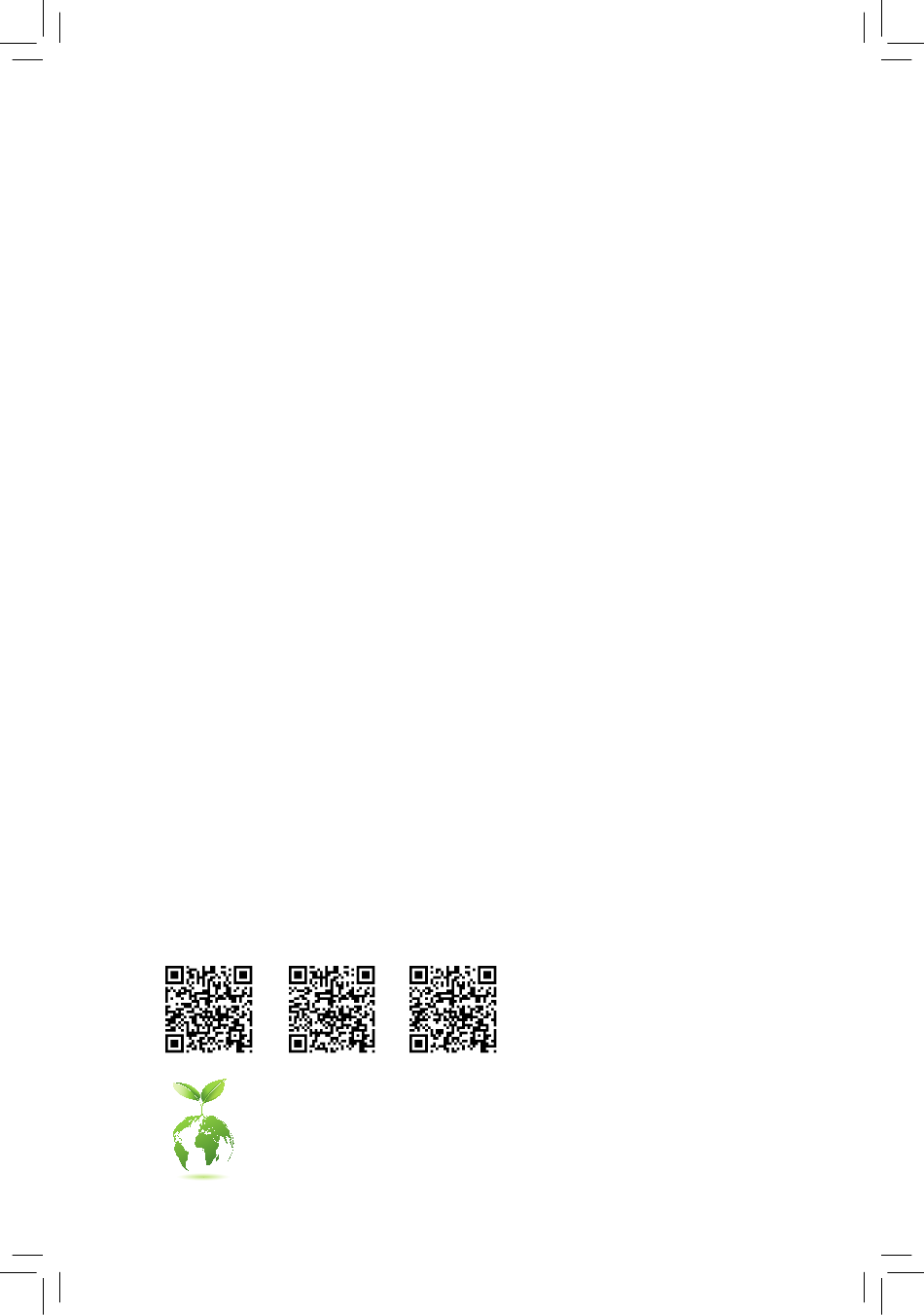

User's Manual
Rev. 1001
GA-SBC7100
GA-SBC7300
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
GA-SBC7600
For more product details, please visit
GIGABYTE's website.
Advertisement
Table of Contents
Related Manuals for Gigabyte GA-SBC7100
Summary of Contents for Gigabyte GA-SBC7100
- Page 1 User's Manual Rev. 1001 GA-SBC7100 GA-SBC7300 GA-SBC7600 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents GA-SBC7100(7300)(7600) Motherboard Layout .............4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the Memory ..................8 Installing an Expansion Card ................8 Back Panel Connectors ..................8 Internal Connectors ..................10 Chapter 2 BIOS Setup ....................18... -
Page 4: Ga-Sbc7100(7300)(7600) Motherboard Layout
Only for the GA-SBC7600. COMA_PW COMB_PW COMC_PW COMD_PW (Note) This chip is on the back of the motherboard. Box Contents 5 GA-SBC7100, GA-SBC7300, or GA-SBC7600 motherboard 5 User's Manual 5 Motherboard driver disc 5 Two SATA cables 5 One SATA Power Cable... -
Page 5: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 6: 1-2 Product Specifications
2 x DDR4 SO-DIMM socket supporting up to 8 GB of system memory Š Support for DDR4 2133 MHz memory module Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated in the SoC: Š... - Page 7 * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. GA-SBC7100 GA-SBC7300 GA-SBC7600 Please visit GIGABYTE's website for support lists of memory modules, SSDs, and M.2 devices. Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps. - 7 -...
-
Page 8: Installing The Memory
• Make sure that the motherboard supports the memory. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. - Page 9 RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. LAN Port Connection/Speed LED: Activity LED: State Description State Description Blinking Data transmission or receiving is occurring Orange 1 Gbps data rate No data transmission or receiving is occurring...
-
Page 10: Internal Connectors
Internal Connectors SYS_FAN MON_SW SATA3 0/1 LCD_VCC SATA_PWR GPIO COMA/COMB F_PANEL COMC/COMD DCIN_PWR COMA/B/C/D_PW SMBUS F_USB1/F_USB2 AUDIO LVDS SPKR_CTRL SPKR CLR_CMOS Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •... - Page 11 1) SYS_FAN (Fan Header) The fan header on this motherboard is 4-pin. The fan header possesses a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
- Page 12 4) M2P (M.2 Socket 3 Connector) The M.2 connector supports an M.2 SATA SSD or M.2 PCIe SSD. Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Use a screw driver to unfasten the screw from the motherboard. Slide the M.2 SSD into the connector at an angle.
- Page 13 6) DCIN_PWR (DC Power Connector, Input 9V ~ 36V) Pin No. Definition DC IN DC IN 7) FPD (Flat Panel Display Header) The FPD is a high-speed interface connecting the output of a video controller in a laptop computer, computer monitor or LCD television set to the display panel.
- Page 14 10) SPKR_CTRL (Volume Control Header) The header connects to the volume control button of the monitor to control the volume. This feature requires a software update to be enabled. Pin No. Definition VOL_DW VOL_UP 11) SPKR (Speaker Header) This header connects to the L/R Audio output of the motherboard and supports 3W stereo speaker ( 4Ohm) in an AIO chassis Pin No.
- Page 15 14) GPIO (GPIO Header) Use this header to connect a GPIO device. Pin No. Definition Pin No. Definition GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GP_OUT 15) COMA/COMB (Serial Port Headers) Each COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer.
- Page 16 18) SMBUS (System Management Bus) Pin No. Definition SMB_CLK SMB_DATA 19) I2C (Inter-Integrated Circuit) Pin No. Definition I2C_SCL I2C_SDA 20) LVDS (LVDS Header) LVDS stands for Low-voltage differential signaling, which uses high-speed analog circuit techniques to provide multigigabit data transfers on copper interconnects and is a generic interface standard for high- speed data transmission.
- Page 17 21) BAT (Battery/Battery Cable Header) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery cable: 1.
-
Page 18: Chapter 2 Bios Setup
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use the GIGABYTE @BIOS utility, which is a Windows-based utility that searches and downloads the latest version of BIOS from the Internet and updates the BIOS. -
Page 19: The Main Menu
The Main Menu Setup Menus Help Function Keys Configuration Items Current Settings Classic Setup Function Keys <f><g> Move the selection bar to select a setup menu <h><i> Move the selection bar to select an configuration item on a menu <Enter> Execute command or enter a menu < + >/<Page Up> Increase the numeric value or make changes <... -
Page 20: System
System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & Access Level Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level allows you to make changes to all BIOS settings;... -
Page 21: 2-4 Bios
A password is required for booting the system and for entering the BIOS Setup program. System (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device list. To boot from an operating system that... - Page 22 & SATA Support Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) This item is configurable only when Fast Boot is set to Enabled.
- Page 23 & Administrator Password Allows you to configure an administrator password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup. Differing from the user password, the administrator password allows you to make changes to all BIOS settings. &...
-
Page 24: Peripherals
Peripherals & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Press the power button and then the system will be turned off instantly. (Default) Instant-Off Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode. &... - Page 25 ` Network Stack Configuration & Network Stack Disables or enables booting from the network to install a GPT format OS, such as installing the OS from the Windows Deployment Services server. (Default: Disabled) & Ipv4 PXE Support Enables or disables IPv4 PXE Support. This item is configurable only when Network Stack is enabled. & Ipv4 HTTP Support Enables or disables HTTP boot support for IPv4. This item is configurable only when Network Stack is enabled.
- Page 26 through a serial port. ` USB Configuration & Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) & XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support. (Default: Disabled) &...
-
Page 27: Chipset
Chipset & VT-d Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Enabled) ® & Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) & LVDS Panel Resolution Allows to you set LVDS resolution and bit rate. (Default: 800x600 6-bit) &... -
Page 28: Save & Exit
Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &... -
Page 29: Chapter 3 Appendix
Chapter 3 Appendix Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disc into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe."... -
Page 30: Regulatory Notices
European Commission Delegated Directive (EU) 2015/863 Statement 2014/30/EU; Diretiva RSP 2011/65/UE. A conformidade com estas diretivas GIGABYTE products have not intended to add and safe from hazardous é verificada utilizando as normas europeias harmonizadas. substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). -
Page 31: Contact Us
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
