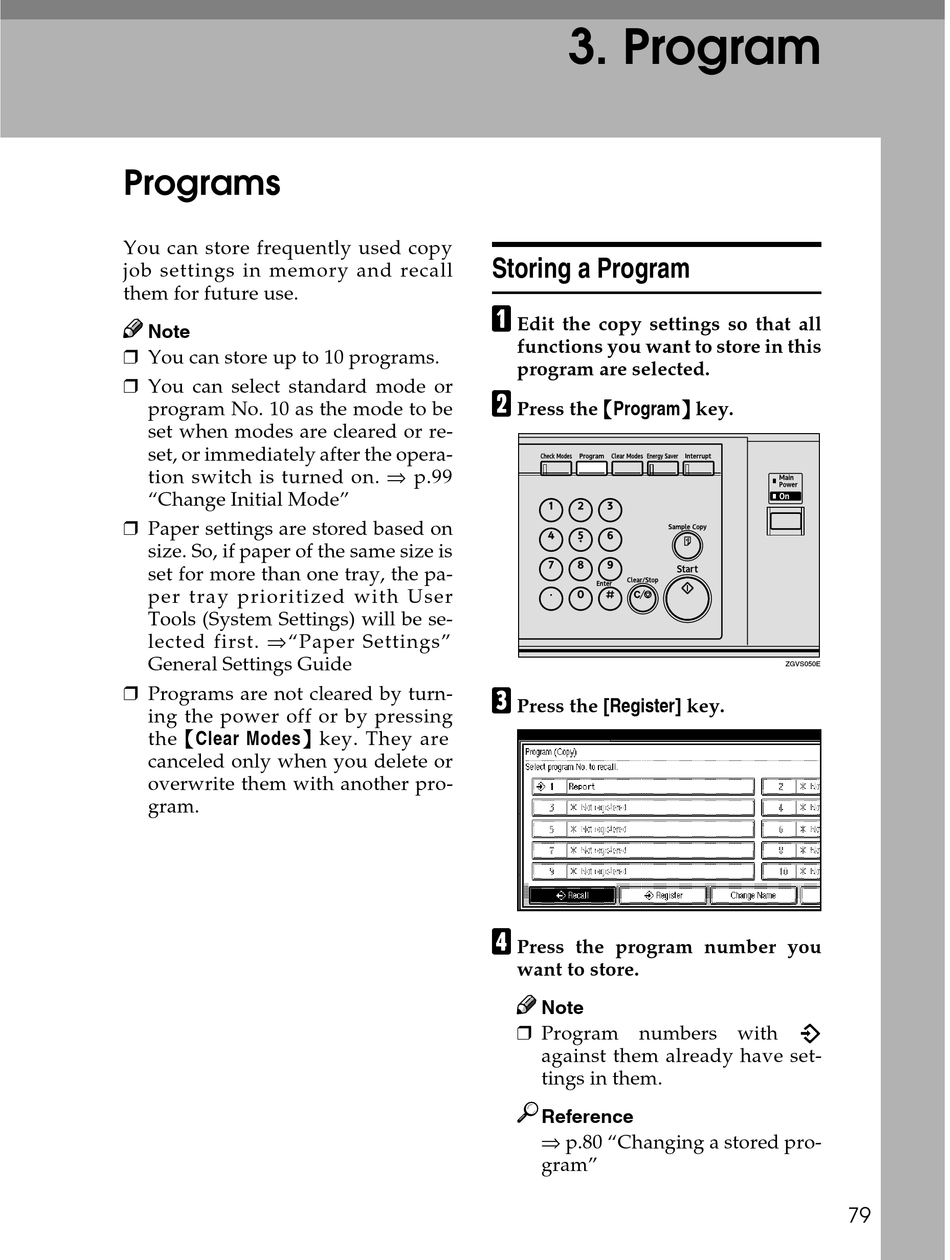

You can store frequently used copy
job settings in memory and recall
them for future use.
Note
❒ You can store up to 10 programs.
❒ You can select standard mode or
program No. 10 as the mode to be
set when modes are cleared or re-
set, or immediately after the opera-
tion switch is turned on. ⇒ p.99
"Change Initial Mode"
❒ Paper settings are stored based on
size. So, if paper of the same size is
set for more than one tray, the pa-
per tray prioritized with User
Tools (System Settings) will be se-
lected first. ⇒"Paper Settings"
General Settings Guide
❒ Programs are not cleared by turn-
ing the power off or by pressing
the { { { { Clear Modes} } } } key. They are
canceled only when you delete or
overwrite them with another pro-
gram.
3. Program
Storing a Program
A A A A
Edit the copy settings so that all
functions you want to store in this
program are selected.
B B B B
Press the { { { { Program} } } } key.
C C C C
Press the [Register] key.
D D D D
Press the program number you
want to store.
Note
❒ Program numbers with m
against them already have set-
tings in them.
Reference
⇒ p.80 "Changing a stored pro-
gram"
ZGVS050E
79
