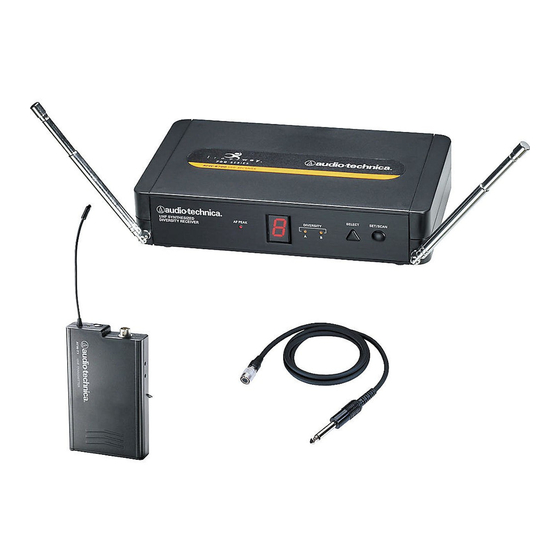

700 Series Professional UHF Wireless Systems ATW-701 UniPak Transmitter System ™ ATW-701/G Guitar System ATW-701/H Headworn Microphone System ATW-701/L Lavalier Microphone System ATW-702 Handheld Dynamic Microphone System Installation and Operation...
Page 2
Professional UHF Wireless Systems Installation and Operation The ATW-R700 receiver features Diversity Reception. Logic This device complies with part 15 of the FCC Rules. circuitry monitors reception, selecting the superior signal from Operation is subject to the condition that this device does two antennas, providing better sound quality and reducing the not cause harmful interference.
Receiver Installation Antennas Location Extend the permanently attached UHF antennas. The antennas For best operation the receiver should be at least 3 ft. (1 m) are normally positioned in the shape of a “V” (both 45° from above the ground and at least 3 ft. away from a wall or metal vertical) for best reception.
Page 4
Receiver Controls and Functions (Continued) Figure C-Rear Panel Controls and Functions 10. BALANCED AUDIO OUTPUT JACK: XLRM-type connector. A standard 2-conductor shielded cable can be used to connect the receiver output to a balanced microphone-level input on a mixer or integrated amplifier. 11.
Transmitter Setup, Controls And Functions Power/Mute/Battery Indicator Mute Function After the battery is installed, press and hold the power button With the transmitter on, a slight touch of the Power/Mute until the battery indicator LED turns green (Fig. F & G). (It will button will toggle between muted and unmuted operation.
Page 6
System Operation (Continued) Setting Levels (Continued) 6. For MIC: While again speaking/singing into the microphone ATW-T702 Handheld Transmitter at typically loud levels, adjust the mixer's input trim control so the highest sound pressure level going into the CAUTION! The small trimmer controls are delicate; use only microphone causes no input overload in the mixer, and yet the supplied screwdriver.
700 Series UHF Operating Frequencies 700 Series Frequency Channel Plan Channel Frequency - MHz TV Channel Each transmitter/receiver system operates on a choice of eight switch-selected frequencies. Available frequencies are shown 542.125 in the chart. All frequencies may be combined for up to 8 545.750 simultaneous operating channels.
Page 8
Ten Tips to Obtain the Best Results 1. Use only fresh alkaline batteries. Do not use “general 8. If the AF Level control of the receiver is set too high, it purpose” (carbon-zinc) batteries. may over-drive the input of the mixer or clip the output of the receiver, causing distortion.
