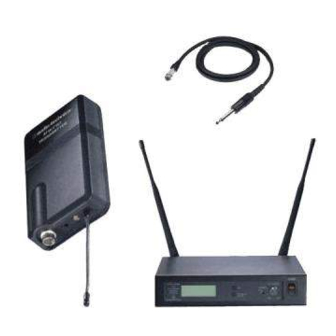

- Page 1 1600 Series Professional UHF Wireless Systems ATW-1661 UniPak ™ Transmitter System ATW-1662 Handheld Dynamic Microphone System ATW-1663 Handheld Condenser Microphone System Installation and Operation...
-
Page 2: Installation And Operation
Transmitters in the 1600 Series use two 1.5V AA batteries for economical operation and wide availability. Notice to individuals with implanted cardiac pacemakers... -
Page 3: Receiver Installation
Receiver Installation Antennas Location Attach the included pair of UHF antennas to the antenna input For best operation the receiver should be at least 1 m above jacks. The antennas are normally positioned in the shape of a the ground and at least 1 m away from a wall or metal surface “V”... -
Page 4: Receiver Controls And Functions
Receiver Controls and Functions Front Panel Controls and Functions (Figure. B) 6. AF LEVEL CONTROL: Adjusts audio output level of both AF 1. POWER SWITCH/INDICATOR: Press switch on, and the "Power" indicator will light. Output jacks; maximum output is fully clockwise. 7. -
Page 5: Transmitter Setup
Transmitter Setup Battery Selection and Installation Battery Condition Indicator The Green Battery condition indicator(Figure I/ J) should light Each transmitter uses two 1.5V AA batteries, not included. Alkaline type is recommended. Always replace both batteries. strongly with a fresh battery. As the battery weakens, the indicator will glow Red. -
Page 6: System Operation
Switch on the receiver. Do not switch on the transmitter yet. Receiver Squelch Selecting/Setting Frequency The 1600 Series employs a Tone Lock squelch system that pro- vides enhanced rejection of RF interference. The squelch control It’s usually best to start by setting the receiver’s frequency to on the front panel of the receiver is preset at the factory, but determine there is no local interference on that frequency. - Page 7 System Operation (Continued) Adjusting Input Level - Handheld Transmitter RF Interference Unscrew the lower body cover and slide it downward, exposing Please note that wireless frequencies are shared with other the screwdriver and Trim control (Figure G and H). Remove the radio services.
-
Page 8: Specifications
Specifications † OVERALL SYSTEM UHF Operating Frequency ATW-T161 UNIPAK ™ TRANSMITTER EX: 795.500 to 819.025 MHz RF Power Output According to National Regulations UK: 840.125 to 864.375 MHz Spurious Emissions ETS 300 422-2 Number of Channels Dynamic Range ≥110 dB, A-weighted Frequency Stability ±0.005%, Phase Lock Loop frequency Input Connections... -
Page 9: Optional System Accessories
Optional System Accessories WIRELESS ESSENTIALS ™ MICROPHONES AND CABLES RECEIVER ACCESSORIES All Wireless Essentials accessories are terminated for use with ATW-T1600 AT8616 Joining-plate kit allows rack-mounting two ATW-R160 and other UniPak ™ transmitters. receivers side-by-side in a single (1U) 19" rack space. AT829cW Miniature cardioid condenser lavalier microphone. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Momentary loss of sound/noisy sound as transmitter is Receiver is not on (LCD window does not light). moved around performing area. • Receiver Power switch is not pressed in. • Transmitter and receiver antennas not in line-of-sight • Small DC power cord from included in-line power supply (or perhaps too far apart). - Page 11 ATW-1600 SERIES PROFESSIONAL UHF WIRELESS SYSTEM FOR USE IN THE UK Group Cannel Frequency (MHZ) Band 840.125 Co-ordinate 840.375 841.125 841.375 844.250 845.500 854.900 Shared 855.275 856.575 857.625 860.900 861.200 863.125 De-regulated 863.375 864.125 864.375 Notes: Frequencies listed in Group 1 should be used for Open Frequency Scan Function.
- Page 12 ATW-1600 SERIES PROFESSIONAL UHF WIRELESS SYSTEM STATEMENT OF COMPLIANCE FOR USE IN THE UK Usage :- The ATW-T161 and ATW-T162 are intended to be used in all countries of the European Union. Please note : Frequency usage is different for each country. Your Audio-Technica agent will have all the necessary details on the available legal frequencies for your area.
- Page 13 ATW-1600 SERIES PROFESSIONAL UHF WIRELESS SYSTEM FOR USE IN THE EU Group Cannel Frequency (MHZ) Band 795.500 796.000 797.900 800.975 802.025 807.500 809.500 814.500 799.400 801.100 801.425 804,825 805.150 813.700 817.425 819.025 Operation of this system in France is restricted to Band A only.
- Page 14 ATW-1600 SERIES PROFESSIONAL UHF WIRELESS SYSTEM STATEMENT OF COMPLIANCE FOR USE IN THE EU Usage :- The ATW-T161 and ATW-T162 are intended to be used in all countries of the European Union. Please note : Frequency usage is different for each country. Your Audio-Technica agent will have all the necessary details on the available legal frequencies for your area.
- Page 15 One-Year Limited Warranty Audio-Technica microphones and accessories purchased in the EU are warranted for one year from date of purchase by Audio-Technica Limited to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to Audio-Technica Limited, prepaid together with the proof of purchase.
-
