- Page 1 [ it ] [en] Instructions for installation and use [ fr ] [de] Montage- und Gebrauchsanweisung [ nl ] Montagevoorschriften en Gebruiksaanwiizing [ e ] s Montaje y modo de empleo 电陶炉使用/安装说明 MODELLO: SE232TD...
-
Page 2: Table Of Contents
Contents Foreword ................3 Safety Warnings ................3 Installation ................3 1.2.1 Electrical Shock Hazard ..............3 1.2.2 Cut Hazard ................3 1.2.3 Important safety instructions ............3 Operation and maintenance ............4 1.3.1 Electrical Shock Hazard ..............4 1.3.2 Health Hazard ................4 1.3.3 Hot Surface Hazard ..............4 1.3.4 Cut Hazard ................5 1.3.5 Important safety instructions ............5 Product Introduction .............. -
Page 3: Foreword
1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •... -
Page 4: Operation And Maintenance
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts •... -
Page 5: Cut Hazard
• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool. • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children. -

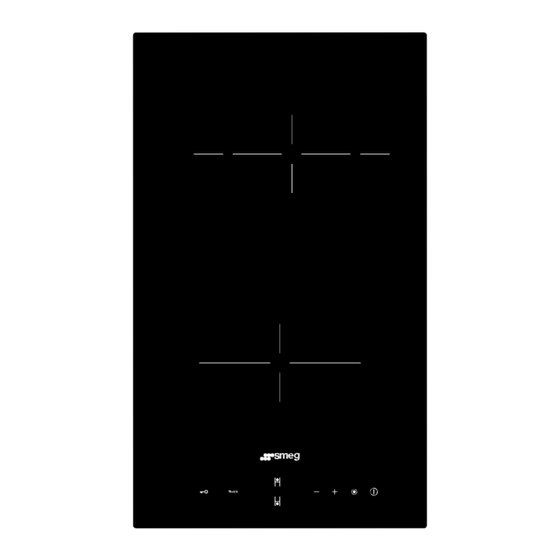

Page 6: Product Introduction
• Do not place or drop heavy objects on your cooktop. • Do not stand on your cooktop. • Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass. •... -
Page 7: Control Panel
2.5 Before using your New Ceramic Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your ceramic hob. 2.6 Technical Specification Cooking Hob SE232TD Cooking Zones 2 Zones Supply Voltage 220-240V~ Installed Electric Power 2600-3200W Product Size D×W×H(mm) 300X510X55 Building-in Dimensions A×B (mm) -
Page 8: Operation Of Product
3. Operation of Product 3.1 Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not its tip. • You will hear a beep each time a touch is registered. • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate. - Page 9 Touch the ON/OFF control. all the indicators show “-”. Place a suitable pan on the cooking zone that you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Touching the heating zone selection control.
-
Page 10: Finish Cooking
3.3.2 Finish cooking Touching the heating zone selection control that you wish to switch off. Turn the cooking zone off by scrolling down to “ 0 ” or touching “-” and “+” control together. Turn the whole cooktop off by touching the ON/OFF control. Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. -
Page 11: Locking The Controls
Activate the Double zone Adjust the heating setting between power levels 1 and 9 (e.g. 6). Central section of the Double cooking zone will switch on. Touching the Double zone control “ ” once time, the section (B) works. The cooking zone indicator show “ ”... -
Page 12: Timer Control
3.3.5 Timer control You can use the timer in two different ways: You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. b) You can set it to turn one or more cooking zones off after the set time is up. • The timer of maximum is 99 minutes Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on. - Page 13 Setting the timer to turn one or more cooking zones off Set one zone Touch the zone you want to set. Touch the timer control, the timer indicator TIMER show “10”. Set the time by touching the “-” or “+” control of the timer. Touching the “-” and “+” together, the timer is cancelled, and the will show “--”...
-
Page 14: Over-Temperature Protection
(set to 5 minutes) (set to 15 minutes) TIMER b) Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash. zone 1# zone 2# TIMER c) When cooking timer expires, the corresponding cooking zone will be switch off automatically. Note: 1) The red dot next to power level indicator will illuminate indicating that zone is selected. 2) If you want to change the time after the timer is set, you have to start from step 1. 3.3.6 Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the ceramic hob. -
Page 15: Cooking Guidelines
4. Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using Power Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. 4.1 Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. •... -
Page 16: Heat Settings
5. Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you. Heat setting Suitability 1 - 2 delicate warming for small amounts of food • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming • 3 - 4 reheating • rapid simmering •... -
Page 17: Hints And Tips
What? How? Important! Boilovers, melts, and Remove these immediately Remove stains left by melts • hot sugary spills on with a fish slice, palette and sugary food or spillovers the glass knife or razor blade scraper as soon as possible. If left to suitable for Ceramic glass cool on the glass, they may cooktops, but beware of hot be difficult to remove or even... -
Page 18: Installation
Problem Possible causes What to do The glass is being Rough-edged cookware. Use cookware with flat and scratched. Unsuitable, abrasive smooth bases. See ‘Choosing scourer or cleaning the right cookware’. products being used. See ‘Care and cleaning’. Some pans make This may be caused This is normal for cookware and crackling or clicking by the construction of... - Page 19 50mm mini 50mm mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
-
Page 20: Before Locating The Fixing Brackets
There are ventilation holes around outside of the hob. YOU MUST ensure these holes are not blocked by the worktop when you put the hob into position. • Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150°C, to avoid the unstuck of the paneling. -
Page 21: Cautions
Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture). 8.3 Cautions 1) The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2) The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. - Page 22 This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
