Table of Contents
1.
INSTRUCTIONS FOR USE ______________________________________________ 18
2.
SAFETY INSTRUCTIONS _______________________________________________ 19
3.
BEFORE FIRST USE___________________________________________________ 20
4.
DESCRIPTION OF CONTROLS ON THE FRONT CONTROL PANEL ____________ 20
5.
USE OF THE COOKING HOB____________________________________________ 21
6.
CLEANING AND MAINTENANCE _________________________________________ 26
7.
SOMETHING WRONG? ________________________________________________ 26
8.
INSTALLATION _______________________________________________________ 27
INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and the
correct procedures for cleaning and maintenance of the appliance.
install the appliance, set it functioning and carry out an inspection test.
Table of contents
17
Advertisement
Table of Contents
Related Manuals for Smeg SE2320ID1
Summary of Contents for Smeg SE2320ID1
-
Page 1: Table Of Contents
INSTRUCTIONS FOR USE ______________________________________________ 18 SAFETY INSTRUCTIONS _______________________________________________ 19 BEFORE FIRST USE___________________________________________________ 20 DESCRIPTION OF CONTROLS ON THE FRONT CONTROL PANEL ____________ 20 USE OF THE COOKING HOB____________________________________________ 21 CLEANING AND MAINTENANCE _________________________________________ 26 SOMETHING WRONG? ________________________________________________ 26 INSTALLATION _______________________________________________________ 27 INSTRUCTIONS FOR THE USER: these contain user advice, description of the commands and the correct procedures for cleaning and maintenance of the appliance. -
Page 2: Instructions For Use
Instructions for use 1. INSTRUCTIONS FOR USE ELECTRICAL CONNECTION: REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR OWN INTEREST, AND THAT OF SAFETY, IT IS THE LAW THAT ALL GAS AND ELECTRICAL APPLIANCES BE INSTALLED AND SERVICED BY COMPETENT PERSONS, WHO WILL COMPLY WITH THE RELEVANT STANDARDS AND REGULATIONS. -
Page 3: Safety Instructions
Safety instructions 2. SAFETY INSTRUCTIONS INSTRUCTIONS FOR THE INSTALLER: THESE ARE INTENDED FOR THE QUALIFIED TECHNICIAN WHO MUST INSTALL THE APPLIANCE, SET IT FUNCTIONING AND CARRY OUT AN INSPECTION TEST. THE APPLIANCE MUST BE CONNECTED TO EARTH IN COMPLIANCE WITH ELECTRICAL SYSTEM SAFETY REGULATIONS. -
Page 4: Before First Use
3. BEFORE FIRST USE Do not discard packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre. Remove all the REMOVABLE labels and any protective sheeting. To switch on the hob, follow the instructions provided in paragraph “5 USE OF THE COOKING HOB” 4. -
Page 5: Use Of The Cooking Hob

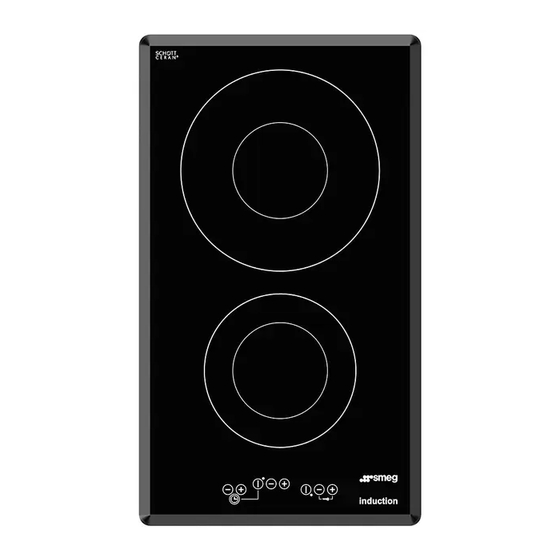

Instructions for the user 5. USE OF THE COOKING HOB To operate the panel of the hobs equipped with touch-controls, press the icons printed on its surface. On first connection to the electrical mains, an operating check will be carried out automatically and all the indicator lights will come on for a few seconds. - Page 6 Instructions for the user 5.2 Cookware Appliances of this type require special pans to be able to work. In fact, the pan must have an iron bottom to generate the magnetic field necessary for it to be heated Recipients made of the following are not suitable: 1 glass;...
- Page 7 Instructions for the user 5.3 Switching on the cooking zone Press the button for the cooking zone you want to use (for example On the power display,0 appears. Pressing the keys Once you have set the hotplate's power level, this will not be activated until a pan suitable for induction cooking is placed upon it.
- Page 8 5.3.6 Cooking hob lock-out When the hob is on, it can be locked to avoid accidental modifications to the cooking values set. The lock remains on even after the hob has been switched off. It is present only on the models that have the symbol To activate the lock, with the hob on, press the keys simultaneously until the symbol...
-
Page 9: Cooking Tips
Instructions for the user 5.5 Error messages from the electronic circuit board The electronic circuit board has been designed to protect the hob components from malfunctions that can damage them. For this purpose, some error messages have been provided, visible through the power display. -
Page 10: Cleaning And Maintenance
6. CLEANING AND MAINTENANCE Before performing any operations requiring access to powered parts, switch off the power supply to the appliance. 6.1 Cleaning the ceramic hob The hob should be regularly cleaned; preferably after every use, once the residual heat warning lights have gone off. -
Page 11: Installation
Instructions for the installer 8. INSTALLATION 8.1 Technical information Hob type See rating plate Electrical connections 220-240V~ 50/60Hz / 380-415V 2N∼ 50/60Hz / 380-415V 3N∼ 50/60Hz HOB RATING Maximum electrical power See rating plate 8.2 The rating plate Make sure that the voltage and capacity of the power line conform to the data shown on the plate located under the casing. -
Page 12: Instructions For The Installer
For operation on 380-415 V 3N cable (5 x 1.5 mm ) heat-resistant to at least 90°C. For operation on 380-415V 2N cable (4 x 1.5 mm For operation on 220-240 V 3 cable (4 x 1.5 mm For operation on 220-240V 30 cm hobs: use an H05V2V2-F type three-core cable, heat-resistant to at least 90°C. - Page 13 8.4 Positioning of the hob The following operation requires building and/or carpentry work so must be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (T 90°C). Create an opening with the dimensions shown in the figure in the top surface of the counter, keeping a minimum distance of 50 mm from the rear edge.
- Page 14 8.5 Mounting Before mounting the device to the unit, lay the provided adhesive sponge onto the glass surface to separate it from the unit. After fixing the provided adhesive sponge (B) to the glass, mount the device to the unit with the mounting brackets (A) provided with the device itself, as shown in the figure.
