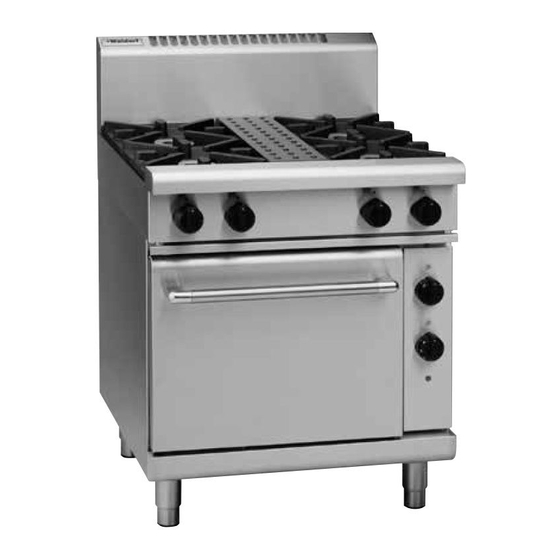

- Page 1 I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l Gas Ranges Electric Static/Convection Oven RN8510GE/GEC RNL8510GE/GEC RN8610GE/GEC RNL8610GE/GEC RN8810GE/GEC RNL8810GE/GEC Date Purchased Serial Number...
- Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and design without prior notice.
-
Page 3: Table Of Contents
Contents List Contents Waldorf Gas Range Electric Static/Convection Ovens RN(L)8510GE Gas Range Electric Static Oven Four Open Burner. RN(L)8610GE Gas Range Electric Static Oven Six Open Burner. RN(L)8810GE Gas Range Electric Static Oven Eight Open Burner. RN(L)8510GEC Gas Range Electric Convection Oven Four Open Burner. -
Page 4: Introduction
Introduction We are confident that you will be delighted with your WALDORF GAS RANGES ELECTRICAL STATIC / CONVECTION OVEN and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things you can do. -
Page 5: Specification
Specifications Model Numbers Covered in this Specification RN[1]8510GE [2] 4 Open Burners + Electric Static Oven. RN[1]8513GE [2] 2 Open Burners + 300mm Griddle + Electric Static Oven. RN[1]8610GE [2] 6 Open Burners + Electric Static Oven. RN[1]8613GE [2] 4 Open Burners + 300mm Griddle + Electric Static Oven. RN[1]8616GE [2] 2 Open Burners + 600mm Griddle + Electric Static Oven. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Non CE Only (Australia / New Zealand): Natural Gas LP Gas (Propane) Input Rate (N.H.G.C.) 28 MJ/hr 28 MJ/hr - each Open Burner (26,540 Btu/hr) (26,540 Btu/hr) 21 MJ/hr 21 MJ/hr - each 300 mm Griddle Section (19,900 Btu/hr) (19,900 Btu/hr) 1.13 - 3.40 kPa... -
Page 7: Electrical Supply Requirements
Specifications Electrical Supply Requirements 1-Phase Connection 3-Phase Connection MODEL 1P+N+E 3P+N+E 230-240V 400-415V L1 - 7.2 Amps 5.5 kW, RN8510GE 5.5 kW L2 - 7.7 Amps 22.6 Amps @ 235 V L3 - 7.7 Amps L1 - 8.5 Amps 5.8 kW, RN8510GEC 5.8 kW L2 - 7.7 Amps... -
Page 8: Dimensions
Dimensions RN(L)8510GE / GEC RN(L)8610GE / GEC Refer to Page 8 for Cook Top Options... - Page 9 Dimensions RN(L)8810GE / GEC Refer to Page 8 for Cook Top Options...
- Page 10 Dimensions Cook Top Options RN(L)8510GE/GEC RN(L)8513GE/GEC RN(L)8613GE/GEC RN(L)8610GE/GEC RN(L)8616GE/GEC RN(L)8619GE/GEC RN(L)8810GE/GEC RN(L)8813GE/GEC RN(L)8819GE/GEC RN(L)8816GE/GEC...
-
Page 11: Installation
Installation Installation Requirements NOTE: It is most important that this appliance is installed correctly and that operation is correct before use. Installation shall comply with local electrical, gas, health and safety requirements. This appliance shall be installed with sufficient ventilation to prevent the occurrence of unacceptable concentrations of health harmful substances in the room, the appliance is installed in. -
Page 12: Clearances
Installation Clearances NOTE: Only non-combustible materials can be used in close proximity to this appliance. Combustible Surface Non Combustible Surface Left / Right hand side 250mm (*) Rear 50mm * Side clearances can be 50mm when adjacent surface is at least 100mm below cooking surface. Assembly This model is delivered completely assembled. -
Page 13: Gas Connection
Installation Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON. It is essential that gas supply is correct for appliance to be installed and that adequate supply pressure and volume are available. The following checks should be made before installation:- a. -
Page 14: Electrical Connection
Installation Electrical Connection Warning HIS APPLIANCE MUST BE EARTHED F SUPPLY CORD IS DAMAGED IT MUST BE REPLACED BY A SUITABLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD NOTE: ALL ELECTRICAL CONNECTIONS MUST ONLY BE CARRIED OUT BY A QUALIFIED PERSON. -
Page 15: Commissioning
Installation Commissioning Before leaving the new installation; a. Check the following functions in accordance with the operating instructions specified in the 'Operation' section of this manual. Light the Griddle. Light the Open Burners. (F - Flame Failure Option). ... -
Page 16: Operation
Operation Operation Guide Caution This appliance is for professional use and is only to be used by qualified persons. Only authorised service persons are to carry out installation, servicing or gas conversion operations. Components having adjustments protected (e.g. -
Page 17: Open Burners
Operation Open Burners ('F' - Flame Failure Option) Lighting the Open Burners Flame Failure Protection is incorporated for each burner by way of a thermo-electric system which will shut off gas supply to that burner in the event that burner goes out, so that un-burnt gas is not expelled. -
Page 18: Griddle
Operation Griddle Lighting the Griddle a. Depress gas control knob and rotate anti-clockwise to ‘PILOT’ position. b. Hold gas control knob depressed, press piezo ignition button to ignite pilot burner. Repeat Items 1 to 2 until pilot is lit. c. Release gas control knob approximately 10-20 seconds after lighting pilot. d. -
Page 19: Cleaning And Maintenance
Cleaning and Maintenance Before Commencing Cleaning Caution Always turn off the gas / electrical supply before cleaning the appliance. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. NOTE: ... -
Page 20: Open Burner Cleaning
Cleaning and Maintenance Open Burner Cleaning Griddle Plate Cleaning 1. Remove pot stands, burner caps, burner bowls It is recommended that a flat blade scraper is used to clean the griddle surface, these are not supplied and pot stand supports from top of cooktop. Wash with hot soapy water, using a soft with griddle but may be purchased separately. -
Page 21: Oven Interior Cleaning
Cleaning and Maintenance Oven Interior Cleaning 1. Do not use wire brushes, steel wool or other abrasive materials to clean oven interior. 2. Clean oven regularly with a good quality domestic oven cleaner. 3. Weekly - Remove and clean any built up of grease etc. -
Page 22: Fault Finding
Fault Finding This section provides an easy reference guide to more common problems that may occur during operation of your appliance. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers most common problems reported, you may encounter a problem not covered in this section. - Page 23 Fault Finding Fault Possible Cause Remedy Element does not work when Check individual fuses located Replace blown fuse. turned ‘ON’. behind control panel. Call service provider. Check for electrical short by checking that there is NO continuity between any 'Phase In' line and metal appliance body itself.
-
Page 24: Wiring Schematic
Wiring Schematic RN(L)8510GE RN(L)8610GE RN(L)8810GE... - Page 25 Wiring Schematic Wiring Diagram for RN(L)8510GE RN(L)8610GE RN(L)8810GE...
- Page 26 Wiring Schematic RN(L)8510GEC RN(L)8610GEC RN(L)8810GEC...
- Page 27 Wiring Schematic Wiring Diagram RN(L)8510GEC RN(L)8610GEC RN(L)8810GEC...
-
Page 28: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure that the Appliance is isolated from the gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning the appliance. ... - Page 29 Gas Conversion and Specifications Piezo Igniter Griddle Pilot Supply Tube Carry out the following:- Remove griddle plate section and heat shield. Remove main burner. Disconnect piezo igniter from mounting bracket. (For access purposes). Pilot Burner Disconnect pilot supply tube from pilot burner to access pilot injector.
-
Page 30: Gas Specifications
Gas Conversion and Specifications Gas Regulator - NAT Gas / LPG / Butane Only. NOTE, Pin rotated for Natural Gas NOTE: The gas regulator supplied is convertible between Natural Gas and LP Gas, but it’s outlet NOTE, Pin rotated pressure is fixed ex-factory and for LPG is NOT to be adjusted. -
Page 31: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for servicing and repair of this appliance. Instructions supplied with parts should be followed when replacing components. further information servicing instructions, contact your nearest authorized service branch (contact details are as shown on reverse of front cover of this manual). - Page 32 Replacement Parts List Oven 228691 Oven Top Element 1.75kW (750 Ovens). 228690 Oven Bottom Element 3.75kW (750 Ovens). 228082 Oven Top Element 2kW (900 - 1200 Ovens). 228059 Oven Bottom Element 4.5kW (900 - 1200 Ovens). 228704 Door Spring Kit. 229021 Terminal Block Mains.
- Page 33 Replacement Parts List Gas Conversion Kits - Australia / New Zealand Only: Gas Type to Convert to Models Nat. Gas Butane Town Gas RN8510GE / GEC 231841 231840 231842 231843 RN8610GE / GEC 231845 231844 231846 231847 RN8810GE / GEC 231849 231848 231850...
