Table of Contents
Advertisement
Quick Links

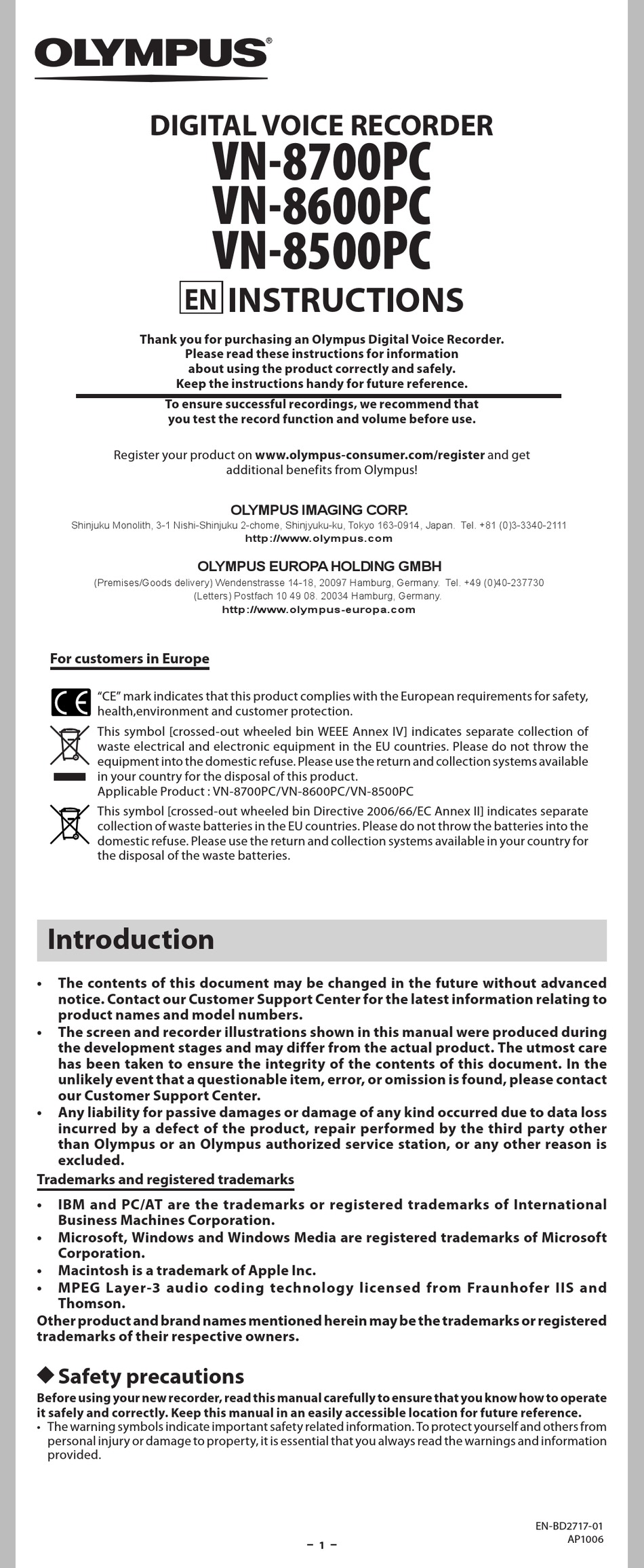

DIGITAL VOICE RECORDER
Thank you for purchasing an Olympus Digital Voice Recorder.
Register your product on www.olympus-consumer.com/register and get
Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjyuku-ku, Tokyo 163-0914, Japan. Tel. +81 (0)3-3340-2111
(Premises/Goods delivery) Wendenstrasse 14-18, 20097 Hamburg, Germany. Tel. +49 (0)40-237730
For customers in Europe
"CE" mark indicates that this product complies with the European requirements for safety,
health,environment and customer protection.
This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of
waste electrical and electronic equipment in the EU countries. Please do not throw the
equipment into the domestic refuse. Please use the return and collection systems available
in your country for the disposal of this product.
Applicable Product : VN-8700PC/VN-8600PC/VN-8500PC
This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate
collection of waste batteries in the EU countries. Please do not throw the batteries into the
domestic refuse. Please use the return and collection systems available in your country for
the disposal of the waste batteries.
Introduction
•
The contents of this document may be changed in the future without advanced
notice. Contact our Customer Support Center for the latest information relating to
product names and model numbers.
•
The screen and recorder illustrations shown in this manual were produced during
the development stages and may differ from the actual product. The utmost care
has been taken to ensure the integrity of the contents of this document. In the
unlikely event that a questionable item, error, or omission is found, please contact
our Customer Support Center.
•
Any liability for passive damages or damage of any kind occurred due to data loss
incurred by a defect of the product, repair performed by the third party other
than Olympus or an Olympus authorized service station, or any other reason is
excluded.
Trademarks and registered trademarks
•
IBM and PC/AT are the trademarks or registered trademarks of International
Business Machines Corporation.
•
Microsoft, Windows and Windows Media are registered trademarks of Microsoft
Corporation.
•
Macintosh is a trademark of Apple Inc.
•
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson.
Other product and brand names mentioned herein may be the trademarks or registered
trademarks of their respective owners.
h Safety precautions
Before using your new recorder, read this manual carefully to ensure that you know how to operate
it safely and correctly. Keep this manual in an easily accessible location for future reference.
• The warning symbols indicate important safety related information. To protect yourself and others from
personal injury or damage to property, it is essential that you always read the warnings and information
provided.
VN-8700PC
VN-8600PC
VN-8500PC
INSTRUCTIONS
EN
Please read these instructions for information
about using the product correctly and safely.
Keep the instructions handy for future reference.
To ensure successful recordings, we recommend that
you test the record function and volume before use.
additional benefits from Olympus!
OLYMPUS IMAGING CORP.
http://www.olympus.com
OLYMPUS EUROPA HOLDING GMBH
(Letters) Postfach 10 49 08. 20034 Hamburg, Germany.
http://www.olympus-europa.com
-
-
1
EN-BD2717-01
AP1006
Advertisement
Table of Contents
Related Manuals for Olympus VN-8600PC
Summary of Contents for Olympus VN-8600PC
- Page 1 Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded.
-
Page 2: Getting Started
During playback or time*2 Elapsed playback time 5 [?] Microphone stop mode: File length Sensitivity indicator *1 For VN-8700PC, VN-8600PC only. [!] VCVA *2 This item will be displayed indicator when the [Font Size] is set to [Small] only. h Inserting batteries 1 Lightly press down on the arrow and slide the battery cover open. -
Page 3: Turning On/Off The Power
[s] and [Battery Low] appears on the display and the recorder shuts down. • Remove the batteries if you are not going to use the recorder for an extended period of time. • When changing batteries, AAA alkaline batteries or Olympus Ni-MH rechargeable batteries are recommended. -
Page 4: Notes On The Folders
File length Note: For VN-8700PC/VN-8600PC only • If a recording is made in stereo modes ([192 kbps] or [128 kbps]), it will be a monaural recording through the built-in microphone, and the same audio will be recorded on both Left channel (Lch) -
Page 5: Microphone Sensitivity
[Rec Mode] is set to a stereo recording mode, it enables recording only with the L channel microphone*. * For VN-8700PC/ VN-8600PC only. Notes: • To ensure recording from the beginning, start recording after you see the display and the recording indicator lights on. -
Page 6: About Playback
About playback h Playback 1 Press the FOLDER/INDEX/ SCENE button to select the desired folder. a Folder indicator 2 Press the 9 or 0 button to select the file to playback. 3 Press the `OK/MENU button to start playback. b Elapsed playback time/ c File length 4 Press the + or −... -
Page 7: Changing Play Speed
h Changing play speed The playback speed of the file can be changed between 0.5 and 2 times speed. Change the speed according to need such as listening to meeting content at a fast speed or reviewing spots that you couldn't catch in a language lesson at a slow speed. -
Page 8: How To Begin Segment Repeat Playback
2 Press the 9 or 0 but- ton to select the index or temp mark to erase. 3 While the index or temp number appears for approximately 2 seconds on the display, press the ERASE button. • The index or temp mark is erased. -
Page 9: Menu Setting Method
2 While the recorder is dur- ing stop mode, press the ERASE button. 3 Press the + or − button to select [Erase in Folder] or [File Erase]. 4 Press the ` OK/MENU button. 5 Press the + button to select [Start]. - Page 10 [Off]: Unlocks the file and allows it to be erased. a File lock indicator File Divide (For VN-8700PC/VN-8600PC only) Files with large capacities and long recording times can be split so that they are easier to manage and edit. 1 Select the file you want to divide.
- Page 11 • To record a meeting and lecture clearly, set other than [LP] in [Rec Mode]. • When the external monaural microphone is used while [Rec Mode] is set to a stereo recording mode, it enables recording only with the L channel microphone (For VN-8700PC/VN-8600PC only).
- Page 12 [Rec Scene] to [Off] to use these functions. h Play Menu Voice Filter (For VN-8700PC/VN-8600PC only) The recorder has a Voice Filter Function to cut low and high frequency tones during normal, fast, or slow playback, and enable clear audio playback.
-
Page 13: Lcd/Sound Menu
Notes: • In [File] mode, when the recorder comes to the end of the last fi le in the folder, [End] fl ashes for two seconds on the display and the recorder stops at the start of the last fi le. •... -
Page 14: Device Menu
[Beep] [On] [Language(Lang)] [English] [Voice Filter]*1 [Off] [Play Mode] *1 For VN-8700PC/VN-8600PC only [Play Area] [File] *2 For VN-8500PC only [Repeat] [Off] Note: • After resetting the settings, the time settings and fi le numbers will be preserved from before the reset and will not return to their initial settings. -
Page 15: Using The Recorder On Your Pc
System info. You can check the recorder’s information on the menu screen. 1 Select [System info.] from the menu on the [Device Menu]. [Model] (Model Name), [Version] (System ver- sion) and [Serial No.] (Serial Number) appears on the display. Using the recorder on your PC Apart from using this unit as a recorder, you can use it as an external memory for your computer, as a storage device. -
Page 16: Safe And Proper Usage
Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reasons is excluded from the Olympus’s liability. -
Page 17: Troubleshooting
(see above diagram). ø 3.5 mm mini-jack, impedance 8 Ω or more 4 Input power requirement: AAA battery (LR03) or Olympus Ni-MH rechargeable battery 4 External dimensions: 108 mm × 39 mm × 16.8 mm (without protrusions) 4 Weight: 66 g (including battery) 4 Operating temperature: 0°C - 42°C... - Page 18 Notes: • The above values are strictly rough guides. • Battery life is measured by Olympus. It varies greatly according to the type of battery used and the conditions of use. Specifications and design are subject to change without notice.
