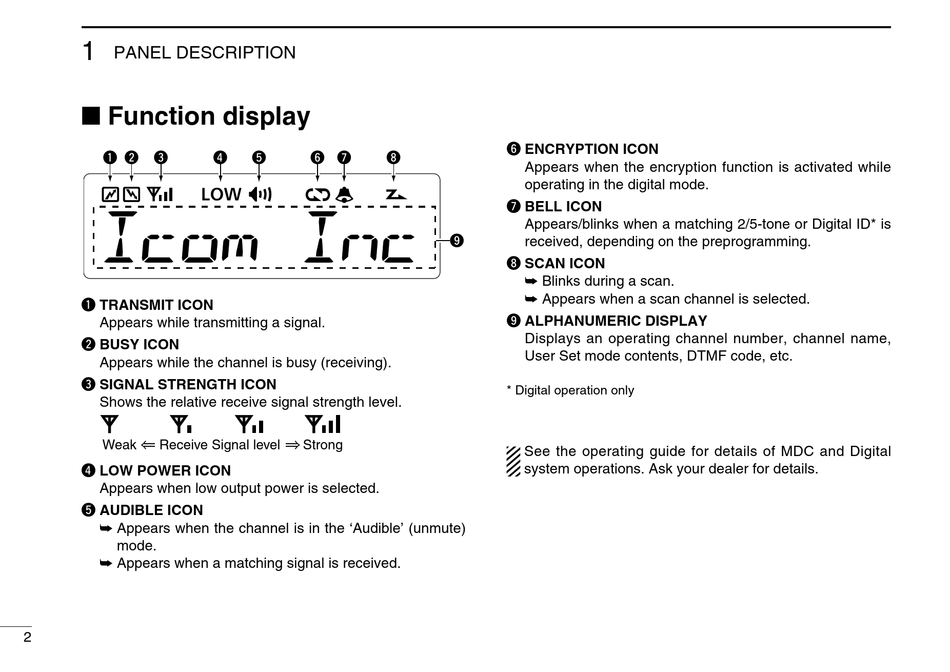

PANEL DESCRIPTION
■ Function display
q w
e
q TRANSMIT ICON
Appears while transmitting a signal.
w BUSY ICON
Appears while the channel is busy (receiving).
e SIGNAL STRENGTH ICON
Shows the relative receive signal strength level.
Weak
Receive Signal level
r LOW POWER ICON
Appears when low output power is selected.
t AUDIBLE ICON
➥ Appears when the channel is in the 'Audible' (unmute)
mode.
➥ Appears when a matching signal is received.
2
r
t
y u
i
Strong
y ENCRYPTION ICON
Appears when the encryption function is activated while
operating in the digital mode.
u BELL ICON
Appears/blinks when a matching 2/5-tone or Digital ID* is
o
received, depending on the preprogramming.
i SCAN ICON
➥ Blinks during a scan.
➥ Appears when a scan channel is selected.
o ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
User Set mode contents, DTMF code, etc.
* Digital operation only
See the operating guide for details of MDC and Digital
system operations. Ask your dealer for details.
