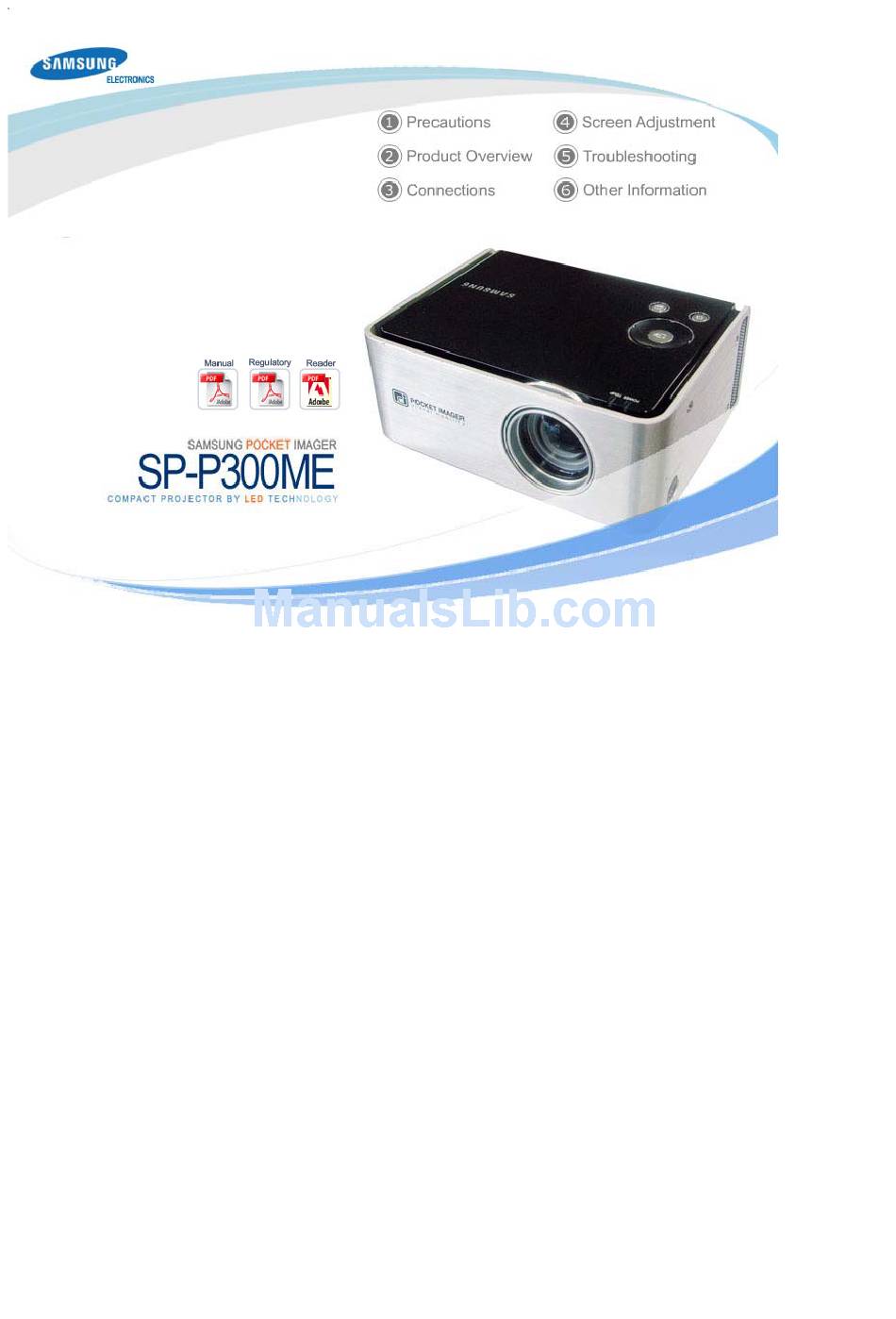

Samsung SP-P300ME Manual

Compact projector
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Samsung SP-P300ME

Summary of Contents for Samsung SP-P300ME

  • Page 2 To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly. Failure to follow the instructions marked with this symbol may cause personal injury or even fatality. Failure to follow the instructions marked with this symbol, may cause personal injury or damage to the product or property.
  • Page 3 Always unplug the unit by holding the power plug and not the power cable. There is a danger of fire. Unplug the power plug before cleaning the product. There is a danger of electric shock or fire. Do not let water or any liquid come into contact with the adapter. This may cause fire or electric shock.
  • Page 4 When installing the product in a cabinet or on a shelf, do not let the front part of the product project out of the cabinet or shelf. A falling product may damage the product or cause injury. Keep the power cord away from heaters. The coating of the power cord may melt and cause electric shock or fire.
  • Page 5 Do not drop the product while moving it. Failing to do so may cause damage or injury. Keep the product out of children’s reach. A falling product may cause harm to children. Since the front part of the product is heavier than the back part, install the product on a flat and stable location.
  • Page 6 If the product emits smoke, unusual noise, or there is a burning smell, turn the system off immediately, disconnect the power plug from the wall outlet, and contact Service Center. There is a danger of electric shock or fire. If the power plug pin or jack is exposed to dust, water or alien substances, clean it. There is a danger of electric shock or fire.

  • Page 8: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 9 Product Features A custom made new projector designed for important marketing activities and presentations of the active business man! The Portable Projector SP-P300ME provides high mobility and ease of use at a reasonable price. Product Features Your Projector Product Views...

  • Page 10: Power Led

    1. Power Button To turn it on Press the Power button. The Power LED will light up and the power is turned on. To turn it off Press the Power button until the Power LED is turned off. 2. Menu Button Press to display the OSD menu.
  • Page 11 Quick Installation Guide Adapter Lens Cap Use only the adapter supplied with the product. For purchasing an additional adapter, contact your dealer or nearby service center. Optional Module Battery Status of Operating LEDs : On, : Off POWER TEMP (BLUE) (RED) The set is power off.

  • Page 12: Battery Charge Indicator

    Your Battery 1. Locking hole A part for installing the battery into the projector. 2. Power Terminal A part for connecting the power to charge only the battery. 3. Battery Latch A part to fix the battery onto the projector. 4.
  • Page 13 the bottom left of the battery. The green LEDs show the remaining battery charge and are automatically turned off after a while. When the AC power is connected through the adapter and the battery is being charged, the green LED lights up. Battery Installation and Precautions.
  • Page 14 4. Charging the Battery Charging the battery when the battery is separated from the projector. Adapter Standard : DC 14 V, 3.5 A Charging the battery when the battery is installed in the projector. 5. Battery Use Instructions Please follow the instructions below when using the battery. Use only an authorized battery.
  • Page 15 Environment Class B Noise Maximum 25 dB (by Samsung Reference) This Class B equipment is designed for home and office use. The equipment has been registered regarding EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while class B emits less electromagnetic waves...
  • Page 16 The DMD Panel used in Samsung Projectors consists of several hundred thousand micro mirrors. As with other visual display elements, the DMD Panel may include a few bad pixels, Samsung and the DMD Panel manufacturer have a rigid, bad pixel identification and limitation procedure in place and products will not exceed the maximum number of bad pixels set by our standards.
  • Page 18 Basic Settings Connecting the Power Installing a Projector Install the projector so that the beam from the projector is perpendicular to the screen. Place the projector so that the lens is at the center of the screen. If the screen is not vertically installed, the picture on the screen may not be a rectangle. Do not install the screen in a bright surrounding.
  • Page 19 Screen Size and Projection Distance Distance Picture size(mm x mm) 0.5 m 1.0 m 1.64 m 2.0 m 2.8 m The screen is designed to be optimal at 41". Basic Settings Connecting the Power Connect the adapter to a wall outlet( Connect the power cord to the adapter and connect it to a wall outlet.
  • Page 20 Use only an authorized adapter. Basic Settings Connecting the Power Connect the [PC/COMPOSITE] port on the side of the projector and the Monitor OUT port [D-Sub] of the PC using a PC/Composite cable. When all the connections above have been connected, turn the projector and the PC on. Using the Projector Selecting the external input source.
  • Page 21 Connect the [Composite Input (Yellow)] port on the side of the projector and the Video Out (Yellow) port of the AV device with a video cable. When all the connections above have been connected, turn the projector and the video devices on. How to Use Selecting the external input source.
  • Page 22 Installation and Connection Symptom Cannot turn the power on. When using the adaptor : Check the connectivity of the power to the projector. When using the battery : Check the connection status of the battery and the projector, and the remaining battery charge. The screen is distorted or Install the projector so that the beam from the projector is perpendicular to the displayed in a trapezoid shape.
  • Page 23 Service Center or product provider. Contact your product provider or Service Center if dust or other alien substances are inside the projector. If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. CANADA 1-800-SAMSUNG (7267864)
  • Page 24 ARGENTINE 0800-333-3733 BRAZIL 0800-124-421 CHILE 800-726-7864 (SAMSUNG) COSTA RICA 0-800-507-7267 ECUADOR 1-800-10-7267 EL SALVADOR 800-6225 GUATEMALA 1-800-299-0013 JAMAICA 1-800-234-7267 PANAMA 800-7267 PUERTO RICO 1-800-682-3180 REP. DOMINICA 1-800-751-2676 TRINIDAD & TOBAGO 1-800-7267-864 VENEZUELA 1-800-100-5303 BELGIUM 02 201 2418 CZECH REPUBLIC 844 000 844...
  • Page 25 THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860 7267864 (SAMSUNG) U.A.E 800SAMSUNG (7267864) Advantages of Pocket Imager Long Lifetime Replacing the lamp is not necessary unlike for other projectors. Low Power Consumption Since it consumes less power, it can run on battery power unlike other projectors.
  • Page 26 - Description of standard on file transmission and white board. - Shared application submitted to ITU for approval as a part of the T.120 standard. H.320 H.320 is the ITU standard for public circuit-switched networks. - A comprehensive standard for audio and video. It can be shared between systems that sell ISDN. - Including the H.261 Video Standard, G.711, G.722 and G.728 audio standards, and data for the T.120 standard.
  • Page 27 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 28 EXPORTADO POR: Samsung Electronics CO.,LTD. 416, Mae tan-3dong, Yeongtong - gu, Suwon City, Gyeonggi-do Korea...
