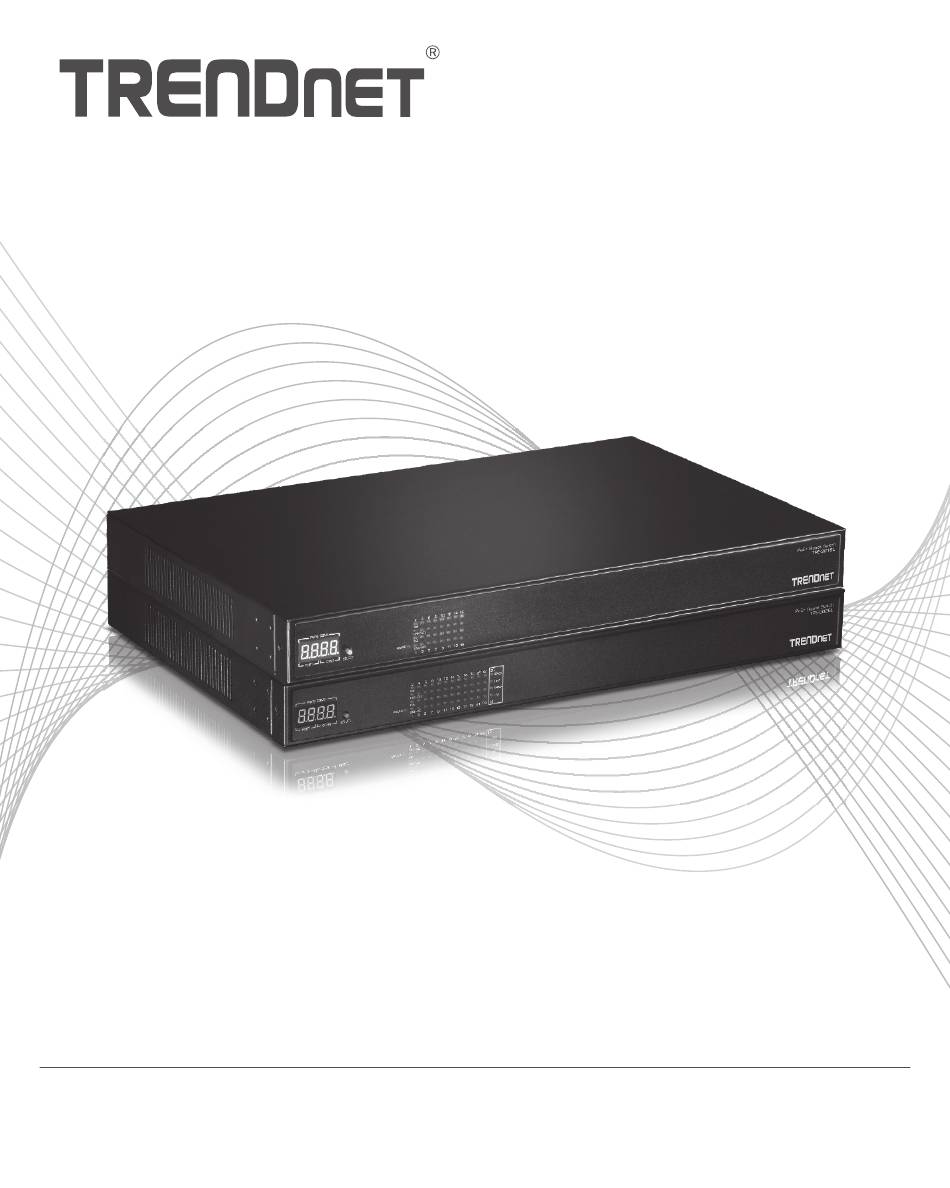

- Page 1 Quick Installation Guide TPE-3016L/TPE-3026L...
- Page 2 Table of Content English 1. Before You Start 2. Hardware Installation 3. LEDs...
- Page 3 1. Before You Start Package Contents TPE-3016L/TPE-3026L Ÿ Quick Installation Guide Ÿ Power cord Ÿ Rack mount kit Ÿ Minimum requirements Network devices Ÿ Network Cable Ÿ Optional Equipment EIA standard 19” rack Ÿ...
- Page 4 2. Hardware Installation 1. Connect the power cord to the switch and plug it into an electrical outlet. Flip the power switch to the "On" position. 2. Connect a network cable from the switch to your computer's network port and/or PoE devices. 3.
- Page 5 3. LEDs 1. Verify the following LEDs are on: Power, PoE and Link/ACT. Sequence Function Device is on Solid Power Device is off The Switch is connected and supplying power to a PoE device Solid No PoE device has been detected at this port Link/ACT A connection has been detected Solid...
- Page 6 Total PoE power remaining PWR/CONS Port CONS Watts PoE Consumption per Port* PWR/CONS Port CONS Port Number Watts *Note: If multiple PoE devices are connected, press the select button to display PoE Consumption information for the next port.
- Page 7 26 Port Gigabit 430 Watt PoE+ Switch Trade Name: TRENDnet TRENDnet hereby declares that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. EN 55022: 2010 + AC: 2011 Class A EN 61000-3-2: 2006 + A1: 2009 + A2: 2009...
- Page 8 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
- Page 9 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
