Summary of Contents for TRENDnet TPE-80WS

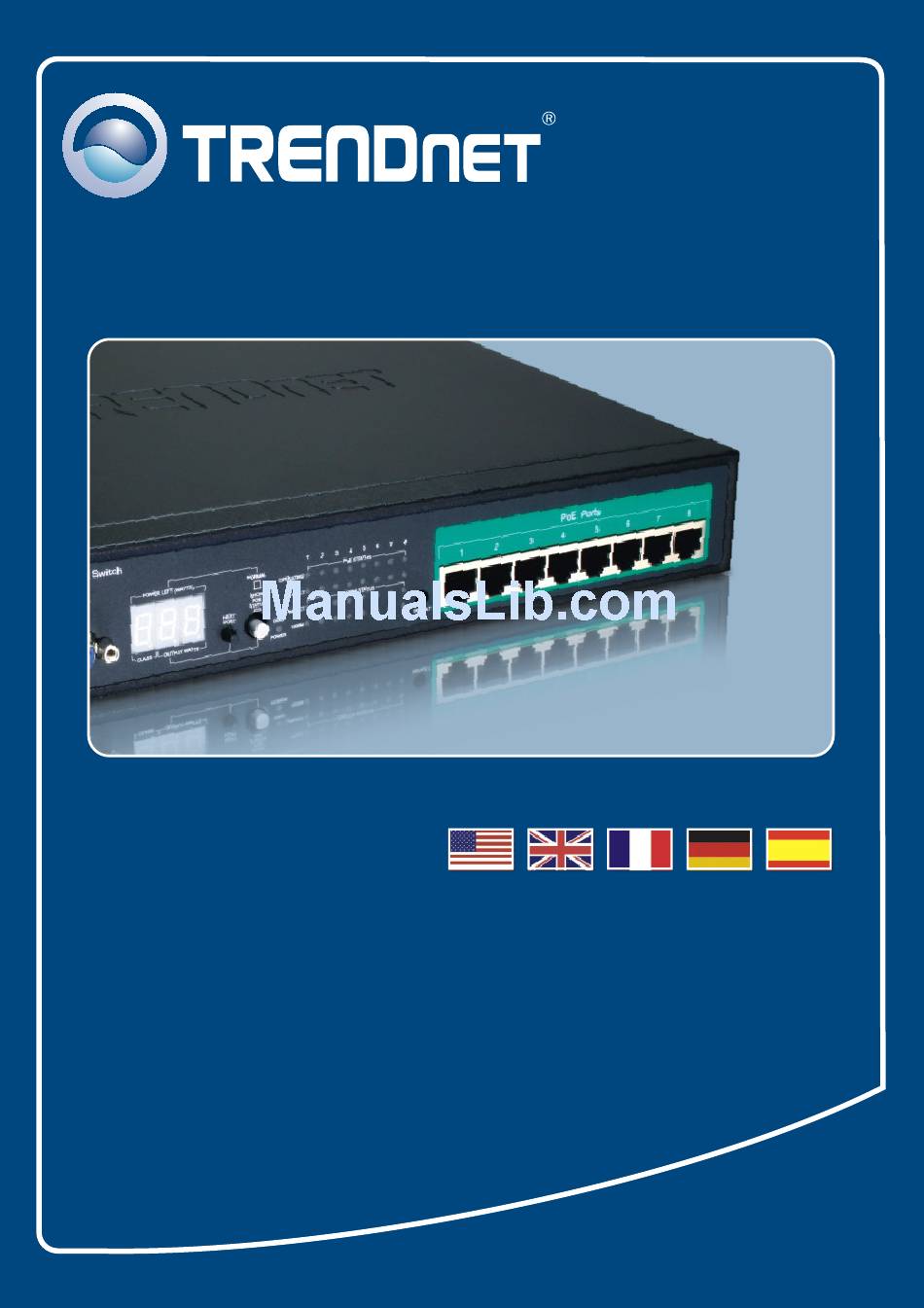

- Page 1 Quick Installation Guide TPE-80WS...
-
Page 2: Table Of Contents
Table of Contents English ... 1 1. Before You Start 2. Hardware Installation ... 3. Configuring the Power Over Ethernet (PoE) Switch ... Troubleshooting ... Version 07.19.2007... -
Page 3: English
(4.7 or higher). A computer with a network adapter properly installed. A RJ-45 network cable. EIA standard 19” rack (Optional) Note: The TPE-80WS only support Power over Ethernet (PoE) devices that follow the IEEE 802.3af standard Application Advanced Wireless Pan & Tilt... -
Page 4: Hardware Installation
Ethernet port on the TPE-80WS. 3. Connect a RJ-45 cable from a PoE port on the TPE-80WS to the LAN Port of the PoE device (e.g. TEW-434APB) 4. Verify that the following panel lights... -
Page 5: Configuring The Power Over Ethernet (Poe) Switch
Gateway to match your network and then click Apply. Your installation is now complete. For detailed information regarding the TPE-80WS's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com To ensure the highest level of customer service and support, please take a moment to... -
Page 6: Troubleshooting
PoE Switch’s default IP address is 192.168.223.100, make sure that no other network devices are assigned an IP address of 192.168.223.100. If my network's IP is different than the PoE Switch's range, what should I do? You should still configure the PoE Switch first. After all the settings are applied, go to the PoE Switch's configuration page, click on IP settings and change the IP address of the PoE Switch to match your network's IP. - Page 7 What are the default port settings for configuring the Switch through the console port using HyperTerminal? Bits per Second: 115200; Data bits: 8; Parity: None; Stop bits: 1; Flow control: None; Emulation: VT100. If you still encounter problems or have any questions regarding the TPE-80WS, please contact TRENDnet’s Technical Support Department.
- Page 8 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 9 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
