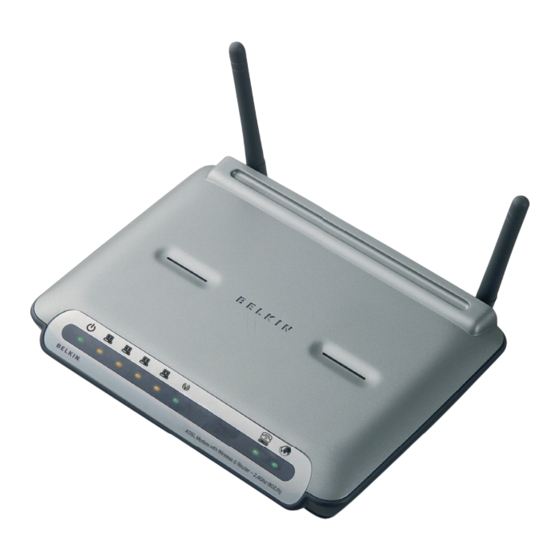

- Page 1 ADSL Modem with Wireless G Router Designed to Meet ADSL2+ Specification Network your computers and Share share your ADSL Internet access Mbps User Manual User Manual 802.11g 802.11g 2.4GHz • Wireless 2.4GHz • Wir F5D7632uk4v3000...
-
Page 2: Table Of Contents
Benefits of a Home Network ......5 Advantages of a Belkin Wireless Network....5 2 Make Sure You Have the Following . -
Page 3: Introduction
Introduction Thank you for purchasing the Belkin ADSL Modem with Wireless G Router (the Router). In minutes you will be able to share your Internet connection and network your computers with your new Router. The following is a list of features that make your Router an ideal solution for your home or small office network. - Page 4 Introduction Integrated 802.11g Wireless Access Point 802.11g is an exciting new wireless technology that achieves data rates up to 54Mbps, nearly five times faster than 802.11b. Built-In Dynamic Host Configuration Protocol (DHCP) Built-In Dynamic Host Configuration Protocol (DHCP) on-board makes for the easiest possible connection of a network. The DHCP server will assign IP addresses to each computer automatically so there is no need for a complicated networking setup.
-
Page 5: Benefits Of A Home Network
– set up and access printers, computers, and other networking devices from anywhere in your home Easy Expansion – the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles No cabling required –... -
Page 6: Make Sure You Have The Following
Make Sure You Have the Following Package Contents • ADSL Modem with Wireless G Router • RJ11 Telephone Cord - Gray • RJ45 Ethernet Networking Cable — Yellow • USB 1.0 Cable — Blue • ADSL Microfilter* • Power Adapter •... -
Page 7: Knowing Your Router
Knowing your Router The Router has been designed to be placed on a desktop. All of the cables exit from the rear of the Router for better organization and utility. The LED indicators are easily visible on the front of the Router to provide you with information about network activity and status. - Page 8 Knowing your Router 3. WLAN Status LED The WLAN Status LED is solid GREEN when you enable the wireless LAN function. It flashes when the Router is transmitting or receiving data wirelessly. WLAN is off ���� �������� ��� ��������������� Green WLAN is up and connected WLAN Green...
- Page 9 Knowing your Router Back Panel The following figure illustrates the rear panel of your Router. DSL Line This port is for connection to your ADSL line. Connect your ADSL line to this port. Power Plug Connect the included 15V DC power supply to this inlet. Using the wrong type of power adapter may cause damage to your Router.
-
Page 10: Connecting Your Router
Connecting your Router Positioning your Router Your wireless connection will be stronger the closer your computer is to your Router. Typical indoor operating range for your wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Router connected devices increases. -
Page 11: Connecting Your Adsl Line
Connecting your Router Connecting your ADSL Line Connection for the Router to the ADSL line varies by country and region. Typically it involves a microfilter or a microfilter with built-in splitter to allow simultaneous use of ADSL service and telephone service on the same telephone line. -
Page 12: Powering Up Your Router
Connecting your Router If you have a dedicated ADSL service telephone line with an RJ11 wall jack, simply connect a telephone cord from the wall jack to the gray RJ11 port labeled “DSL line” on the back of your Router. If you have an RJ45 wall jack for your ADSL service, connect an RJ45- to-RJ11 converter to the wall jack. -
Page 13: Running The Setup Wizard
Connecting your Router Turn on your computers. After your computers boot up, the LAN status on the front of the Router will be on for each port to which a wired computer is connected. These lights show you the connection and activity status. - Page 14 Connecting your Router Connecting your Router The Setup Wizard will start automatically for express configuration (recommended) Click “Next” to continue. The first step is to select your country and ISP, and click “Next”. If your country and/or ISP is not listed, select “Other Country” or “Other ISP.” Then select your connection type, PPPoE, PPPoA, or other types.
- Page 15 Wireless Channel = Auto Security = off Note: Belkin strongly recommends that you enable wireless security to WEP or WPA and change SSID to something of your own. Please read the User Manual for details on levels of wireless security and how to...
- Page 16 Note: You can always restart the Setup Wizard or use the Navigation Menu on the left to change your setting. Congratulations! You have finished installing your new Belkin Router. Click “OK” to activate your settings. To test your Internet connection, open your browser and visit any website, such as www.belkin.com.
-
Page 17: Manually Configuring Your Router
Manually Configuring your Router Understanding the Web-Based User Interface The home page shows you a quick view of the Router’s status and settings. All advanced setup pages can be reached from this page. Quick-Navigation Links You can go directly to any of the Router’s UI pages by clicking directly on these links. - Page 18 Manually Configuring your Router Login/Logout Button This button enables you to log in and out of the Router with the press of one button. When you are logged into the Router, this button will change to read “Logout”. Logging into the Router will take you to a separate login page where you will need to enter a password.
-
Page 19: Changing Lan Settings
IP. Examples of a non-routable IP are: 192.168.x.x (where x is anything between 0 and 255) 10.x.x.x (where x is anything between 0 and 255) Subnet Mask There is no need to change the subnet mask. This is a unique, advanced feature of your Belkin Router. - Page 20 Manually Configuring your Router DHCP Server The DHCP server function makes setting up a network very easy by assigning IP addresses to each computer on the network automatically. The default setting is “On”. The DHCP server can be turned OFF if necessary, however, in order to do so you must manually set a static IP address for each computer on your network.
-
Page 21: Dhcp Client List
Local Domain Name The default setting is “Belkin”. You can set a local domain name (network name) for your network. There is no need to change this setting unless you have a specific advanced need to do so. You can name the network anything you want such as “MY NETWORK”. - Page 22 Manually Configuring your Router To configure the Router with the settings that your ISP gave you, click “Connection Type” (1) on the left side of the screen. Select the connection type you use. If your ISP gave you DNS settings, clicking “DNS” (2) allows you to enter DNS address entries for ISPs that require specific settings.
- Page 23 Manually Configuring your Router Select the type of connection you use by clicking the radio button (1) next to your connection type and then clicking “Next”. Setting your ISP Connection Type to PPPoE or PPPoA PPPoE (Point-to-Point Protocol over Ethernet) is the standard method of connecting networked devices.
- Page 24 Manually Configuring your Router User Name - Enter the user name. (Assigned by your ISP). Password - Enter your password. (Assigned by your ISP). Retype Password - Confirm the password. (Assigned by your ISP). IP Assigned by ISP – Leave “Yes” if your ISP automatically assigns IP address.
