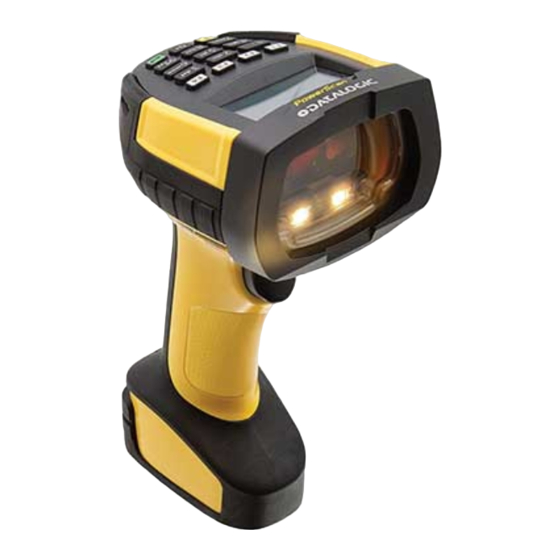

- Page 1 PowerScan™ PM96XX QUICK REFERENCE GUIDE Industrial Cordless Handheld Area Imager Bar Code Reader™...
- Page 2 Disclaimer Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for inci- dental or consequential damages resulting from the use of this material.
-
Page 3: Table Of Contents
Using the PowerScan™ PM96XX........3 Setting up the Reader............. 3 Charging the Batteries ........... 4 Linking the Reader............5 Link Datalogic RF Devices to Base ........5 Selecting the Interface Type ........... 5 Interface Selection ..............5 Configuring the Interface ..........6 Country Mode .............. -
Page 4: End User Software License Agreement
Datalogic grants to End User, a personal, non-exclusive, non-transfer- able, non sub licensable, revocable, limited license to use the Soft- ware, solely on the Datalogic Product in which it is embedded or for which it is intended for use, in machine-readable form only, solely for End User's internal business purposes. - Page 5 End User to promptly pay all (additional) license fees due and any further damages, if any. 2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the relevant contract for the purchase of the Datalogic Product.
- Page 6 EULA BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT. UNDER NO CIRCUMSTANCES SHALL DATALOGIC OR ITS LICEN- SORS BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROFITS, LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER...
- Page 7 All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Datalogic shall be sent to the attention of Datalogic IP Tech S.r.l., Legal & IP Department, Via San Vitalino 13, 40012 Calderara di Reno (Bolo- gna), Italy, or such other address as may be specified by Datalogic in writ- ing.
-
Page 8: Software Product Policy
Italy, without regard to the rules governing conflicts of law. Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. -
Page 9: About The Scanner
The reader can be set up to select and output a subset of data elements from USA Driver License PDF417 bar codes. USA Driver License This feature can be enabled using either Datalogic Aladdin™ Parsing or the bar codes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website. -
Page 10: Pm96Xx 4-Key And 16-Key Models
About the Scanner PM96XX 4-key and 16-key Models The PM96XX series offers two display options: 4 configu- rable keys and a full 16-key keyboard. This increases inter- action between the host and the user allowing a two-way exchange of information for more reliable and effective communications. -
Page 11: Using The Powerscan™ Pm96Xx
Using the PowerScan™ PM96XX USING THE POWERSCAN™ PM96XX The PowerScan™ PM96XX normally functions by capturing and decoding codes. Turn on the scanner by pressing the trigger for 2 seconds. When the scanner starts up, it vibrates. After the vibration, the trigger can be released and the startup phase ends. -
Page 12: Charging The Batteries
NOTE: The PowerScan PM96XX may get warm during charging: this is normal and does not mean a malfunction. NOTE: Before using the battery, read "Battery Safety" on page 29. Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum performance. POWERSCAN™ PM96XX... -
Page 13: Linking The Reader
Linking the Reader LINKING THE READER Link Datalogic RF Devices to Base For RF devices, before configuring the interface it is neces- sary to link the handheld with the base. To link the handheld and the base, press the trigger to wake up the handheld and mount it into the base. -
Page 14: Configuring The Interface
SERIAL INTERFACE RS-232 standard interface Select RS232-STD RS-232 Wincor-Nixdorf Select RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB Com to simulate RS-232 standard interface Select USB-COM-STD a. Download the correct USB Com driver from www.datalogic.com. POWERSCAN™ PM96XX... - Page 15 Configuring the Interface USB-OEM USB -OEM (can be used for OPOS/UPOS/JavaPOS) Select USB-OEM USB FOR TERMINALS USB HID POS Select USB HID POS USB Toshiba TEC Select USB Toshiba TEC USB FOR MAGELLAN SCANNERS USB for Magellans Select USB Magellan Scanners ETHERNET Select Ethernet Interface QUICK REFERENCE GUIDE...
- Page 16 Configuring the Interface KEYBOARD USB Keyboard with standard key encoding Select USB Keyboard USB Keyboard with alternate key encoding Select USB Alternate Keyboard USB Composite ★ Select USB-Composite AT, PS/2 with standard key encoding Select KBD-AT AT, PS/2 with alternate key encoding Select KBD-AT-ALT ★...
-
Page 17: Country Mode
Country Mode COUNTRY MODE If using one of the Keyboard Interfaces, select the specific country / language supported by the keyboard. Read the ENTER / EXIT code before and after the Country Mode selection. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE ★ Country Mode = US Country Mode = Belgium Country Mode = Croatia Country Mode = Czech Republic... - Page 18 Country Mode COUNTRY MODE (CONTINUED) Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Country Mode = Italy POWERSCAN™ PM96XX...
- Page 19 Country Mode COUNTRY MODE (CONTINUED) Country Mode = Japanese 106-Key Country Mode = Lithuanian Country Mode = Norway Country Mode = Poland Country Mode = Portugal Country Mode = Romania QUICK REFERENCE GUIDE...
- Page 20 Country Mode COUNTRY MODE (CONTINUED) Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland Country Mode = United Kingdom POWERSCAN™ PM96XX...
-
Page 21: Programming
Customize your reader using the pro- gramming bar codes available in the PowerScan™ PM96XX Product Reference Guide or using Datalogic Aladdin soft- ware configurator. Check the corresponding features sec- tion for your interface, and also the Data Editing and Symbologies chapters of the PRG. -
Page 22: Reading Parameters
Reading Parameters READING PARAMETERS Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See "Using the PowerScan™ PM96XX" on page for more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition. - Page 23 Operating Modes a label does not disable scanning. Double Read Timeout prevents undesired multiple reads while in this mode. The illuminator is always ON and the reader Always On — is always ready for code reading. Double Read Timeout prevents undesired multiple reads. The reader illuminator flashes on and off Flashing —...
- Page 24 Operating Modes SCAN MODE (CONTINUED) Scan Mode = Trigger Pulse Multiple Scan Mode = Trigger Hold Multiple Scan Mode = Flashing Scan Mode = Always On Scan Mode = Stand Mode Scan Mode= Retained Trigger Hold Multiple POWERSCAN™ PM96XX...
-
Page 25: Set Date And Time (Optional)
Operating Modes Set Date and Time (optional) 1. Scan the Enter / Exit Programming bar code below to set date and time. ENTER / EXIT PROGRAMMING MODE 2. Scan the Set Date bar code + six digits for Year, Month and Day (YYYYMMDD) from the "Hex-Numeric Key- pad"... -
Page 26: Technical Specifications
Technical Specifications TECHNICAL SPECIFICATIONS The following table contains Physical and Performance Characteristics, User Environment and Regulatory infor- mation. PHYSICAL CHARACTERISTICS Color Yellow/Black Height 19.0 cm (7.5'') Dimensions Length 14.0 cm (5.5”) Width 7.9 cm (3.1”) Weight Approx. 318 gr. (11.2 oz.) ELECTRICAL CHARACTERISTICS Battery Type Li-ion battery pack... - Page 27 Technical Specifications ENVIRONMENTAL CHARACTERISTICS Operating -20° to 50° C (-4° to 122° F) Temperature Recharging Recommended 0° to 35° C (32° to 95° F) Temperature Max allowed 0° to 40° C (32° to 104° F) Storage Tempera- -40° to 70° C (-40° to 158° F) ture Humidity 0 to 95% non-condensing...
- Page 28 Addons, ISBN ,ISSN, Code128, EAN128, ISBT128, Code39, Code39 Full ASCII, Code39 CIP, Code 32, Trioptic, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, matrix2 of 5, datalogic 2 of 5, follet 2 of 5, Cod- abar, Code11, MSI, Plessey, Code 93, Pharmacode, BC412...
- Page 29 Technical Specifications DOF - DEPTH OF FIELD (TYPICAL) Symbology DOF range PM96XX: 5 mils: 6.4-30.9 cm (2.5-12.2 in) 20 mils: 4-103.7 cm (1.6-40.8 in) 40 mils: 5.5-175 cm (2.2-68.9 in) Code 128 PM96XX-HP: 2.5 mils: 6.3-11.5 cm (2.5-4.5 in) 5 mils: 3.8-41 cm (1.5-16.1 in) 20 mils: 4-157 cm (1.6-61.8 in) 40 mils: 5.5-242.9 cm (2.1-95.6 in) PM96XX:...
-
Page 30: Led And Beeper Indications
LED and Beeper Indications LED AND BEEPER INDICATIONS The reader’s beeper sounds and its LED illuminates to indi- cate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The follow- ing tables list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on. -
Page 31: Troubleshooting
Troubleshooting TROUBLESHOOTING PROBLEM POSSIBLE SOLUTION POSSIBLE CAUSE Check system power. No power to the Ensure power supply reader. Nothing happens is connected. when the scan button Interface or Ensure all cable is pulled. power cables are connections are loose. secure. Ensure reader is Reader not programmed to read... -
Page 32: Warranty
Datalogic, unless otherwise agreed in an applicable writing by Datalogic. Datalogic will not be liable under the warranty if the Product has been exposed or subjected to any: (1) maintenance, repair, installation, han- dling, packaging, transportation, storage, operation or use that is improper or otherwise not in compliance with Datalogic’s instruction;... -
Page 33: Ergonomic Recommendations
Technical Support. Reseller Technical Support An excellent source for technical assistance and informa- tion is an authorized Datalogic reseller. A reseller is acquainted with specific types of businesses, application software, and computer systems and can provide individu- alized assistance. -
Page 34: Cleaning Procedure
CAUTION: DO NOT use abrasive pads or cleaning agents. Common Cleaning Solutions The cleaners and disinfectants listed below are recom- mended for use on Datalogic Disinfectant-Ready Enclo- sures: PRODUCT CHEMICAL CONTENT Sani-Cloth® HB, Quaternary Ammonium Chloride Sani-Cloth®... -
Page 35: Cleaning Enclosure And Window Surfaces
Cleaning Procedure PRODUCT CHEMICAL CONTENT Windex® Blue lsopropyl Alcohol Clorox® Bleach; Sodium Hypochlorite; Clorox Healthcare Bleach Sodium Hydroxide Germicidal Cleaner Hydrogen Peroxide ProSpray™ Wipes 0.647% o-phenylphenol; (Disinfectant towelettes} 0.070% o-benzyl-p-chlorophenol 100% Gentle dish soap and water NOTE: Disinfectants may be harsh on metal. They are recommended for use only on enclosures. -
Page 36: Changing The Batteries
Changing the Batteries CHANGING THE BATTERIES 1. Push in and slide the battery lock down to open the battery door, as shown below. 2. Open the battery door and extract the battery. 3. Invert the sequence to insert the battery and lock the battery door. -
Page 37: Battery Safety
Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite. - Page 38 Battery Safety As with other types of batteries, Lithium-Ion (LI) batteries will lose capacity over time. Capacity deterioration is noticeable after one year of service whether the battery is in use or not. It is difficult to precisely predict the finite life of a LI battery, but cell manufacturers rate them at 500 charge cycles.
-
Page 39: Hex-Numeric Keypad
Hex-Numeric Keypad HEX-NUMERIC KEYPAD Use the bar codes that follow to enter numbers as you would select digits / characters from a keypad. HEX-NUMERIC KEYPAD QUICK REFERENCE GUIDE... - Page 40 Hex-Numeric Keypad HEX-NUMERIC KEYPAD (CONTINUED) POWERSCAN™ PM96XX...
- Page 41 Hex-Numeric Keypad HEX-NUMERIC KEYPAD (CONTINUED) QUICK REFERENCE GUIDE...
- Page 44 ©2022 Datalogic S.p.A. and /or its affiliates. • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Datalogic S.p.A.
