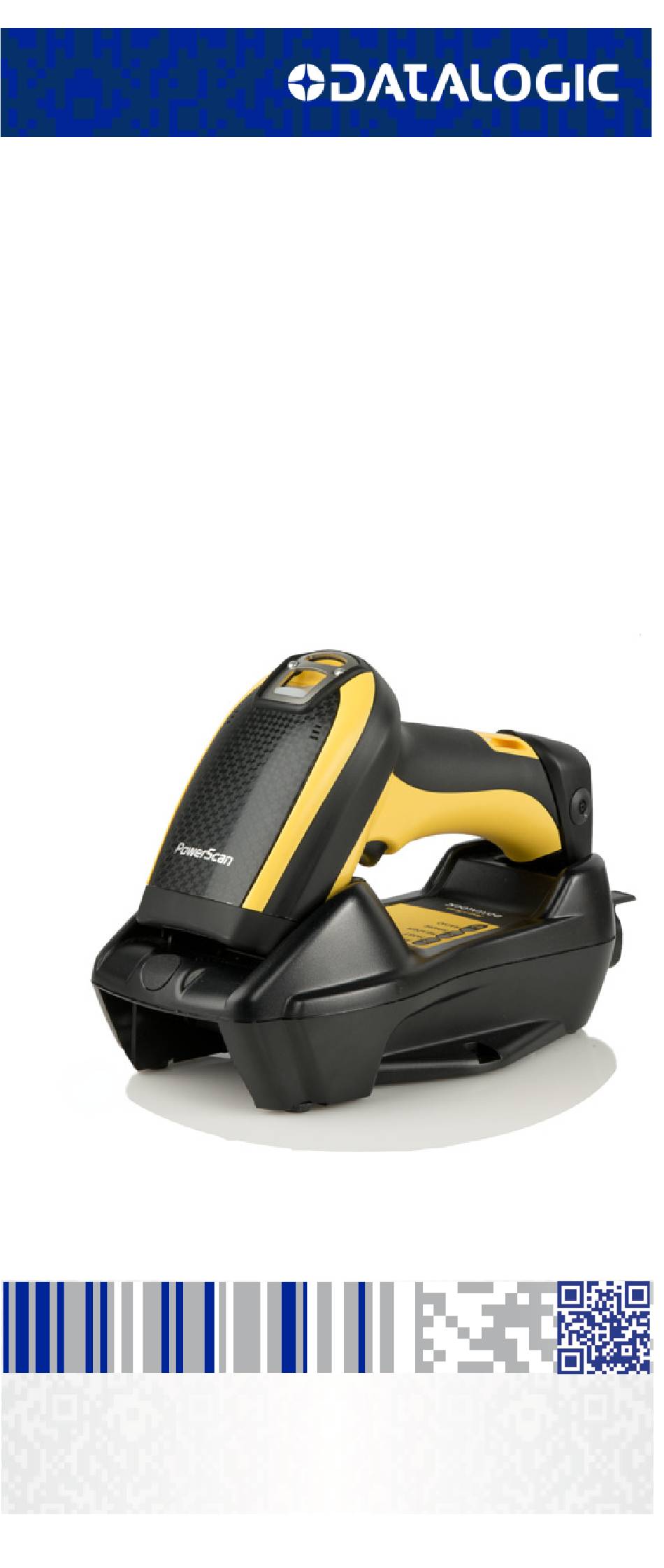

- Page 1 PowerScan™ PBT9501-AR Industrial Cordless Handheld Auto Range Area Imager Bar Code Reader Quick Reference Guide...
- Page 2 Datalogic has taken reasonable measures to provide informa- tion in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.
-
Page 3: Table Of Contents
Resetting Product Defaults ..........6 Set Date and Time ................7 Linking the Reader ................8 Link Datalogic RF Devices to Base......8 Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode ..............8 Linking to a Bluetooth Adapter in HID mode..... 9 Variable PIN Code ............ - Page 4 NOTES PowerScan™ PBT9501-AR...
-
Page 5: End User Software License Agreement
Software, (ii) copy the func- tionality of the Datalogic Products; (iii) remove any proprietary notices, marks, labels, or logos from the Datalogic Products; (iv) rent or transfer all or some of the Software to any other party without Datalogic's prior written consent. - Page 6 Software is used with the Datalogic Product. Datalogic' s entire liability and End User' s sole and exclusive remedy for any breach of the foregoing limited warranty will be, at Datalogic' s option, the pro- vision of a downloadable patch or replacement software.
- Page 7 Notices to Datalogic shall be sent to the attention of Datalogic IP Tech S.r.l., Legal & IP Department, Via San Vitalino 13, 40012 Calderara di Reno (Bologna), Italy, or such other address as may be specified by Datalogic in writing.
-
Page 8: Software Product Policy
- END - Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This pro- vides our customers with the very latest in Datalogic soft- ware technology. -
Page 9: Description
PowerScan™ PBT9501-AR Description The PowerScan™ PBT9501-AR reader is a feature-rich and rugged area imager scanner with auto range reading capability, due to the implementation of autofocus sys- tem. General Features To read a symbol, you simply aim the reader and pull the trigger. Since the PowerScan™ Omni-directional PBT9501-AR is a powerful omni-directional Operating... -
Page 10: Using The Powerscan™ Pbt9501-Ar
Using the PowerScan™ PBT9501-AR Using the PowerScan™ PBT9501-AR The PowerScan™ PBT9501-AR reader normally functions by capturing and decoding 1D and 2D codes. The intelli- gent aiming system indicates the field of view which should be positioned over the code. The reader is equipped with an aiming system which helps to aim the target. -
Page 11: Installing The Battery Pack
To install, charge and/or do any other action on the bat- tery, follow the instructions in this manual. To charge the Battery Pack, See “Charging the Batteries” on page 6. Datalogic recommends annual replacement of rechargeable battery packs to ensure maximum NOTE performance. - Page 12 Always charge the battery at 32° – 104°F (0° - 40°C) temperature range. Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can dam- CAUTION age the device and void your warranty.
-
Page 13: Charging The Batteries
Charging the Batteries Charging the Batteries Once the BC 90x0-BT is powered, you can charge the ™ reader's batteries. Place the PowerScan PBT9501-AR into the BC 90x0-BT cradle. The Reader LED on the cradle/bat- tery charger turns red. The battery is completely charged when the Reader LED on the cradle/battery charger turns green. -
Page 14: Programming
Programming Programming The reader is factory-configured with a set of standard default features. Customize your reader through use of the programming bar codes available in the PowerScan PBT9501-AR. Check the corresponding features section for your interface, and also the Data Editing and Symbolo- gies chapters of the PRG. -
Page 15: Set Date And Time
Set Date and Time Set Date and Time 1. Scan the Enter/Exit Programming barcode below to set date and time. ENTER/EXIT PROGRAMMING MODE 2. Scan the Set Date barcode + six digits for Year, Month and Day (YYMMDD) from the Hex-Numeric Keypad on page Set Date... -
Page 16: Linking The Reader
3. Use the host computer’s Bluetooth manager to “Dis- cover new devices” and select "Datalogic Scanner." If you receive an error message, it may be necessary to disable security on the device. -
Page 17: Linking To A Bluetooth Adapter In Hid Mode
Bluetooth manager. Link to PC in HID The Powerscan PBT9501-AR can be set up to require a PIN code when connecting. If you want to set up a PIN, or when adding new equipment to a system that uses a custom security PIN, please see the PRG for information. -
Page 18: Hid Country Mode
HID Country Mode HID Country Mode When the Reader is connected with a Bluetooth Adapter in HID mode, you may want to set the country for which your PC is localized. In order to do that, read one of the configuration command labels below. - Page 19 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Czech Republic Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Quick Reference Guide...
- Page 20 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Country Mode = Norway Country Mode = Poland Country Mode = Portugal PowerScan™ PBT9501-AR...
- Page 21 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland Quick Reference Guide...
-
Page 22: Hid Caps Lock State
HID Caps Lock State HID Caps Lock State This option specifies the format in which the reader sends character data. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable PowerScan™... -
Page 23: Hid Alt Mode
HID Alt Mode HID Alt Mode Read the configuration command label below for the HID Alt Mode feature. ENTER/EXIT PROGRAMMING MODE HID Alt Mode = OFF HID Alt Mode = ON Power Off Scan the bar code below to shut off power to the BT hand- held until the next trigger pull. -
Page 24: Operating Mode
Operating Mode Operating Mode Scan Mode The imager can be set to operate in one of several scan- ning modes. See the PRG for more information and set- tings for any of the options: Trigger Single (Default) — When the trigger is pulled, scan- ning is activated until one of the following occurs: •... - Page 25 Operating Mode Operating Mode (continued) ENTER/EXIT PROGRAMMING MODE Scan Mode = Scan Mode = Trigger Pulse Multiple Trigger Single Scan Mode = Scan Mode = Flashing Trigger Hold Multiple Scan Mode = Always On Quick Reference Guide...
-
Page 26: Pick Mode
Pick Mode Pick Mode Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance from the center of the aiming pattern are not acknowl- edged or transmitted to the host. It is active only in Trigger Single mode. -
Page 27: Technical Specifications
Technical Specifications Technical Specifications The following tables contain Physical and Performance Characteristics, User Environment and Regulatory infor- mation. PHYSICAL CHARACTERISTICS Height: 212 mm Dimensions Length: 110 mm Width: 74 mm Weight 460 g ELECTRICAL CHARACTERISTICS Battery Type Li-Ion battery pack 4,5 hours with external power supply adapter Charge time for full charge from... - Page 28 Technical Specifications DEPTH OF FIELD (TYPICAL) a Symbology 10 mils: 15 - 160 cm 40 mils: 50 - 1100 cm Code 39 55 mils: 70 - 1150 cm 100 mils: up to 2300 cm EAN 13 mag. 1: 20 - 290 cm 15 mils: 30 - 330 cm Code 128 40 mils: 60 - 850 cm...
- Page 29 Technical Specifications USER ENVIRONMENT Operating Tempera- -4° to 122° F (-20° - +50° C ) ture Storage Temperature -40° to 158° F (-40° to 70° C) Humidity 0 to 95% non-condensing Scanner withstands up to 50 times 6.5' Drop Specifications (2 m) drops to concrete Ambient Light Immu- 100,000 Lux...
-
Page 30: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s func- tions are programmable, and so may or may not be turned on. - Page 31 LED and Beeper Indications Table 2. Error Indicators INDICATION DESCRIPTION BEEPER The reader is try- Slow Link Attempt ing to link to the Flashes base Reader and Base Configuration are aligning the Fast Flashes N/A Alignment parameters' con- figuration The reader has 3 beeps of Link successfully...
-
Page 32: Error Codes
Error Codes INDICATION DESCRIPTION BEEPER In cases where multiple labels Label Pro- must be scanned Reader sounds gramming to program one one short beep at Mode Accep- feature, this indica- highest fre- tance of Par- tion acknowledges quency and cur- tial Label each portion as it is rent volume. -
Page 33: Cleaning
Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non-aggressive cleaning solution or diluted ethyl alcohol. -
Page 34: Datalogic Limited Factory Warranty
Datalogic hardware products are warranted against defects in material and workmanship under normal and proper use. The liability of Datalogic under this warranty is limited to furnishing the labor and parts necessary to remedy any defect cov- ered by this warranty and restore the product to its normal operating condition. - Page 35 Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instruc- tions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connec- tion with the return shipment.
-
Page 36: Ergonomic Recommendations
Provide a suitable working environment • Improve work procedures. Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com. For quick access, from the home page click on the search icon , and type in the name of the product you're look- ing for. -
Page 37: Hex-Numeric Keypad
Hex-Numeric Keypad Hex-Numeric Keypad Use the barcodes that follow to enter numbers as you would select digits/characters from a keypad. Quick Reference Guide... - Page 38 Hex-Numeric Keypad Hex-Numeric Keypad (continued) PowerScan™ PBT9501-AR...
-
Page 39: For Hid Variable Pin Code Only
Hex-Numeric Keypad Hex-Numeric Keypad (continued) For HID Variable Pin Code only If you make a mistake, scan the CANCEL barcode below to abort and not save the entry string. You can then restart. Cancel an incomplete HID Variable PIN Code Finish by scanning the Exit HID Variable PIN Code label. - Page 40 Hex-Numeric Keypad NOTES PowerScan™ PBT9501-AR...
- Page 41 Hex-Numeric Keypad NOTES Quick Reference Guide...
- Page 42 Hex-Numeric Keypad NOTES PowerScan™ PBT9501-AR...
- Page 44 ©2013-2019 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. Datalogic USA Inc. 959 Terry Street | Eugene, OR 97402 | U.S.A. |...
