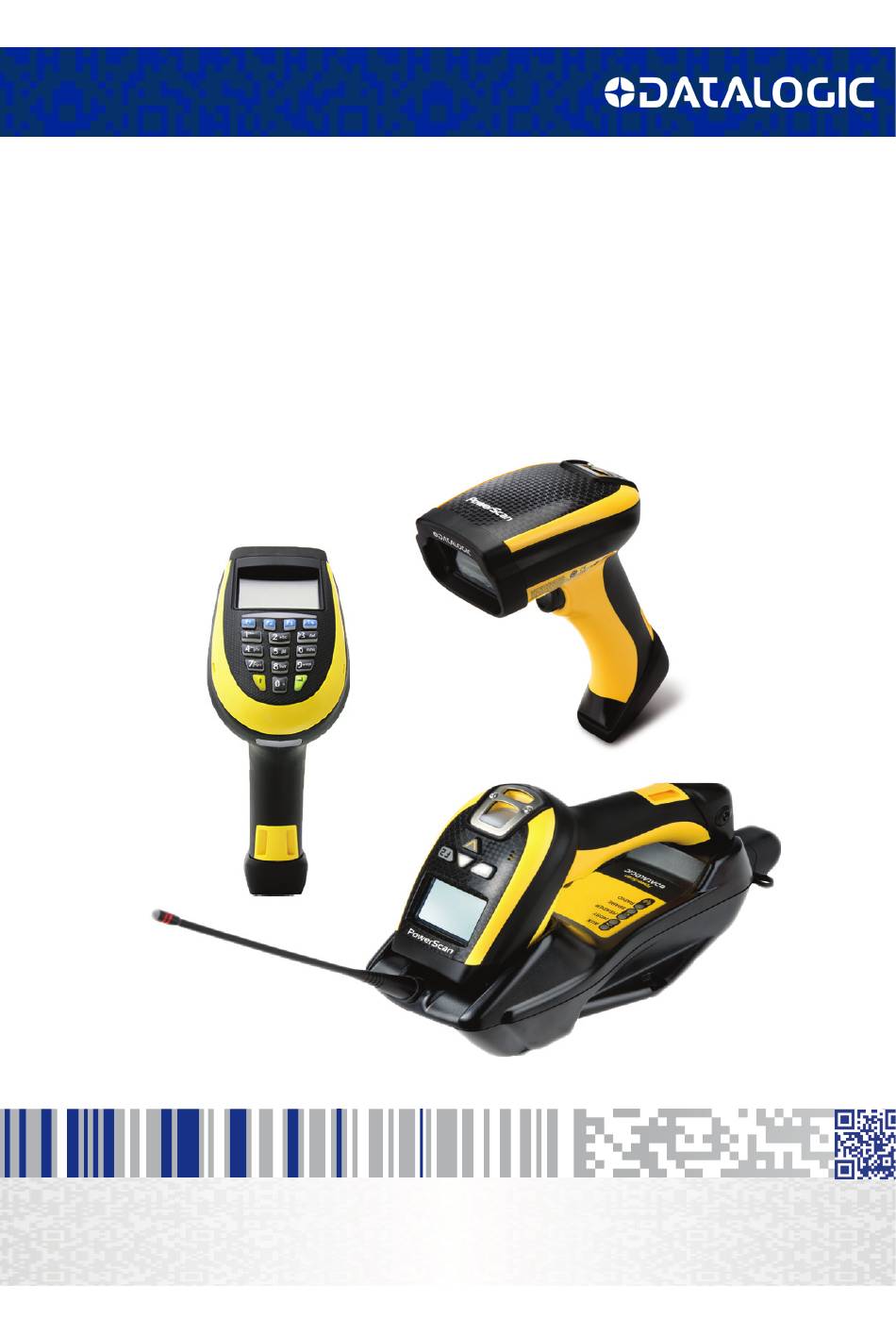

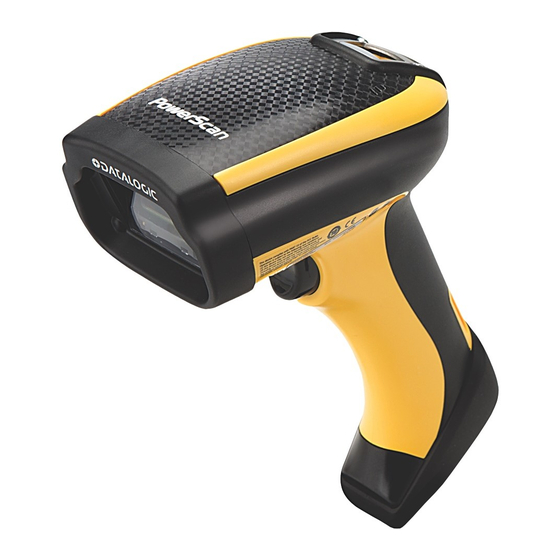

Page 1 PowerScan™ 9300 Family Industrial Corded Handheld Area Imager Bar Code Reader PowerScan PD9330/PBT9300/PM9300 Product Reference Guide...
Page 2 Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publi- cations, please let us know via the "Contact Datalogic" page.
Page 3: Table Of Contents
Set Date and Time ......................................18 Linking the Reader ......................................... 19 Link Datalogic RF Devices to Base ................................19 Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode ......................19 Linking to a Bluetooth Adapter in Serial Port Profile (Master) Mode ...................... 19 Linking to a Bluetooth Adapter in HID mode .............................
Page 4 UPC-A Number System Character Transmission ........................79 In-Store Minimum Reads ................................80 UPC-E ........................................81 UPC-E Enable/Disable ................................81 UPC-E Check Character Transmission ............................81 Expand UPC-E to EAN-13 ................................82 Expand UPC-E to UPC-A ................................82 UPC-E Number System Character Transmission ........................83 PowerScan™ PD9330/PBT9300/PM9300...
Page 5 Contents UPC-E Minimum Read ................................83 GTIN FORMATTING ....................................84 EAN 13 (JAN 13) ....................................84 EAN 13 Enable/Disable ................................84 EAN 13 Check Character Transmission ............................. 85 EAN-13 Flag 1 Character ................................85 EAN-13 ISBN Conversion ................................85 ISSN ........................................86 ISSN Enable/Disable ...................................
Page 6 Interleaved 2 of 5 CIP HR Enable/Disable ..........................123 DATALOGIC 2 OF 5 ....................................124 Datalogic 2 of 5 Enable/Disable .............................. 124 Datalogic 2 of 5 Check Character Calculation ......................... 124 Datalogic 2 of 5 Check Character Transmission ........................125 Datalogic 2 of 5 Minimum Reads ............................125 Datalogic 2 of 5 Decoding Level ...............................
Page 7 Contents Code 11 Minimum Reads ................................. 154 Code 11 Length Control ................................155 Code 11 Set Length 1 ................................155 Code 11 Set Length 2 ................................156 Code 11 Interdigit Ratio ................................157 Code 11 Decoding Level ................................158 GS1 DATABAR™ OMNIDIRECTIONAL ..............................159 GS1 DataBar™...
Page 8 Changing System Speed ................................225 Frequency Agility ..................................226 Compatibility with PM8300................................226 Compatibility Mode ................................... 226 Display and Keyboard Features..............................227 Display Operating Mode ................................227 Display Off Timeout .................................. 228 Backlight Enable ..................................228 Display Contrast ..................................229 PowerScan™ PD9330/PBT9300/PM9300...
Page 9 Contents Font Size ..................................... 229 Enable/disable buttons ................................230 Arrow Keys Mode (4-key models only) ........................... 232 Arrow Up String (4-key models only) ............................232 Arrow Down String (4-key models only) ..........................233 CONFIGURE ACTIONS FOR FUNCTION KEYS ............................ 234 Configure Actions for F1 ................................
Page 10 STANDARD DEFAULTS..................................301 KEYPAD........................................313 SCANCODE TABLES ....................................315 Control Character Emulation ....................................315 Single Press and Release Keys ..................................315 Interface Type PC AT PS/2, USB-Keyboard ...............................316 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ........................318 ..............................................319 PowerScan™ PD9330/PBT9300/PM9300 viii...
Page 11: Introduction
Chapter 1 Introduction About this Manual This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the web- site listed on the back cover of this manual.
Page 12: Manual Conventions
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic tech- nical support at (541) 349-8283 or check the back cover of your manual for more contact information.
Page 13: About The Reader
Typically, units are factory-programmed for the most common terminal and communications settings. If you need to modify any programmable settings, custom configuration can be done by scanning the programming barcodes within this guide or with Datalogic Aladdin™, available from the Datalogic website. See "Datalogic Aladdin™"...
Page 14: The Bc9Xx0™ Base Station/Charger
Off = no spare battery in the housing or battery not fully inserted. only) Radio Yellow Blinking = radio activity. Ethernet  (Ethernet Green Blinking = Et14hernet activity. models only) "Base Station Indications (Cordless Models ONLY)" on page 295 for more specific details on the LEDs. PowerScan™ PD9330/PBT9300/PM9300...
Page 15: Battery Safety
Always charge the battery at 32° – 104°F (0° - 40°C) temperature range. Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and CAUTION void your warranty.
Page 16: Programming The Reader
In addition, Aladdin makes it easy to upgrade the handheld’s firmware, to attain the benefits of new reader features. Reference the Datalogic Aladdin™ Online Help for more details. Aladdin is available for download free of charge on the Datalogic website. PowerScan™ PD9330/PBT9300/PM9300...
Page 17: Setup
Chapter 2 Setup Unpacking Check carefully to ensure the reader and any accessories ordered are pres- ent and undamaged. If any damage occurred during shipment, contact Dat- alogic Technical Support. Information is shown on page KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
Page 18: Connecting The Cable (Corded Versions)
“tooth” on the back of the handle. 6. Insert the cable through the Connector Holder, and push it up into the Cover. 7. Insert and tighten the screw to affix the cable assembly to the reader handle. PowerScan™ PD9330/PBT9300/PM9300...
Page 19: Configuring The Base Station
Configuring the Base Station Configuring the Base Station To set up your BC9xx0 cradle you must: 1. Physically install the cradle. 2. Make all system connections. 3. Configure the BC9xx0 cradle. Mounting the BC9xx0 Cradle The cradle package contains the following items: BC9xx0 Base Station (with Desktop Mounting 1 Metal Mounting plate Bracket installed)
Page 20: Permanent Mounting
(not included). When mounting on drywall, the base should be screwed to a wall stud or supporting beam for additional support. Figure 3. Base Station Bottom Rubber Feet Rubber Feet Protective Adhesive Mounting Strips Holes PowerScan™ PD9330/PBT9300/PM9300...
Page 21: Mounting For Portable Use
Mounting the BC9xx0 Cradle Mounting for Portable Use If portability of the cradle is required, the metal plate must be used. There are two ways this can be done: (1) by first mounting the metal plate on a flat surface so the cradle can be slid off and on, or (2) mounting the metal plate onto the back of the base station and then screwing both to the desired sur- face.
Page 22: System Connections
Figure 5. Attaching Mounting Plate to Base Base with Mount attached System Connections Connections should always be made with power off! CAUTION The BC9xx0 cradle provides a multi-interface connector and a power supply connector as shown: Power Supply Multi-Interface Connector PowerScan™ PD9330/PBT9300/PM9300...
Page 23: Connecting And Disconnecting The Interface Cable
Mounting the BC9xx0 Cradle Connecting and Disconnecting the Interface Cable The BC9xx0 can be connected to a Host by means of a multi-interface cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle. To disconnect the cable, insert a paper clip or other similar object into the hole corresponding to the Host connector on the body of the cradle.
Page 24: Bc9Xx0 Configuration
Some interfaces require the scanner to start in the disabled state when powered up. If additional scanner configuration is desired while in this state, pull the trigger and hold it for five seconds. The scanner will change to a state that allows programming with bar codes. PowerScan™ PD9330/PBT9300/PM9300...
Page 25 Interface Select USB-OEM Features starting $P,HA35,P(CR) on page USB Keyboard with standard key encoding Select USB Keyboard $P,HA2B,P(CR) USB Keyboard with alternate key encoding Select USB Alternate Keyboard a. Download the correct USB Com driver from www.datalogic.com Product Reference Guide...
Page 26 37 $P,HA26,P(CR) AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Select KBD-AT-ALT $P,HA10,P(CR) Keyboard Wedge for IBM AT PS2 with alternate key encoding but without external keyboard Select KBD-AT-ALT-NK PowerScan™ PD9330/PBT9300/PM9300...
Page 27: Customizing Configuration Settings
Customizing Configuration Settings Customizing Configuration Settings Configure Interface Settings If after scanning the interface bar code from the previous table, your instal- lation requires you to select options to further customize your reader, turn to the appropriate section for your interface type in "Configuration Parame- ters"...
Page 28: Resetting The Product Configuration To Defaults
Year, Month and Day (YYMMDD) from Appendix D, Keypad. Set Date 3. Scan Set Time + six digits for Hours, Minutes and Seconds (HHMMSS) from Appendix D, Keypad. Set Time 4. Scan the Enter/Exit Programming bar code to complete. PowerScan™ PD9330/PBT9300/PM9300...
Page 29: Linking The Reader
3. Use the host computer’s Bluetooth manager to “Discover new devices” and select "Datalogic Scanner." If you receive an error message, it may be necessary to disable security on the device. 4. Use an RS-232 terminal program to see incoming data on the port des- ignated by the computer's Bluetooth manager.
Page 30: Linking To A Bluetooth Adapter In Hid Mode
Link to PC in HID 3. Use the host computer’s Bluetooth manager to “Discover new devices” and select "Datalogic Scanner." If you receive an error message, it may be necessary to disable security on the device. 4. Use a text editor to see incoming data on the port designated by the computer's Bluetooth manager.
Page 31: Configuration Using Bar Codes
Chapter 3 Configuration Using Bar Codes This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see "Configuration Methods" on page You must first enable your PowerScan to read bar codes in order to Setup, starting use this section.
Page 32 4. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING bar code to exit Programming Mode. For more detailed descriptions, programming information and examples for setting selected configuration items, see References, starting on page 253. PowerScan™ PD9330/PBT9300/PM9300...
Page 33: Global Interface Features
Enter/Exit Programming Mode GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host com- mands. When set to ignore, the reader will ignore all host commands except those necessary for: •...
Page 34 Configuration Using Bar Codes NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 35: Rs-232 Only Interface
RS-232 ONLY INTERFACE on page 26 on page 27 on page 27 ARITY on page 28 ANDSHAKING ONTROL Use the programming bar codes in this section if modifications to the stan- dard RS-232 interface settings are necessary to meet your system’s require- ments.
Page 36: Baud Rate
Baud Rate = 1200 $CR2BA01(CR) Baud Rate = 2400 $CR2BA02(CR) Baud Rate = 4800 $CR2BA03(CR) Baud Rate = 9600 $CR2BA04(CR) Baud Rate = 19,200 $CR2BA05(CR) Baud Rate = 38,400 $CR2BA06(CR) Baud Rate = 57,600 $CR2BA07(CR) DEFAULT Baud Rate = 115,200 PowerScan™ PD9330/PBT9300/PM9300...
Page 37: Stop Bits
Enter/Exit Programming Mode Stop Bits Set the number of stop bits to match host device requirements. See page 254 for more information on this feature. $CR2ST00(CR) DEFAULT 1 Stop Bit $CR2ST01(CR) 2 Stop Bits Parity This feature specifies parity required for sending and receiving data. Select the parity type according to host device requirements.
Page 38: Handshaking Control
Handshaking Control page 254 for more information about this feature. $CR2HC00(CR) DEFAULT Handshaking Control = RTS $CR2HC01(CR) Handshaking Control = RTS/CTS $CR2HC02(CR) Handshaking Control = RTS/XON/XOFF $CR2HC03(CR) Handshaking Control = RTS On/CTS $CR2HC04(CR) Handshaking Control = RTS/CTS Scan Control PowerScan™ PD9330/PBT9300/PM9300...
Page 39: Rs-232/Usb-Com Interfaces
Enter/Exit Programming Mode RS-232/USB-COM INTERFACES on page 30 NTERCHARACTER ELAY on page 30 ASCII BEL on page 31 OT ON on page 31 ACK NAK O PTIONS on page 32 ACK C HARACTER on page 32 NAK C HARACTER on page 33 ACK NAK T IMEOUT ALUE...
Page 40: Intercharacter Delay
RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. $CR2BB0 DEFAULT Beep On ASCII BEL = Disable $CR2BB0 Beep On ASCII BEL = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 41: Beep On Not On File
Enter/Exit Programming Mode Beep On Not on File This option enables/disables the action of the reader to sound a three beep sequence upon receiving a Not-On-File (NOF) host command. $CBPNF0 Beep On Not On File = Disable DEFAULT Beep On Not On File = Enable ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/ NAK protocol.
Page 42: Ack Character
Setting to previously defined characters such as XON, XOFF, or host commands conflicts with Data Bits normal operation of these characters. 8-bit data is not recognized when the option has been set as 7 Data Bits. page 258 for more information. $CR2NA Select NAK Character Setting 0x15 ‘NAK’ Character DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 43: Ack Nak Timeout Value
Enter/Exit Programming Mode ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK char- acter from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 44: Ack Nak Error Handling
Indicate Transmission Failure This option enables/disables the reader’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode $CR2TF00(CR) Indicate Transmission Failure = Disable Indication $CR2TF01(CR) DEFAULT Indicate Transmission Failure = Enable Indication PowerScan™ PD9330/PBT9300/PM9300...
Page 45: Disable Character
Enter/Exit Programming Mode Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 46 Enter/Exit Programming Mode NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 47: Keyboard Emulation Settings
KEYBOARD EMULATION SETTINGS on page 38 OUNTRY on page 41 ONTROL HARACTERS on page 42 EDGE UIET NTERVAL on page 42 NTERCODE ELAY on page 43 TATE on page 43 UMLOCK on page 44 USB K EYBOARD PEED on page 45 USB K EYBOARD UMERIC...
Page 48: Country Mode
Several languages are supported: $CKBCO00(CR) DEFAULT Country Mode = U.S. $CKBCO01(CR) Country Mode = Belgium $CKBCO02(CR) Country Mode = Britain $CKBCO11(CR) Country Mode = Croatia $CKBCO0E(CR) Country Mode = Czech Republic $CKBCO03(CR) Country Mode = Denmark $CKBCO04(CR) Country Mode = France PowerScan™ PD9330/PBT9300/PM9300...
Page 49 Enter/Exit Programming Mode Country Mode (continued) $CKBCO13(CR) Country Mode = French Canadian $CKBCO05(CR) Country Mode = Germany $CKBCO0D(CR) Country Mode = Hungary $CKBCO06(CR) Country Mode = Italy $CKBCO0C(CR) Country Mode = Japanese 106-key $CKBCO14(CR) Country Mode = Lithuanian $CKBCO07(CR) Country Mode = Norway Product Reference Guide...
Page 50 Country Mode (continued) $CKBCO12(CR) Country Mode = Poland $CKBCO08(CR) Country Mode = Portugal $CKBCO10(CR) Country Mode = Romania $CKBCO0F(CR) Country Mode = Slovakia $CKBCO09(CR) Country Mode = Spain $KBCO0A(CR) Country Mode = Sweden $CKBCO0B(CR) Country Mode = Switzerland PowerScan™ PD9330/PBT9300/PM9300...
Page 51: Send Control Characters
Enter/Exit Programming Mode Send Control Characters This feature specifies how the reader transmits ASCII control characters to the host. Reference Appendix E, Scancode Tables for more information about control characters. Options are as follows: Characters from 00 to 0x1F are sent as control charac- Control Character 00 : ter Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 52: Wedge Quiet Interval
End by scanning the ENTER/EXIT bar code twice. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL DEFAULT 00 = No Wedge Intercode Delay PowerScan™ PD9330/PBT9300/PM9300...
Page 53: Caps Lock State
Enter/Exit Programming Mode Caps Lock State This option specifies the format in which the reader sends character data. This does not apply when an alternate key encoding keyboard is selected. $CKBCL00(CR) DEFAULT Caps Lock State = Caps Lock OFF $CKBCL01(CR) Caps Lock State = Caps Lock ON $CKBCL02(CR) Caps Lock State = AUTO Caps Lock Enable...
Page 54: Usb Keyboard Speed
This feature applies ONLY to the USB Keyboard interface. $CKBSP01(CR) DEFAULT USB Keyboard Speed = 1ms $CKBSP02(CR) USB Keyboard Speed = 2ms $CKBSP03(CR) USB Keyboard Speed = 3ms $CKBSP04(CR) USB Keyboard Speed = 4ms $CKBSP05(CR) USB Keyboard Speed = 5ms $CKBSP06(CR) USB Keyboard Speed = 6ms PowerScan™ PD9330/PBT9300/PM9300...
Page 55: Usb Keyboard Numeric Keypad
Enter/Exit Programming Mode USB Keyboard Speed (continued) $CKBSP07(CR) USB Keyboard Speed = 7ms $CKBSP08(CR) USB Keyboard Speed = 8ms $CKBSP09(CR) USB Keyboard Speed = 9ms $CKBSP0A(CR) USB Keyboard Speed = 10ms USB Keyboard Numeric Keypad This option Controls whether numeric characters will be sent using standard keys or the numeric keypad.
Page 56 NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 57: Usb-Oem Interface
USB-OEM INTERFACE on page 48 USB-OEM D EVICE SAGE on page 48 NTERFACE PTIONS Feature settings for USB interfaces differ depending upon which host type the reader will be connected with. Use the feature settings in this chapter to specifically configure for the USB-OEM interface. Other USB interfaces are included in the appropriate chapter for their host type.
Page 58: Usb-Oem Device Usage
POS system. USB-OEM Device Usage = Table Top Scanner DEFAULT USB-OEM Device Usage = Handheld Scanner Interface Options This feature provides for an interface-specific control mechanism. $CIFO101(CR) Obey Scanner Configuration Host Commands $CIFO102(CR) DEFAULT Ignore Scanner Configuration Host Commands PowerScan™ PD9330/PBT9300/PM9300...
Page 59: Data Format
DATA FORMAT LOBAL REFIX UFFIX EADER ERMINA on page 50 on page 51 AIM ID LOBAL starting on page 54 ABEL Label ID: Pre-Loaded Sets • Individually Set Label ID • Label ID Control • Label ID Symbology Selection • on page 61 ONVERSION on page 61...
Page 60: Global Prefix/Suffix (Header/Terminator)
$CLFSU Set Global Suffix Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL No Global Prefix DEFAULT Global Suffix = 0x0D (CR) PowerScan™ PD9330/PBT9300/PM9300...
Page 61: Global Aim Id
Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all sym- bology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See Table 3 on page 3-51 for a listing of AIM IDs.
Page 62 EAN128 COMPOSITE EAN13 EAN13 P2 EAN13 P5 EAN13 COMPOSITE EAN8 EAN8 P2 EAN8 P5 EAN8 COMPOSITE FOLLET 2OF5 I2OF5 IATA INDUSTRIAL 2OF5 (Only standard optic models) INDUSTRIAL 2OF5 ISBN ISBT128 CONCAT ISSN PLESSEY (Only standard optic models) TRIOPTIC UPCA PowerScan™ PD9330/PBT9300/PM9300...
Page 63: Set Aim Id Individually For Gs1-128
Enter/Exit Programming Mode AIM IDs (continued) UPCA P2 UPCA P5 UPCA COMPOSITE UPCE UPCE P2 UPCE P5 UPCE COMPOSITE Set AIM ID Individually for GS1-128 This feature configures a Label ID individually for the GS1-128 symbology and the programming for this works the same way as Label ID. See Label ID: Set Individually Per Symbology, starting on page 273 for detailed instruc-...
Page 64: Label Id
Any custom configuration or custom defaults will be lost. CAUTION $AE(CR) Label ID Pre-loaded Set = USA Set $Ae(CR) DEFAULT Label ID Pre-loaded Set = EU Set PowerScan™ PD9330/PBT9300/PM9300...
Page 65: Individually Set Label Id
Enter/Exit Programming Mode Individually Set Label ID This feature configures a Label ID individually for a single symbology. To set, first define whether you want it as a prefix or suffix by scanning a label below. Then turn to Label ID Symbology Selection, starting on page 56 select the symbology you want to set, followed by up to 3 characters from the ASCII Chart at the back of this manual.
Page 66: Label Id Symbology Selection
$CI8ID Set Concatenated ISBT 128 Label ID Character(s) Set Code 93 Label ID Character(s) $CCBID Set Codabar Label ID Character(s) $C3BID Set EAN 13 Label ID Character(s) $CC1ID Set Code 11 Label ID Character(s) (Only standard optic models) PowerScan™ PD9330/PBT9300/PM9300...
Page 67 Enter/Exit Programming Mode Label ID Symbology Selection (continued) $C3MID Set EAN 13 Composite Label ID Character(s) $CC8ID Set Code 128 Label ID Character(s) $C32ID Set EAN 13 P2 Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $C35ID Set EAN 13 P5 Label ID Character(s) Set Code 39 CIP Label ID Character(s) (Only standard optic models) $CXCID...
Page 68 (Only standard optic models) GSI DataBar Limited Composite Label ID Character(s) Set GS1 DataBar 14 Label ID Character(s) $CG2ID Set GTIN 2 Label ID Character(s) $C4CID Set GS1 DataBar 14 Composite Label ID Character(s) $CG5ID Set GTIN 5 Label ID Character(s) PowerScan™ PD9330/PBT9300/PM9300...
Page 69 Enter/Exit Programming Mode Label ID Symbology Selection (continued) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CGBID Set GTIN 8 Label ID Character(s) $CIAID Set IATA Industrial 2 of 5 Label ID Character(s) (Only standard optic models) Set MSI Label ID Character(s) $CI2ID Set Interleaved 2 of 5 Label ID Character(s) $CPLID...
Page 70 Set Standard 2 of 5 Label ID Character(s) $CABID Set UPC-A Label ID Character(s) $CA5ID Set UPC-A P5 Label ID Character(s) $CE5ID Set UPC-E P5 Label ID Character(s) $CEBID Set UPC-E Label ID Character(s) Set Codablock F Label ID Character(s) (Only standard optic models) PowerScan™ PD9330/PBT9300/PM9300...
Page 71: Advanced Formatting: User Label Edit
Label ID Advanced Formatting: User Label Edit Advanced formatting is available to create user label edit scripts. See the Datalogic Aladdin configuration application or contact Technical Support. Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case.
Page 72 NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 73: Reading Parameters
READING PARAMETERS on page 64 OUBLE IMEOUT on page 66 EEPER NDICATORS on page 66 OWER LERT on page 66 HEN TO NDICATE on page 67 on page 67 REQUENCY on page 68 ENGTH on page 69 OLUME on page 70 LED D URATION on page 71...
Page 74: Double Read Timeout
Double Read Timeout = 0.2 Second $CSNDR1E(CR) Double Read Timeout = 0.3 Second $CSNDR28(CR) Double Read Timeout = 0.4 Second $CSNDR32(CR) Double Read Timeout = 0.5 Second $CSNDR3C(CR) DEFAULT Double Read Timeout = 0.6 Second $CSNDR46(CR) Double Read Timeout = 0.7 Second PowerScan™ PD9330/PBT9300/PM9300...
Page 75 Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR50(CR) Double Read Timeout = 0.8 Second $CSNDR5A(CR) Double Read Timeout = 0.9 Second $CSNDR64(CR) Double Read Timeout = 1 Second Product Reference Guide...
Page 76: Led And Beeper Indicators
This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. $CBPIN00(CR) DEFAULT Indicate Good Read = After Decode $CBPIN01(CR) Indicate Good Read = After Transmit $CBPIN02(CR) Indicate Good Read = After CTS goes inactive then active PowerScan™ PD9330/PBT9300/PM9300...
Page 77: Good Read Beep Type
Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00(CR) DEFAULT Good Read Beep Type = Mono $CBPTY01(CR) Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.
Page 78: Good Read Beep Length
Good Read Beep Length = 120 msec $CBPLE0E(CR) Good Read Beep Length = 140 msec $CBPLE10(CR) Good Read Beep Length = 160 msec $CBPLE12(CR) Good Read Beep Length = 180 msec $CBPLE14(CR) Good Read Beep Length = 200 msec PowerScan™ PD9330/PBT9300/PM9300...
Page 79: Good Read Beep Volume
Enter/Exit Programming Mode Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. $CBPVO00CR) Good Read Beep Volume = Beeper Off $CBPVO01CR) Good Read Beep Volume = Low $CBPVO02CR) Good Read Beep Volume = Medium $CBPVO03CR) DEFAULT Good Read Beep Volume = High...
Page 80: Good Read Led Duration
Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = Good Read LED DEFAULT stays on for 300 ms. Indicators are dimmed during sleep. PowerScan™ PD9330/PBT9300/PM9300...
Page 81: Scanning Features
Enter/Exit Programming Mode SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See page 277 in “References” for descriptions. $CSNRM00(CR) DEFAULT Scan Mode = Trigger Single $CSNRM01(CR) Scan Mode = Trigger Hold Multiple $CSNRM02(CR) Scan Mode = Trigger Pulse Multiple $CSNRM03(CR) Scan Mode = Flashing $CSNRM04(CR)
Page 82: Scanning Active Time
ENTER/EXIT bar code twice. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 10 = Flash is ON for 1 Second DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 83: Flash Off Time
Enter/Exit Programming Mode Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 sec- onds), in 100 millisecond increments. See page 300 in “References”...
Page 84: Green Spot Duration
Specifies the duration of the good read pointer beam after a good read. $CLSSP00(CR) Green Spot Duration = Disable (Green Spot is Off) $CLSSP01(CR) DEFAULT Green Spot Duration = Short (300 msec) $CLSSP02(CR) Green Spot Duration = Medium (500 msec) $CLSSP03(CR) Green Spot Duration = Long (800 msec) PowerScan™ PD9330/PBT9300/PM9300...
Page 85: Symbologies
SYMBOLOGIES The scanner supports the following symbologies (bar code types). Symbol- ogy-dependent options are included in each chapter. Disable All Symbologies, page 76 Code ISBT 128, page 113 Code EAN/UPC, page 77 Interleaved 2 of 5 (I 2 of 5), page 115 Follett 2 of 5 (Only standard optic UPC-E, page 81 models), page 130...
Page 86: Disable All Symbologies
1. Scan the ENTER/EXIT PROGRAMMING Mode bar code. 2. Scan the Disable All Symbologies bar code. 3. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING bar code. $AD(CR) Disable All Symbologies This does not disable the reading of programming labels. PowerScan™ PD9330/PBT9300/PM9300...
Page 87: Code Ean/Upc
Enter/Exit Programming Mode CODE EAN/UPC Coupon Control This setting has no effect for AR models. This feature is used to control the reader’s method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
Page 88: Upc-A
DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00(CR) UPC-A Check Character Transmission = Don’t Send $CABCT01(CR) DEFAULT UPC-A Check Character Transmission = Send PowerScan™ PD9330/PBT9300/PM9300...
Page 89: Expand Upc-A To Ean-13
Enter/Exit Programming Mode Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00(CR) DEFAULT UPC-A to EAN-13 = Don’t Expand $CAB3B01(CR) UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 90: In-Store Minimum Reads
2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'. In-Store Minimum Reads = 1 DEFAULT In-Store Minimum Reads = 2 In-Store Minimum Reads = 3 In-Store Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 91: Upc-E
Enter/Exit Programming Mode UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E bar codes. $CEBEN00(CR) UPC-E = Disable $CEBEN01(CR) DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data.
Page 92: Expand Upc-E To Ean-13
UPC-E to EAN-13 = Don’t Expand $CEB3B01(CR) UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format. $CEBAB00(CR) DEFAULT UPC-E to UPC-A = Don’t Expand $CEBAB01(CR) UPC-E to UPC-A = Expand PowerScan™ PD9330/PBT9300/PM9300...
Page 93: Upc-E Number System Character Transmission
Enter/Exit Programming Mode UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number character. $CEBNS00(CR) UPC-E Number System Character = Do not transmit $CEBNS01(CR) DEFAULT UPC-E Number System Character = Transmit UPC-E Minimum Read This setting has no effect for AR models. This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.
Page 94: Gtin Formatting
EAN 13 (JAN 13) The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the reader will not read EAN 13/JAN 13 bar codes. $C3BEN00(CR) EAN 13 = Disable $C3BEN01(CR) DEFAULT EAN 13 = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 95: Ean 13 Check Character Transmission
Enter/Exit Programming Mode EAN 13 Check Character Transmission Enable this option to transmit the check character along with EAN 13 bar code data. $C3BCT00(CR) EAN 13 Check Character Transmission = Don’t Send $C3BCT01(CR) DEFAULT EAN 13 Check Character Transmission = Send EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character.
Page 96: Issn
This feature specifies the minimum number of consecutive times an EAN 13 label must be decoded before it is accepted as good read. DEFAULT EAN 13 Minimum Reads = 1 EAN 13 Minimum Reads = 2 EAN 13 Minimum Reads = 3 EAN 13 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 97: Ean 8
Enter/Exit Programming Mode EAN 8 The following options apply to the ISSN symbology.. EAN 8 Enable/Disable The following options apply to the ISSN symbology. EAN 8 = Disable DEFAULT EAN 8 = Enable EAN 8 Check Character Transmission Enable this option to transmit the check character along with EAN 8 barcode data EAN 8 Check Character Transmission = Don’t Send DEFAULT...
Page 98: Ean 8 To Ean 13
(Jan 8) label must be decoded before it is accepted as good read. DEFAULT EAN 8 Minimum Reads = 1 EAN 8 Minimum Reads = 2 EAN 8 Minimum Reads = 3 EAN 8 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 99: Upc/Ean Global Settings
Enter/Exit Programming Mode UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 symbologies, and affects all of these unless otherwise marked for each fea- ture description. UPC/EAN Decoding Level Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs UPC/EAN Decoding Level = 1...
Page 100: Upc/Ean Price Weight Check
DEFAULT $CPWEN00(CR) Price Weight Check = Disabled Price Weight Check = 4-digit price-weight check $CPWEN02(CR) Price Weight Check = 5-digit price-weight check Price Weight Check = European 4-digit price-weight check Price Weight Check = European 5-digit price-weight check PowerScan™ PD9330/PBT9300/PM9300...
Page 101: Upc-A Minimum Reads
Enter/Exit Programming Mode UPC-A Minimum Reads This setting has no effect for AR models. This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read. DEFAULT UPC-A Minimum Reads = 1 UPC-A Minimum Reads = 2 UPC-A Minimum Reads = 3 UPC-A Minimum Reads = 4...
Page 102: Add-Ons
Conditional add-on settings (if enabled) are considered by the reader before optional add-on settings. $CADO200(CR) DEFAULT Optional Add-Ons = Disable P2 $CADO201(CR) Optional Add-Ons = Enable P2 $CADO500(CR) DEFAULT Optional Add-Ons = Disable P5 $CADO501(CR) Optional Add-Ons = Enable P5 PowerScan™ PD9330/PBT9300/PM9300...
Page 103: Optional Add-On Timer
Enter/Exit Programming Mode Optional Add-On Timer This setting has no effect for AR models. This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01(CR) Optional Add-on Timer = 10ms $CADOT02(CR) Optional Add-on Timer = 20ms $CADOT03(CR)
Page 104: P2 Add-Ons Minimum Reads
DEFAULT P5 Add-Ons Minimum Reads = 1 P5 Add-Ons Minimum Reads = 2 P5 Add-Ons Minimum Reads = 3 P5 Add-Ons Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 105: Code 39
Enter/Exit Programming Mode CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable $CC3EN00(CR) Code 39 = Disable $CC3EN01(CR) DEFAULT Code 39 = Enable Code 39 Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Code 39 check character.
Page 106: Code 39 Check Character Transmission
Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00(CR) Code 39 Check Character Transmission = Don’t Send $CC3CT01(CR) DEFAULT Code 39 Check Character Transmission = Send PowerScan™ PD9330/PBT9300/PM9300...
Page 107: Code 39 Start/Stop Character Transmission
Enter/Exit Programming Mode Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters $CC3SS00(CR) DEFAULT Code 39 Start/Stop Character Transmission = Don’t Transmit $CC3SS01(CR) Code 39 Start/Stop Character Transmission = Transmit Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full- ASCII characters.
Page 108: Code 39 Quiet Zones
$CC3LO02(CR) Code 39 Minimum Reads = 1 $CC3LO03(CR) DEFAULT Code 39 Minimum Reads = 2 $CC3LO02(CR) Code 39 Minimum Reads = 3 $CC3LO03(CR) Code 39 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 109: Code 39 Decoding Levels
Enter/Exit Programming Mode Code 39 Decoding Levels This setting has no effect for AR models. Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. Code 39 Decoding Level = Disabled $CC3LO03(CR) Code 39 Decoding Level = 1 $CC3LO02(CR)
Page 110: Code 39 Set Length 1
Select Code 39 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 02 = Length 1 is 2 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 111: Code 39 Set Length 2
Enter/Exit Programming Mode Code 39 Set Length 2 This feature specifies one of the bar code lengths for Code 39 Length Con- trol. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 112: Code 39 Interdigit Ratio
Code 39 Interdigit Ratio = Disable $CC3LO03(CR) Code 39 Interdigit Ratio = 1 $CC3LO02(CR) Code 39 Interdigit Ratio = 2 $CC3LO03(CR) Code 39 Interdigit Ratio = 3 $CC3LO02(CR) DEFAULT Code 39 Interdigit Ratio = 4 $CC3LO03(CR) Code 39 Interdigit Ratio = 5 PowerScan™ PD9330/PBT9300/PM9300...
Page 113: Code 32 (Ital Pharmaceutical Code)
Enter/Exit Programming Mode CODE 32 (ITAL PHARMACEUTICAL CODE) The following options apply to the Code 32 (Italian Pharmaceutical Code) symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes. $CP3EN00(CR) DEFAULT Code 32 = Disable $CP3EN01(CR) Code 32 = Enable Code 32 Feature Setting Exceptions...
Page 114: Code 32 Start/Stop Character Transmission
The following options apply to the Code 39 CIP symbology. Code 39 CIP Enable/Disable This setting has no effect for AR models. Enables/Disables ability of the reader to decode Code 39 CIP labels. $CCCEN00(CR) DEFAULT Code 39 CIP = Disable $CCCEN01(CR) Code 39 CIP = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 115: Code 128
Enter/Exit Programming Mode CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the reader will not read Code 128 bar codes. $CC8EN00(CR) Code 128 = Disable $CC8EN01(CR) DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 116: Code 128 Check Character Transmission
Code 128 Function Character Transmission This setting has no effect for AR models. Enables/disables transmission of Code128 function characters 1, 2, 3, and $CC8TF00(CR) DEFAULT Code 128 Function Character Transmission = Don’t Send $CC8TF01(CR) Code 128 Function Character Transmission = Send PowerScan™ PD9330/PBT9300/PM9300...
Page 117: Code 128 Sub-Code Exchange Transmission
Enter/Exit Programming Mode Code 128 Sub-Code Exchange Transmission This setting has no effect for AR models. Enables/disables the transmission of “Sub-Code Exchange” characters (NOT transmitted by standard decoding). $CC8SC00(CR) DEFAULT Code 128 Sub-Code Exchange Transmission = Disable $CC8SC01(CR) Code 128 Sub-Code Exchange Transmission = Enable Code 128 Quiet Zones This setting has no effect for AR models.
Page 118: Code 128 Minimum Reads
This feature specifies the minimum number of consecutive times a Code 128 label must be decoded before it is accepted as good read DEFAULT Code 128 Minimum Reads = 1 Code 128 Minimum Reads = 2 Code 128 Minimum Reads = 3 Code 128 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 119: Code 128 Decoding Level
Enter/Exit Programming Mode Code 128 Decoding Level This setting has no effect for AR models. Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s needs. See "Decoding Levels" on page 239 for more detailed programming instructions Code 128 Decoding Level = Disabled Code 128 Decoding Level = 1...
Page 120: Code 128 Length Control
ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 121: Code 128 Set Length 2
Enter/Exit Programming Mode Code 128 Set Length 2 This feature specifies one of the bar code lengths for Code 128 Length Con- trol. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 122: Gs1-128
Transmit GS1-128 labels in Code 128 data format. • Transmit GS1-128 labels in GS1-128 data format. • Do not transmit GS1-128 labels. DEFAULT GS1-128 = Transmit in Code 128 data format GS1-128 = Transmit in GS1-128 data format GS1-128 = Do not transmit GS1-128 labels PowerScan™ PD9330/PBT9300/PM9300...
Page 123: Code Isbt 128
Enter/Exit Programming Mode CODE ISBT 128 This setting has no effect for AR models. The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Use this option to enable/disable ISBT128 concatenation of 2 labels. DEFAULT ISBN 128 Concatenation = Disable $CI CE (CR) ISBN 128 Concatenation = Enable ISBT 128 Force Concatenation...
Page 124: Isbt 128 Concatenation Mode
$CI8DT64(CR) ISBT 128 Dynamic Concatenation Timeout = 1 second ISBT 128 Advanced Concatenation Options To set up pairs of label types for concatenation, use the Datalogic Aladdin configura- page 2 tion application or contact Datalogic Technical Support, as described on...
Page 125: Interleaved 2 Of 5 (I 2 Of 5)
Enter/Exit Programming Mode INTERLEAVED 2 OF 5 (I 2 OF 5) This setting has no effect for AR models. The following options apply to the I 2 of 5 symbology. When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
Page 126: I 2 Of 5 Check Character Transmission
Enable this option to transmit the check character along with I 2 of 5 bar code data. This feature is valid only when I 2 of 5 Check Character Calculation is enabled. I 2 of 5 Check Character Transmission = Don’t Send DEFAULT I 2 of 5 Check Character Transmission = Send PowerScan™ PD9330/PBT9300/PM9300...
Page 127: I 2 Of 5 Minimum Reads
Enter/Exit Programming Mode I 2 of 5 Minimum Reads This setting has no effect for AR models. This feature specifies the minimum number of consecutive times an I 2 of 5 label must be decoded before it is accepted as good read. I 2 of 5 Minimum Reads = 1 DEFAULT I 2 of 5 Minimum Reads = 2...
Page 128: I 2 Of 5 Decoding Level
Enter/Exit Programming Mode I 2 of 5 Decoding Level This configuration item applies to Interleaved 2 of 5, Datalogic 2 of 5 and Standard 2 of 5. This setting has no effect for AR models. Decoding Levels are used to configure a bar code symbology decoder to be very aggressive to very conservative depending on a particular customer’s...
Page 129: I 2 Of 5 Length Control
Enter/Exit Programming Mode I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decod- ing for the I 2 of 5 symbology. For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set.
Page 130: I 2 Of 5 Set Length 1
Select I 2 of 5 Length 1 Setting again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 06 = Length 1 is 6 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 131: I 2 Of 5 Set Length 2
Enter/Exit Programming Mode I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for I 2 of 5 Length Con- trol. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 132: I 2 Of 5 Zero Pattern
It allows encoding of an odd number of ciphers with Interleaved 2 of 5. It must be enabled to decode Code 2 of 5 CIP/HR. $CI2LC00(CR) DEFAULT I 2 of 5 Zero Pattern = Disable $CI2LC01(CR) I 2 of 5 Zero Pattern = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 133: Interleaved 2 Of 5 Cip Hr
Enter/Exit Programming Mode INTERLEAVED 2 OF 5 CIP HR This setting has no effect for AR models. The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of reader to decode Interleaved 2 of 5 CIP HR labels. $CF2EN00(CR) DEFAULT Interleaved 2 of 5 CIP HR = Disable...
Page 134: Datalogic 2 Of 5
This setting has no effect for AR models. The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the scanner will not read Datalogic 2 of 5 bar codes. DEFAULT Datalogic 2 of 5 = Disable...
Page 135: Datalogic 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Datalogic 2 of 5 Check Character Transmission This setting has no effect for AR models. This option enables/disables transmission of an optional Datalogic 2 of 5 character.  $CD2CT00 Datalogic 2 of 5 Check Character Transmission = Don’t...
Page 136: Datalogic 2 Of 5 Decoding Level
Enter/Exit Programming Mode Datalogic 2 of 5 Decoding Level "I 2 of 5 Decoding The Datalogic 2 of 5 Decoding Level feature is set using Level" on page 135. NOTE Datalogic 2 of 5 Length Control This setting has no effect for AR models.
Page 137: Datalogic 2 Of 5 Set Length 1
End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 138: Datalogic 2 Of 5 Set Length 2
End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
Page 139: Datalogic 2 Of 5 Interdigit Ratio
This setting has no effect for AR models. This feature specifies the maximum ratio between intercharacter space and module for Datalogic 2 of 5.  $CD2IR00 Datalogic 2 of 5 Interdigit Ratio = Disable  $CD2IR01 Datalogic 2 of 5 Interdigit Ratio = 1 $CD2IR02 ...
Page 140: Datalogic 2 Of 5 Interdigit Maximum Ratio
Enter/Exit Programming Mode Datalogic 2 of 5 Interdigit Maximum Ratio $CD2IR06  Datalogic 2 of 5 Interdigit Ratio = 6 $CD2IR07  Datalogic 2 of 5 Interdigit Ratio = 7 $CD2IR08  Datalogic 2 of 5 Interdigit Ratio = 8 $CD2IR09 ...
Page 141: Standard 2 Of 5
Enter/Exit Programming Mode STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. DEFAULT Standard 2 of 5 = Disable $C SEN (CR) S tandard 2 of 5 = Enable Standard 2 of 5 Check Character Calculation...
Page 142: Standard 2 Of 5 Check Character Transmission
2 of 5 label must be decoded before it is accepted as good read. Standard 2 of 5 Minimum Reads = 1 DEFAULT Standard 2 of 5 Minimum Reads = 2 Standard 2 of 5 Minimum Reads = 3 Standard 2 of 5 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 143: Standard 2 Of 5 Decoding Level
Enter/Exit Programming Mode Standard 2 of 5 Decoding Level "I 2 of 5 Decoding The Standard 2 of 5 Decoding Level feature is set using Level" on page 135. NOTE Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decod- ing for the Standard 2 of 5 symbology.
Page 144: Standard 2 Of 5 Set Length 1
Select Standard 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 08 = Length 1 is 8 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 145: Standard 2 Of 5 Set Length 2
Enter/Exit Programming Mode Standard 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 146: Industrial 2 Of 5 (Only Standard Optic Models)
Industrial 2 of 5 Check Character Calculation Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character. $CU2CC00(CR) DEFAULT Industrial 2 of 5 Check Character Calculation = Disable $CU2CC01(CR) Industrial 2 of 5 Check Character Calculation = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 147: Industrial 2 Of 5 Check Character Transmission
Enter/Exit Programming Mode Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00(CR) Industrial 2 of 5 Check Character Transmission = Disable $CU2CT01(CR) DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decod- ing for the Industrial 2 of 5 symbology.
Page 148: Industrial 2 Of 5 Set Length 1
Select Industrial 2 of 5 Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 149: Industrial 2 Of 5 Set Length 2
Enter/Exit Programming Mode Industrial 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 150: Industrial 2 Of 5 Minimum Reads
2 of 5 label must be decoded before it is accepted as good read. DEFAULT Industrial 2 of 5 Minimum Reads = 1 Industrial 2 of 5 Minimum Reads = 2 Industrial 2 of 5 Minimum Reads = 3 Industrial 2 of 5 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 151: Code Iata (Only Standard Optic Models)
Enter/Exit Programming Mode CODE IATA ( ONLY STANDARD OPTIC MODELS This setting has no effect for AR models. The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00(CR) DEFAULT IATA = Disable $CIAEN01(CR) IATA = Enable...
Page 152: Codabar
Codabar check character. When disabled, any check character in the label is treated as a data character DEFAULT Codabar Check Character Calculation = Don’t Calculate Codabar Check Character Calculation = Enable AIM standard check char. $CCBCC02(CR) Codabar Check Character Calculation = Enable Modulo 10 check char. PowerScan™ PD9330/PBT9300/PM9300...
Page 153: Codabar Check Character Transmission
Enter/Exit Programming Mode Codabar Check Character Transmission This setting has no effect for AR models. Enable this option to transmit the check character along with Codabar bar code data. Codabar Check Character Transmission = Don’t Send DEFAULT Codabar Check Character Transmission = Send Codabar Start/Stop Character Transmission Enable this option to enable/disable transmission of Codabar start and stop characters...
Page 154: Codabar Start/Stop Character Set
Codabar Check Character Set = abcd/abcd Codabar Start/Stop Character Match When enabled, this option requires that start and stop characters match DEFAULT Codabar Start/Stop Character Match = Don’t Require Match $CCBSM (CR) Codabar Start/Stop Character Match = Require Match PowerScan™ PD9330/PBT9300/PM9300...
Page 155: Codabar Quiet Zones
Enter/Exit Programming Mode Codabar Quiet Zones This setting has no effect for AR models. Specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label.
Page 156: Codabar Minimum Reads
This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as good read. DEFAULT Codabar Minimum Reads = 1 Codabar Minimum Reads = 2 Codabar Minimum Reads = 3 Codabar Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 157: Codabar Decoding Level
Enter/Exit Programming Mode Codabar Decoding Level This setting has no effect for AR models. Decoding Levels are used to configure a bar code symbology decoder to be very aggressive "Decoding Levels" to very conservative depending on a particular customer’s needs. See on page 239 for more detailed programming instructions Codabar Decoding Level = Disabled Codabar Decoding Level = 1...
Page 158: Codabar Set Length 1
Select Codabar Length 1 Setting again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 03 = Length 1 is 3 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 159: Codabar Set Length 2
Enter/Exit Programming Mode Codabar Set Length 2 This feature specifies one of the bar code lengths for Codabar Length Con- trolCodabar Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 160: Codabar Interdigit Ratio
Codabar Interdigit Ratio = 3 DEFAULT Codabar Interdigit Ratio = 4 Codabar Interdigit Ratio = 5 Codabar Interdigit Ratio = 6 Codabar Interdigit Ratio = 7 Codabar Interdigit Ratio = 8 Codabar Interdigit Ratio = 9 Codabar Interdigit Ratio = 10 PowerScan™ PD9330/PBT9300/PM9300...
Page 161: Abc Codabar
Enter/Exit Programming Mode ABC CODABAR This setting has no effect for AR models. The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of scanner to decode ABC Codabar labels. $CCBAB00  DEFAULT ABC Codabar = Disable $CCBAB01 ...
Page 162: Abc Codabar Dynamic Concatenation Timeout
10 = Quiet Interval of 200 ms DEFAULT ABC Codabar Force Concatenation Forces labels starting or ending with D to be concatenated. $CCBFC00  DEFAULT ABC Codabar Force Concatenation = Disable $CCBFC01  ABC Codabar Force Concatenation = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 163: Code 11 (Only Standard Optic Models)
Enter/Exit Programming Mode CODE 11 ( ONLY STANDARD OPTIC MODELS This setting has no effect for AR models. The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. DEFAULT $CC1EN00(CR) Code 11 = Disable...
Page 164: Code 11 Check Character Transmission
This feature specifies the minimum number of consecutive times a Code 11 label must be decoded before it is accepted as good read. Code 11 Minimum Reads = 1 DEFAULT Code 11 Minimum Reads = 2 Code 11 Minimum Reads = 3 Code 11 Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 165: Code 11 Length Control
Enter/Exit Programming Mode Code 11 Length Control This feature specifies either variable length decoding or fixed length decod- ing for the Code 11 symbology. For variable length decoding, a minimum and maximum Variable Length. length may be set. For fixed length decoding, two different lengths may be set. Fixed Length.
Page 166: Code 11 Set Length 2
Select Code 11 Length 2 Setting again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 167: Code 11 Interdigit Ratio
Enter/Exit Programming Mode Code 11 Interdigit Ratio This feature specifies the ratio between an intercharacter space and module for Code 11 labels Code 11 Interdigit Ratio = Disable Code 11 Interdigit Ratio = 1 Code 11 Interdigit Ratio = 2 Code 11 Interdigit Ratio = 3 DEFAULT Code 11 Interdigit Ratio = 4...
Page 168: Code 11 Decoding Level
Code 11 Decoding Level = Disable Code 11 Decoding Level = 1 Code 11 Decoding Level = 2 DEFAULT Code 11 Decoding Level = 3 Code 11 Decoding Level = 4 Code 11 Decoding Level = 5 PowerScan™ PD9330/PBT9300/PM9300...
Page 169: Gs1 Databar™ Omnidirectional
Enter/Exit Programming Mode GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar™ Omnidirectional (formerly RSS-14) symbology. GS1 DataBar™ Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar™ Omnidirectional bar codes. DEFAULT GS1 DataBar™ Omnidirectional = Disable GS1 DataBar™...
Page 170: Gs1 Databar™ Omnidirectional Minimum Reads
DataBar Omnidirectional label must be decoded before it is accepted as good read. DEFAULT GS1 DataBar Omnidirectional Minimum Reads = 1 GS1 DataBar Omnidirectional Minimum Reads = 2 GS1 DataBar Omnidirectional Minimum Reads = 3 GS1 DataBar Omnidirectional Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 171: Gs1 Databar™ Expanded
Enter/Exit Programming Mode GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar™ Expanded (formerly RSS Expanded) symbology. GS1 DataBar™ Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar™ Expanded bar codes. DEFAULT GS1 DataBar™ Expanded = Disable GS1 DataBar™...
Page 172: Gs1 Databar™ Expanded Minimum Reads
For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: DEFAULT GS1 DataBar™ Expanded Length Control = Variable Length GS1 DataBar™ Expanded Length Control = Fixed Length PowerScan™ PD9330/PBT9300/PM9300...
Page 173: Gs1 Databar™ Expanded Set Length 1
Enter/Exit Programming Mode GS1 DataBar™ Expanded Set Length 1 This feature specifies one of the bar code lengths for GS1 DataBar™ Expanded Length Control. Length 1 is the minimum label length if in Vari- able Length Mode, or the first fixed length if in Fixed Length Mode.
Page 174: Gs1 Databar™ Expanded Set Length 2
ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 74 = Length 2 is 74 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 175: Gs1 Databar™ Limited
Enter/Exit Programming Mode GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar™ Limited (formerly RSS Lim- ited) symbology. GS1 DataBar™ Limited Enable/Disable When disabled, the reader will not read GS1 DataBar™ Limited bar codes. DEFAULT GS1 DataBar™ Limited = Disable GS1 DataBar™...
Page 176: Gs1 Databar™ Limited Minimum Reads
DataBar Limited label must be decoded before it is accepted as good read. DEFAULT GS1 DataBar Limited Minimum Reads = 1 GS1 DataBar Limited Minimum Reads = 2 GS1 DataBar Limited Minimum Reads = 3 GS1 DataBar Limited Minimum Reads = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 177: Code 93
CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00(CR) DEFAULT Code 93 = Disable $CC9EN01(CR) Code 93 = Enable Code 93 Check Character Calculation This setting has no effect for AR models. Enables/disables calculation and verification of an optional Code 93 check character.
Page 178: Code 93 Check Character Transmission
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CC9LC00(CR) DEFAULT Code 93 Length Control = Variable Length $CC9LC01(CR) Code 93 = Fixed Length PowerScan™ PD9330/PBT9300/PM9300...
Page 179: Code 93 Set Length 1
Code 93 Set Length 1 Specifies one of the bar code lengths for Code 93 Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code’s data charac- ters only.
Page 180: Code 93 Set Length 2
ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 181: Code 93 Minimum Reads
Code 93 Minimum Reads This setting has no effect for AR models. This feature specifies the minimum number of consecutive times a Code 93 label must be decoded before it is accepted as good read. DEFAULT Code 93 Minimum Reads = 1 Code 93 Minimum Reads = 2 Code 93 Minimum Reads = 3 Code 93 Minimum Reads = 4...
Page 182: Code 93 Quiet Zones
Code 93 Quiet Zones = Quiet Zones on one side Code 93 Quiet Zones = Quiet Zones on two sides DEFAULT Code 93 Quiet Zones = Auto Code 93 Quiet Zones = Virtual Quiet Zones on two sides PowerScan™ PD9330/PBT9300/PM9300...
Page 183: Codablock F
CODABLOCK F This setting has no effect for AR models. The following options apply to the Codablock F symbology. Codablock F Enable/Disable Enables/Disables ability of reader to decode Codablock F labels. DEFAULT Codablock F = Disable Codablock F = Enable Codablock F EAN Enable/Disable This setting has no effect for AR models.
Page 184: Codablock F Length Control
ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 003 = Length 1 is 3 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 185: Codablock F Set Length 2
Codablock F Set Length 2 This feature specifies one of the bar code lengths for Codablock F Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the bar code’s check, data, and full-ASCII shift characters.
Page 186: Code 4
Code 4 Check Character Transmission = Send Code 4 Hex to Decimal Conversion This feature enables/disables the conversion of hexadecimal label data to decimal label data. Code 4 Hex to Decimal Conversion = Disable DEFAULT Code 4 Hex to Decimal Conversion = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 187: Code 5
CODE 5 This setting has no effect for AR models. The following options apply to the Code 5 symbology. Code 5 Enable/Disable Enables/Disables ability of reader to decode Code 5 labels. DEFAULT Code 5 = Disable Code 5 = Enable Code 5 Check Character Transmission This feature enables/disables transmission of an optional Code 5 check character.
Page 188: Code 4 And Code 5 Common Configuration Items
Code 4 and Code 5 Decoding Level = 1 Code 4 and Code 5 Decoding Level = 2 DEFAULT Code 4 and Code 5 Decoding Level = 3 Code 4 and Code 5 Decoding Level = 4 Code 4 and Code 5 Decoding Level = 5 PowerScan™ PD9330/PBT9300/PM9300...
Page 189: Code 4 And Code 5 Minimum Reads
Code 4 and Code 5 Minimum Reads This feature specifies the minimum number of consecutive times a Code 4 or Code 5 label must be decoded before it is accepted as good read DEFAULT Code 4 or Code 5 Minimum Reads = 1 Code 4 or Code 5 Minimum Reads = 2 Code 4 or Code 5 Minimum Reads = 3 Code 4 or Code 5 Minimum Reads = 4...
Page 190: Bc412
Enable this option to enable/disable calculation and verification of an optional BC412 check character. When disabled, any check character in the label is treated as a data character DEFAULT BC412 Check Character Calculation = Don’t Calculate BC412 Check Character Calculation = Calculate Check Char- acter PowerScan™ PD9330/PBT9300/PM9300...
Page 191: Bc412 Minimum Reads
BC412 Minimum Reads This feature specifies the minimum number of consecutive times a BC412 label must be decoded before it is accepted as good read. DEFAULT BC412 Minimum Reads = 1 BC412 Minimum Reads = 2 BC412 Minimum Reads = 3 BC412 Minimum Reads = 4 Product Reference Guide...
Page 192: Bc412 Decoding Level
For variable length decoding, a minimum and maximum Variable Length. length may be set. For fixed length decoding, two different lengths may be set. Fixed Length. DEFAULT BC412 Length Control = Variable Length BC412 Length Control = Fixed Length PowerScan™ PD9330/PBT9300/PM9300...
Page 193: Bc412 Set Length 1
BC412 Set Length 1 This feature specifies one of the bar code lengths for Code 11 Length Con- trol. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 194: Bc412 Set Length 2
Select BC412 Length 2 Setting again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 195: Msi
The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. $CMSEN00(CR) DEFAULT MSI = Disable $CMSEN01(CR) MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check char- acter.
Page 196: Msi Check Character Transmission
For variable length decoding, a minimum and maximum Variable Length: length may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CMSLC00(CR) DEFAULT MSI Length Control = Variable Length $CMSLC01(CR) MSI = Fixed Length PowerScan™ PD9330/PBT9300/PM9300...
Page 197: Msi Set Length 1
MSI Set Length 1 This feature specifies one of the bar code lengths for MSI Length Control. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code’s data characters only.
Page 198: Msi Set Length 2
Select MSI Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 50 = Length 2 is 50 Characters DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 199: Msi Minimum Reads
MSI Minimum Reads This setting has no effect for AR models. This feature specifies the minimum number of consecutive times an MSI label must be decoded before it is accepted as good read MSI Minimum Reads = 1 MSI Minimum Reads = 2 MSI Minimum Reads = 3 DEFAULT $CMSMSI Minimum Reads = 4...
Page 200: Plessey (Only Standard Optic Models)
$CPLCC01(CR) DEFAULT Plessey Check Character Calculation = Enable Plessey std. check char. verification $CPLCC02(CR) Plessey Check Character Calculation = Enable Anker check char. verification $CPLCC03(CR) Plessey Check Character Calculation = Enable Plessey std. and Anker check char verification PowerScan™ PD9330/PBT9300/PM9300...
Page 201: Plessey Check Character Transmission
Plessey Check Character Transmission Enables/disables transmission of an MSI check character. $CPLCT00(CR) Plessey Check Character Transmission = Disable $CPLCT01(CR) DEFAULT Plessey Check Character Transmission = Enable Plessey Length Control This feature specifies either variable length decoding or fixed length decod- ing for the Plessey symbology.
Page 202: Plessey Set Length 1
Select Plessey Set Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 01 = Length 1 is 1 Character DEFAULT PowerScan™ PD9330/PBT9300/PM9300...
Page 203: Plessey Set Length 2
Plessey Set Length 2 This feature specifies one of the bar code lengths for Plessey Length Control. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the bar code’s check, data, and full-ASCII shift characters.
Page 204: Plessey Minimum Reads
239 for more information on this feature. Plessey Decoding Level = Disable Plessey Decoding Level = 1 (conservative) Plessey Decoding Level = 2 DEFAULT Plessey Decoding Level = 3 Plessey Decoding Level = 4 Plessey Decoding Level = 5 (aggressive) PowerScan™ PD9330/PBT9300/PM9300...
Page 205: Wireless Features
WIRELESS FEATURES This section provides options and programming related to the reader’s wire- less communication features. Reference Appendix C, for a listing of standard factory settings. starting on page 198 IRELESS EEPER EATURES Good Transmission Beep" on page 198 •" Beep Frequency"...
Page 206 RS-485 Slave Maximum Address on page 244 • RS-485 Network Working Mode on page 245 • RS-485 Network Warning Message on page 245 • RS-485 Transmission Warning Message on page 246 • RS-485 Network Baud Rate on page 246 • PowerScan™ PD9330/PBT9300/PM9300...
Page 207 Enter/Exit Programming Mode Display and Keyboard Features Display Operating Mode on page 227 • Display Off Timeout on page 228 • Backlight Enable on page 228 • Display Contrast on page 229 • Font Size on page 229 • Enable/disable buttons on page 230 •...
Page 208: Wireless Beeper Features
Adjusts radio-specific beep indications to sound at a low, medium or high frequency, selectable from the list below (controls the beeper’s pitch/tone). $CBTBF00(CR) DEFAULT Beep Frequency = Low $CBTBF01(CR) Beep Frequency = Medium $CBTBF02(CR) Beep Frequency = High PowerScan™ PD9330/PBT9300/PM9300...
Page 209: Beep Duration
Enter/Exit Programming Mode Beep Duration This feature controls the duration of radio-specific beep indications. $CBTBD06(CR) Beep Duration = 60 msec $CBTBD08(CR) DEFAULT Beep Duration = 80 msec $CBTBD0A(CR) Beep Duration = 100 msec $CBTBD0C(CR) Beep Duration = 120 msec $CBTBD0E(CR) Beep Duration = 140 msec $CBTBD10(CR) Beep Duration = 160 msec...
Page 210: Beep Volume
Disconnect Beep Enables/disables the beep indication that a handheld has become connected or disconnected from a Base Station. The defaults are different for the STAR and Bluetooth models. $CBTDB00(CR) Disconnect Beep = Disable $CBTDB01(CR) DEFAULT Disconnect Beep = Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 211: Docking Beep
Enter/Exit Programming Mode Docking Beep Enables/disables a beep indication when the handheld is placed in the Base Station. $CBTCB00(CR) Docking Beep = Disable $CBTCB01(CR) DEFAULT Docking Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
Page 212 Leash Alarm (continued) $CBTLB03(CR) Leash Alarm = 3 Seconds $CBTLB04(CR) $CCpyCfg2HH Leash Alarm = 4 Seconds $CBTLB05(CR) Leash Alarm = 5 Seconds $CBTLB0A(CR) Leash Alarm = 10 Seconds $CBTLB19(CR) Leash Alarm = 25 Seconds $CBTLB1E(CR) Leash Alarm = 30 Seconds PowerScan™ PD9330/PBT9300/PM9300...
Page 213: Configuration Updates
Enter/Exit Programming Mode CONFIGURATION UPDATES page 279 in “References” for detailed information and examples of these features. Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can auto- matically ensure they stay in sync with regard to application hardware and/ or configuration.
Page 214: Batch Features
When the scanner is configured in Manual Batch Mode, use the following bar code to initiate sending of labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this bar code. BatchSend Send Batch PowerScan™ PD9330/PBT9300/PM9300...
Page 215: Erase Batch Memory
Enter/Exit Programming Mode Erase Batch Memory When the scanner is configured in Manual Batch Mode, use the following bar code to erase any labels stored in batch memory. Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this bar code. BatchClear Erase Batch Memory RF Batch Mode Transmit Delay...
Page 216: Direct Radio Autolink
12 ascii characters, i.e., an address of 00 06 66 00 1A ED will be sent as (shown in hex): 30 30 30 36 36 36 30 30 31 41 45 44 $CBTAS00(CR) DEFAULT Source Radio Address Transmission = Do Not Include $CBTAS01(CR) Source Radio Address Transmission = Prefix PowerScan™ PD9330/PBT9300/PM9300...
Page 217: Source Radio Address Delimiter Character
Enter/Exit Programming Mode Source Radio Address Delimiter Character This option specifies the delimiter character to be placed between the label data and radio address when address stamping is enabled. "Source Radio Address Transmis- This feature only applies if sion" on page 206 is enabled. To configure this feature, scan the ENTER/EXIT PRO- $CBTAD GRAMMING MODE bar code above, then the bar code at...
Page 218: Real Time Clock (Rtc) Configuration
End by scanning the ENTER/EXIT HHMMSS bar code twice. Set Current Time = Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 219: Date Tx Format
Enter/Exit Programming Mode Date Tx Format Sets the format of the date. $CDTXF00\r DEFAULT YYYY-MM-DD (ISO 8601) $CDTXF01\r YYYYMMDD (No ISO) $CDTXF02\r MMDDYYYY $CDTXF03\r DDMMYYYY Time Tx Format Sets the format of the time. $CTTXF00\r DEFAULT hh:mm:ss (ISO 8601) $CTTXF01\r hhmmss (No ISO) Product Reference Guide...
Page 220: Date-Time Separator
End by scanning the ENTER/EXIT bar code twice. Set Character Separator = Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 221: Date-Time Transmission Order
Enter/Exit Programming Mode Date-Time Transmission Order Allows the selection of the order of date and time transmission. $CRFTS00\r DEFAULT Disabled $CRFTS01\r ISO 8601: Date' T ' T ime $CRFTS02\r DateTime $CRFTS03\r TimeDate $CRFTS04\r Date $CRFTS05\r Time Product Reference Guide...
Page 222: Power Off
Powerdown Timeout = Disable $CSLPS01(CR) Powerdown Timeout = 10 minutes $CSLPS02(CR) Powerdown Timeout = 20 minutes R)$CSLPS03(CR DEFAULT DEFAULT Powerdown Timeout = 30 minutes $CSLPS06(CR) Powerdown Timeout = 60 Minutes (1 Hour) $CSLPS0C(CR) Powerdown Timeout = 120 Minutes (2 Hours) PowerScan™ PD9330/PBT9300/PM9300...
Page 223: Pbt9300-Only Features
Enter/Exit Programming Mode PBT9300-ONLY FEATURES The features in this section are valid only for PBT9300 Bluetooth models. Also reference the Setup section for instructions on "Linking the Reader," starting on page 19. BLUETOOTH SECURITY FEATURES On the Bluetooth system, it is possible to set a (configurable) PIN code to authenticate/connect Bluetooth devices, and encrypt the data.
Page 224: Bluetooth Security Mode
4-digit or a 16-digit PIN Code. page 281 for detailed information and examples for setting this feature. Select PIN Code Length $CBTPS00\r DEFAULT Select 4-character Bluetooth PIN Code ~$CBTPS01\r Select 16-character Bluetooth PIN Code PowerScan™ PD9330/PBT9300/PM9300...
Page 225: Set Pin Code
Enter/Exit Programming Mode Set PIN Code Determine the desired characters for the PIN code, then convert to hexadec- imal using the ASCII Chart on page 1 on the inside back cover of this man- ual. page 281 for detailed information and examples for setting this feature.
Page 226: Other Bluetooth Features
Enter/Exit Programming Mode OTHER BLUETOOTH FEATURES Reconnect Attempt Interval This feature specifies the interval time between reconnection attempts. $CBTRI01(CR) 1 minute $CBTRI02(CR) 5 minutes $CBTRI03(CR) 30 minutes $CBTRI00(CR) DEFAULT Indefinitely PowerScan™ PD9330/PBT9300/PM9300...
Page 227: Bluetooth Hid Variable Pin Code
PowerScan BT9300. Scan the bar code "Variable PIN Code" below, then use the host computer’s Bluetooth manager to “Discover new devices” and select "Datalogic Scanner." Use a text editor to see incoming data on the port des- ignated by the computer's Bluetooth manager.
Page 228: Bluetooth Hid Alt Mode
Set the number of Readers that can connect to the Base in a Piconet network. $CBTMS01(CR) Bluetooth Max Client = 1 $CBTMS02(CR) Bluetooth Max Client = 2 $CBTMS03(CR) Bluetooth Max Client = 3 $CBTMS04(CR) Bluetooth Max Client = 4 PowerScan™ PD9330/PBT9300/PM9300...
Page 229: Bluetooth Friendly Name
Enter/Exit Programming Mode $CBTMS05(CR) Bluetooth Max Client = 5 $CBTMS06(CR) Bluetooth Max Client = 6 $CBTMS07(CR) DEFAULT Bluetooth Max Client = 7 Bluetooth Friendly Name You can set a meaningful name for PowerScan BT9300 that will appear in the application during device discovery. To set a new Bluetooth Friendly Name, scan the barcode below and follow the instructions.
Page 230: Bluetooth Reconnect Attempt Mode
PC is localized. In order to do that, read one of the configuration command labels below. DEFAULT Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Country Mode = Croatia PowerScan™ PD9330/PBT9300/PM9300...
Page 231 Enter/Exit Programming Mode HID Country Mode (continued) Country Mode = Czech Republic Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Product Reference Guide...
Page 232 Enter/Exit Programming Mode HID Country Mode (continued) Country Mode = Norway Country Mode = Poland Country Mode = Portugal Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland PowerScan™ PD9330/PBT9300/PM9300...
Page 233: Pm9300-Only Features
Enter/Exit Programming Mode PM9300-ONLY FEATURES The features in this section are valid only for the PowerScan PM9300 Star model: • STAR Radio Protocol Timeout on page 223 • STAR Radio Transmit Mode on page 224 STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed.
Page 234: Star Radio Transmit Mode
When Radio sleep is enabled, the scanner cannot receive asynchronous messages nor paging button requests from the base. The scanner is still able to receive ACK From Host message. See Transmit mode. Sleep Disable DEFAULT Sleep Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 235: Changing System Speed
Normal Mode: High Speed (3) The Reader and Base will now be linked at the new programmed speed. This feature can also be programmed using Datalogic Aladdin. 1. On the BC9xxx Base, change the System Speed. 2. Place an unlinked PM9300 onto the BC9xxx base.
Page 236: Frequency Agility
CAUTION it is possible to select a fixed channel with a frequency different from the default; please contact Datalogic Technical Support for informa- tion about this feature. For the 910 models, the radio range can change depending on the Fre- quency Agility parameter value;...
Page 237: Display And Keyboard Features
Enter/Exit Programming Mode DISPLAY AND KEYBOARD FEATURES Two keyboard models are available, the 4-key model and the 16-key model. The following section contains configuration parameters that are common and applicable to both keypad models, unless specifically labeled as "4-key models only" or "16-key models only”. For more items for the 16-key model, see "Additional Features for 16-key models,"...
Page 238: Display Off Timeout
Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL 08 = 8 second delay DEFAULT Backlight Enable Enables/Disables the display backlight. $CDIBL00\r DEFAULT Backlight Disabled $CDIBL01\r Backlight Enabled PowerScan™ PD9330/PBT9300/PM9300...
Page 239: Display Contrast
Enter/Exit Programming Mode Display Contrast Adjust the contrast of the display. To configure this feature, scan the ENTER/EXIT PRO- $CDICT GRAMMING MODE bar code above, then the bar code at left followed by two digits (00-32 by 01) from the Appendix D, Keypad Alphanumeric characters in representing your desired character(s).
Page 240: Enable/Disable Buttons
Appendix D, Keypad. ters in Enable a combination of keys (4-key models only) Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 241 Enter/Exit Programming Mode 4-key models only: the first digit is used to enable or disable the four keys, the other three digit must be zero. To enable a combination of keys, sum each key's related weight, the result is the value to read using the Alphanu- meric characters in Appendix D, keypad.
Page 242: Arrow Keys Mode (4-Key Models Only)
EXIT bar code to terminate the string. End by scanning the ENTER/EXIT bar code twice. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 243: Arrow Down String (4-Key Models Only)
Enter/Exit Programming Mode Arrow Down String (4-key models only) Associate a pre-defined string to the Arrow Down key To configure this feature, scan the ENTER/EXIT PRO- $CDADS GRAMMING MODE bar code above, then the bar code at left. Define the label string by further scanning 32 dig- Appendix its from the Alphanumeric characters in Keypad.
Page 244: Configure Actions For Function Keys
Show Date/Time Display the internal date, time.   Scroll Up Scroll up display content by row   Scroll Down Scroll down display content by row   Dot char Display dot [.] char Dynamic    Dynamic Quantity Code function Quantity PowerScan™ PD9330/PBT9300/PM9300...
Page 245: Configure Actions For F1
Enter/Exit Programming Mode ACTION CONFIGURATION FOR FUNCTION KEYS Configure actions (up to three for 4K model when configured with "Function Keys Action Select Mode") for the function keys Configure Actions for F1 $CPWEV0000\r F1 No Actions Configured To configure this feature, scan the ENTER/EXIT PRO- $CPWEV GRAMMING MODE bar code above, then the bar code for the Function Key you want to program.
Page 246: Configure Actions For F3 (16-Key Models Only)
The first digit must be 0, the second digit must be con- figured according to the CMD_ID numbers in Table 27 on page 253 . The third and fourth must be zero. Confirm the inserted value by scanning the ENTER/EXIT bar code. PowerScan™ PD9330/PBT9300/PM9300...
Page 247: Configure Actions For F4 (16-Key Models Only)
Enter/Exit Programming Mode Configure Actions for F4 (16-key models only) $CPWES0000\r F4 No Actions Configured To configure this feature, scan the ENTER/EXIT PRO- $CPWES GRAMMING MODE bar code above, then the bar code for the Function Key you want to program. Next scan 4 dig- Appendix D, its from the Alphanumeric characters in Keypad.
Page 248: Define Strings
Set String 2 $CPWEA Set String 3 $CPWEM Set String 4 $CPWEL Set String 5 Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 249: Set String Id
Enter/Exit Programming Mode Set String ID Sets the identifier of the predefined strings. To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at $CPWEB left followed by 6 digits from the Alphanumeric charac- Appendix D, Keypad.
Page 250: Set String Terminator
If the first 2 digits are 0, the feature is disabled. End by scanning the ENTER/EXIT bar code twice. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 251: Additional Features For 16-Key Models
Enter/Exit Programming Mode ADDITIONAL FEATURES FOR 16-KEY MODELS See also "Function Keys Configuration (16-key models only)" on page 236. Last Code Shown Timeout After the CODE transmission, the last code read will be shown on the display for a configurable timeout (LAST CODE SHOWN TOUT). page 228 The standard DISPLAY OFF TIMEOUT (see ) has a higher pri-...
Page 252: Mode Selection
QTY (‘1’) • code is transmitted alone (without any quantity information) • code is discarded and an error beep is generated $CPWEK00\r DEFAULT Transmit code with default qty (1) $CPWEK01\r Transmit Code only $CPWEK02\r Discard Code PowerScan™ PD9330/PBT9300/PM9300...
Page 253: Quantity/Code Send Mode
Enter/Exit Programming Mode Quantity/Code Send Mode This feature defines the rules that will be used to send a QTY/CODE pair: 0. Code is transmitted with QTY field (and its predefined format) preced- ing CODE field (and its predefined format) 1. Code is transmitted with CODE field (and its predefined format) preced- ing QTY field (and its predefined format) 2.
Page 254: Interkey Timeout
This command allows you to specify the time which occurs between a key press, and the confirmation of the letter by the scanner (when in alpha mode). The timeout can be configured in increments of 0.5 second. $CPWNT00\r 0.5 seconds $CPWNT01\r DEFAULT 1.0 seconds $CPWNT02\r 1.5 seconds $CPWNT03\r 2.0 seconds PowerScan™ PD9330/PBT9300/PM9300...
Page 255: Append Code
Enter/Exit Programming Mode Append Code This function defines how a scanned barcode interacts with a pre-edited CODE field, or with a string entered by a preprogrammed FUNC KEY. Options are: 0. Barcode data overwrites what is written in the CODE field by keyboard and the code is transmitted;...
Page 256: Echo
(no QTY/CODE). $CPWKE00\r DEFAULT Full Keypad echo $CPWKE01\r No echo on function key $CPWKE02\r No echo on any key Keypress Sound Enables/disables the KEY press sound (‘click’). $CPWEI00\r Disable $CPWEI01\r DEFAULT Enable PowerScan™ PD9330/PBT9300/PM9300...
Page 257: Shift Enable/Disable
Enter/Exit Programming Mode SHIFT Enable/Disable This function enables/disables the SHIFT function. $CPWER00\r Disable SHIFT function $CPWER01\r DEFAULT Enable SHIFT function SHIFT key association This function allows the association of the SHIFT function to one of the fol- lowing keys: F1, F2, F3, F4, (up arrow key).
Page 258: Lower Case
GRAMMING MODE bar code above, then the bar code at Appendix D, Key- left followed by 8 digits from the pad. The digits must be the hexadecimal ASCII represen- tation of the desired characters. Set F2 label End by scanning the ENTER/EXIT bar code twice. PowerScan™ PD9330/PBT9300/PM9300...
Page 259: Set F3 Label
Enter/Exit Programming Mode Set F3 Label This item allows the user to change the default mnemonic label associated to each individual function key. This is done by programming a short acro- nym 4-character string to be shown in the bottom of the display. The pur- pose of the label is to serve as an indication of the programmed function of the Function Key below it.
Page 260: Barcode/Key Different Data Format
If less than the expected string of 16 characters are selected, scan the ENTER/EXIT bar code to terminate the string. If the first 2 digits are 0, the feature is disabled. End by scanning the ENTER/EXIT bar code twice. PowerScan™ PD9330/PBT9300/PM9300...
Page 261: Set Key Sequence Id
Enter/Exit Programming Mode Set Key Sequence ID Sets the identifier for keyboard composed strings. To configure this feature, scan the ENTER/EXIT PRO- $CPWEC GRAMMING MODE bar code above, then the bar code at Appendix D, Keypad. left followed by 6 digits from The ID characters must be represented by their hexadeci- mal ASCII code;...
Page 262 Enter/Exit Programming Mode NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 263: References
Chapter 4 References This section contains explanations and examples of selected bar code fea- tures. See Configuration Using Bar Codes, starting on page 21 for the actual bar code labels used to configure the reader. on page 254 RS-232 P ARAMETERS RS-232 Only on page 254 •...
Page 264: Parameters
RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and XOFF gate transmissions. • RTS On/CTS — RTS is always asserted. CTS gates transmissions. RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmissions and controls enable and disable state of scanner. PowerScan™ PD9330/PBT9300/PM9300...
Page 265 RS-232 Parameters Product Reference Guide...
Page 266: Rs-232/Usb Com Parameters
Divide by 10 (pad with leading zeroes to yield two-digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘5’ and ‘0’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 267 RS-232 Parameters ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/ NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
Page 268 Hex equivalent from ASCII 0x15 0x24 0x40 0x3E Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT NAK CHARACTER SETTING Scan Two Characters From ‘1’ and ‘5’ ‘2’ and ‘4’ ‘4’ and ‘0’ ‘3’ AND ‘E’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 269 RS-232 Parameters ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK charac- ter from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
Page 270 Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ACK NAK RETRY COUNT SETTING Scan Three Characters From Appendix D, ‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘3’ ‘0’, ‘5’ and ‘4’ ‘2’, ‘5’ and ‘5’ Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 271 RS-232 Parameters Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- Data Bits acters.
Page 272 0x65 0x7D 0x45 0xFF Chart Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT ENABLE CHARACTER VALUE SETTING Scan Two Characters From ‘6’ and ‘5’ ‘7’ and ‘D’ ‘4’ and ‘5’ ‘F’ AND ‘F’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 273: Keyboard Interface
Keyboard Interface Keyboard Interface Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
Page 274: Intercharacter Delay
Divide by 10 (and pad with leading zeroes to yield two-digits) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT INTERCHARACTER DELAY SETTING Scan Two Characters From ‘0’ and ‘5’ ‘1’ and ‘5’ ‘6’ and ‘0’ ‘8’ and ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 275: Intercode Delay
Keyboard Interface Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 276: Symbologies
You will hear a two-beep indication after the last charac- ter. If you make a mistake before the last character, scan the CANCEL bar code to abort and not save the entry string. You can then start again at the begin- ning. PowerScan™ PD9330/PBT9300/PM9300...
Page 277 Symbologies 5. Scan the ENTER/EXIT PROGRAMMING MODE bar code to exit Prog Mode. Set Length 2 This feature allows you to set one of the bar code lengths for the specified symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length...
Page 278: Data Editing
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact page 2 Technical Support (as described on ) for more information.
Page 279: Global Prefix/Suffix
Data Editing Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indicated in Figure 8. Figure 8.
Page 280 Code 11 a. UPC-A and UPC-E labels are converted to EAN 13 when adding AIM IDs. b. ISBN (X with a 0 modifier character) Figure 9. AIM ID Prefix Label ID AIM ID Bar Code Data Label ID Suffix PowerScan™ PD9330/PBT9300/PM9300...
Page 281: Label Id
Data Editing Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 282 6E0000 400000 5A0000 PLESSEY 610000 610000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCA COMPOSITE 410000 244800 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 UPCE COMPOSITE 450000 244A00 PowerScan™ PD9330/PBT9300/PM9300...
Page 283 Data Editing Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Go to page 55 and scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section "Label ID Control"...
Page 284 Scan the ENTER/EXIT bar (Scanner exits Label ID entry) code Scan the ENTER/EXIT bar (Scanner exits Programming Mode) code once again DB*[bar code [bar code Result: +[bar code data] [bar code data]PH data] data]=C3 PowerScan™ PD9330/PBT9300/PM9300...
Page 285: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first charac- ter in the pair is the character that will be converted. The second character in the pair is the character to convert to.
Page 286: Reading Parameters
Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT GOOD READ LED DURATION SETTING Scan Three Characters From Appendix D, ‘0’, ‘0’ and ‘0’ ‘0’, ‘0’ and ‘2’ ‘0’, ‘1’ and ‘5’ ‘2’, ‘5’ and ‘5’ Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 287: Scanning Features
Scanning Features Scanning Features Scan Mode This mode is associated with typical handheld reader operation. Selects the scan operating mode for the reader. The following selections are valid for all models: When the trigger is pulled, scanning is activated until one of Trigger Single: the following occurs: No trigger pull is required to read a bar code.
Page 288 Reserved EAN82 TIMER_EXPIRED_EVENT EAN85 FOLLETT_2OF5 Reserved Reserved EAN132 Reserved EAN135 CODE39_CIP EAN138 ABC_CODABAR ISBN_ID I2OF5_CIP TWO_LABEL_PAIR C2OF5 I2OF5 IND2OF5 CODABAR AZTEC CODE39 UPC-E_COMP PHARMAC39 UPC-A_COMP MSI_PLESSEY EAN8_COMP CODE93 EAN13_COMP RSS_EXP_ID EAN128_COMP RSS_14_ID DATA MATRIX_PROGRAMMING_LABEL GTIN LABEL_ID_MAX GTIN2 INVALID_LABEL_TYPE PowerScan™ PD9330/PBT9300/PM9300...
Page 289: Wireless Features
Wireless Features Wireless Features Automatic Configuration Update When this feature is enabled, the base station and reader will keep their configurations synchronized. If a reader's configuration is altered by reading programming labels, this change is automatically transferred and updated in a linked base station.
Page 290 25 Seconds Pad with leading zero(es) Scan ENTER/EXIT PROGRAMMING MODE Scan SELECTSTAR RADIO PROTOCOL TIMEOUT SETTING Scan Two Characters From ‘0’ and ‘2’ ‘0’ and ‘5’ ‘1’ and ‘0’ ‘2’ AND ‘5’ Appendix D, Keypad Scan ENTER/EXIT PROGRAMMING MODE PowerScan™ PD9330/PBT9300/PM9300...
Page 291: Bluetooth-Only Features
Wireless Features Bluetooth-Only Features Bluetooth Pin Code This option specifies the 4-character or 16-character pin code to be used for authentication of the Bluetooth link. To set the pin code: Scan the ENTER/EXIT PROGRAMMING MODE bar code to enter Program- ming Mode, then enable "Bluetooth Security Mode"...
Page 292 References PowerScan™ PD9330/PBT9300/PM9300...
Page 293: Message Formatting
Chapter 5 Message Formatting Message Formatting is available for PM9300 models only. For this feature to be operational, the scanner must be set to page 23 Ignore Host Commands (see A message from the Host to the base must follow these rules: •...
Page 294: Cursor Control
ESC [ 0 J From cursor position to end of display inclusive ESC [ 1 J From beginning of display to cursor position (not inclusive) ESC [ 2 J Entire display; moves cursor to upper left corner on display PowerScan™ PD9330/PBT9300/PM9300...
Page 295: Led And Beeper Control
LED and Beeper Control ESC [ 0 q Emit short High tone + short delay ESC [ 1 q Emit short Low tone + short delay ESC [ 2 q Emit long Low tone + short delay ESC [ 3 q Emit good read tone ESC [ 4 q Emit bad tx tone...
Page 296 Message Formatting NOTES PowerScan™ PD9330/PBT9300/PM9300...
Page 297: Technical Specifications
Table 48. Technical Specifications Item Description Physical Characteristics Height: 212 mm Dimensions Length: 110 mm Width: 74 mm PD9330: 340g; PD9330-AR: 375g PM/PBT9300-XX: 405g; PM/PBT9300-ARXX, Weight (without cable) PM/PBT9300-DXX, PM/PBT9300-DKXX: 435g; PM/PBT9300-DARXX, PM/PBT9300-DKARXX: 465g Electrical Characteristics PD9330 models Voltage & Current...
Page 298 2 - 50 cm / 0.8 - 19.7’’ 20 mils 2 - 110 cm / 0.8 - 43.3’’ 40 mils 2 - 160 cm / 0.8 - 63’’ EAN 13 2.5 - 65 cm / 1 - 25.6’’ Symbology PX9X00-XXARXX PowerScan™ PD9330/PBT9300/PM9300...
Page 299 Code 39 7.5 mils 9 - 50 cm / 3.5 - 19.7’’ 10 mils 14 - 85 cm / 5.5 - 33.5’’ 15 mils 15 - 155 cm / 5.9 - 61’’ 20 mils 15 - 220 cm / 5.9 - 86.6’’ 40 mils 20 - 340 cm / 7.9 - 133.9’’...
Page 300 Coupons, ISBN, Code128, EAN128, Code39, Code39 Full ASCII, Code39 CIP, Code 32, Cod- abar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F PM9300-XXARXX...
Page 301 433 MHz model North America (FCC) : Part 15 Class B; Can- Europe - CE, Russia – ada ( IC) : ICES-003 Gost; Australia – North America (FCC) : Ctick;  Class B; Russia ( Gost); Canada ( IC); Russia European Union EMC China –...
Page 302: Imager Labeling
Max number of devices per base station Imager Labeling Sample labels are shown for illustrative purposes only. Please view the labels  on your product for actual details, as they may vary from those depicted. Scanner Regulatory Label PowerScan™ PD9330/PBT9300/PM9300...
Page 303: Standard Cable Pinouts
Standard Cable Pinouts Standard Cable Pinouts The data below provides standard pinout information for the interface cable. Figure 11. Standard Cable Pinouts: Handheld The signal descriptions in apply to the connector on the reader and Table 49 are for reference only. Table 49.
Page 304: Led And Beeper Indications
Mode Accep- to program one feature, short beep at high- tance of Partial this indication acknowl- est frequency & Label edges each portion as it is current volume. successfully scanned. Programming Mode Indications (continued) INDICATION DESCRIPTION BEEPER PowerScan™ PD9330/PBT9300/PM9300...
Page 305: Base Station Indications (Cordless Models Only)
Reader sounds one Configuration option(s) Label Program- high frequency have been successfully ming Mode Accep- beep and 4 low fre- programmed via labels tance of quency beeps fol- and the reader has exited Programming lowed by reset Programming Mode. beeps. Reader sounds two Label Program- Cancel label has been...
Page 306 Technical Specifications PowerScan™ PD9330/PBT9300/PM9300...
Page 307: Sample Bar Codes
Appendix B Sample Bar Codes The sample bar codes in this appendix are typical representations for their symbology types. UPC-A EAN-13 978033029095 Code 39 Code 128 Code 128 Interleaved 2 of 5 Product Reference Guide...
Page 308 Sample Bar Codes Sample Bar Codes (continued) Code 32 Codabar 13579 Code 93 Code 11 123456789 PowerScan™ PD9330/PBT9300/PM9300...
Page 309 GS1 DataBar™ (RSS) GS1 DataBar™ variants must be enabled to read the bar codes below. GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 DataBar™-14 GS1 DataBar™ Omnidirectional Truncated 55432198673467 Product Reference Guide...
Page 310 Sample Bar Codes PowerScan™ PD9330/PBT9300/PM9300...
Page 311: Standard Defaults
Appendix C Standard Defaults The most common configuration settings are listed in the “Default” col- umn of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
Page 312 Double Read Timeout 0.6 Second Power On Alert Power-up Beep Good Read: When to Indicate After Decode Good Read Beep Type Mono Good Read Beep Frequency High Good Read Beep Length 80 ms Good Read Beep Volume High PowerScan™ PD9330/PBT9300/PM9300...
Page 313 Standard Defaults Page Parameter Default Your Setting Number Good Read LED Duration 300 ms Scanning Features Scan Mode Trigger Single Scanning Active Time Disable Aiming Pointer Enable Green Spot Duration 300 ms Partial Label Reading Control Enable Decode Negative Barcode Disable Multiple Label Reading Multiple Labels per Frame...
Page 314 Don’t Send Code 32 Start/Stop Character Don’t Transmit Transmission Code 39 CIP (French Pharmaceutical Code) (Only Standard Optic Models Code 39 CIP Enable/Disable Disable Code 128 Code 128 Enable/Disable Enable Expand Code 128 to Code 39 Don’t Expand PowerScan™ PD9330/PBT9300/PM9300...
Page 315 Standard Defaults Page Parameter Default Your Setting Number Code 128 Check Character Transmission Don’t Send Code 128 Function Character Don’t Send Transmission Code 128 Sub-Code Exchange Disable Transmission Small Quiet Zones on two Code 128 Quiet Zones sides Code 128 Length Control Variable Code 128 Set Length 1 Code 128 Set Length 2...
Page 316 Code 11 Check Character Calculation Check C and K Code 11 Check Character Transmission Send Code 11 Length Control Variable Code 11 Set Length 1 Code 11 Set Length 2 GS1 DataBar™ Expanded GS1 DataBar™ Expanded Enable/Disable Disable PowerScan™ PD9330/PBT9300/PM9300...
Page 317 Standard Defaults Page Parameter Default Your Setting Number GS1 DataBar™ Expanded GS1-128 Disable Emulation GS1 DataBar™ Expanded Length Control Variable GS1 DataBar™ Expanded Set Length 1 GS1 DataBar™ Expanded Set Length 2 GS1 DataBar™ Limited GS1 DataBar™ Limited Enable/Disable Disable GS1 DataBar™...
Page 318 Bluetooth Security Mode Disable Bluetooth PIN Code Select PIN Code Length 4-Character Set PIN Code 1234 Reconnect Attempt Interval 1 minute Bluetooth HID Variable PIN Code Static Bluetooth HID Alt Mode Bluetooth HID Send Unknown ASCII Char Disable PowerScan™ PD9330/PBT9300/PM9300...
Page 319 Standard Defaults Page Parameter Default Your Setting Number Bluetooth Max Client [SERIAL_NUMBER_ Bluetooth Friendly Name SCANNER] Bluetooth Reconnect Attempt Mode Enable Power Class Power Class 1 HID Country Mode Features for PM9500 Models Only STAR Radio Protocol Timeout STAR Radio Transmit Mode Ack from cradle Frequency Agility Use default fixed channel...
Page 320 Quantity/Code Send Mode Qty precedes Code Quantity/Code Separator No separator Interkey Timeout 1.0 seconds Append Code Overwrite always Full Keypad echo Echo Keypress Sound Enable SHIFT Enable/Disable Enable SHIFT function Lower Case Disable Lower Case Barcode/Key Different Data Format Disable PowerScan™ PD9330/PBT9300/PM9300...
Page 321 Standard Defaults Restore Factory Configuration If you want to restore the Factory Configuration for your imager, scan either the Restore USA Factory Configuration bar code or the Restore EU Factory Configuration bar code below. Both labels restore the scanner configuration to the factory settings, including the interface type. Scanning either of the “Restore Factory Configuration”...
Page 322 Standard Defaults PowerScan™ PD9330/PBT9300/PM9300...
Page 323: Keypad
Appendix D Keypad Use the bar codes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
Page 324 Keypad Keypad (continued) Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning. CANCEL PowerScan™ PD9330/PBT9300/PM9300...
Page 325: Scancode Tables
Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms.
Page 326: Interface Type Pc At Ps/2, Usb-Keyboard
ñ ò ó ô õ ö ÷ ø ù ú û ü ý þ ÿ Extended characters (sky blue) are sent through dedicated keys (when available in the selected country mode) or by using an Alt Mode sequence. PowerScan™ PD9330/PBT9300/PM9300...
Page 327 Interface Type PC AT PS/2, USB-Keyboard (continued) Table 54. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home ...
Page 328: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
A+0218 A+0219 A+0220 A+0221 A+0222 A+0223 A+0224 A+0225 A+0226 A+0227 A+0228 A+0229 A+0230 A+0231 A+0232 A+0233 A+0234 A+0235 A+0236 A+0237 A+0238 A+0239 A+0240 A+0241 A+0242 A+0243 A+0244 A+0245 A+0246 A+0247 A+0248 A+0249 A+0250 A+0251 A+052 A+0253 A+0254 A+0255 PowerScan™ PD9330/PBT9300/PM9300...
Page 329 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 56. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
Page 330 Scancode Tables PowerScan™ PD9330/PBT9300/PM9300...
Page 331: Ascii Chart
ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
Page 332 ©2010-2016 Datalogic S.r.l. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic S.r.l. Via S. Vitalino, 13 Lippo di Calderara di Reno - 40012...
