Summary of Contents for Netac iMuz C700

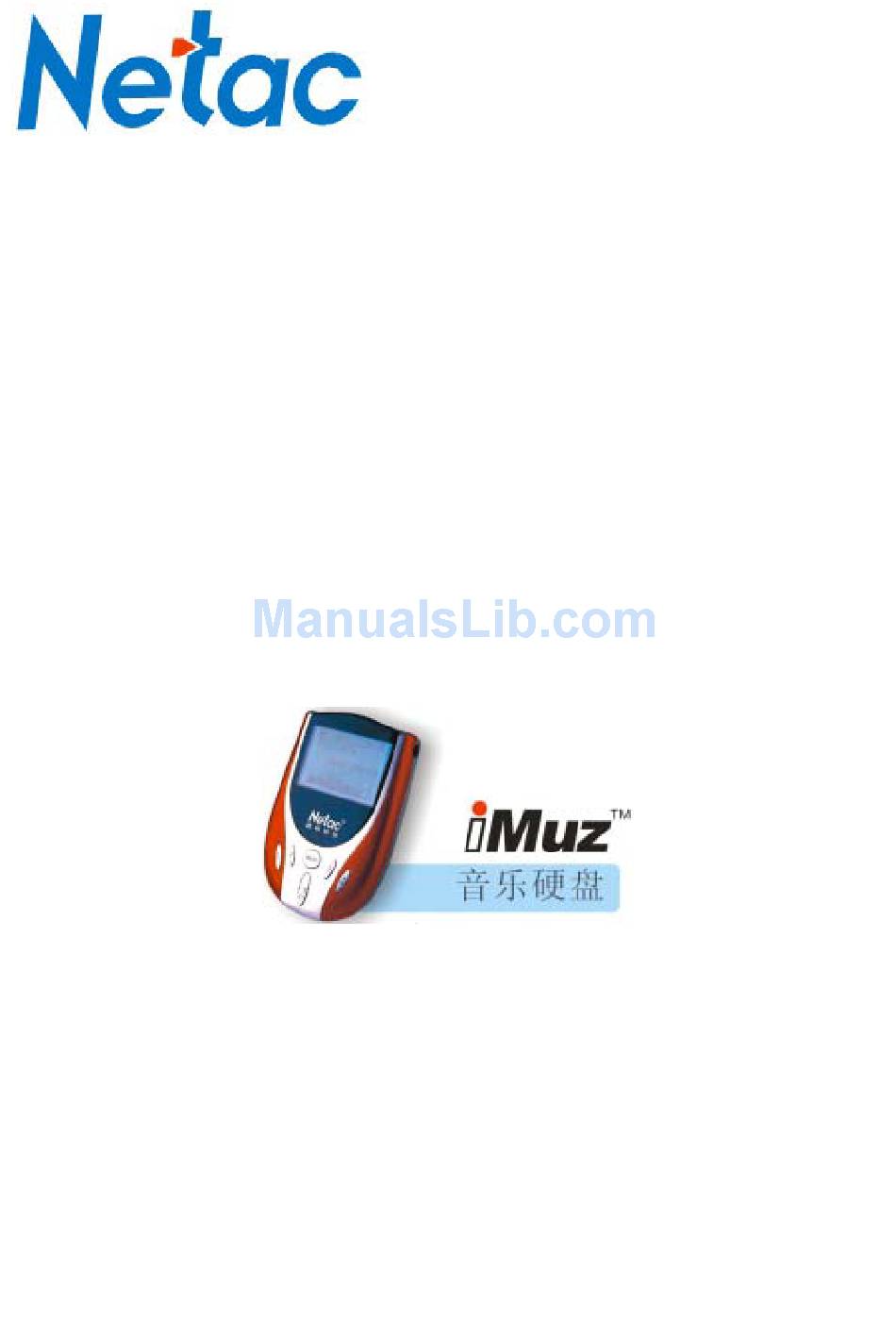

- Page 1 Netac iMuz (C700) User’s Manual ShenZhen Netac Technology Co., Ltd.
- Page 2 Notice This manual contains information protected by copyright law. All rights are reserved. No part of this document may be used or reproduced in any form or by any means, or stored in a database/retrieval system without prior written permission from Netac Technology Co., Ltd. ®...
-
Page 3: Table Of Contents
Others Windows 98 mentioned in this user’s manual refers to the first and the second edition of Windows 98. Files or data stored in iMuz cannot completely avoid being destroyed or lost due to improper use or other reasons. Please backup files and data when necessary. iMuz is not guaranteed to work properly on all computers. -
Page 4: Imuz Introduction
5.3 Contact Netac ... 24 1. iMuz Introduction Thanks for you purchasing Netac iMuz (model: C700). iMuz combine perfectly digital music playing function in base of removable hard disk. iMuz can play MP3/WMA /OGG files, and support FM radio listening and FM/MIC/LINE-IN recording. -
Page 5: Features
Power Adapter Remote Controller Earphone Installation CD Carrying Case Guarantee Card 1.2 Features High definition array LCD with indigo blue backlight Support Remote Controller function Prevent effectively wrong operation with button lock Stereo output Support MP3, WMA and OGG music files With multiple Play Mode &... -
Page 6: Name Of Parts
1.3 Name of Parts 1.4 System Requirement IBM Compatible PC, Notebook with USB port Windows 98/Me/2000/XP/Server 2003, Mac OS 9.x/X USB Specifications 2.0/1.1/1.0 1.5 Specifications Sorts Items Display Screen Stereo Earphone Output Frequency Audio Earphone Output Power Distortion Degree Description High definition array LCD with indigo blue backlight (160X105 lattice) Stereo... -
Page 7: Preparation
Support ed File Types ID3 Tag Music Repeat Music Management Recording Format Recording Recording Bit Rate Frequency Bound Receiving Mode AC Adapter Power Battery Supply Charge Time Play Time MP3/WMA/OGG Dimension Weight Others Capacity Memory Working Temperature 2. Preparation 2.1 Battery Charge Please connect power adapter with computer to charge for battery. - Page 8 2) Insert the installation CD into the CD-ROM driver. 3) Connect iMuz with computer, the system would find an USB device automatically. “Add New Hardware Wizard” dialog appears, click “Next” to continue. 4) Please select “Search for the best driver for your device. (Recommended)”, and click “Next” to continue. 5) Wizard shows where to locate iMuz driver.
-
Page 9: Connecting
6) System would automatically detect the driver. Please click “Next” in the following steps and click “Finish” in the last step to finish the installation. 2.2.2 Connecting 1) Press PLAY/PAUSE button to power on iMuz, then connect it and the computer with a USB cable. 2) “USB attached”... -
Page 10: Usage
2) IMuz would be power off automatically after disconnecting from computer safely. 3. Usage 3.1 Basic Operation 3.1.1 Power On/Off Note: In root directory, iMuz would automatically build following folders: \_SYS, \ENCODE, \FIRMWARE, \PLAYLIST, \TEXTFILE, \USBDATA, \VOICE RECORD. Firmware update files are preserved in “\FIRMWARE”, play-lists in “\PLAYLIST”, FM and LINE-IN recording files in “\ENCODE”, MIC recording files in “\VOICE RECORD”... -
Page 11: Connecting
3.2.2 Connecting Connect Remote Controller with Earphone/Remote Controller Jack of iMuz, and Earphone with Earphone Jack of Remote Controller. 3.2.3 Usage The definition of buttons on Remote Controller are same as mainframe except holding PLAY/PAUSE button to turn power on. Please refer to the foregoing description for details. The HOLD switch on Remote Controller can lock the buttons on Remote Controller, and no icon appears on the “Lock”... -
Page 12: Mode Operation
4. Mode Operation 4.1 MUSIC Mode 4.1.1 Entering MUSIC Mode Enter browse status of MUSIC mode automatically after iMuz power on. IMuz would automatically play the track which is playing before power off last time if you set “AUTO PLAY”. (Please refer to “4.6.7 SYSTEM” for details) 4.1.2 LCD Display When playing track, the LCD displays as following: 4.1.3 Playing Track... -
Page 13: Record Mode
4.1.5 BMK Play-List BMK play-list is saved in directory \PLAYLIST of iMuz, and you can search or select it to play. (Please refer to “4.3 LIST Mode” for details) Press REC button to add the playing or selected tracks into BMK play-list when playing track or browsing file (You can set 100 tracks at best). -
Page 14: Line-In Record
The recording mode of MIC is Mono, and the recorded file is saved as MIC***.mp3 in the VOICE ENCODE folder automatically after record stopped, “***” is the serial number of recorded file. You can set the bit rate when MIC recording, please refer to “4.6.7 SYSTEM” for details. 4.2.3 LINE-IN Record Connect the iMuz and earphone of audio/video device or output jack of Line-in with a LINE-IN cable. -
Page 15: Radio Mode
deleted files into/from BMK play-list) 4.3.2 Selecting List Press VOL+ / VOL- button to select previous/next play-list. Press PLAY/PAUSE / FF button to open a play-list. Press VOL+ / VOL- button again to select track after opened a play-list. 4.3.3 Playing List Press PLAY/PAUSE / FF button to play after selected track, then iMuz would play the tracks according to order of the play-list. -
Page 16: Search Mode
Press VOL+ / VOL- button to adjust volume. Press FF / REW button to adjust frequency, the frequency changes by 0.1MHZ. Press MODE button or hold FF / REW button to progress automatic searching channel. iMuz would stop searching and play automatically after found a channel. Press PLAY/PAUSE button to set preset channel, and press FF / REW to select a preset channel. -
Page 17: Setup Mode
IMuz would search the tracks in iMuz afresh after power on every time, and found index. IMuz can saved 5000 files and 10 level directories. You can search tracks in iMuz accurately through the former three letters of track in SEARCH mode. Press FF / REW button to switch the current searching letter. - Page 18 When selecting ROCK, the setting of output frequency is the following: When selecting CLASSIC, the setting of output frequency is the following: When selecting JAZZ, the setting of output frequency is the following: When selecting U-BASS, the setting of output frequency is the following:...
-
Page 19: Repeat
When selecting USER, press VOL+ / VOL- button to set each item according to your fondness, press PLAY/PAUSE / FF to switch frequency, and 4.6.3 REPEAT Enter REPEAT window, you can select MODE, ON/OFF or SHUFFLE. Select MODE, then press VOL+ / VOL- button to set the range of paying track. ALL: Play all tracks in iMuz;... -
Page 20: Fm Set
4.6.4 FM SET Enter FM SET window, you can select the RADIO MODE, FM BAND MODE or SENSITIVITY. Press VOL+ / VOL- button to set the output signal as STEREO or MONO in RADIO MODE. STEREO: The output of frequency module is stereo signal; MONO: The output of frequency module is mono signal. -
Page 21: Lcd
Press “VOL+” / “VOL-“ button to set bit rate of LINE-IN and FM record in ENCODER. You can select 64, 96, 128, 256 or 320Kbps. Press “VOL+” / “VOL-“ button to set bit rate of MIC record in VOICE. You can select 32, 48, 64, 96 or 128Kbps. 4.6.6 LCD Enter LCD, you can set contrast of LCD, backlight time, scroll speed of ID3, display mode of playing time and language of... -
Page 22: System
Press “VOL+” / “VOL-“ button to set display time as normal or reuerse time when playing track in TIME. NORMAL: The played time of track; REUERSE: The spare time of track. Press “VOL+” / “VOL-“ button to set language of menu and ID3 as ABC, 简... -
Page 23: Others
charge. Press “VOL+” / “VOL-“ button to set the effect of which bass of output audio are boosted partly when iMuz playing track and recording files in BASS BOOST. You can select LOW, MID or HIGH. Press “VOL+” / “VOL-“ button to set the effect of which treble of output audio are boosted partly when iMuz playing track and recording files in TREBLE BOOST. -
Page 24: Firmware Update
5.1 Firmware Update 1) Please access Netac website: http://www.netac.com.cn To download the Firmware update program of iMuz to update firmware of iMuz. 2) Copy the firmware update program which download from website into directory \FIRMWARE of iMuz, and disconnect iMuz from computer safely. 3) IMuz would update firmware automatically when power on again. - Page 25 China Academy of Science & Tech Development, No.1 High-tech South St, Shenzhen, China 518057 Tel: +86-755-26727800 +86-755-26727500, 26727510, 26727520 Fax: +86-755-26727610, +86-755-26727620 Website: http://www.netac.com Email: sales@netac.com support@netac.com info@netac.com (Switchboard) (Technical Support) (Sales) (Technical Support) (Feed back)
