REPAIR PARTS

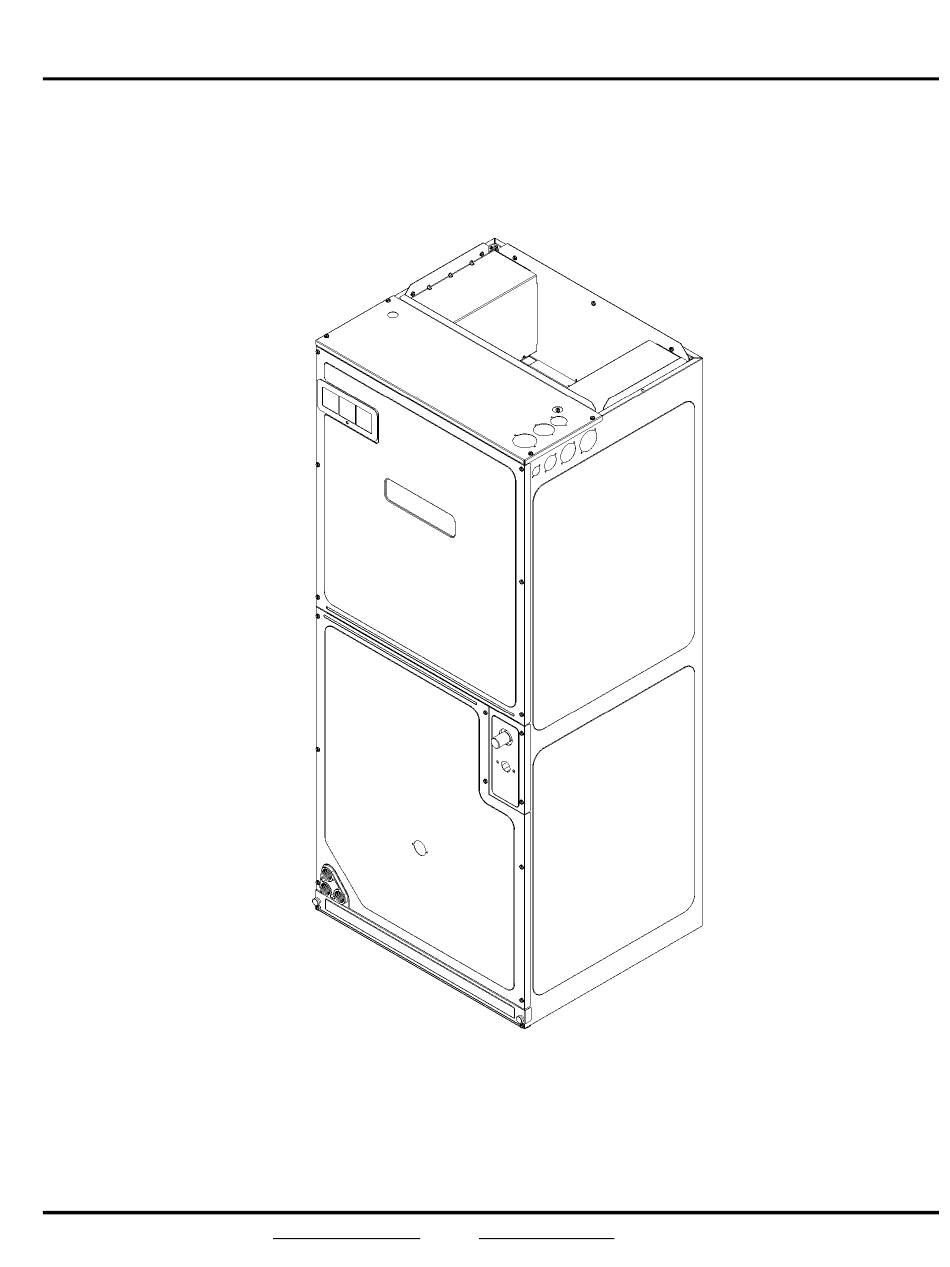

AVPTC Air Handler
AVPTC24B14AA
AVPTC30C14AA
AVPTC36C14AA
AVPTC42D14AA
AVPTC42D14AB
AVPTC48D14AA
AVPTC48D14AB
AVPTC60D14AA
AVPTC60D14AB
This manual is to be used by qualified technicians only.
This manual replaces RP-775.
© 2012-2013 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
May 2013
RP-775A
www.goodmanmfg.com
www.amana-hac.com
Advertisement
Related Manuals for Goodman AVPTC Series
Summary of Contents for Goodman AVPTC Series
- Page 1 AVPTC42D14AB AVPTC48D14AA AVPTC48D14AB AVPTC60D14AA AVPTC60D14AB This manual is to be used by qualified technicians only. This manual replaces RP-775. © 2012-2013 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056 May 2013 RP-775A www.goodmanmfg.com www.amana-hac.com...
- Page 2 M2 - Model#2 M3 - Model#3 Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs. Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P.
-
Page 3: Functional Parts
Functional Parts Part Description: D6723311 BLOWER WHEEL (M8, M9) BT1368008 BLOWER WHEEL 10 X 6 (M1) B1368058 BLOWER WHEEL 10 X 8 (M2) 0150M00037 BLOWER WHEEL, 10 X 10 (M3, M4, M5, M6, 0131M00272 MOTOR, 1 HP, SERIAL ECM (M8, M9) 0131M00270 MOTOR, 1/2 HP, SERIAL ECM (M1, M2) 0131M00271... -
Page 4: Cabinet Assy
Cabinet Assy www.goodmanmfg.com www.amana-hac.com RP-775A... - Page 5 Cabinet Assy Ref. Part Ref. Part Description: Description: Image 1: 0270A00655PDG Wrapper Assy, Painted (M1) 0270A00689PDG Wrapper Assy, Painted (M2, M3) 0270A00690PDG Wrapper Assy, Painted (M4, M5, M6, M7, M8, M9) 0121A00373PDG Plate, Upper tie, Painted (M1) 0121A00374PDG Plate, Upper tie, Painted (M2, M3) 0121A00375PDG Plate, Upper tie, Painted (M4, M5, M6, M7, M8, M9) 0121A00248PDG...
- Page 6 Control Panel / Coil Tubing www.goodmanmfg.com www.amana-hac.com RP-775A...
- Page 7 Control Panel / Coil Tubing Ref. Part Ref. Part Description: Description: Image 1: B1141643 TRANSFORMER 208/230, 24V PCBJA101 PCB, CONTROL, AIR HANDLER 0259A00012P WIRE ASSY, 9 PIN FEMALE CONN. 0259A00016 WIRE HARNESS Image 2: 0161A00026 DRAIN PAN (M1) 0161A00027 DRAIN PAN (M2, M3) 0161A00028 DRAIN PAN (M4, M5, M6, M7, M8, M9) 0162A00062...
-
Page 8: Blower Components
Blower Components www.goodmanmfg.com www.amana-hac.com RP-775A... - Page 9 Blower Components Ref. Part Ref. Part Description: Description: Image 1: 0131M00272 MOTOR, 1 HP, SERIAL ECM (M8, M9) 0131M00270 MOTOR, 1/2 HP, SERIAL ECM (M1, M2) 0131M00271 MOTOR, 3/4 HP, SERIAL ECM (M3, M4, M5, M6, D6723311 BLOWER WHEEL (M8, M9) BT1368008 BLOWER WHEEL 10 X 6 (M1) B1368058...
