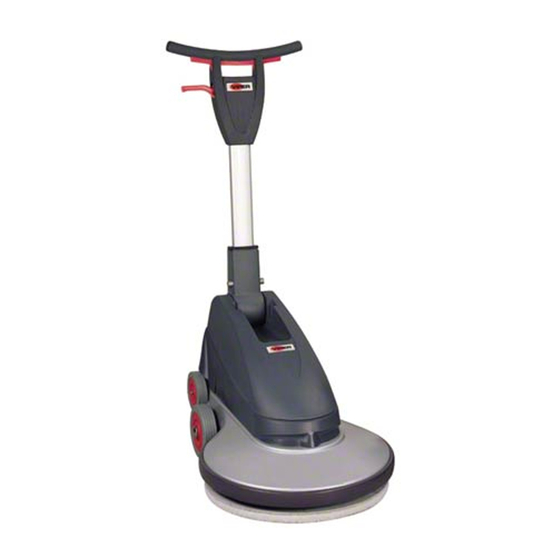

VIPER
DRAGON SERIES
HIGH SPEEDS
www.viperind.com
OWNERS MANUAL
IMPORTANT: READ OWNERS MANUAL CAREFULLY
Please fill out & return your warranty card!
DR1500H
MODEL#
SERIAL#
VIPER INDUSTRIAL ESTATE
VIPER ...exceptional
LIANG BIAN,LIAO BU
value
DONG GUAN,GUANG DONG
CHINA
TEL : 86 769 83283988
REV.00(05-07)
FAX: 86 769 83283018
VF41528HK
Advertisement
Related Manuals for Viper DRAGON Series
Summary of Contents for Viper DRAGON Series
- Page 1 VIPER DRAGON SERIES HIGH SPEEDS www.viperind.com OWNERS MANUAL IMPORTANT: READ OWNERS MANUAL CAREFULLY Please fill out & return your warranty card! DR1500H MODEL# SERIAL# VIPER INDUSTRIAL ESTATE VIPER ...exceptional LIANG BIAN,LIAO BU value DONG GUAN,GUANG DONG CHINA TEL : 86 769 83283988 REV.00(05-07)
-
Page 2: Table Of Contents
CONGRATULATIONS on your purchase of a Viper product, and welcome to the V.I.P. family. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties the industry. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS !!! This machine must be grounded! 2) Before operating machine: Grounding provides the path of least - Make sure all safety devices are resistance for electrical current. To in place and operate properly. reduce the risk of electrical shock should the machine malfunction, the 3) When using machine: machine has a special grounding plug. -
Page 4: Machine Operation
Operation of High Speed Floor Machine * Read operators manual thoroughly prior to operating or servicing this machine. GENERAL USE MAINTENANCE 1] Remove any obstructions or other To keep the machine performing well for obstacles in the area which is to be many years, please follow the following cleaned. -
Page 5: Parts List
PARTS LIST HANDLE GROUP FOR DR1500H... - Page 6 HANDLE GROUP FOR DR1500H PART DESCRIPTION NUMBER REQ'D VF14105 SCREW, M8 x 12 VF13515 WASHER, PLAIN VF52112 SPRING, RIGHT VF52113 AXLE VF47009 FRONT COVER,SEAT,GEAR VF47029 SEAT,GEAR VF52016 GEAR GV40227 WASHER,NYLON GV40228 "O" RING,GEAR SEAT VF52111 SPRING, LEFT VF50120 GROMMET VF47015 REAR COVER,SEAT,GEAR VF14080 SELF-TAPPING SCREW,M4x25...
- Page 7 LEVELING HANDLE, RIGHT, SWITCH VF48306 PIN, LEVER GT13014 NUT, M4, NYLON INSERT VF46707 LEVELING HANDLE,ROD BIG WASHER, PLAIN, φ4 xφ16 GT13017 VF46706 HANDLE GRIP VF46701 FRONT COVER,HANDLE HOUSING VF47035A "VIPER" LOGO WASHER,PLAIN, φ6 VF13600 VF13502 NUT,M6,NYLON INSERT VF45120 CABLE,HANDLE, SJTW 14/3C...
- Page 8 PARTS LIST BASE GROUP FOR DR1500H...
- Page 9 BASE GROUP FOR DR1500H PART DESCRIPTION NUMBER REQ'D VF52102A UPPER COVER VF47035A "VIPER" LOGO VA13484 SELF-TAPPING SCREW,M4x12 VF52114 PLASTIC STAND,RIGHT VF52115 PLASTIC STAND,LEFT VF52101A LOWER COVER VV20509 SCREW,M5x10,PH VF13503 NUT,M8,NYLON INSERT VF13524 WASHER,PLAIN VF52104A RIGHT,ARM VF52103A LEFT,ARM VF47026 SEAL,UPPER COVER...
- Page 10 BASE GROUP FOR DR1500H PART DESCRIPTION NUMBER REQ'D VF14005 NUT,M10 VF52008 SPACER VF52009D DRIVING PULLEY RETAINING RING,EXTERNAL, φ19 VF14004 WASHER, φ19 VF50123 WAVING WASHER, φ19 VF47027 VF47055 WHEEL,160mm VA96851 CAP,AXLE VF52021 WASHER,PLAIN GT13018 HEX SCREW,M8x30 VF99003A BIG MOUTH VF99024D PAD HOLDER VF14079 BELT, 43"...
-
Page 11: Wiring Diagram
Wiring Diagram DR1500H Motor...
