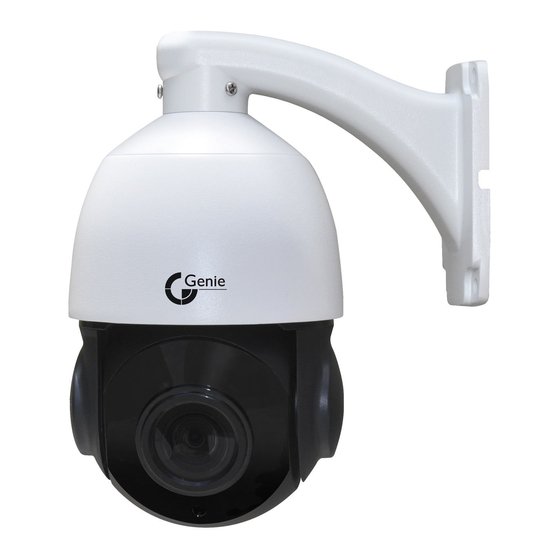

- Page 1 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket GAHD18IRPTZ User Manual Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Intro Section CAUTION: • During transport and installation process, prevent weight, severe vibration and water damage to the product. • Please do not disassemble the zoom camera. • For power supply cable, video cable and control cable, please adopt shielded cable and independent wiring and do not mix with other cables.
-
Page 3: Table Of Contents
Contents 1.0 Introduction ......................4 1.1 Product Features ...................4 1.2 Speed Dome Parameter ................4 1.3 Product Dimensions ..................5 2.0 Installation ......................6 2.1 Installation Instructions ................6 2.2 Installation Method ..................6 2.3 Baud Rate Set-up ..................9 2.4 ID Set-up ......................9 2.5 Power Supply and Control Cable Connection ...........10 2.6 Connection Method ..................10 2.7 Cabling Mark Instruction ................10 2.8 Typical Application Wiring Diagram ............10... -
Page 4: Introduction
1.0 Introduction 1.1 Product Features • 18x optical zoom • IP66 ingress protection • 60m IR distance (in ideal conditions) • RS485 PTZ control • Supports auto iris, electronic shutter, automatic white balance, backlight compensation • 6 piece infrared lights •... -
Page 5: Product Dimensions
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 1.3 Product Dimensions Unit: mm 208. 0 136. 1 136. 1 136. 1 154. 0 80. 0 130. 0 62. 0 120. 0 30. 9... -
Page 6: Installation
2.0 Installation 2.1 Installation Instructions Before installation • In order to prevent any trouble with installation, it should be done by a professional. • Confirm all spare-parts are there, ensure the application of this camera and installation mode is suitable for requirement. •... - Page 7 User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket Step 3 - Unscrew the 2pcs screws used to fix the ransparent cover for DIP switch Use the screwdriver to open 2pcs screw which are used to fix the transparent cover for DIP switch, then move transparent cover from speed dome camera.
- Page 8 User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket Step 8 - Fix PTZ camera on wall To esnure the product is water-resistant, first install rubber seals on wall mount bracket, and lead the cable out from the wiring port, then fix it onto the wall by using 4 screws.
-
Page 9: Baud Rate Set-Up
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 2.3 Baud Rate Set-up Baud rate and corresponding DIP status as below: Baud Rat e 2400bps 4800bps 9600bps Automatic identify RS485 control bus needs all devices that connect to it in parallel mode, and each end of the system shall be connected to a 120ohm resistor. -
Page 10: Power Supply And Control Cable Connection
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 2.5 Power Supply and Control Cable Connection Power Supply Connection Note: Please check rated voltage and power supply carefully, rated voltage and current as below: Control Line Connection Connect RS485 line to keyboard controller or DVR, if there is more than one that needs to be controlled by keyboard or DVR, please connect it in parallel. -
Page 11: Basic Operation
3.0 Basic Operation As there are different system platforms, specific operation method is not the same, subject to manufacturer’s manual, different situations have special requirements and operation methods. Please contact distributor to obtain necessary information and only introduce this control method when connected with a universal keyboard controller. 3.1 Power On Self-Test After powering on the camera, it will action in pan and tilt direction automatically, through self-test to confirm the camera is working normally. -
Page 12: Function By Preset
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 3.4 Function by Preset Adopting the method of a double-layer preset can be achieved through all the functions of the camera by preset call, Specific correspond <<Preset Function Table of General Function>>and <<Preset Function of Specific Function>>. - Page 13 User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket...
- Page 14 User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket Remark: Preset 35 could run Patrol 1, Default Preset Point No.1~No.8...
-
Page 15: Patrol Setting
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 3.5 Patrol Setting Start patrol order “set preset 92+ call corresponding preset of patrol number”, then add preset “call preset”, every patrol path can add Max. 32 presets. After adding, save the setting by “set preset 92 + call preset 9”. -
Page 16: Faq's And General Info
4.0 FAQ’s and General Info 4.1 FAQ’s 4.2 Cleaning the Transparent Cover In order to keep the image clear, the cover needs to be cleaned. When clear, please be careful and avoid touching the transparent cover directly. Any scratches of the flint on the transparent cover will lead to a foggy image, affecting the image quality. -
Page 17: Lightning And Surge Protection
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 4.3 Lightning and Surge Protection When placing outside, you need to consider lightning and surge protection. To guarantee electrical safety, we can take following measures: • At least keep 50m distance between signal transmission line and high voltage equipment or high voltage cable. -
Page 18: Rs485 Bus Wiring
User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket 4.4 RS485 Bus Wiring RS485 bus basic characteristic RS485 industry bus is characteristic impedance 120Ω half-duplex communication bus according to RS485 industry bus standard. RS485 bus transmission distance When using 0.511mm (24AWG) screen twisted pair cable as communication cable. - Page 19 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
