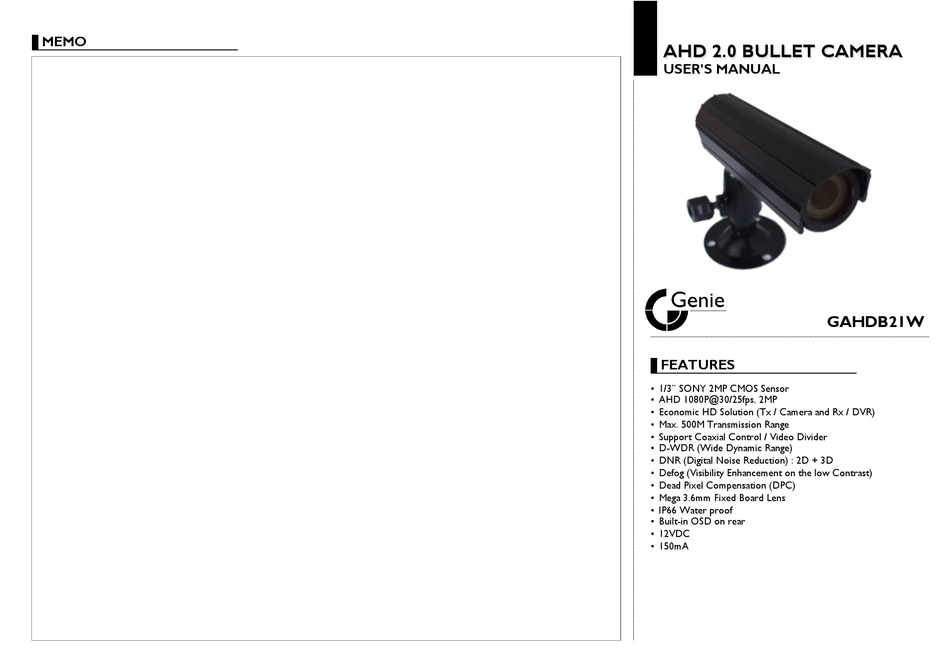

MEMO

AHD 2.0 BULLET CAMERA

USER'S MANUAL

GAHDB21W

FEATURES

•  1/3" SONY 2MP CMOS Sensor

•  AHD 1080P@30/25fps, 2MP

•  Economic HD Solution (Tx / Camera and Rx / DVR)

•  Max. 500M Transmission Range

•  Support Coaxial Control / Video Divider

•  D-WDR (Wide Dynamic Range)

•  DNR (Digital Noise Reduction) : 2D + 3D

•  Defog (Visibility Enhancement on the low Contrast)

•  Dead Pixel Compensation (DPC)

•  Mega 3.6mm Fixed Board Lens

•  IP66 Water proof

•  Built-in OSD on rear

•  12VDC

•  150mA

Page 1 MEMO AHD 2.0 BULLET CAMERA USER’S MANUAL GAHDB21W FEATURES •  1/3” SONY 2MP CMOS Sensor •  AHD 1080P@30/25fps, 2MP •  Economic HD Solution (Tx / Camera and Rx / DVR) •  Max. 500M Transmission Range •  Support Coaxial Control / Video Divider • ...
Page 2: Specifications
PRECAUTIONS NAME OF EACH PART DIMENSION •  Do not install the camera in extreme temperature conditions. - Only use the camera under conditions where temperatures are between -10℃ and +50℃. Be especially careful to provide ventilation when operating under high temperatures. • ...
