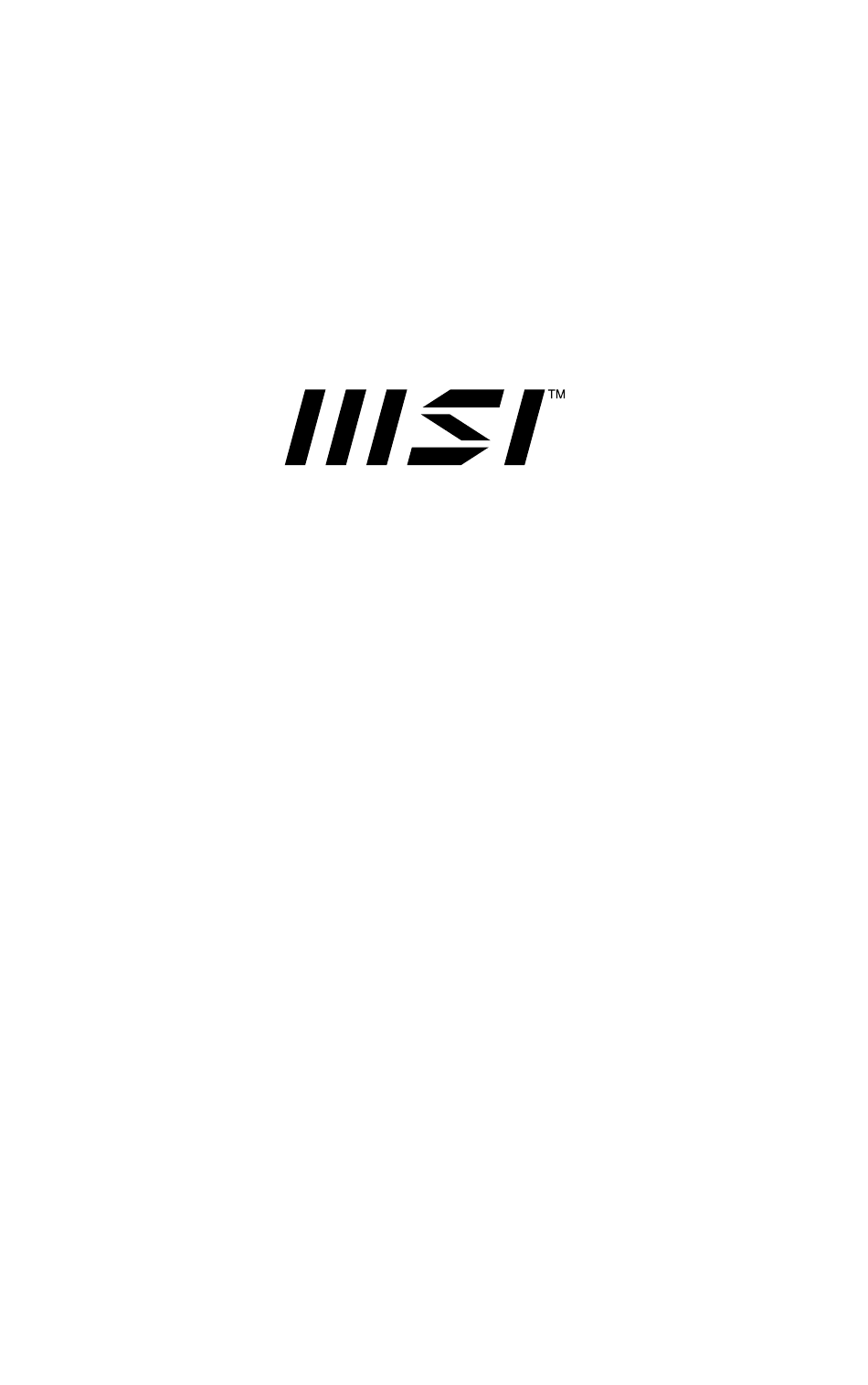

- Page 1 PRO Series LCD Monitor PRO MP242C (3PB0) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP242C Documentation Quick Start Guide Power Cord Accessories Power Adapter... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove. 2. Push the stand towards the monitor groove until it locks in place. 3. Connect the base to the stand to secure the base. 4. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. ∙ -7° +22° Getting Started... -
Page 6: Monitor Overview
Monitor Overview Getting Started... - Page 7 Power LED Lit in blue after the monitor is turned on. If no signal input, the LED will turn into flicker blue. LED goes off when the monitor is turned off. Power Button & Navi Key Kensington Lock Power Jack HDMI Port D-Sub Port (VGA) Line-in Jack (AUDIO-IN)
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 10: Osd Menus
OSD Menus Picture 1st Level Menu 2nd/3rd Level Menu Description Modes User ∙ Default is Standard. ∙ Use Left or Right Key to select and Standard preview mode effects. ∙ Press the Enter Key to confirm and apply your mode type. Graphics Movie Brightness... -
Page 11: Color
1st Level Menu 2nd/3rd Level Menu Description Low Blue Light ∙ Default is Off. ∙ Low Blue Light protects your eyes against blue light. When enabled, Low Blue Light adjusts the screen color temperature to a more yellow glow. ∙ Low Blue Light will be OFF when HDCR is enabled. -
Page 12: Audio
1st Level Menu 2nd/3rd Level Menu Description Color Temp. Normal ∙ Default is Warm. ∙ User Mode R/G/B Gain Default is Warm Cool ∙ Use Left or Right Key to select and preview mode effects. User R Gain ∙ Press the Enter Key to confirm 0-100 and apply your mode type. - Page 13 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ Default is off. ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out. ∙ MPRT and HDCR cannot be enabled simultaneously. ∙ The MPRT will be disabled and grayed out when the refresh rate is lower than 75Hz.
- Page 14 1st Level Menu 2nd/3rd Level Menu Description Language English ∙ Users have to press the Enter Key to confirm and apply the Русский Language setting. Deutsch Français Español Italiano Hollands Finnish Turkish Polish Portuguese Brazilian Portuguese 繁體中文 简体中文 日本語 한국어 OSD Timeout 10-120 ∙...
-
Page 15: Information
Information 1st Level Menu 2nd Level Menu Description Main Source ∙ Display Main Source information. Resolution ∙ Display Resolution information. H/V Frequency ∙ Display H/V Frequency information. Mode ∙ Display FreeSync status information. Series Number ∙ Display Series Number information. Reset All Settings ∙... -
Page 16: Specifications
Specifications Model PRO MP242C Size 23.6 inch 1500R Curvature Panel Type Resolution 1920 x 1080 Aspect Ratio 16:9 Brightness (nits) 250 (typ.) 3000:1 Contrast Ratio Refresh Rate 75Hz Response Time 1ms (MPRT) ∙ Power Jack x1 ∙ HDMI Port x1 ∙... - Page 17 Model PRO MP242C Adjustment (Pivot) Kensington Lock ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x D x H) 539.8 x 203 x 414.1 mm Weight 2.95 Kg (net) / 4.39 Kg (gross)
-
Page 18: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. PRO MP242C Standard Resolution HDMI 640x480 @60Hz @72Hz @75Hz 640x480 @66.66Hz VESA 720x400 @70Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 832x624 @74.55Hz 1024x768 @60Hz @70Hz @75Hz 1152x870 @75Hz VESA... - Page 19 PRO MP242C Video Timing Mode Resolution HDMI 480P 640x480P @60Hz 720x480P @60Hz 576P 720x576P @50Hz 720P 1280x720P @50Hz 1280x720P @60Hz 1080P 1920x1080P @50Hz 1920x1080P @60Hz Preset Display Modes...
-
Page 20: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 21: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 22 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 23: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 24: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 25 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 26 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
