Summary of Contents for MSI PRO MP223

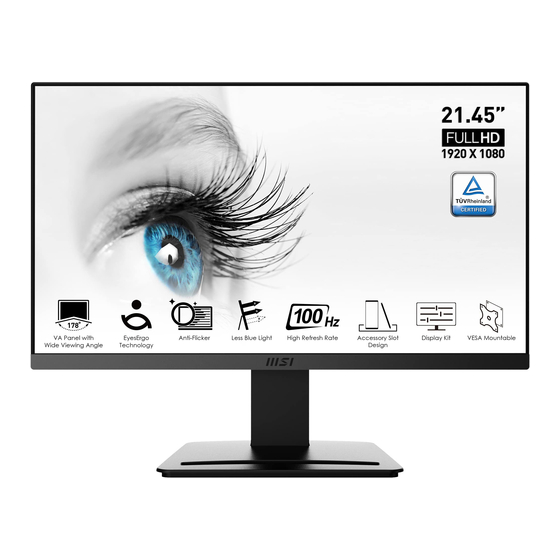

- Page 1 PRO Series LCD Monitor PRO MP223 (3PB9) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 OSD Keys ........................ 9 OSD Menus........................11 Professional ...................... -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP223 Documentation Quick Start Guide Accessories Stand... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. 3. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. 20° -5° Getting Started... -
Page 6: Monitor Overview
Monitor Overview OSD Keys Power Button Cable Organizer Kensington Lock Power Jack Getting Started... - Page 7 HDMI™ Connector Supports 1920x1080@100Hz as specified in HDMI™ 1.4b. D-Sub Port Supports 1920x1080@60Hz. Headphone Jack Getting Started...
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. - Page 10 OSD Keys Hot Key (When OSD is OFF) OSD Setup (When OSD is ON) ∙ Activating the OSD Main Menu ∙ Returning to the previous menu ∙ Exiting from the OSD Main Menu ∙ Used as the Up/Right button to select function menus and items ∙...
-
Page 11: Osd Menus
OSD Menus Press the M key to launch the On-Screen Display (OSD) main menu and use the OSD keys to tune the desired function to suit your personal preferences. Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Up or Down Button to select and preview mode effects. - Page 12 1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the E Button to confirm and Right Top apply your Refresh Rate Location. Left Bottom ∙ This monitor follows and works at the Operating System’s preset Screen Right Refresh Rate.
-
Page 13: Image
1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status »... -
Page 14: Input Source
1st Level Menu 2nd/3rd Level Menu Description Color Cool ∙ Use Up or Down Button to select and Temperature preview mode effects. Normal ∙ Press the E Button to confirm and Warm apply your mode type. Customization R (0-100) G (0-100) B (0-100) Clock 0-100... -
Page 15: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description Enter ∙ All Navi Key items can be adjusted via OSD Menus. Brightness Down Mode Alarm Clock Input Source Refresh Rate Info. On Screen Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文... - Page 16 1st Level Menu 2nd Level Menu Description HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ∙ If HDMI™ CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 17: Specifications
Specifications Monitor PRO MP223 Size 21.45 inch Curvature Flat Panel Type Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightness (nits) 250 cd/m2 (TYP) Contrast Ratio 3000:1 Refresh Rate 100Hz Response Time ∙ 1ms (MPRT) ∙ 4ms (GTG) ∙ HDMI™ Connector x1 ∙... - Page 18 Monitor PRO MP223 Environment Operating ∙ Temperature: 0℃ ~ 40℃ ∙ Humidity: 20% ~ 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙ Temperature: -20℃ ~ 60℃ ∙ Humidity: 10% ~ 90%, non-condensing * Based on CIE1976 test standards. Specifications...
-
Page 19: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Resolution HDMI™ D-Sub 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+... -
Page 20: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 21: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 22 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 23: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 24: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 25 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 26 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
