- Page 1 BATTERY CHARGER TRC 4 A1 BATTERY CHARGER Operation and safety notes IAN 321887_1904...
- Page 2 GB / IE / NI Operation and safety notes Page...
-
Page 5: Table Of Contents
List of pictograms used ..Page 7 Introduction ....Page 8 Intended use ...... Page 9 Part description ....Page 10 Technical data ....Page 10 Included items ....Page 12 General safety instructions ....Page 13 Safety instructions for rechargeable batteries.. - Page 6 Handling and operation ....... Page 26 Charging rechargeable batteries ......Page 26 Charging your USB device ... Page 28 Bad cell / Short circuit protection ......Page 30 Cleaning and care ... Page 33 Cleaning the housing ..Page 34 Troubleshooting ..
-
Page 7: Pictograms Used
List of pictograms used This symbol means that the operating instructions must be observed when using the product. Only use the product in dry indoor rooms. Volt (alternating voltage) Hertz (frequency) Protection class II. The power adaptor has a double insulation. Observe the warnings and safety instructions! Direct current... -
Page 8: Introduction
Battery charger Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concern- ing safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. -
Page 9: Intended Use
Intended use This product is intended exclusively for non-commercial use in the charging of rechargeable Ni-MH batteries (AA / AAA) with standard rated capacities and charging of battery-operated products with a USB interface, such as MP3 Player or smart phone. Any other use or uses beyond those men- tioned are considered to be unintended use. -
Page 10: Part Description

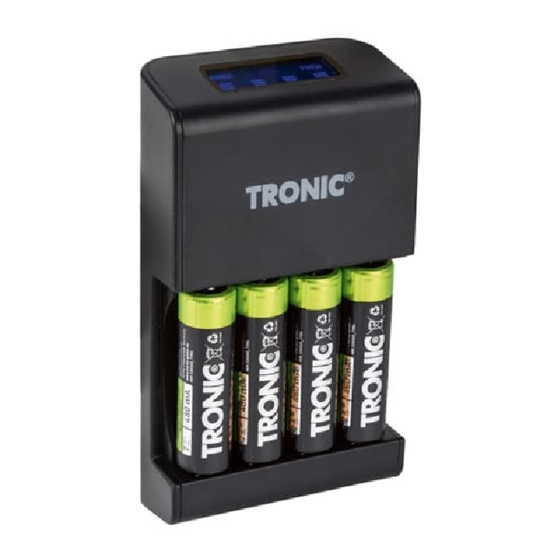

Part description Loading slots for type AA / AAA USB output Display Technical data Input voltage: 100–240 V∼ (alternating current) 50 / 60 Hz Power consumption: 14 W Protection class: II / (The power adaptor has a double insulation.) Operating temperature: 0 °–30 °C Storage... - Page 11 Humidity (no condensation): 5–80 % Output voltages: 4 x 1.5 V (Loading slots 1–4) Charge currents: 4 x 450 mA (Type AA) or 4 x 200 mA (Type AAA) Maximum assessment capacity: AAA: 1000 mAh AA: 2700 mAh USB 2.0 output: 5 V, 1000 mA Measurements (W x H x D):...
-
Page 12: Included Items
Included items 1 Battery charger 4 Ni-MH rechargeable batteries (Type AA Mignon, Ni-MH, 1.2 V, 2400 mAh, HR6, HRMR 15/51, gastight) for Model A 4 Ni-MH rechargeable batteries (Type AAA Micro, Ni-MH, 1.2 V, 900 mAh, HR03, HRMR 11/45, gastight) for Model B 1 Operating manual 12 GB/IE/NI... -
Page 13: General Safety Instructions
General safety instructions BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS! GB/IE/NI... - Page 14 WARNING! Packag- ing material should not be used as a play thing. There is a risk of suffo- cation! Before use check the product for visible ex- ternal damage. Do not put into operation a product that is damaged or has been dropped. If the power plug is damaged, it must be 14 GB/IE/NI...
- Page 15 replaced by a qualified persons in order to avoid a hazard. This product may be used by children aged 8 over and by persons with reduced physical, sensory or mental capa- bilities or lack of expe- rience and knowledge, provided that they are under supervision or have been told how to use of the product safety...
- Page 16 and are aware of the potential risks. Children must not play with the product. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised. Do not make any changes or modifications to the product yourself. Protect the product from moisture and liquid pen- etration.
- Page 17 the product in water, do not place the product in the vicinity of water and do not stand any object filled with liquid (i.e. vases) on the product. Do not operate the product in the vicinity of open flames (e.g. candles).
-
Page 18: Rechargeable Batteries
Safety instructions for rechargeable batteries DANGER TO LIFE! Keep rechargeable batteries out of reach of children. If acciden- tally swallowed seek immediate medical at- tention. DANGER OF EXPLOSION! 18 GB/IE/NI... - Page 19 Never recharge non- rechargeable batteries. Do not short-circuit re- chargeable batteries and / or open them. Overheating, fire or burst- ing can be the result. Never throw recharge- able batteries into fire or water. Never burn or incinerate any battery / Never pierce, attempt to disassemble GB/IE/NI...
- Page 20 or short-circuit / Always observe polarity (+/-) and charging times. Do not exert mechanical loads to rechargeable batteries. Risk of leakage of re- chargeable batteries Avoid extreme environ- mental conditions and temperatures, which could affect rechargeable 20 GB/IE/NI...
- Page 21 batteries, e.g. radiators / direct sunlight. If rechargeable batter- ies have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical at- tention! GB/IE/NI...
- Page 22 WEAR PROTECTIVE GLOVES! Leaked or damaged rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. In the event of a leak- age of rechargeable batteries, immediately 22 GB/IE/NI...
- Page 23 remove them from the product to prevent damage. Only use the same type of rechargeable batter- ies. Do not mix used and new rechargeable batteries. Remove rechargeable batteries if the product will not be used for a longer period. GB/IE/NI...
- Page 24 Risk of damage of the product Only use the specified type of rechargeable batteries! Insert rechargeable batteries according to polarity marks (+) and (-) on the rechargeable battery and the product. Clean the contacts on the rechargeable battery and in the rechargeable 24 GB/IE/NI...
-
Page 25: Initial Use
battery compartment before inserting! Remove defective re- chargeable batteries from the product imme- diately. Initial use Note: Remove all packaging materials from the product. Check the contents to make sure everything is there and for visible damage. Remove the product and the operating instructions from the packaging. -
Page 26: Handling And Operation
Handling and operation WARNING! Do not charge non- rechargeable batteries. Charge only Ni-MH rechargeable battery. Charging rechargeable batteries 1. Insert 1–4 pieces of rechargeable Ni-MH batteries (AA / AAA) into the loading slots . Make correct contact for polarity (+ and -); ac- cording to the sign in the loading slots 2. - Page 27 icon is appeared to represent charging is in progress. 4. The rechargeable battery is fully charged when all the bar inside the LCD become solid. 5. When charging is completed, the “FINISH” will be appeared on the screen. You can remove the charged batteries from the recharge- able battery compartment GB/IE/NI...
-
Page 28: Charging Your Usb Device
6. Unplug and re-plug the product each time when you recharge the empty batteries. 7. The product can simultaneously charge rechargeable batteries and one USB device. Charging your USB device Important: Check for voltage com- patibility with your USB device first. 28 GB/IE/NI... - Page 29 1. Before using, check your USB device’s input voltage and this product’s output voltage if they can match. Make sure the total loading does not exceed the rated output current of this product. 2. Connect your USB device and the USB port of this product via a charging cable.
-
Page 30: Bad Cell / Short Circuit Protection
Bad cell / Short circuit protection The “ERROR” icon is appeared with the corresponding flashing of LCD to indicate the rechargeable battery is either alkaline rechargeable battery or the rechargeable battery is not suit- able for charging. Please remove the rechargeable battery from the loading slots 30 GB/IE/NI... - Page 31 Calculating the average charging time Depending on the type, age and remaining charge in the batteries, the charging process can take various lengths of time. The average charge time can be calculated using the fol- lowing formula. Take note however that the times given are only guiding values.
- Page 32 (“Minus Delta V”) calculation. In math- ematics, with Delta Δ differences are indicated. In this case, “Minus Delta V” means a negative voltage difference. This charge identification makes itself useful in the following effects: Should a rechargeable battery be charged with a constant current, its voltage rises continuously.
-
Page 33: Cleaning And Care
counteracts the selfdischarge and the batteries are kept in a state of full charge. Timer control In addition, this product has a timer control which automatically switches over to retention charging after 7 hours. This serves as an additional protection against overcharging should the charge termination not respond due to a pos- sibly defective rechargeable battery. -
Page 34: Cleaning The Housing
it, so as to avoid irreparable dam- age to it. IMPORTANT! Do not use aggressive or abrasive cleaning agents, as these can damage the upper surfaces. Cleaning the housing Clean the surfaces of the product with a soft, dry cloth. For stubborn soiling use a lightly moistened cloth. -
Page 35: Troubleshooting
Troubleshooting = Problem = Cause = Solution = The product is not functioning. = Mains power socket is not supplying power. = Check the circuit fuse. = The inserted rechargeable batteries are not being charged. = The rechargeable batteries are not inserted as per their polarity. -
Page 36: Disposal
= Insert the batteries as per their polarity (see marking in the charging slot). = The inserted rechargeable batter- ies are not suitable for charging. = Insert exclusively rechargable Ni-MH rechargeable batteries of the types AA / AAA / batteries. Disposal The packaging is made entirely of re- cyclable materials, which you may... - Page 37 marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre- board / 80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
- Page 38 has reached the end of its useful life and not in the household waste. Infor- mation on collection points and their opening hours can be obtained from your local authority. Faulty or used batteries / rechargeable batteries must be recycled in accord- ance with Directive 2006/66/EC and its amendments.
- Page 39 Environmental damage through incorrect dis- posal of the batteries / rechargeable batteries! Batteries / rechargeable batteries may not be disposed of with the usual do- mestic waste. They may contain toxic heavy metals and are subject to haz- ardous waste treatment rules and regulations.
-
Page 40: Warranty
Warranty The product has been manufactured to strict quality guidelines and meticu- lously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. - Page 41 The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manufacture.
-
Page 42: Warranty Claim Procedure
Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase. You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom... -
Page 43: Service
that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: owim@lidl.co.uk Service Ireland Service Northern Ireland Tel.: 1890 930 034 (0,08 EUR / Min.,... - Page 44 OWIM GmbH & Co. KG Stiftsbergstraße 1 74167 Neckarsulm GERMANY Model no.: HG04710A-BS / HG04710B-BS Version: 11 / 2019 Last Information Update: 09 / 2019 Ident.-No.: HG04710A-BS / B-BS092019-GB / IE / NI IAN 321887_1904...
