5.9 Shipping Screws Installation

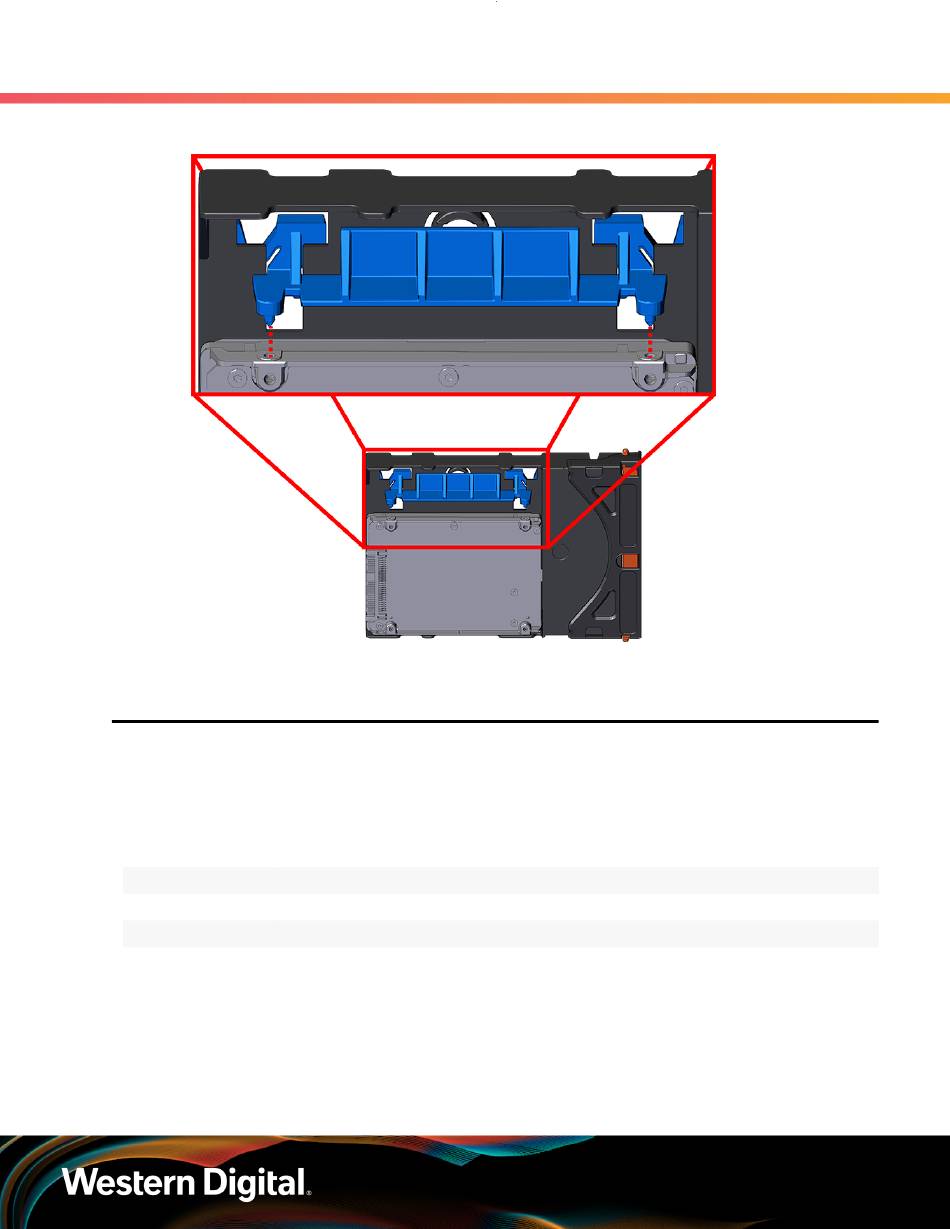

Figure 64: Clamp Pins (clamp shown in blue for visual clarity)
5.9 Shipping Screws Installation
This procedure provides instructions for securing an Ultrastar Data102 to the rack for shipping.
Before you begin: Complete the instructions in Drive Installation (page 70).
Table 41: Installation Requirements
Tool(s): Long T15 Torx Screwdriver
Part(s): M5 x 12mm T15 Flat Head Torx screws
Person(s): 1
Time: 5 minutes
Step 1 : If the chassis is being installed into a rack that will be shipped fully assembled, you must install
eight (four per side) of the included M5 x 12mm T15 Flat Head Torx screws into the two brackets
at the front of the chassis in the following locations. These screws should be tightened to
3.38-3.61 Nm / 30-32 in-lbf using a Long T15 Torx Screwdriver. If this chassis will not be installed
into a rack for shipping purposes, skip this step and move on to the next one.
