DIP Switch Setting
TEST Mode
Write Command
Memory
Manipulation
(Power ON)
Write command 1
Repeat command
Read command
Repeat command
Write command 2

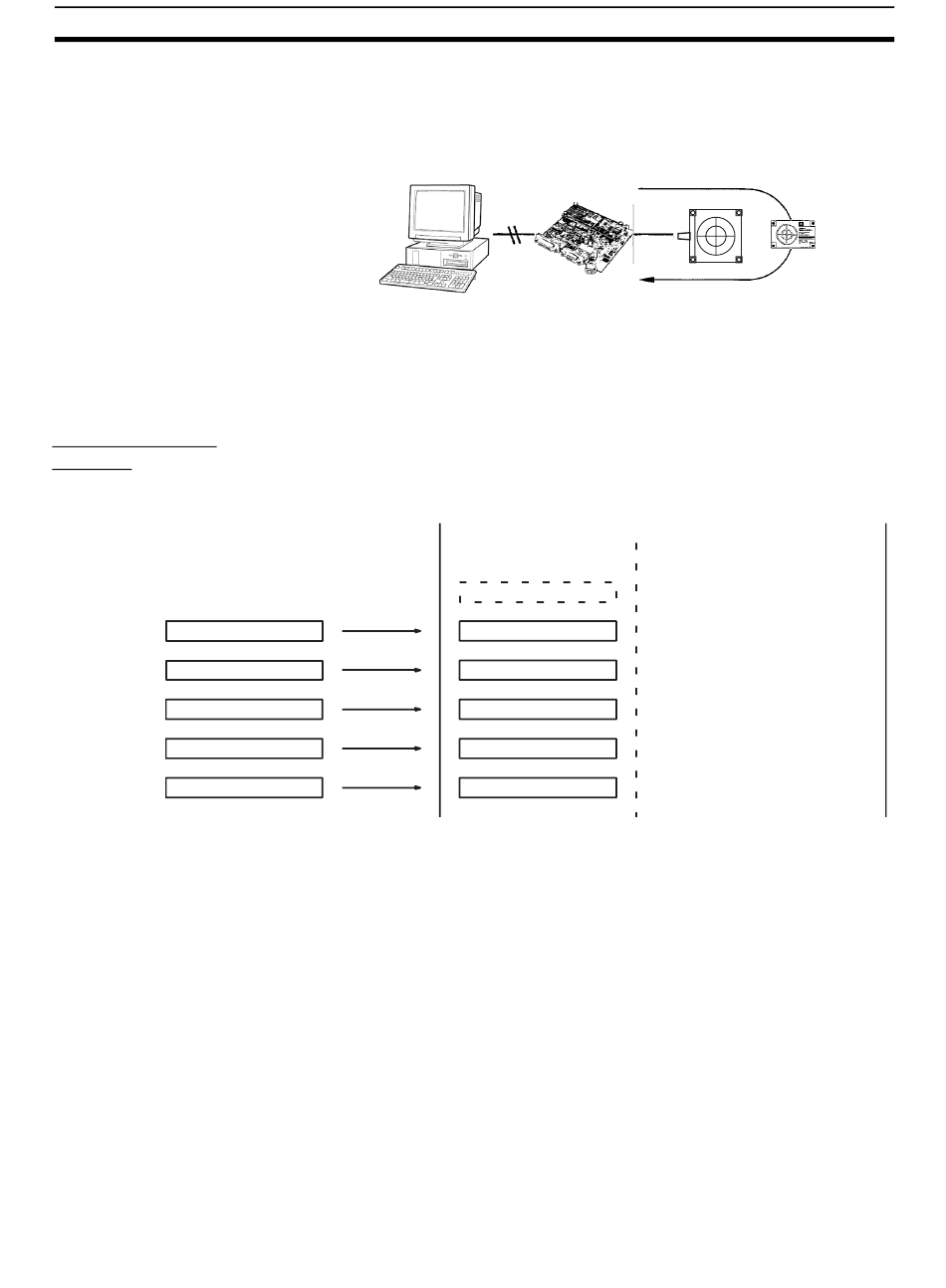

Communications testing can be conducted between the ID Controller and a
DC in the off-line state. The ID Controller repeatedly communicates with a DC
at 1-second intervals. During communication with the DC, the HEAD Indicator
lights. When the processing has been completed, an end code, which is the
result of the processing, is displayed on the monitor.
Host controller
In the TEST Mode, two kinds of tests can be conducted: Read and Write
Tests. The Read Test repeatedly reads 1-byte data, while the Write Test
repeatedly writes 1-byte data. At this time, however, the contents of the DC's
data have not changed. Use this TEST Mode for initial checking of the sys-
tem.
A write command executed by this Controller is recorded until either the next
write command or the Power reset is executed. The write commands of the
Controller include write, auto write, and polling write commands. The
recorded write command can be executed by a repeat command.
Memory contents
Write command 1
Write command 1
Write command 1
Write command 1
Write command 2
ID Controller
ID Controller
Operation
(Memory initialization)
Execution of Write command 1
Execution of Write command 1
Execution of Read command
Execution of Write command 1
Execution of Write command 2
