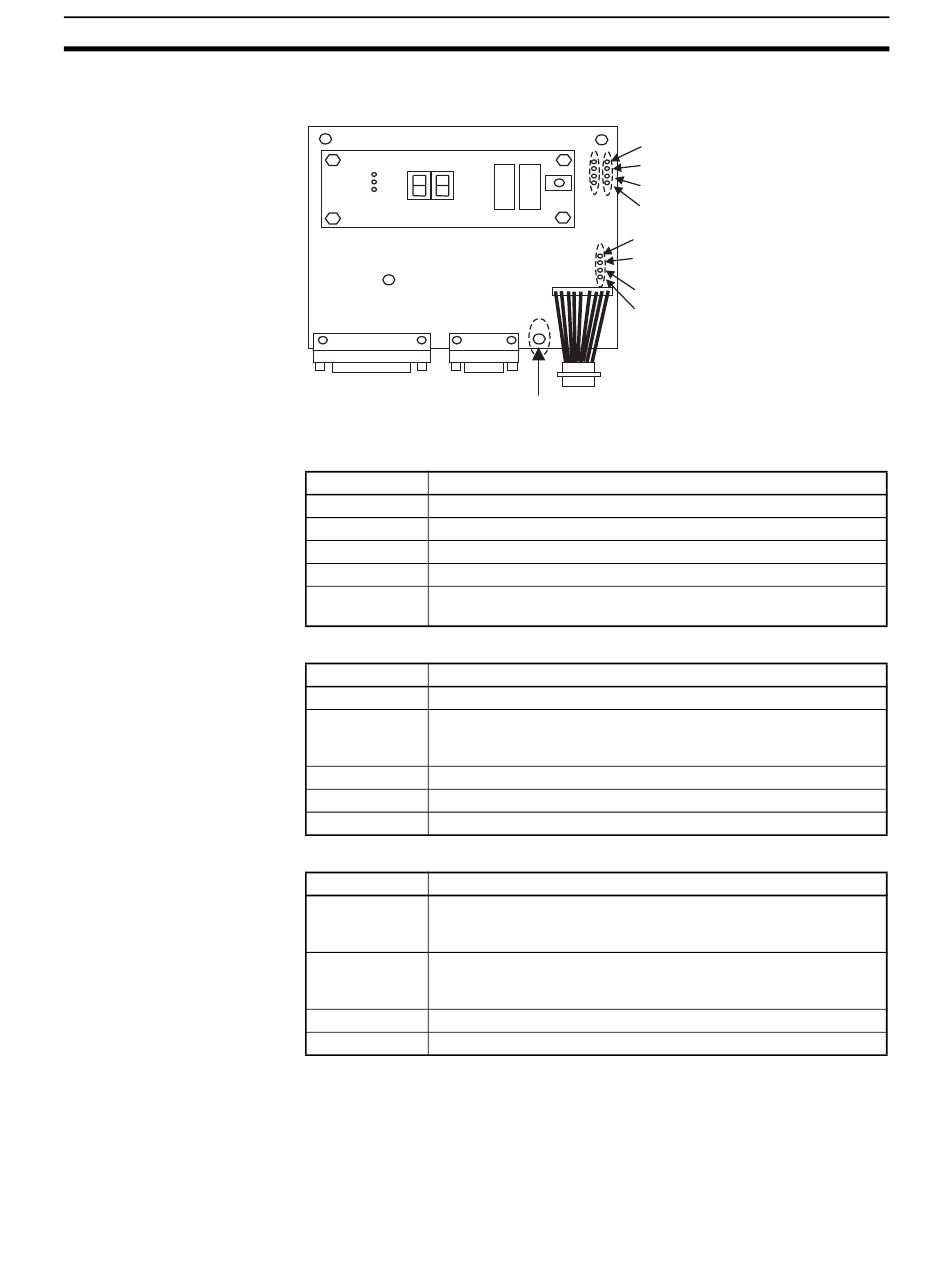

Names and Functions of Parts
Power Supply
External Input Terminals
External Output Terminals
R/W Head Connector
RS-232C Interface
Connector
V600-CM1D needs both 24 VDC and 5 VDC power supply. And please con-
nect one of the below power terminals as (1), (2) and (3).
Through holes as (1), (2) and (3) are connected one another on the circuit
substrate.
Pin No.
1
24 VDC supply
2
GND for 24 VDC
3
5 VDC supply
4
GND for 5 VDC
5
Protective conductor terminal. Connect a ground line grounded at
less than 100 Ω.
Name
RESET
External reset input for emergency stop.
TRIG
Trigger input informing the Controller of the processing start time of
the DC. The conditions under which this input signal is to be issued
can be set by the DIP switch.
IN1
User input 1 that can be manipulated by a command.
IN2
User input 2 that can be manipulated by a command.
COM
COM Common input terminal.
Name
RUN
Turns ON when the ID Controller operates normally and can com-
municate with the host controller. This signal is turned OFF in the
test mode.
CMPL
Turns ON when communications with the DC have been com-
pleted, and turns OFF when transmission of a response has
started.
OUT1
User output 1 that can be manipulated by a command.
OUT2
User output 2 that can be manipulated by a command.
Connects the R/W Head (R/W Antenna).
Connector for communications with the host computer. Conforming to RS-
232C, this connector can be connected to a general-purpose factory com-
puter or personal computer.
No.4
No.3
No.2
(1) (2)
No.1
(3)
No.4
No.3
No.2
No.1
No.5
Function
Function
Function
Section 2-1
