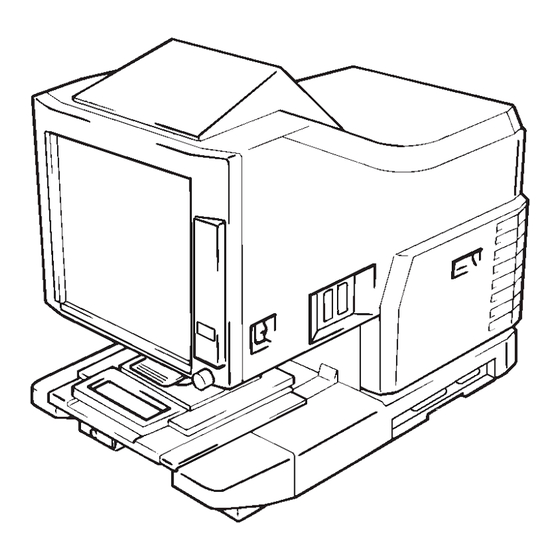

Konica Minolta MS6000 MKII User Manual

Konica minolta scanner user's guide ms6000 mkii
Hide thumbs
Table of Contents

Advertisement

Quick Links

MS6000 MKII

User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Konica Minolta MS6000 MKII

Summary of Contents for Konica Minolta MS6000 MKII

  • Page 1: Ms6000 Mkii

    MS6000 MKII User's Guide...

  • Page 3: Energy Star

    Only the setting of “Auto Power Save (15 min.)” complies with the Energy Star standard. For USA and Canada only: The Auto Power Save function becomes available for setting only if the Energy Star Kit is mounted on the Scanner.

  • Page 4: Safety Information

    SAFETY INFORMATION This section contains detailed instructions on the operation and maintenance of this machine. To achieve optimum utility of this device, all operators should carefully read and follow the instructions in this manual. Please keep this manual in a handy place near the machine.
  • Page 5 P-iii SAFETY INFORMATION • Do not modify this product, as a fire, electrical shock, or break- down could result. If the product employs a laser, the laser beam source could cause blindness. • Do not attempt to remove the covers and panels which have been fixed to the product.
  • Page 6 Do not place a flower vase or other container that contains water, or metal clips or other small metallic objects on this product. Spilled water or metallic objects dropped inside the product could result in a fire, electrical shock, or breakdown. Should a piece of metal, water, or any other similar foreign matter get inside the product, immediately turn OFF the power switch, unplug the power cord from the power outlet, and then call your...
  • Page 7 SAFETY INFORMATION • Do not use flammable sprays, liquids, or gases near this product, as a fire could result. • Do not leave a toner unit or drum unit in a place within easy reach of children. Licking or ingesting any of these things could injure your health.
  • Page 8 • Always use this product in a well ventilated location. Operating the product in a poorly ventilated room for an extended period of time could injure your health. Ventilate the room at regular intervals. • Whenever moving this product, be sure to disconnect the power cord and other cables.
  • Page 9 P-vii SAFETY INFORMATION Do not touch or scratch the surface of the toner unit developing roller and the PC drum, as poor image quality could result. Use the supplies and consumables recommended by the dealer. Use of any supply or consumable not recommended could result in poor image quality and breakdown.
  • Page 10 Welcome This User’s Guide explains how to operate the unit and replenish its supplies. It also gives some troubleshooting tips as well as general precautions to be observed when operating the unit. To ensure the best performance and effective use of your unit, read this User’s Guide carefully until you familiarize yourself thoroughly with the unit's operation and features.
  • Page 11 Notes to Operators and Key Operators The following safety rules should be observed: [1] The unit should be kept free from moisture, dirt, dust and exposure to heat and direct sun- light at all times. [2] Keep hands, hair and clothing away from rollers and other moving parts. [3] Before removing the Projection Lamp Unit, confirm that the machine is turned “OFF”.
  • Page 12 Notes to Operators and Key Operators Interference-Causing Equipment Standard (ICES-003 ISSUE 3) (For Canada Users) This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CE Marking (Declaration of Conformity) (For European Users) This product complies with the following EU directives: 89/336/EEC, 73/23/EEC and 93/68/EEC directives.

  • Page 13: Laser Safety

    Safety Information (MSP 3000 Printer) Laser Safety This printer is a page printer which operates by means of a laser. There is no possibility of danger from the laser, provided the printer is operated according to the instructions provided in this manual. Since radiation emitted by the laser is completely confined within protective housing, the laser beam cannot escape from the machine during any phase of user operation.

  • Page 14: For Denmark

    For Denmark ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funk- tion. Undgå udsttelse for stråling. Klasse 1 laser produkt der opfylder IEC60825 sikkerheds kravene. For Finland, Sweden VAROITUS!: Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle. VARNING: Om apparaten används på...

  • Page 15: For Norway

    Safety Information (MSP 3000 Printer) For Norway ADVARSEL: Dersum apparatet brukes på annen måte enn spesifisert i denne bruksanvis- ning, kan brukeren utsettes for unsynlig laserstråling som overskrider grensen for laser klasse 1. Dette er en halvleder laser. Maksimal effeckt til laserdiode er 8.8 × 10 er 770-810 nm.
  • Page 16 Safety Information (MSP 3000 Printer) OZONE RELEASE (For all Users) During printer operation, a small quantity of ozone is released. This amount is not large enough to cause any adverse affects or harm. However, be sure the room where the machine is being used has adequate ventilation, especially if you are printing a high volume of materi- als, or if the machine is being used continuously over a long period.
  • Page 17 viii Safety Information (MSP 3000 Printer)

  • Page 18: Table Of Contents

    Chapter 2 Scanner 1. System Overview ... 2-2 System Configuration ... 2-3 2. Parts of the Scanner ... 2-4 3. Control Panel Keys and Indicators ... 2-5 Control Panel (Basic) ... 2-5 Control Panel (Shift Function) ... 2-11 When (Misfeed/Call-Tech.-Rep. Code) Lights up ... 2-13 4.
  • Page 19 Replenishing the Paper Supply ... 3-4 Replacing the Toner Cartridge ... 3-7 Clearing Misfeeds ... 3-9 Solving Irregular Printing Problems ... 3-12 Chapter 4 Miscellaneous 1. Specifications ... 4-2 MS6000 MKII ... 4-2 MS6000 MKII+ MSP 3000 Printer ... 4-3...
  • Page 20 Entering and Leaving the User Mode ... 4-6 Settings in Each User Mode Function ... 4-7 System Settings by the dealer ... 4-11 3. System Care ... 4-14 Cleaning the Scanner ... 4-14 Cleaning the MSP 3000 Printer ... 4-15 For Key Operator’s Use ... 4-16 Contents...
  • Page 21 Contents...

  • Page 22: Chapter 1 Safety Notes

    Chapter 1 Safety Notes This chapter provides precautions for use, a description of the oper- ating environment and conditions as well as instructions on how to turn the system ON and OFF.

  • Page 23: Installation Precautions

    An area that is safe from spilled water or other liquids. A dust-free location. NOTE If the Scanner is to be located near a window, do not face the Screen towards the window. Power Source The power source voltage requirements are as follows: Use a power source with minimal voltage fluctuation.

  • Page 24: Space Requirements

    Space Requirements Scanner There should be a clearance of the following dimensions between the wall and the rear of the unit as well as it’s right and left sides to provide ample space for the ventilation ports to dis- sipate heat.
  • Page 25 1. Installation Precautions Printer For ease of operation, maintenance and replenishment of supplies, the minimum clearance di- agrammed below is required. Install the unit in an area that allows easy access. MSP 3000 Printer 150mm 5-7/8" 150mm 5-7/8" 150mm 5-7/8"...

  • Page 26: Operating Environment

    Operating Environment The environmental requirements for operating the system are as follows: Temperature: 10 °C to 35 °C (50 °F to 95 °F) with a fluctuation of 10 °C (18°F) per hour. Humidity: 15% to 85% with a fluctuation of 20% per hour. Using the Printer To ensure the optimum performance of the printer, follow the precautions listed below: NEVER open any Cover, or turn OFF the printer during printing.

  • Page 27: Turning The Power On And Off

    2. Turning the Power On and Off Turning ON Press the Power Switch of the scanner to the I (ON) position. Press the Power Switch of the printer to the I (ON) position. MSP 3000 Printer The Control Panel displays a blinking “1”...

  • Page 28: Turning Off

    Press the Power Switch of the printer to the O (OFF) position. MSP 3000 Printer NOTE The printer and scanner can be turned ON and OFF at the same time by employing a cord that is equipped with an on/off switch saving both time and energy.

  • Page 29: Auto Power Save Mode

    The unit enters the Auto Power Save mode if it is left to stand idle for a predetermined period of time. When the unit enters the Auto Power Save mode, power to the Scanner projection lamp and the printer heater is automatically shut down to save power consumption.

  • Page 30: Chapter 2 Scanner

    Chapter 2 Scanner This chapter identifies different parts of the Scanner and explains its operation.

  • Page 31: System Overview

    1. System Overview Scanner Film Carrier FC-5 RFC-21/22A RFC-9B UC-2 Projection Lens Single Lens 7.5× Zoom Lens 9-16× • Prism Unit • Manual Frame Masking Kit • Foot Switch Kit RFC-15A RFC-15M 13-27× 23-50× • Counter Kit • PC Interface Kit...

  • Page 32: System Configuration

    PC Mode (MS6000 MKII + Personal Computer) The Scanner is connected to a personal computer and the scanned images can be uploaded to the computer. An optional PC interface kit required for connection to a personal computer.

  • Page 33: Parts Of The Scanner

    Many operations are controlled from the keys and indica- tors provided here. Used to turn the Prism Unit built into the Scanner, turning the image on the Screen. Used to change the size and adjust the focus of the image on the Screen.

  • Page 34: Control Panel Keys And Indicators

    3. Control Panel Keys and Indicators Control Panel (Basic) Output Selection Tray Cassette1 Cassette2 User Mode Auto Skew Correction Centering/Fit Auto Masking Manual Text Print Mode Fine Photo Resolution Auto Film Type Nega Posi Job Recall Darker Zoom + Auto Zoom clr Lighter Zoom -...
  • Page 35 3. Control Panel Keys and Indicators Output Selection Key: Auto Skew Correction Key: Select the paper feeding source according to the format of the film image that is being reflected in the screen. * This key is only available on the PR mode. when this lamp is lit: A 90 degree image rotation is performed during printing.
  • Page 36 Centering/Fit Key: When this key is pressed, the setting rotates from OFF to the Centering and Fit functions. When Auto Masking, Trimming, or Masking are set to off, Auto Masking will automatically be enabled when Center- ing is selected. 3. Control Panel Keys and Indicators Centering: Places a screen image that had been searched using Auto masking or an image that has been trimmed in...
  • Page 37 OFF is selected from the Masking state. * Neither Trimming nor Masking are available through the Auto Masking function. * Trimming and Masking cannot be set when the Scanner is connected to the PC. Allows you to fine tune the image quality of the print ac- cording to the original being used.
  • Page 38 Exposure Mode Indica- Auto Exposure mode is indicated when the green Auto tor: light is on. The green Auto light turns off when the Scanner is in the Manual Exposure mode. Multi-Print Display: Shows the number of prints set to be made. Also displays corresponding codes in the event of a malfunction or paper misfeed.
  • Page 39 Start Key: To store one of the following functions into the memory of the Scanner, first set one of the functions on Control Panel and then press this button with the head of a pen or other device. The next time the scanner is turned ON, that func- tion will appear as a default setting until a new one is en- tered.

  • Page 40: Control Panel (Shift Function)

    Control Panel (Shift Function) 3. Control Panel Keys and Indicators Output Selection Tray Cassette1 Cassette2 User Mode Auto Skew Correction Centering/Fit Auto Masking Manual Text Print Mode Fine Photo Resolution Auto Film Type Nega Posi Job Recall Darker Zoom + Auto Zoom clr Lighter...
  • Page 41 When this key is pressed together with the Shift Key, the resolution of the Scanner is set. When the Scanner is connected to the Printer: 4H and 6H When the Scanner is connected to the PC: 2H, 3H, 4H, 6H and 8H * 4H represents 400dpi and 6H represents 600dpi.

  • Page 42: When (Misfeed/Call-Tech.-Rep. Code) Lights Up

    Start Key. This display is blinking when the Scan- ner is in operation. The Scanner is not connected to the PC. Turn ON the PC or connect the Scanner to the PC with the interface cable. 3. Control Panel Keys and Indicators Description See p.

  • Page 43: Misfeed Clearing Procedure

    An aperture card misfeed has occurred in ACF-7. Remove the card that has been misfed in ACF-7. Call-Tech.Rep.Procedure A malfunction has occurred in the system. Code Location Scanner Printer Scanner Printer Scanner NOTE After turning the power to the system OFF and unplugging its power cord from the electrical outlet, contact the authorized dealer, being sure to provide him or her with the currently displayed code (Above code).

  • Page 44: Image Processing Functions

    4. Image Processing Functions Screen Image Print Image Auto Masking (1 Frame) Trimming (1 Frame) Masking (1 Frame) Auto Centering Auto Skew Correction Description The system masks the black bands that run along the edges of the image. The system masks everything but the center of the im- age.
  • Page 45 2-16 4. Image Processing Functions Screen Image Print Image Auto Film Format Select Print Image Zoom Overlay 1234ABCD January 1, 2001 1234ABCD January 1, 2001 Description The unit automatically determines the format (portrait or landscape) of the image on the Screen and prints it as necessary.

  • Page 46: Printing/Scanning

    2. Select and replace the Lens Select the appropriate lens for the type of film being used and install it in the Scanner. 3. Select the Connection Mode Select either PC connection mode or PR connection mode.

  • Page 47: Selecting A Projection Lens

    2-18 6. Selecting a Projection Lens Projection Lenses come in the following four types. Select the one that corresponds to the film being used. Projection Lens Types Film Half 35mm Full Half 16mm Full Source Document This list shows the standard types of film and the recommended zoom ratios of lenses to be used with the unit.

  • Page 48: Replacing The Projection Lens

    7. Replacing the Projection Lens To install a Lens with a magnification different from that already installed in the unit, follow the procedure given below. Take hold of the Prism Holder Lever and pull it up to raise the Prism Holder.

  • Page 49: Zooming And Focusing

    2-20 8. Zooming and Focusing Zooming of the Screen Image Rotate the Zooming Ring Dial to bring the image on the Screen into print size frame. Marked on the Screen are the size frame markers corresponding to the paper size (8-1/2"× 11" or A4). Zoom the film image so that it fits inside the markers.

  • Page 50: Image Rotation

    9. Image Rotation To turn the image on the Screen, turn the Image Rotation Knob. Auto Image Rotation: Turn the Image Rotation Knob on the bot- tom right of the Screen Frame to turn the image. The greater the turning angle of the Image Rotation Knob, the faster the turning speed.

  • Page 51: Selecting The Film Type

    2-22 10. Selecting the Film Type Auto The system will automatically determine the polarity of the film being used when Auto is selected with the Film Type key. Nega/Posi Auto Film Type Nega Posi NOTE • The system cannot determine the polarity of certain types of film.

  • Page 52: Selecting The Image Density

    11. Selecting the Image Density Using Auto Exposure Depress the Exposure Mode Select Button as necessary to select the Auto Exposure Mode. The LED to the left of the key lights up green when the Auto Exposure mode is selected. Darker Auto Lighter...

  • Page 53: Setting The Number Of Prints To Be Made

    2-24 12. Setting the Number of Prints to be Made To Entry the Number of Prints Set the desired number using the Multi-Print Key. NOTE This function is only available on the PR mode. The number that can be entered is 19 max. Correcting Entry To correct an entry, depress the Clean Button, which resets the number on the Multi-Print Dis- play to “1”.

  • Page 54: Selecting The Output Format

    13. Selecting the Output Format Press the Output Selection Key to select the paper source and print format. Selecting the paper source Tray: Prints the film image on paper from the print tray. Cassette 1: Prints the film image on paper from the cassette 1. Cassette 2: Prints the film image on paper from the cassette 2.

  • Page 55: Selecting The Print Format

    2-26 13. Selecting the Output Format Selecting the print format Display Paper Feeding Light OFF Lengthwise Crosswise Light ON Lengthwise Crosswise Blinking Lengthwise Crosswise Description Prints the on-screen lengthwise area. Prints the on-screen crosswise area. Prints the on-screen crosswise area. Prints the on-screen lengthwise area.

  • Page 56: Using Auto Masking

    14. Using Auto Masking The Auto Masking function prevents the frame (non-image area) of a film image from appear- ing on the print. Selecting Auto Masking Press the Auto Masking key to turn ON this function. Operating Conditions for Auto Masking A.

  • Page 57: Manual Masking Panels (Optional)

    2-28 15. Manual Masking Panels (Optional) Vertical Area Indication Panel: Vertical Area Clear Key: Press to clear a previously specified vertical print (scan) Horizontal Area Indica- tion Panel: Horizontal Area Clear Key: Use to specify the vertical print (scan) area of the image on the screen.

  • Page 58: Using Manual Masking

    16. Using Manual Masking The optional Manual Frame Masking Kit allows you to specify an area for printing of the dis- played image through two separate features, Trimming and Masking. NOTE Under the PC mode, the print (scan) area can be defined using the Manual Masking Panels.

  • Page 59: Clearing A Defined Print (Scan) Area

    2-30 16. Using Manual Masking Clearing a Defined Print (Scan) Area Press the Vertical and Horizontal Area Clear keys to clear the defined print (scan) area. 1: Horizontal Area Clear Key 2: Vertical Area Clear Key Selecting Masking Press the (manual) Masking key to select of the image.

  • Page 60: Using Centering And Fit

    Print Image Centering: OFF Centering: ON Fit: OFF Fit: ON Press the Centering/Fit key to turn ON Fit and then press the Start key. Centering/Fit NOTE Fit mode cannot be used when the Scanner is connected to the PC. 2-31...

  • Page 61: Using The Cycle Print Mode

    2-32 18. Using the Cycle Print Mode This function automatically scans the next image following a preset period of time. Images are manually loaded onto the Carrier Glass in between cycles. This is a system setting that must be entered by an authorized dealer. If you want to use the Cycle Print Mode, ask your Tech.

  • Page 62: Operating In The Cycle Print Mode

    Operating in the Cycle Print Mode After entering the Cycle Print Mode, press the Start key to start. Start NOTE • After the first scanning operation has finished, the system will automatically scan the next image following a preset period of time. The system will continue to operate until the Cycle Print Mode is canceled.

  • Page 63: Selecting The Connection Mode

    2-34 19. Selecting the Connection Mode The Scanner connection can be selected between PR (connection to the Printer) and PC (con- nection to the PC). * For the connection to the PC, the optional interface kit is required. Hold down the Shift Key and the PC/PR Key together for over one second.

  • Page 64: Selecting The Resolution

    20. Selecting the Resolution The resolution for scanning (printing) can be selected. Press the Shift Key and the Resolution Key together. The present resolution is displayed. Press the Resolution Key while holding down the Shift Key to set the resolution. Connection mode Resolution 400 dpi...

  • Page 65: Registering The Job Program

    2-36 21. Registering the Job Program The present setting state can be registered in up to 3 program registration locations (1J, 2J and 3J). Press the Memory Input Key in the Setting mode. 1J starts blinking. To change the program registration location, press the Multi-Print Key. The display is switched in order of 1J →...

  • Page 66: Calling The Job Program

    22. Calling the Job Program The registered Job program can be called. Press the Shift Key and the Job Recall Key together. Each time the Job Recall Key is pressed while the Shift Key is held down, the display is switched in order of 1J → 2J → 3J. When the desired setting is displayed, unhand the keys.

  • Page 67: Using The Electrical Zoom

    2-38 23. Using the Electrical Zoom In addition to the zooming by the Lens, the Electrical Zoom function has been provided for magnifying the image when it is printed. NOTE This function is only available on the PR mode. Zoom + When the Zoom+ key is pressed together with the Shift Key, the magnification is increased by an increment of 0.01X (up to 2.00X).

  • Page 68: Clearing The Zoom Magnification

    Clearing the Zoom magnification When the Zoom clr key is held down together with the Shift Key for over one second, the standard magnification is resumed. The standard magnification is fixed according to the selected paper size. Paper size Standard 1.41x 1.22x magnification...

  • Page 69: Adjusting The Illumination Of The Screen

    2-40 24. Adjusting the Illumination of the Screen The illumination of the screen can be adjusted. Hold down the Shift Key and the Illumination Key together to adjust the illumination of the screen. The screen is gradually darkened until it is turned OFF. When any key is pressed, the illumi- nation returns to the maximum level.

  • Page 70: Replacing The Projection Lamp

    Make sure that the replace- ment lamp is specified for use with this scanner. (DC20V 150W DDL type) If the Projection Lamp should burn out during a print operation, an L2 code will appear and the print job will stop (a blank piece of paper may be output depending upon the stage of the job).
  • Page 71 Lamp Holder. Slide the Projection Unit back into the scanner. NOTE If the Projection Unit is not properly installed, power will not be supplied and the scanner will not operate. Mark Turn the Power Switch ON.

  • Page 72: Chapter 3 Msp 3000 Printer

    Chapter 3 MSP 3000 Printer This chapter identifies the different parts of the system and explains the MSP 3000 printer’s operational procedures.

  • Page 73: Parts Of The Printer

    1. Parts of the Printer Upper Unit Lock Release Lever: Power Indicator: Print Tray: Paper Guides: Paper Feeding Tray: (Tray) Cassette 1: Cassette 2: (option) Power Switch: Use to open the Upper Unit. Light indicates when the Printer is turned ON. Prints are output from the Printer, face down onto this tray which can hold up to 500 sheets of standard paper.
  • Page 74 Roller: Fusing Unit: Permanently fixes the image onto the sheet of paper. Interface Connectors: Facilitates connections for the Scanner. * The Printer has two connectors to facilitate connection with two separate Scanner units. Imaging Cartridge: Where the image is generated for transfer onto the sheet of paper.

  • Page 75: Troubleshooting And Maintenance

    2. Troubleshooting and Maintenance Replenishing the Paper Supply Use only the following types of paper: Type Plain and recycled paper (weight 16 to 24 lbs. / 60 to 90 g/m Standard sizes: 11" × 17", 8-1/2" × 11", 8-1/2" × 14" (or A3, B4, A4). Size Capacity Paper Feeding Tray: 8-1/2"...
  • Page 76 Loading Paper into the Paper Feeding Tray (Tray) Swing down the Paper Feeding Tray. Fan the paper stack thoroughly and align the edges. Load the paper stack face up in the tray and adjust the Paper Guides to secure the paper stack. 2.
  • Page 77 2. Troubleshooting and Maintenance Loading Paper in the Paper Cassette Pull the cassette out of the Printer and open the Cover. Press down the Paper Lifting Plate until it locks. Fan the paper stack thoroughly, align the edges, and place the paper in the cassette.

  • Page 78: Replacing The Toner Cartridge

    Replacing the Toner Cartridge Open the upper unit by pulling the Upper Unit Lock Release Lever forward. NOTE Push the Print Tray in before opening the Upper Unit. Remove the old Imaging Cartridge from the printer. 2. Troubleshooting and Maintenance Take a new Imaging Cartridge out of the box.
  • Page 79 2. Troubleshooting and Maintenance Slide the pins located on both sides of the Imaging Cartridge into the grooves of the printer as shown and gently push the Imaging Cartridge securely into place. Close the Upper Unit.

  • Page 80: Clearing Misfeeds

    Clearing Misfeeds • If the Misfeed Code (P0) lights up: The size or the direction of the paper loaded in the paper tray does not match that set for the tray. Load the paper of the set size in the set direction and then open and close the Upper Unit. •...
  • Page 81 3-10 2. Troubleshooting and Maintenance Clearing a Misfeed from the Paper Cassette Open the Upper Unit by pulling the Upper Unit Lock Release Lever forward. NOTE Push the Print Tray in before opening the Upper Unit. Remove the Imaging Cartridge. NOTE Be sure to cover the Imaging Cartridge with a heavy cloth to protect it from light...
  • Page 82 Clearing a Misfeed from inside the Printer Open the Upper Unit by pulling the Upper Unit Lock Release Lever forward. NOTE Push the Print Tray in before opening the Upper Unit. Remove the Imaging Cartridge. NOTE Be sure to cover the Imaging Cartridge with a heavy cloth to protect it from light when it is removed from the Printer.

  • Page 83: Solving Irregular Printing Problems

    3-12 2. Troubleshooting and Maintenance Solving Irregular Printing Problems Use the following procedures to fix minor printing problems. If print quality does not improve after implementing the procedures below, contact the authorized dealer. Symptom Light image Dark image Partial void image Cause Print density is not properly Change the print density...
  • Page 84 Symptom Uneven image density Toner in the Imaging Car- tridge is not evenly distrib- uted. Blank print The Printer has malfunc- tioned. 2. Troubleshooting and Maintenance Cause Action Remove the Imaging Car- tridge, shake it several times and replace. Contact dealer.
  • Page 85 Memo...

  • Page 86: Chapter 4 Miscellaneous

    Chapter 4 Miscellaneous This chapter contains the specifications of the unit as well as pro- vides care and maintenance instructions.

  • Page 87: Specifications

    1. Specifications MS6000 MKII Type: Desk-Top Type Microfilm Scanner Resolution: 200, 300, 400, 600, 800 dpi (PC Mode) 400, 600 dpi (PR Mode: When MSP 3000 Printer is connected) Output Scale: PC Mode: Binary, Grayscale (Option) PR Mode: Binary PC Interface:...

  • Page 88: Ms6000 Mkii+ Msp 3000 Printer

    MS6000 MKII+ MSP 3000 Printer Type: Microfilm Scanner Printer System Printing Method: Laser Electrostatic Resolution: 400, 600 dpi Developing System: Fine Micro-Toning (Fine-MT) System 8-1/2" × 11" (or A4) Crosswise, 11" × 17" (or A3) Lengthwise Print Size: 8-1/2" × 11" (or A4) Lengthwise, 8-1/2" × 14" (or B4) Lengthwise 20 sheets per minute (8-1/2"...

  • Page 89: Initial Settings

    2. Initial Settings This system offers three types of settings: the user settings that are made by the user on the control panel, the settings that are made by the user using with the User Mode, and the system settings that are made by the authorized dealer. User Settings on the Control Panel User Settings Initial Setting...

  • Page 90: User Mode

    Used to set the print pattern for the Date Print function. Used to correct the time-of-day for the Date Print function when it becomes wrong. Used to display the number of scan sequences car- ried out by the Scanner 2. Initial Settings...

  • Page 91: Entering And Leaving The User Mode

    2. Initial Settings Entering and Leaving the User Mode Hold down the Shift key and Output Selection key at the same time for 0.5 sec. The Multi-Print Display displays a “U.” O utput S election U ser M ode S hift Press the Exposure Adjustment key (Darker or Lighter) to select the specific function.

  • Page 92: Settings In Each User Mode Function

    Settings in Each User Mode Function U1: Special Print Mode This function is not available. U2: Engineering Enhancement Mode Slight image distortion occurring in the scan direction can be corrected with this function. Before Correction Select U2 in the User mode. Press the Exposure Mode key to display d*.
  • Page 93 For the USA and Canada only: The Auto Power Save function becomes available for setting only if the Energy Star Kit is mounted on the Scanner. U4: Paper Feeding Tray Size The size and direction of the paper loaded in the Paper Feeding Tray can be set with this func- tion.
  • Page 94 Character Overlay function (*) (*) A personal computer and an I/F kit are necessary only when the overlay data is transmitted to the scanner. U6: Year, Month and Date Set Mode The print pattern for the Date Print function can be set with this function.
  • Page 95 4-10 2. Initial Settings Press the Start key to validate the setting value. Code Print Pattern Year, month, day (2004.05.15) Month day year (05 15 2004) Day month year (15 05 2004) Month, day Hours:minutes (05.15 13:45) Year: 4 digits of dominical year Month: 2 digits Day: 2 digits Hour: 2 digits (24-hour system)

  • Page 96: System Settings By The Dealer

    U8: Total Scan Counter The number of scan sequences carried out by the Scanner can be displayed with this func- tion. 1. Select U8 in the User mode. 2. Press the Start key. The number of scan sequences so far carried out by the Scanner is displayed.
  • Page 97 4-12 2. Initial Settings System Settings Auto Skew Cor- Determines whether or not to retain the rection Retain original (uncorrected) skew of a screen image after the print has been made. Unit ID Printing When two scanners are connected to one (PR mode only) printer, this function leaves an identifica- tion marker on the print so that the scan-...
  • Page 98 System Settings The print func- After a toner empty condition is detected, tion at the time of this function allows you to select either to Toner Empty stop printing or continue printing detection (PR mode only) Auto Film For- The Auto Format Select Print Function is mat Select print enable or disable through the control function...

  • Page 99: System Care

    Screen or erasing the frame size markers. Outer Covers Dust the exterior panels of the Scanner with a soft, dry cloth. Carrier Glass (Option) With a damp cloth, clean and remove any dust or debris from the surface of the Carrier Glass.

  • Page 100: Cleaning The Msp 3000 Printer

    Cleaning the MSP 3000 Printer Clean the Printer at regular intervals. NOTE • Before cleaning the Printer, turn OFF the power and unplug the cord from the power outlet. • Use a soft cloth and NEVER use abrasives or corrosive detergents. Exterior Panels Clean the exterior panels with a soft, dry cloth.

  • Page 101: For Key Operator's Use

    2. Model Name, Serial Number, Condition or System(s) Indication(s) on the Display, etc. For your reference purpose. Model Name Attached Accessories Installation Date Authorized Dealer’s Name TEL. No. Address MS6000 MKII Printer (MSP 3000) Serial No. Serial No. Serial No. Serial No. Serial No. Serial No.
  • Page 102 konicaminolta.com 2004.6 0820-7732-01...
