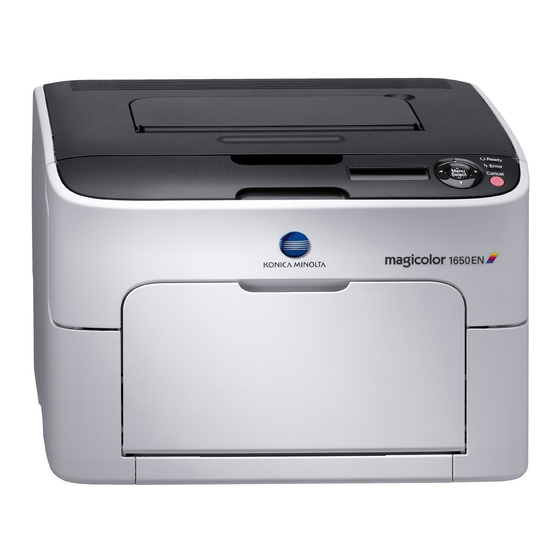

Konica Minolta magicolor 1650EN Firmware Update Manual
Firmware updater guide
Hide thumbs
Also See for magicolor 1650EN:
- Reference manual (317 pages) ,
- User manual (191 pages) ,
- Safety information manual (48 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Konica Minolta magicolor 1650EN
Summary of Contents for Konica Minolta magicolor 1650EN
- Page 1 Firmware Updater Guide magicolor 1650EN magicolor 2550/2550DN magicolor 4650EN/4650DN magicolor 4750EN/4750DN magicolor 5450 magicolor 5550/5570 magicolor 5650EN/5670EN magicolor 7440 magicolor 7450 magicolor 7450II magicolor 4695MF pagepro 4650EN/5650EN bizhub C30P 4138-9560-09A...
-
Page 3: Table Of Contents
Contents 1 Updating the Firmware (for Windows) ............1 System Requirements 2 Starting the Firmware Updater 3 For a Network Connection 6 If Spooling of the Data Fails For a Local Connection 10 If Spooling of the Data Fails When Specifying the IP Address of the Printer 14 If Transferring of the Data Fails 2 Updating the Firmware (for Macintosh) ............ - Page 4 Contents...
-
Page 5: Updating The Firmware (For Windows)
Updating the Firmware (for Windows) -
Page 6: System Requirements
– 128 MB or more Interface: – 10Base-T/100Base-TX/1000Base-T Ethernet – USB 2.0 (High Speed) compliant – Parallel (IEEE 1284) Compatible printer: – magicolor 1650EN – magicolor 2550/2550DN – magicolor 4650EN/4650DN – magicolor 4750EN/4750DN – magicolor 5450 – magicolor 5550/5570 – magicolor 5650EN/5670EN –... -
Page 7: Starting The Firmware Updater
Starting the Firmware Updater CAUTION You must have administrator privileges in order to update the firmware. CAUTION Before starting the firmware updater, turn on the printer, and make sure that it is correctly connected. CAUTION When the firmware is updated, the printer control panel settings may return to their defaults. - Page 8 The printer name and firmware version are displayed. Click the [Next] but- ton. The license agreement is displayed. Select “I agree”, and then click the [Next] button. Starting the Firmware Updater...
- Page 9 The list of printer drivers is displayed. Select the appropriate connection for the environment where the printer is being used. Select “Network port”. → Continue For a Network Connection with page 6. Select “Local port”. → Continue with For a Local Connection page 10.
-
Page 10: For A Network Connection
For a Network Connection When “Network port” is selected, a list of printer drivers for the network port appears. Select the printer driver, and then click the [Next] button. A message appears, requesting confirmation to update the firmware. Click the [Start] button to begin transferring the firmware. For a Network Connection... - Page 11 The result of the firmware transfer is displayed. Click the [Exit] button. If the firmware was successfully updated, the printer will automatically restart. Do not turn off the printer while its firmware is being updated. Print the configuration page from the printer’s control panel to check the settings.
-
Page 12: If Spooling Of The Data Fails
If Spooling of the Data Fails If spooling of the data fails, the following message appears. If spooling fails, data may remain in the printer spooler. Delete this data, and then try again. – (Windows Vista) Click “Control Panel” in the Start menu, then Printers, and then double-click the appropriate printer icon. - Page 13 Check that the printer is ready and that it is correctly connected, and then click the [Update again] button. For a Network Connection...
-
Page 14: For A Local Connection
For a Local Connection When “Local port” is selected, a list of printer drivers for the local port appears. Select the printer driver, and then click the [Next] button. A message appears, requesting confirmation to update the firmware. Click the [Start] button to begin transferring the firmware. For a Local Connection... - Page 15 The result of the firmware transfer is displayed. Click the [Exit] button. If the firmware was successfully updated, the printer will automatically restart. Do not turn off the printer while its firmware is being updated. Print the configuration page from the printer’s control panel to check the settings.
-
Page 16: If Spooling Of The Data Fails
If Spooling of the Data Fails If spooling of the data fails, the following message appears. If spooling fails, data may remain in the printer spooler. Delete this data, and then try again. – (Windows Vista) Click “Control Panel” in the Start menu, then Printers, and then double-click the appropriate printer icon. - Page 17 Check that the printer is ready and that it is correctly connected, and then click the [Update again] button. For a Local Connection...
-
Page 18: When Specifying The Ip Address Of The Printer
When Specifying the IP Address of the Printer When “Printer IP address” is selected, the “Printer IP address” box becomes available. Type in the IP address, and then click the [Next] button. A message appears, requesting confirmation to update the firmware. Click the [Start] button to begin transferring the firmware. - Page 19 The result of the firmware transfer is displayed. Click the [Exit] button. If the firmware was successfully updated, the printer will automatically restart. Do not turn off the printer while its firmware is being updated. Print the configuration page from the printer’s control panel to check the settings.
-
Page 20: If Transferring Of The Data Fails
If Transferring of the Data Fails If transferring of the data fails, the following message appears. Click the [OK] button. Check that the printer is ready and that it is correctly connected, and then click the [Update again] button. When Specifying the IP Address of the Printer... -
Page 21: Updating The Firmware (For Macintosh)
Updating the Firmware (for Macintosh) -
Page 22: System Requirements
Available hard disk space: – Approximately 30~42 MB Memory: – 128 MB or more Interface: – 10Base-T/100Base-TX/1000Base-T Ethernet Compatible printer: – magicolor 1650EN – magicolor 2550/2550DN – magicolor 5450 – magicolor 5550/5570 – magicolor 7450 – magicolor 7450II – bizhub C30P... -
Page 23: Starting The Firmware Updater
Starting the Firmware Updater CAUTION You must have administrator privileges in order to update the firmware. CAUTION Before starting the firmware updater, turn on the printer, and make sure that it is correctly connected. CAUTION When the firmware is updated, the printer control panel settings may return to their defaults. - Page 24 The printer name and firmware version are displayed. Click the [Next] but- ton. The license agreement is displayed. Select “I agree”, and then click the [Next] button. Starting the Firmware Updater...
- Page 25 The screen for specifying the IP address of the printer appears. Type in the IP address, and then click the [Next] button. A message appears, requesting confirmation to update the firmware. Click the [Start] button to begin transferring the firmware. Starting the Firmware Updater...
- Page 26 The result of the firmware transfer is displayed. Click the [Exit] button. If the firmware was successfully updated, the printer will automatically restart. Do not turn off the printer while its firmware is being updated. Print the configuration page from the printer’s control panel to check the settings.
-
Page 27: If Transferring Of The Data Fails
If Transferring of the Data Fails If transferring of the data fails, the following message appears. Click the [OK] button. Check that the printer is ready and that it is correctly connected, and then click the [Update again] button. Starting the Firmware Updater... - Page 28 Starting the Firmware Updater...
