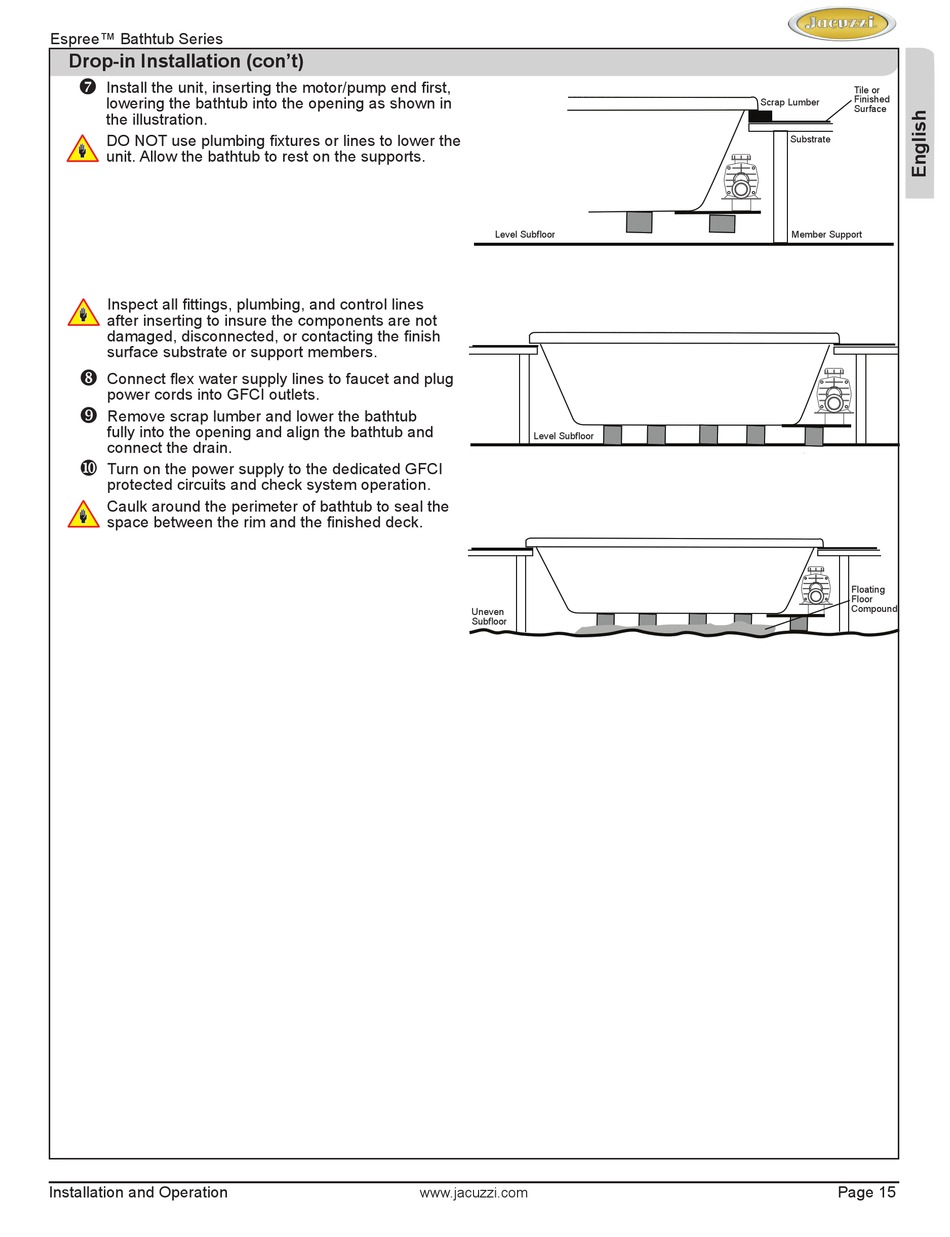

Espree™ Bathtub Series
Drop-in Installation (con't)
X
^
Install the unit, inserting the motor/pump end first,
lowering the bathtub into the opening as shown in
the illustration.
DO NOT use plumbing fixtures or lines to lower the
unit. Allow the bathtub to rest on the supports.
Inspect all fittings, plumbing, and control lines
after inserting to insure the components are not
damaged, disconnected, or contacting the finish
surface substrate or support members.
X
_
Connect flex water supply lines to faucet and plug
power cords into GFCI outlets.
X
`
Remove scrap lumber and lower the bathtub
fully into the opening and align the bathtub and
connect the drain.
X
a
Turn on the power supply to the dedicated GFCI
protected circuits and check system operation.
Caulk around the perimeter of bathtub to seal the
space between the rim and the finished deck.
Installation and Operation
Level Subfloor
Level Subfloor
Uneven
Subfloor
www.jacuzzi.com
Tile or
Finished
Scrap Lumber
Surface
Substrate
Member Support
Floating
Floor
Compound
