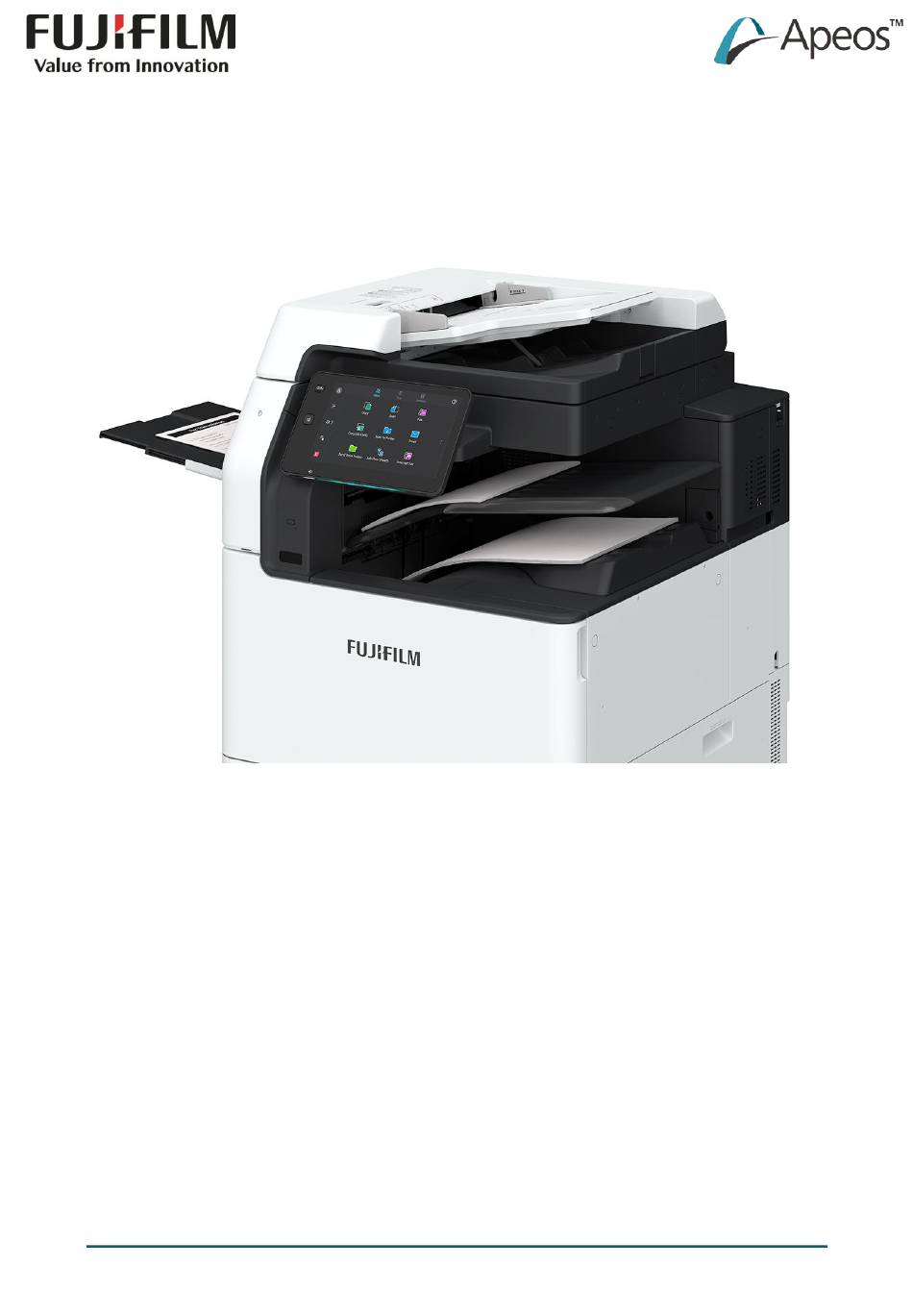

- Page 1 Quick Reference Notes – Daily Care 簡易操作 -日常保養 Apeos 5570 / 4570 Prepared by Customer Training Team © FUJIFILM Business Innovation Hong Kong Limited...
-
Page 2: Table Of Contents
................. 6 Standard Trays ....................6 Tandem Trays ....................7 Bypass Tray ..................... 8 Replacing Toner ....................9 Scan QR Code OR Click here for more instruction. 請掃描 QR Code 或者點擊 查看更多使用説明。 For more online support information please visit 更多相關資料，請訪問以下網址： https://support-fb.fujifilm.com... -
Page 3: Clear Paper Jam
夾紙排解 LEAR APER / 自動雙面送稿裝置 1.1 D UPLEX UTOMATIC OCUMENT EEDER 1. 提起護蓋前的把手，開啟護蓋直到停止位 1. Pull up the front handle of the cover and 置。 open the cover until it stops. 2. 清除原稿。 2. Remove the document. 3. 找不到原稿時，打開原稿蓋，抓著拉桿， 3. If you cannot find the document, open the 開啟反面掃描部，取出原稿。... -
Page 4: Inside Upper Left Cover
左上蓋內部 1.2 I NSIDE PPER OVER 1. While lifting up the Release Handle, open 1. 提起釋放拉桿，開啟左上蓋。 the Upper Left Cover. 1.2.1 Fusing Unit (A1) 熔著部 (A1) 1. 清除卡住的紙張。 1. Remove the jammed paper. 2. 拉出拉桿【A1】。 2. Pull the handle [A1]. 3. -
Page 5: Center Tray Exit (A2)
1.2.2 Center Tray Exit (A2) 中央承接盤輸出口 (A2) 1. 拉出拉桿【A2】。 1. Pull the handle [A2]. 2. 抓著拉桿【A2】，清除卡住的紙張。 2. While holding the handle [A2], remove the jammed paper. Page 4 of 10... -
Page 6: Duplex Unit (A3)
1.2.3 Duplex Unit (A3) 雙面元件 (A3) 1. 清除卡住的紙張。 1. Remove the jammed paper. 2. Pull the handle [A3]. 2. 拉出拉桿【A3】。 3. 抓著拉桿【A3】，清除卡住的紙張。 3. While holding the handle [A3], remove the jammed paper. Page 5 of 10... -
Page 7: Inside Lower Left Cover
左下蓋內部 1.3 I NSIDE OWER OVER 1. 打開左下蓋 1. Open the Lower Left Cover. 2. 清除卡住的紙張。 2. Remove the jammed paper. 標準紙盤 1.4 S TANDARD RAYS 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. -
Page 8: Tandem Trays
複合紙盤 1.5 T ANDEM RAYS 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. 清除卡住的紙張。 2. Remove the jammed paper. 3. 紙張輸送部上有卡紙情況時，拉開【C】。 3. If paper is jammed in the paper feed section, pull out [C]. 4. -
Page 9: Bypass Tray
手送紙盤 1.6 B YPASS 1. 清除卡住的紙張。 1. Remove the jammed paper. Page 8 of 10... -
Page 10: Replacing Toner
更換碳粉匣 EPLACING ONER 先確定裝置已經停止運作，然後開啟前蓋。 1. Make sure that the device is not operating, then open the front cover. 2. Grasp the toner cartridge and pull it out 握住您要更換的碳粉匣的把手，然後將它慢 slowly. 慢地拉出來。 3. Take the new toner cartridge from the 輕輕搖晃新碳粉卡匣。 box and remove all packaging. Page 9 of 10... - Page 11 輕輕來回搖晃新碳粉匣 4 到 5 次，讓碳粉均 4. Gently shake the new cartridge from 勻散開。 side to side ten times to loosen the toner. 箭頭朝上握住碳粉匣，然後將碳粉匣慢慢地 5. Holding the cartridge with the arrow facing up, push it slowly into the device 推入裝置直到卡至定位。 until it clicks into place. 關上前蓋。...
